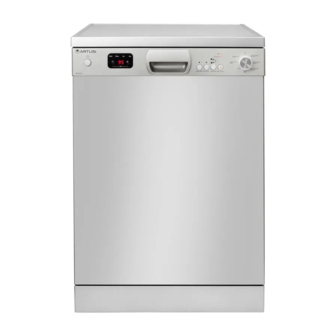

ADW7002
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADW7002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Artusi ADW7002

Summary of Contents for Artusi ADW7002

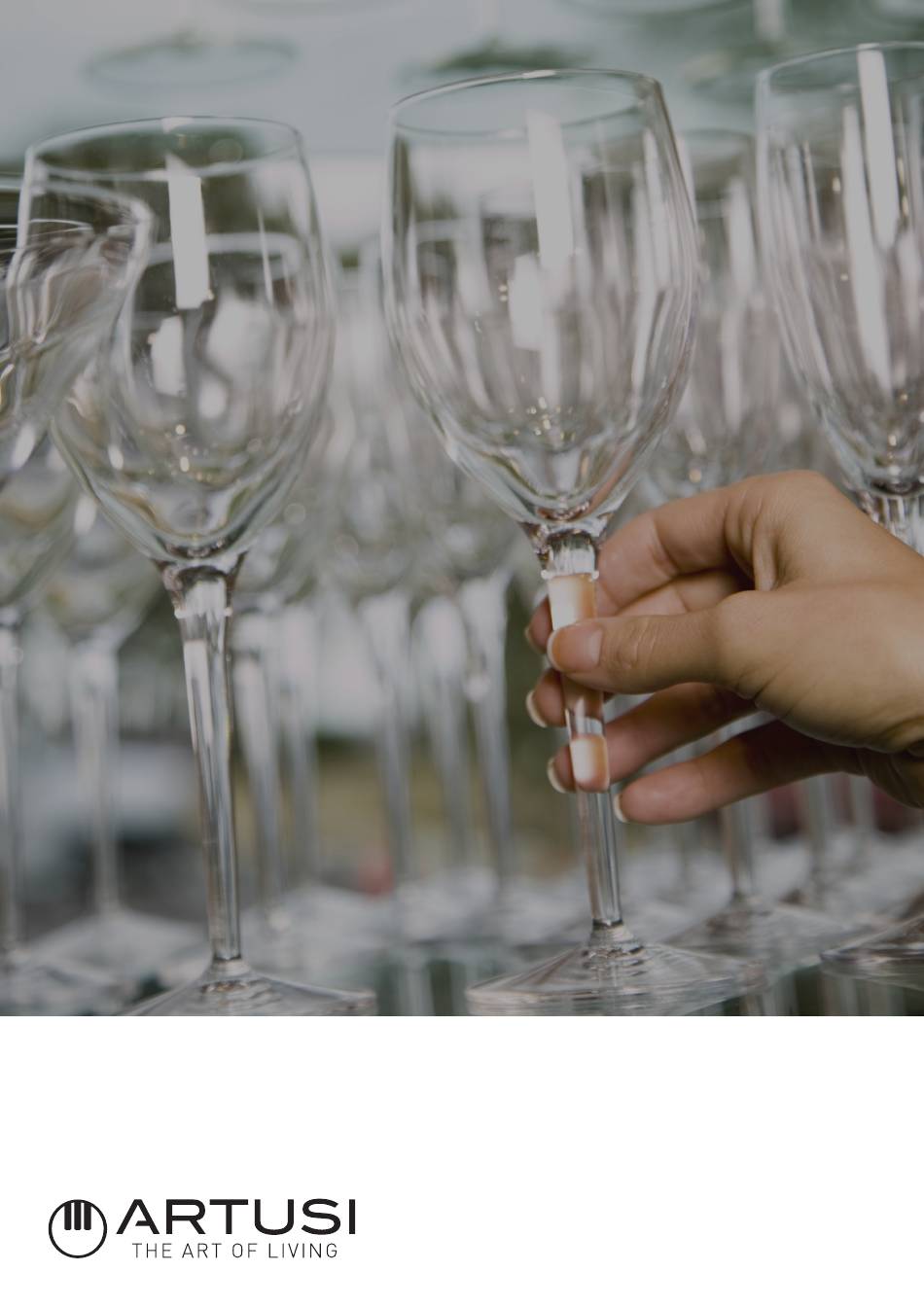

  • Page 1 AP PL I ANC ES FO R L I VI NG ADW7002 OPERATION MANUAL...
  • Page 2 ARTUSI Family. This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.

  • Page 3: Table Of Contents

    CONTENTS Technical specifications …………………………………………………….. • Conformity with the standards and Test data …………………………….. • Safety information and Recommendations………………………………….. Recycling ..………………………............• Safety information …………………………………………………………… • Recommendations …...……………………………………………………… • Items not suitable for dishwashing ………………………………………… • Installing the machine ………………………………………………………….. Positioning the machine …………………………………………………….. •...
  • Page 4 Loading your dishwasher .……………………………………………………. Top basket…………………………………………………………………... • Alternative basket loads …………………………………………………... • Programme descriptions .…………………………………………………….. Programme items ………………………………………………………….. • Getting familiar with your machine ………………………………………… Switching on the machine and selecting a programme……………..Switching on the machine…………………………………………………. • Programme follow-up ……………………………………………………… •...
  • Page 5 Worktop Upper basket with racks Upper spray arm Lower basket Lower spray arm Filters Rating plate Control Panel Detergent and rinse-aid dispenser Cutlery basket Salt dispenser Upper basket track latch Active Drying Unit: This system provides better drying performance for your dishes. Ceiling Spray Arm: It provides better washing for the dishes at upper basket.

  • Page 6: Technical Specifications

    Technical specifications Capacity 15 place settings Height 8 0 mm Height 820 mm (without worktop) Width 598 mm Depth 598 mm Net Weight 46 kg Electricity input 220-240 V, 0 Hz Total Power 00 W Heating Power 800 W Pump Power 100 W Drain Pump Power 30 W...

  • Page 7: Safety Information And Recommendations

    SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
  • Page 8 • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. •...
  • Page 9 mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.

  • Page 10: Recommendations

    For your children’s safety • After removing the machine’s packaging, make sure that the packaging material is out of reach of children. • Do not allow children to play with or start the machine. • Keep your children away from detergents and rinse aids. •...

  • Page 11: Items Not Suitable For Dishwashing

    Items not suitable for dishwashing: • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items,items soiled with abrasive, acidic or base chemicals. • Plastic items that are not heat-resistant, copper or tin-coated containers.
  • Page 12 Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made. Do not grip the machine by its door or panel in order to move Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

  • Page 13: Water Inlet Hose

    Water inlet hose Do not use the water inlet hose of your old machine,if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection.
  • Page 14 Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.

  • Page 15: Electrical Connection

    Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

  • Page 16: Fitting The Machine Undercounter

    Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.
  • Page 17 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product  Without Insulation With Insulation  All Product  For 2nd Basket For 3rd Basket  Height 820 mm 830mm 835 mm Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.

  • Page 18: Prior To Using The Machine

    IF AVAILABLE; Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •...

  • Page 19: Testing Strip

    Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).
  • Page 20 Adjust the water softener according to how hard your tap water is. Move the programme selector knob to the 0 (Reset) position while your machine is not in operation. After resetting your machine, press the Start/Pause button and keep it pressed down. Meanwhile, energise the machine by pressing the Power On/Off button.

  • Page 21: Detergent Usage

    Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

  • Page 22: Filling With Rinse Aid And Making The Setting

    Observe the instructions on packagings when using such products. • If such detergents are in the form of tablets, never put them into the interior section or the • cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser.

  • Page 23: Loading Your Dishwasher

    dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator means that there is rinse aid in the compartment, while a light indicator shows that you need to fill the compartment with rinse aid. The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3.
  • Page 24 Top basket height adjustment Top basket of your machine is in upper position. When it is in this position, you can place big items such as pans, etc. on lower basket. When you take top basket to lower position, you can place and wash big sized plates on the top basket.
  • Page 25 Spoon rack It allows your long-stemmed goblets to be washed safely as well as it is a part to provide your spoons and forks put easily to spoon rack. Do not lean your long-stemmed goblets and glasses against each other but spoon rack, thus during the washing it is ensured your glasses and goblets stay in place and a safe washing by preventing...

  • Page 26: Alternative Basket Loads

    Alternative basket loads Lower Basket Top basket...
  • Page 27 Faulty loads     For detailed information on performance tests, please contact following address:   "dishwasher@standardte ” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.    ...

  • Page 28: Programme Descriptions

    PROGRAMME DESCRIPTIONS Programme items Programme No Prewash Auto Auto Normal Auto Quick 55’60° C Hygiene Extra Hygiene Delicate Intensive (Prewash+Hygiene 60° C) Programme names and 30-50° C 50-60° C 60-70° C 40° C 50° C 60° C 60° C 70° C temperatures Type of food waste Pre-wash to rinse...

  • Page 29: Getting Familiar With Your Machine

    GETTING FAMILIAR WITH YOUR MACHINE 1.) Power On/Off Button 3.) Door Handle When the Power On/Off button is pressed, the lamp on the The door handle is used to open/close the door of your machine. Start/Pause button starts lighting. 4.) Tablet Detergent Button 2.) Remaining Time Indicator Press tablet detergent button when you use combined detergents Remaining Time Indicator displays the program times and...
  • Page 30 Note 1: If you will only make pre-washing, start the machine 8.) Programme selector knob pressing the start/ stop key after pressing the pre-wash key while With the programme selector knob, you can select a suitable the program is at the cancel position. programme for your dishes.

  • Page 31: Switching On The Machine And Selecting A Programme

    SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine The lamp on Program Start/Pause key goes off once the Program starts and the washing lamp is highlighted. Press the Power On/Off key. Select the program suiting your dishes via the Program Selection button.

  • Page 32: Changing A Programme With Resetting

    Changing a programme with resetting If you would like to cancel a program while a washing program is resumed Press once the Power Turn the Program Start/Pause key. Selection Button to Reset The program will have been cancelled when the lamb Finished is on.

  • Page 33: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Note: If the machine door opens during washing or the power is cut off, the machine will go on to the program in case the door is shut or the power is back. Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section.

  • Page 34: Spray Arms

    Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

  • Page 35: Failure Codes And What To Do In Case Of Failure

    FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR DESCRIPTION CONTROL Make sure the water input tap is totally open and that there is no water cut. • Inadequate water supply • Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.
  • Page 36 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.

  • Page 37: Practical And Useful Information

    A detergent without phospate used; try one that contains phosphate. • If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient.
  • Page 38 Office: 2. What is not Covered by the Warranty. 48-50 Moore Street, Leichhardt N.S.W 2040 The Warranty does not apply if an artusi product Post: is defective by a factor other than a defect arising Locked Bag 3000, Annandale, N.S.W 2038...
  • Page 39 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01032014...
  • Page 41 Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
