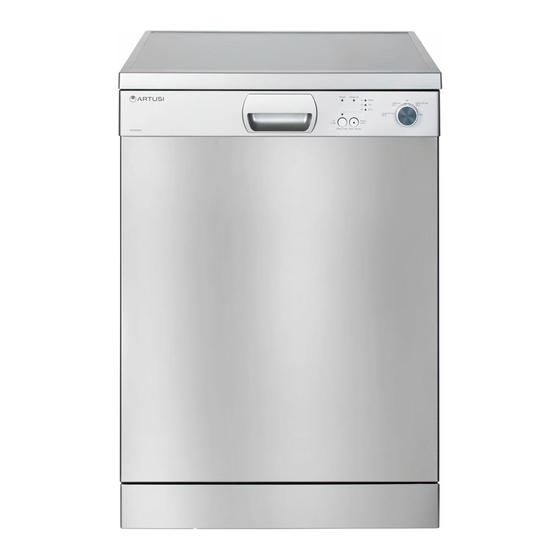

Artusi ADW5002X User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
Dishwasher / User Manual
ADW5002X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADW5002X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Artusi ADW5002X

Summary of Contents for Artusi ADW5002X

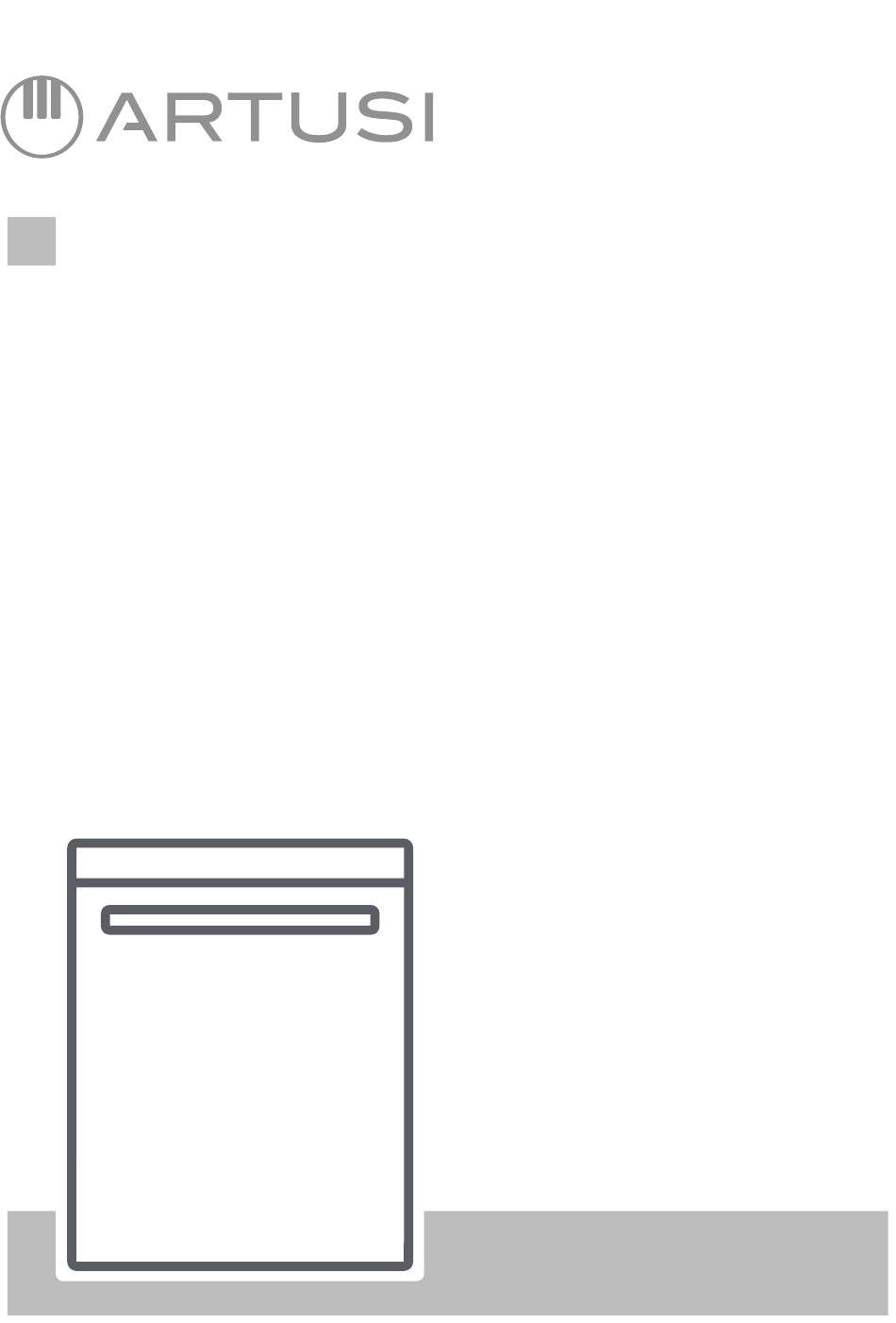

  • Page 1 Dishwasher / User Manual ADW5002X...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................1 1.3. During Use........................2 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 2.6.
  • Page 4 8.CLEANING AND MAINTENANCE ................. 17 8.1. Cleaning the Machine and Filters ................1 8.2. Spray Arms ........................1 9.TROUBLESHOOTING ....................18 10.PRACTICAL INFORMATION ..................20 11.THE PRODUCT FICHE ....................21...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    1.2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
  • Page 7 • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
  • Page 8 be performed by an authorised service company, otherwise the warranty will be void. Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap. Operation at a low voltage will cause a decline in performance levels.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 10: Installation

    2. INSTALLATION new hose before connecting. 2.1. Machine positioning WARNING: Connect the hose directly to the water inlet tap. The pressure When positioning the machine, place it in supplied by the tap should be a minimum an area where dishes can be easily loaded of 0.03 MPa and a maximum of 1 MPa.

  • Page 11: Electrical Connection

    2.5. Electrical connection WARNING: Your machine is set operates at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

  • Page 12: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 46 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) Total power 1900(W) 3.1. General appearance 1. Worktop 2. Upper basket with racks Maximum: 3.

  • Page 13: Water Hardness Table

    NOTE: Level is set 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices. 4.4. Water Hardness Table French British Level German dH Indicator Wash LED is on.

  • Page 14: Filling The Detergent

    4.8. Filling the detergent In order to change the rinse aid level, follow the below steps before turning on Push the latch to open the dispenser and the machine: pour in the detergent. • Turn the knob to the “off” position. Close the lid and press it until it locks in place.

  • Page 15: Loading Your Dishwasher

    5. LOADING YOUR DISHWASHER For best results, follow these loading guidelines. We recommend that you place large items (pots, pans, lids, plates and bowls) which are heavily soiled in the lower basket. The upper basket is designed for delicate and lighter dishware such as glasses, coffee and tea cups and saucers.

  • Page 16: Upper Basket

    5.2 Alternative basket loads Lower basket • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals. • Temperature-sensitive plastics, copper or tincoated containers. • Aluminium and silver objects. •...

  • Page 17: Programme Table

    6. PROGRAMME TABLE Detergent A: 5cm³ Duration Programme Description B1: 15cm³ (min) B2: 25cm³ Quick Quick wash programme for lightly soiled dishes. Standard programme for dishes which are used daily but are not A+B2 heavily soiled. (Reference) A faster programme for dishes which are used daily but are not Super 50’...

  • Page 18: The Control Panel

    7. THE CONTROL PANEL Selection knob to the 'Off' position. During a delay, the light corresponding to the remaining time is switched on. 7.1. Changing a Programme Follow the steps below to change a programme while in operation. Press the Start/Pause button. Rotate the Programme Selection Knob (3) to switch the machine on and select a suitable programme for your dishes.

  • Page 19: Cancelling A Programme

    7.2. Cancelling a Programme NOTE: Do not open the door before the programme is complete. Follow the steps below to cancel a programme while in operation. NOTE: Leave the door slightly open at the end of a wash programme to speed up Press and hold the the drying process.

  • Page 20: Cleaning And Maintenance

    8. CLEANING AND the filters. Replace the filter insert, and MAINTENANCE rotate it clockwise (4). • Never use your Dishwasher without a Cleaning your Dishwasher is important filter. to maintain the machine’s service life. • Incorrect fitting of the filter will reduce Oil and lime may build up in your the washing effectiveness.

  • Page 21: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 22 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.

  • Page 23: Practical Information

    AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE CODE POSSIBLE FAULT WHAT TO DO Start/ Wash Pause Make sure the water inlet tap is open and water is flowing. Insufficient water Separate the inlet hose from the tap and clean the filter of the hose.
  • Page 24 A.B.N. 45868077422 2. What is not Covered by the Warranty. Distributed by Eurolinx pty Ltd The Warranty does not apply if an artusi product is defective by a factor other than a defect arising Office: in the manufacture of the artusi product, including 48-50 Moore Street, Leichhardt N.S.W 2040...
  • Page 25 Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 856 411) 01082016 Artusi Warranty May 2016.indd 2 14/07/2016 4:37 PM...
  • Page 26 52236317 R24...
