Summary of Contents for Artusi ADWFI603

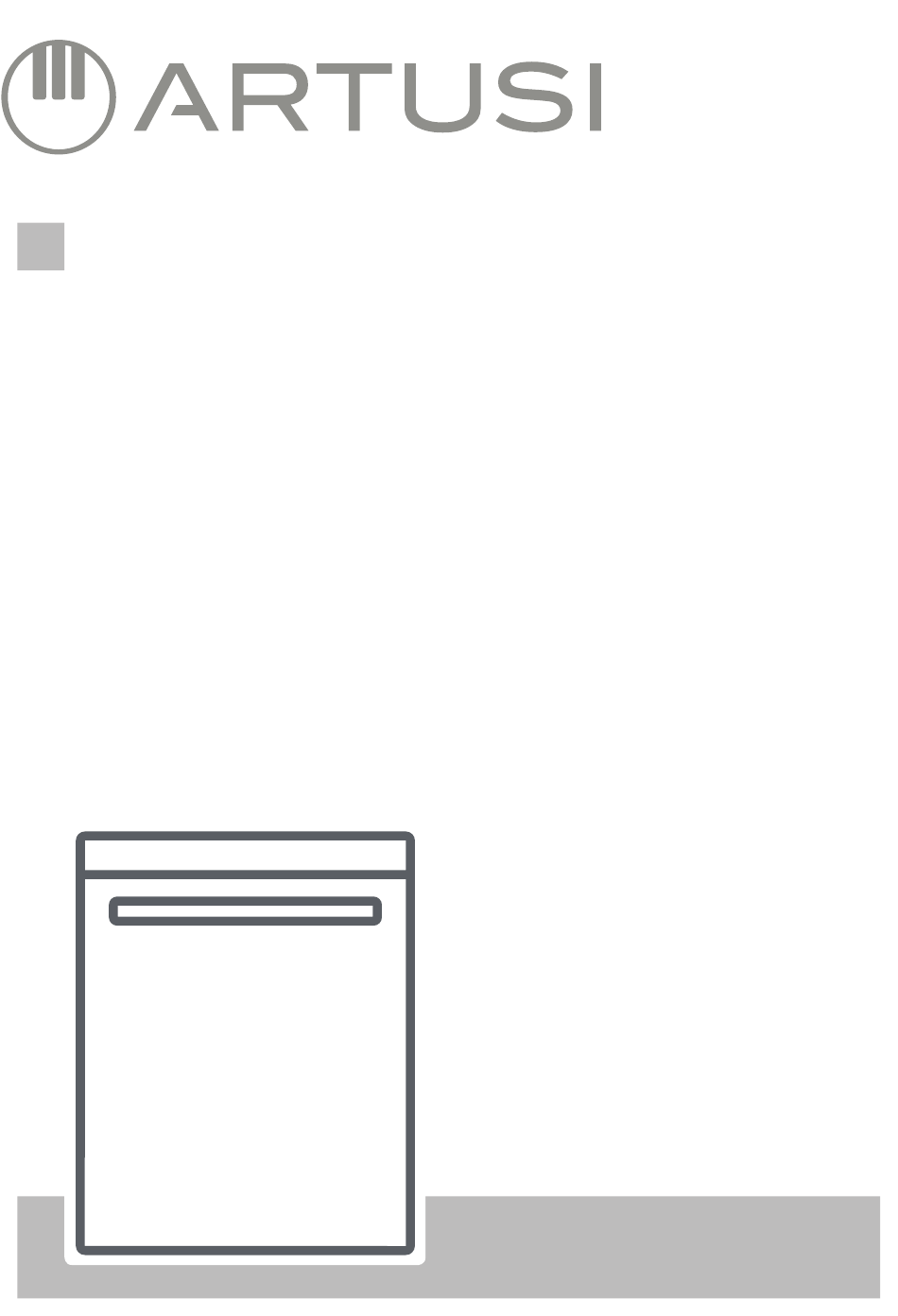

- Page 1 EN Dishwasher / User Manual ADWFI603...
- Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Electrical Connection ....................7 2.5. Fitting the Machine Undercounter .................7 3.TECHNICAL SPECIFICATIONS .................. - Page 4 8.CLEANING AND MAINTENANCE ................. 18 8.1. Filters ........................... 18 8.2. Spray Arms ........................18 8.3. Drain Pump ........................19 9.TROUBLESHOOTING ....................20...
-
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 6: Installation Warnings
2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. -
Page 7: During Use
pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. - Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
- Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
-
Page 10: Installation
2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded. -
Page 11: Electrical Connection
2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications"... -
Page 12: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions 820- Height 870(mm) Width 598(mm) Depth 570(mm 38 kg Net weight Operating 220-240V voltage / 50 (Hz) frequency ventilate cher effica ntilateur: Ce syst efficacement vos Total current 10(A) 3.1. -
Page 13: Before Using The Appliance
4. BEFORE USING 4.4. Using combined detergents THE APPLIANCE These products should be used according to the manufacturer’s instructions. 4.1. Preparing your Never put combined detergents into the Dishwasher for first use interior section or the cutlery basket. • Make sure the electricity and supply Combined detergents contain not only water specifications match the values the detergent but also rinse-aid, salt... - Page 14 • Turn off the machine to save the setting. The factory rinse aid level setting is “4”. If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level. Level Brightener Dose Indicator...
-
Page 15: Loading Your Dishwasher
5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to Height Adjustable Rack (peg type) the capacity indicated by the manufacturer The height adjustable racks enable... - Page 16 Lower Basket Upper Basket Two Folding Racks (12 pc) Height adjustment The folding racks on the lower basket allow Turn the Rail Stop Clips, at the ends of the for the placement of larger items, such as rails, to the sides to open them (as shown in pots and pans.
- Page 17 Spoon rack It allows your long-stemmed goblets to be washed safely as well as it is a part to provide your spoons and forks put easily to spoon rack. Do not lean your long-stemmed goblets and glasses against each other but spoon rack, thus during the washing it is ensured your glasses and goblets stay in place and a safe washing by preventing...
-
Page 18: Alternative Basket Loads
5.2. Alternative basket loads Un chargement incorrect peut entraîner Lower basket de mauvaises performances de lavage et de séchage. Veuillez suivre les recommandations du fabricant pour obtenir un bon résultat. Note importante pour les laboratoires de test. Unsuitable items for dishwashing •... -
Page 19: Programme Table
6. PROGRAMME TABLE Duration Programme Description (min) Standard program for normally soiled daily using dishes with reduced energy and water consumptions. Intensive 65°C Suitable for heavily soiled dishes Auto 99 - 122 Auto program for heavily soiled dishes. Hygiene 70°C Suitable for heavily soiled dishes requiring hygienic washing Super 50’... -
Page 20: The Control Panel
7. THE CONTROL PANEL NOTE: Press and hold the Delay touch button to change the delayed start time faster. The rate of change in time is proportional to the how long the button is pressed and held for. When the Delay Start touch button is pressed for a long period of time, the counter will stop at “h:00”. -
Page 21: Changing A Programme
8. Rinse Aid lack warning indicator When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator will illuminate to indicate the rinse aid chamber needs filling. NOTE: If you decide not to start the selected programme, please see the "Changing a Programme"... - Page 22 Buzzer Sound Control Natural Ion Tech (Model Dependent) To change the buzzer sound level, follow This function provides extra hygiene to the the below steps: machine thanks to Ion Technology. Natural Ion Tech function is activated by pressing 1. Open the door and press Extra Dry / Half Load (6) touch button for 3 seconds.
-
Page 23: Cleaning And Maintenance
8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue. -
Page 24: Drain Pump
8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements. -
Page 25: Troubleshooting
9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. - Page 26 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
- Page 27 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
- Page 28 A.B.N. 45868077422 2. What is not Covered by the Warranty. Distributed by Eurolinx pty Ltd The Warranty does not apply if an artusi product is defective by a factor other than a defect arising Office: in the manufacture of the artusi product, including 48-50 Moore Street, Leichhardt N.S.W 2040...
- Page 29 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 856 411) 01082016...
- Page 30 52231106 R35...
