Solwise 3GWIFIMRD User Manual

3.5g plus wlan desktop server router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

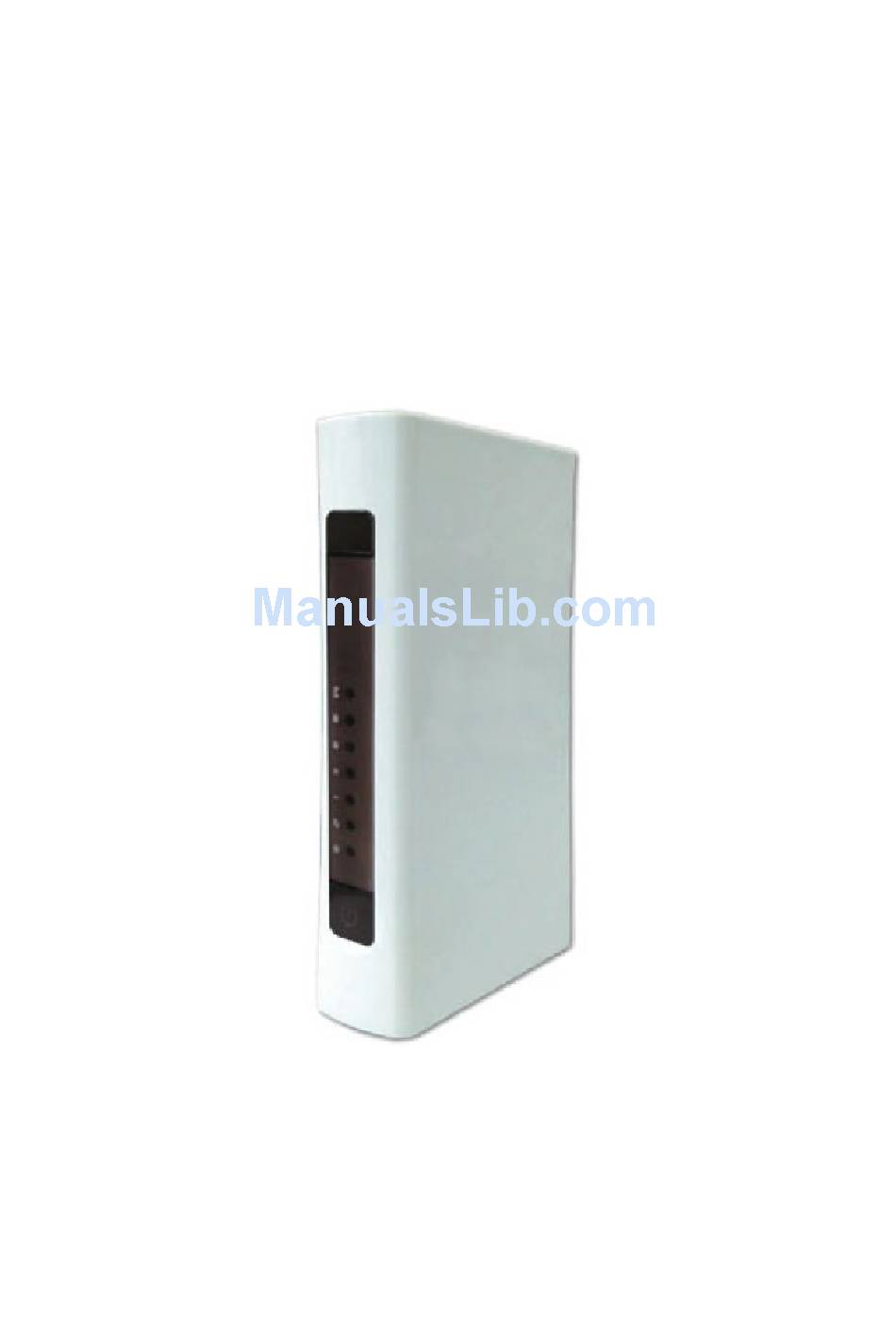

3GWIFIMRD
3.5G plus WLAN Desktop Server Router
User Manual
Version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3GWIFIMRD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solwise 3GWIFIMRD

Summary of Contents for Solwise 3GWIFIMRD

  • Page 1 3GWIFIMRD 3.5G plus WLAN Desktop Server Router User Manual Version 1.0...

  • Page 2: Table Of Contents

    Table of Content SAFE SEATING GESTURES ........................... 8 CHAPTER 1 INTRODUCTION........................9 ..........................9 VERVIEW ..........................10 EATURES ........................11 PECIFICATIONS 1.3.1 LED I ..............12 RONT ANEL AND NDICATORS ESCRIPTION ....................... 12 YSTEM EQUIREMENTS IP A & M ................. 12 UTOMATICALLY ANUALLY Network Testing ................
  • Page 3 3.4.2 LAN ....................50 Wireless ..................51 3.4.3 3.4.4 DDNS.................... 55 ........................... 56 DVANCED NAT ....................57 3.5.1 3.5.2 Firewall ..................59 QoS ....................67 3.5.3 ..........................68 ERVER 3.6.1 Samba Server ................. 68 FTP Server ..................71 3.6.2 3.6.3 Web Camera Server .................
  • Page 4 ........................109 UICK ETUP LAN Setup ................... 111 4.3.1 4.3.2 Wireless Setup................112 4.3.3 Time Server Setup ................. 114 4.3.4 Password Setup ................114 USB Disk Management Setup............114 4.3.5 User Account Management Setup ............. 115 4.3.6 4.3.7 FTP Server Setup ................116 4.3.8 Printer Server Setup...............
  • Page 5 4.9.2 My Document ................157 My Webcam.................. 158 4.9.3 4.9.4 My Status..................158 4.10 ........................... 159 CHAPTER 5 CLIENT MODE ........................160 .................... 160 DMINISTRATOR UICK ETUP ......................161 PERATION ........................162 UICK ETUP 5.3.1 ......................163 URVEY ETUP 5.3.2 Wireless Setup................
  • Page 6 5.6.10 Email Alert ................... 199 & S ........................200 TATUS 5.7.1 Network Configuration..............200 5.7.2 User Account List ................201 Event Log ..................201 5.7.3 ..........................202 OGOUT ....................202 ERSONAL ONFIGURATION 5.9.1 Anonymous ................. 204 5.9.2 My Document ................205 My Webcam..................
  • Page 7 CE Statement of Conformity This product has been tested in typical configuration by Ecom Sertech Corp and was found to comply with the essential requirement of “Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC;...

  • Page 8: Safe Seating Gestures

    Safe Seating Gestures You should follow the manufacturer’s instructions for adjusting the backrest to fit your body properly. An adjustable chair that provides firm, comfortable support is best. Adjust the height of the chair so your thighs are horizontal and your feet flat on the floor.

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview 3.5G plus WLAN Mobile Server Router is a portable and convenient wireless solution for delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps. Use it in conference rooms, hotel rooms, or even at hotspots. The unit supports multiple operation modes, including Access Point (AP) mode, Router mode, and Wireless Client mode.

  • Page 10: Features

    Features 3.5G plus WLAN Mobile Server Router’s main functions, including Wireless Access, Printer Server, Webcam Monitor, Samba Server, FTP Server and IP Sharing etc. are shown as below. These features and their applying instructions specified in User Manual will not only fulfill your requirements, but also ease your inconvenience from the job.

  • Page 11: Specifications

    Specifications Star 9105gu Components Flash ROM 8Mbyte (NAND Gate) DRAM 32MByte WAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX LAN Port 4 x 10/100 Mbps RJ45, with auto MDI/MDIX Interface 2 x Standard _A type—USB 2.0 for 3.5G USB Dongle, USB Webcam, USB2.0 Port USB printer, USB Flash/HDD Wireless...

  • Page 12: Front Panel And Led Indicators Description

    1.3.1 Front Panel and LED Indicators Description Status Solid Flashing LED Indicator Operation OK Transmitting Data WIRELESS Ethernet OK Transmitting Data Internet OK Transmitting Data STATUS Operation OK Reset/Firmware updates in progress Operation OK Firmware upgrade failed POWER System Requirements To begin with 3.5G plus WLAN Mobile Server Router, you must have the following minimum system requirements.
  • Page 13 【 【 【 【 Step 1】 】 】 】 Go to Start>Settings> Network Connections and then select Local Area Connection. 【 【 【 【 Step 2】 】 】 】 Click on Properties Version 1.0...
  • Page 14 【 【 【 【 Step 3】 】 】 】 Double click on Internet Protocol (TCP/IP). 【 【 【 【 Step 4-1】 】 】 】 For getting IP automatically if you are one of the users under 3.5G plus WLAN Mobile Server Router, please skip Use the following IP address and then select Obtain an IP address automatically and Obtain DNS server address automatically and then click on OK button.
  • Page 15 and so on, please skip Obtain an IP address automatically and then select Use the following IP address. And the following default setting of 3.5G plus WLAN Mobile Server Router should be noted: IP Address：192.168.1.10 (as your Print Server for example) Subnet Mask：255.255.255.0 Default Gateway：192.168.1.1 Notice: If you configure your computer’s IP Address manually, it needs to be on the same...

  • Page 16: Network Testing

    1.5.1 Network Testing There are two ways to test your Network whether it can work on Internet or not. They are “Testing with Internet Browser” and “Testing with Dos”. 1.5.1.1 Testing with Internet Browser Open an Internet Browser, such as Internet Explore or Netscape. Input a valid web address you like, for example, http://www.yahoo.com...
  • Page 17 1.5.1.2 Testing with DOS (Windows XP Platform) 【 【 【 【 Step 1】 】 】 】 Go to start > Run. 【 【 【 【 Step 2】 】 】 】 Input cmd in the blank, and then click OK button. The Command Prompt window appears. 【...
  • Page 18 If it can’t work, it will show Request timed out. Version 1.0...

  • Page 19: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Diagram of Connecting Hardware to 3.5G plus WLAN Mobile Server Router 3.5G plus WLAN Mobile Server Router is a portable and convenient wireless solution for the traveling businessmen delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps.

  • Page 20: Ap Mode Hardware Connection And Application

    2.1.2 AP Mode Hardware Connection and Application Under AP Mode, it supports LAN ports as Bridge, and user can connect to 3.5G plus WLAN Mobile Server Router via LAN port or Wireless (WDS). The administrator can set up quickly, including LAN Setup, Wireless Setup, Time Server Setup, Password Setup, USB Disk Management Setup, User Account Management Setup, FTP Server Setup, Web Camera Setup, Printer Server Setup and Samba Setup.

  • Page 21: Chapter 3 Router Mode

    Chapter 3 Router Mode Administrator Quick Setup Instruction Make sure that 3.5G plus WLAN Mobile Server Router is in Router Mode from IP configuration, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.1 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not.

  • Page 22: Operation Mode

    User Name and Password The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter. Notice: Only the password can be changed, please read setup “3.3.5 Password Setup” or “3.7.2 Change Password”. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.

  • Page 23: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.
  • Page 24 Click Basic, you see 5 major items set in Quick Setup Selection. Please click Next button after confirmed. Initiated as default Click Application, you see 8 major items set here, including USB Disk Management Setup, User Account Management Setup, Firewall Setup, QoS Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup and Samba Server Setup.

  • Page 25: Wan Setup (Internet Connection)

    Wireless Setup: Define the Wireless Mode, ESSID, TxRate, Channel and other wireless settings. Time Server Setup: Set time by NTP server or user defines. Password Setup: To change administrator’s password. USB Disk Management Setup: View the entire data folder inside each storage devices, also can do formatting and disk partition.
  • Page 26 Choose Static IP Address if all WAN IP information is provided to you by your ISP. You will need to enter the IP address, IP Netmask and IP gateway as provided. Each entered fields must be in the appropriate IP form, which are four IP octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
  • Page 27 Please click on Next button to go on 3.3.2 LAN Setup. 3.3.1.2 WAN Type – Dynamic IP Choose Dynamic IP to obtain IP address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for Cable modem services.
  • Page 28 Input it if requested by your ISP (Ex: Wireless Mobile Router) MAC address Click on Next button to go on 3.3.2 LAN Setup. 3.3.1.3 WAN Type – PPPoE This option is typically used for DSL services. Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses PPPoE connection.
  • Page 29 Dynamic IP connection is disconnected, the system automatically connects Internet via 3.5G adapter. If 3.5G signal is not available, it starts to search downward for 3/2.75/2.5G signals until none existed. The default interval between the two connection detection is 3 minutes.
  • Page 30 special DSL modem. This kind of modem only supports the PPTP tunnel to access the Internet, you should create a PPTP tunnel that carries a PPP session and terminates on the DSL model. Once the tunnel has been established, this kind of DSL modem will forward the PPP session to the ISP.
  • Page 31 PPTP Server IP, My WAN IP and My WAN Subnet Mask are all necessary inputs. The fields on the left are required. Check to activate Please enter the account’s name and password which provided by your ISP, and then click on Next button to go on 3.3.2 LAN Setup. 3.3.1.5 HSDPA/UMTS If you are using HSDPA/UMTS (3.5G connection) as the WAN Type, please check...
  • Page 32 Always: Stay connected all the time. After the Quick Setup is finished, the Internet • connection is on automatically. If disconnection is detected, the system will carry on re-connection immediately in order to stay online. Dial on Demand: Connect to the Internet when it is needed. After the Quick Setup is •...

  • Page 33: Lan Setup

    select No Default DNS Server. Click on Next button to go on 3.3.2 LAN Setup. 3.3.2 LAN Setup If you are using 3.5G plus WLAN Mobile Server Router with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch. You must assign a unique IP address to each device residing on your LAN.
  • Page 34 compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the router will allow you to access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

  • Page 35: Time Server Setup

    3.3.4 Time Server Setup The section provides time alteration. The Router keeps a record of the current date and time, which is used to calculate and report various performance data, but changing the router’s date and time does not affect the date and time on your PCs. Select your time zone from the “Time Zone”...

  • Page 36: Usb Disk Management Setup

    Notice 2: If you forget administrator’s password, please reset 3.5G plus WLAN Mobile Server Router to default setting by pressing the Reset button on the rear panel over 5 seconds. And the password will return to admin. 3.3.6 USB Disk Management Setup Easy to check all the USB storage devices connected to your 3.5G plus WLAN Mobile Server Router, view the entire data folder inside each storage device, and you can manage the disk formatting/partitioning via click on the button of this page.

  • Page 37: Firewall Setup

    showed in User Account List and can be edited or deleted by clicking the meaning text. Input the User’s name and password, and then click on “Add”, and you will see the user information appear on the “User Account List” Set each user’s right and space arrangement, and then click on Add button for saving user’s account.

  • Page 38: Qos Configuration Setup

    The default setting for Firewall Protection Level security is Low, which attacks Blocking Policy, allow all Inbound and Outbound IP Filter Policy, and allow all router service access policy from WAN. Please change it as your demand, and click on Next button to next step (see also 3.4.2.1 Firewall Configuration).

  • Page 39: Ftp Server Setup

    3.3.10 FTP Server Setup 3.5G plus WLAN Mobile Server Router can be the FTP Server providing users to transmit files, also for the guest to download the files from assigned website. Moreover, by connecting USB HDD, USB Flash to the router, user can easily set up a FTP Server to share or download files for local or remote users.

  • Page 40: Web Camera Server Setup

    3.3.12 Web Camera Server Setup If you plan to use 3.5G plus WLAN Mobile Server Router as a Web Camera site, connect a supported USB Web Camera to the USB port of 3.5G plus WLAN Mobile Server Router. Check to enable the webcam server and WAN access by demand. Click on Next button to next step.

  • Page 41: Quick Setup Finish

    3.3.14 Quick Setup Finish The Quick Setup has been completed successfully when you see this screen. To apply your new settings, please click on Finish button to reboot system automatically and go to the product’s diagram homepage. You may connect to Internet via wired or wireless at this moment according to above settings.
  • Page 42 If you applied for a Static IP connection type from ISP, please follow the steps to set up your WAN connection. 1. IP Address Input your IP Address supplied by ISP. If you don’t know, please check with your ISP. 2.
  • Page 43 This feature requires user to enter user name, password and SIM PIN etc.; also it is working as mutual backup for other 4 WAN Types. That is, setting up the interval time to auto detect whether the Internet connection is lost or not. If yes, the system immediately switches to 3.5G Internet connection until the original connection is back during the next detection.
  • Page 44 1. Host Name The host name is optional; but if your ISP requires you to input a specific host name, please put it in, for example, 3.5G plus WLAN Mobile Server Router applied from ISP. Generally, Cable Modem will provide the hostname information. 2.
  • Page 45 working as mutual backup for other 4 WAN Types. That is, setting up the interval time to auto detect whether the Internet connection is lost or not. If yes, the system immediately switches to 3.5G Internet connection until the original connection is back during the next detection.
  • Page 46 1. User Name Input your user name supplied by ISP. If you don’t know, please check with your ISP. 2. Password Input your Password supplied by ISP. 3. MTU MTU stands for Maximum Transmission Unit. For PPPoE connection, you may need to set the MTU setting in order to work correctly with your ISP.
  • Page 47 1. PPTP Select connect to PPTP by Dial On Demand, Always Online or Manual connects. 2. PPTP Account Input the PPTP Account supplied by ISP, 3.5G plus WLAN Mobile Server Router, for example. If you don’t know, please check with your ISP. Notice: Don’t copy the mentioned example as yours.
  • Page 48 5. PPTP Server IP Input the Server IP supplied by ISP. If you don’t know, please check with your ISP. Input the WAN IP address provided by your ISP. 6. My WAN Subnet Mask Input the WAN Subnet Mask supplied by your ISP. If you don’t know, please check with your ISP.
  • Page 49 When 3.5G signal cannot be reached, the system starts to search downward for 3/2.75/2.5G signals until none existed. 1. 3.5G This feature requires user to enter user name, password and SIM PIN etc.; also it is working as mutual backup for other 4 WAN Types. That is, setting up the interval time to auto detect whether the Internet connection is lost or not.

  • Page 50: Lan

    Connect to the Internet by setting up each time. After the Setup is finished, user has to go to Network Configuration page to manually set up the connection and disconnection. 5. DNS If ISP provides you DNS information, please select Specify DNS Server IP and input the DNS information into the blank;...

  • Page 51: Wireless

    8. DNS This field indicates the IP address of DNS to provide to clients that request IP Address from DHCP Server, the default setting is the same with LAN IP address. 9. WINS The Windows Internet Naming Service manages interaction of each PC with the Internet. If you use a WINS server, enter IP Address of server here.
  • Page 52 1. Wireless Select AP/Bridge or WDS to allow or disallow the wireless operation. 2. Wireless Mode This field indicates the 802.11g interface mode. “802.11G” prevents the 802.11b clients from accessing the router. “802.11B/G” allows both 802.11b and 802.11g clients to access the router.
  • Page 53 Select the transmission rate for the network. The default setting is Auto. 5. Channel IEEE 802.11g and 802.11b devices are direct sequence spread spectrum devices that spread a radio signal over a range of frequencies. The range of frequencies used by a direct sequence device is called Channel.
  • Page 54 Privacy (WEP) algorithm. Select the type of encryption you want to use (64 or 128 bit) and configure one to four WEP Keys. The “1280bit” method is more secure than the “64-bit”. Key Type: For 64bits WEP key, either 5 ASCII characters or 10 hexadecimal digitals leading by 0x can be entered.

  • Page 55: Ddns

    ASKII: The 8~63 ASCII characters can be entered, for example, “0123456789ABCD….” Radius with 802.x: Check this circle to enable Radius client function. WPA Rekey Timer: Allows for the session keys to be refreshed over time, minimizing the amount of data that is encrypted with the same session key. RADIUS Server IP: The IP address of RADIUS server.

  • Page 56: Advanced

    Dynamic DNS allows you to make an assumed name as a dynamic IP address to a static Please hostname. Please configure the dynamic DNS below. select DDNS under the IP Config menu, and follow the instructions below to enter the DDNS setting page to configure the settings you want.

  • Page 57: Nat

    There are NAT settings, Firewall setting and QoS setting included in advance setup. The advanced setting is in Router Mode only. 3.5.1 NAT is a method of mapping one or more IP addresses and/or services ports into different specified services, where NAT stands for Network Address Translation. It allows the internal IP addresses of many computers on a Local Area Network (LAN) to be translated to one public address, saving users’...
  • Page 58 1. Enable Virtual Server: Check Enable to apply all those rules in Virtual Server List into 3.5G plus WLAN Mobile Server Router. 2. Description: Enter the description of the virtual server, this field allows you to record what this rule is used for. 3.

  • Page 59: Firewall

    Virtual DMZ allows you to expose one computer to Internet, so that all inbound packets will be redirected to the computer you set. It is useful while you run some applications that use uncertain incoming ports. Please use it carefully. 1.
  • Page 60 1. Firewall Protection Level: Select the level from the drop-down list, including High, Medium and Low. The below screen including SPI service and ICMP setting will change according to your level setup. 2. Enable SPI Service: 3.5G plus WLAN Mobile Server Router often monitor a wider range of activity, such as patterns of traffic and the type of application sending traffic.
  • Page 61 3. Blocking ICMP Ping from WAN side: The purpose of ICMP is to provide feedback regarding the network and datagram, it is not to make IP a reliable transport mechanism. ICMP messages use a basic IP datagram header with the IP data being the ICMP message.
  • Page 62 attackers if the ISN (Initial Sequence Number) is generated randomly. Forged packets with valid sequence numbers can be used to gain trust from the receiving host. Attackers can then gain access to the compromised system. Note that this attack affects only the TCP packets originated or terminated at the Internet Security Router. Sequence Number Out of Range Check: Protect against TCP out of range sequence number attacks.
  • Page 63 3.5.2.2 IP Filter Use IP Filter to deny LAN IP addresses from accessing the Internet. You can deny specific port numbers or all ports for the specific IP address. 1. Enable IP Filter: Check enable or disable to apply IP Filter function. 2.
  • Page 64 3. Source: To specify the appropriate IP address / mask and enter the source port number. 4. Destination: Allows you to set the destination address / mask to which this rule should apply and enter the source port number. 5. In/Out: Select inbound or outbound ACL (Access Control List) rules, you can control (allow or deny) incoming or external network access to computers on your LAN.
  • Page 65 1. MAC Filter Action: To deny or allow all MAC filter action. 2. Enable MAC Filter: Check enable or disable to apply MAC Filter function. 3. Enable Log: All packets between WAN and LAN will be logged. 4. Description: Enter the filter description into this blank. 5.
  • Page 66 1. Enable URL Filter: Check enable or disable to apply URL filter function. 2. Enable log: All packets between WAN and LAN will be logged. 3. Description: Enter the filter description into this blank. 4. URL keyword: Enter the URL words into this blank to apply filter blocking, example: “www.yahoo”, then it’ll block all the websites from www.yahoo range.

  • Page 67: Qos

    3.5.3 Quality of Service (QoS) refers to the capability of a network to provide better service to selected network traffic over various technologies, including Frame Relay, Asynchronous Transfer Mode (ATM), Ethernet and 802.1x networks, and IP-routed networks that may use any or all of these underlying technologies. The primary goal of QoS is to provide priority including dedicated bandwidth, controlled jitter and latency (required by some real-time and interactive traffic), and improved loss characteristics.

  • Page 68: Server

    1. Enable QoS Service: One checkbox appears to activate the QoS control function or not. Click it to force the router to perform QoS control over traffic flows. By default, it’s enabled. 2. Current Upstream Bandwidth: Allows you to set the upper bound of the port forwarding rate.
  • Page 69 1. Enable Samba Server Check to Enable/Disable while connecting. 2. Workgroup Name Fill in the name, and the default is WORKGROUP. 3. Server Name Name your server. 4. Server Description Describe your server by demand, and the default is Wireless Mobile Router. 5.
  • Page 70 【Step 2】 Fill in blank address field with \\192.168.1.1. 【Step 3】 A window pops up asking for user name and password. If log in as an administrator, please enter admin for both fields; otherwise, fill in with personal account and password. Click OK after finished.

  • Page 71: Ftp Server

    Note: Only 2 icons show up at most. If a USB flash drive/hard disk is connected and enabled, the samba folder shows up. If a USB printer is connected and enabled, the printer icon shows up. 3.6.2 FTP Server By directly connecting USB storage devices to any USB port, FTP server can be created with simple configuration.

  • Page 72: Web Camera Server

    While USB storage device is plugged, FTP Server can be checked as enabled. 1. Enable FTP Server: Enabling selection for FTP Server only can be checked when USB storage device is plugged. 2. Enable Anonymous to Login: Allow anonymous to log in after check on enable. 3.
  • Page 73 3.6.3.1 Web Camera Server Basic Setup 1. Enable Webcam Server: Allow using this function by checking on enable. 2. Access from WAN: Allow webcam can access from WAN side by checking on enable for this item. 3. Image format: The default is 320x240 pixels. 4.
  • Page 74 HDD or remote FTP; if select save to remote FTP, please continue follow-up remote FTP setting. 4. USB HDD Directory: The section provides option of which folder should be used for saving webcam image. 5. Remote FTP URL: Input the FTP URL for saving webcam image. 6.
  • Page 75 Router; one can set up the monitoring or recording of all images into the USB HDD for reviewing. Often marketed as surveillance tools for home or office security; network Webcams are now being employed by early adopters for more personal matters, such as watching kids and monitoring pets.
  • Page 76 Input the WAN IP Address (as you see on above screen) into browser blanks. You will see the personal account login screen appear, and then input your own user account and password. After logging in as a user, your will see the personal control panel screen as below, please click on My Webcam.
  • Page 77 Please fill the WAN IP address plus “/webcam.html” (e.g. http://210.64.134.25/webcam.html) into the mobile phone’s browser blank and you will see the webcam user login screen appear as below. After logging in with your own account, you will see the monitor image from web camera via WiFi mobile phone.
  • Page 78 3.5G plus WLAN Mobile Server Router also can record the pictures from Webcam; only Administrator can activate the settings. Select Web Camera Server from main Menu and enable this function, click on Record Setting button for further setting. To set up the Webcam Advanced Configuration for each text field, the image from webcam will be recorded into your USB HDD or Remote FTP.
  • Page 79 After click on Disk Explorer, you will see the folder screen appear including all the folders inside 3.5G plus WLAN Mobile Server Router. (Below is the example.) For getting the images from web camera or any files inside router, you may copy the files into your HDDs...

  • Page 80: Printer Server

    After click on My Document, you will see folder screen appear as the example below. Notice: If you can’t open the folder, please check with administrator to set up your FTP access right. 3.6.4 Printer Server Version 1.0...
  • Page 81 3.5G plus WLAN Mobile Server Router has two USB ports for connecting with printers to be shared on the local area network. Follow the steps to set up your PC to connect to a printer server. 1. Enable Printer Server: Check enable for applying printer server. 2.
  • Page 82 【 【 【 【 Step 1】 】 】 】 After setting USB printer on 3.5G plus WLAN Mobile Server Router’s setup page, please go to Start > Printers and Faxes to add a printer. 【 【 【 【 Step 2】 】 】 】 Click on Add a printer item.
  • Page 83 【 【 【 【 Step 4】 】 】 】 Select Local printer attached to this computer, and click Next. 【 【 【 【 Step 5】 】 】 】 Select Create a new port and choose Standard TCP/IP Port from drop-down list, then click Next.
  • Page 84 【Step 6】 Click Next. 【Step 7】 Put in 3.5G plus WLAN Mobile Server Router’s address: 192.168.1.1 and click Next. Version 1.0...
  • Page 85 【Step 8】 Select Custom and click on Settings… button to set the detail setting. 【Step 9】 Select LPR and give it the same Queue Name as USB Printer Name has shown, and mark LPR Byte Counting Enabled. Finally, click on Next button. Version 1.0...
  • Page 86 It has to be the same with the Printer Name as shown in section 3.6.4 Printer Server Configuration. 【Step 10】 Click Finish on the next screen after the aforesaid settings, you have to install the printer driver as well. 【Step 11】 Select the Manufacturer and Printers.
  • Page 87 insert its driver CD and then click on Have Disk… button for installation. Or click on Next button to finish the setting. You can name your printer, set it as default printer and share your printer as the next screen shown, the Printer Server setting is getting completed. 【Step 12】...

  • Page 88: System Management

    System Management 3.5G plus WLAN Mobile Server Router provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each. 3.7.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your 3.5G plus WLAN Mobile Server Router by this setting.

  • Page 89: Firmware Upgrade

    1. Old Password: Enter the original password you set. 2. New Password: Enter the new password you want to change. 3. New Password (Confirm): Enter the new password again for confirming. 4. Apply & Cancel Click Apply to continue or Cancel to clear the settings on this page. 3.7.3 Firmware Upgrade There is certain risk while upgrading firmware.

  • Page 90: Profile Sasve

    1. Update Firmware: Click on Browse… button to search your local hard drive and locate the firmware to be used for update. 2. OK & Cancel Click OK to confirm or click Cancel to clear the setting on this page. Notice: Before using a whole new disk, please format it on your PC first, so that it can be formatted on 3.5G plus WLAN Mobile Server Router.

  • Page 91: Remote Management

    1. Save Settings To PC: Click on Save button for saving the configuration setting into assigned location. 2. Load Settings From PC: Click on “Browse…” button for searching the saving configuration from hard drive, and then click on Load button to load all the settings into the router.
  • Page 92 1. HTTP Connection Port: The port number used to access the router. 2. Remote Management: You can allow any Internet IP address to access the router, or set up deny rule according to IP setting. 3. IP Address: Internet IP address of the computer that has access to the router. 4.

  • Page 93: Time

    3.7.6 Time The System time is the time used by 3.5G plus WLAN Mobile Server Router for scheduling services. You can manually set the time or connect to a NTP (Network Time Protocol) server. If a NTP server is set, you will only need to set the time zone. If you manually set the time, you may also set Daylight Saving dates and the system time will automatically adjust on those dates.

  • Page 94: Upnp Setting

    7. Apply & Cancel Click on Apply button to activate, or Cancel button to clear the settings. 3.7.7 UPnP Setting UPnP (Univsersal Plug and Play) allows users to connect their UPnP-enabled broadband router, printer server and other devices right to the network with zero-configuration, meaning easier setup for installing the device on the network.
  • Page 95 1. Max Login User: Set up the maximum users to log in at the same time, select the number from drop-down list. If you want to change the maximum login users only without changing user’s information, please click on OK button after select login user’s number.

  • Page 96: Folder Management

    4. User Right: Check to allow set-user accessing Samba folder, monitoring from webcam or using FTP server. 5. Activated: Click On to allow the user’s right to be applied immediately. 6. Add, Apply & Cancel After finishing the above, click Add button to create user account. Click on Apply button to add set-user into the account list or Cancel button to clear the settings on this page.

  • Page 97: Email Alert

    Notice: You have to click on Unplug button before removing the USB device from 3.5G plus WLAN Mobile Server Router. 3.7.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet.
  • Page 98 1. Email Alert: Check the enable box to activate the email alert service. 2. SMTP Server: Specify an IP address of the SMTP server which can send mails from your 3.5G plus WLAN Mobile Server Router to the recipients’ mailboxes directly. 3.

  • Page 99: Log & Status

    11. Refresh & Delete Click on Refresh to renew the login data and other system status information, or click on Delete to clear these logs. Log & Status 3.5G plus WLAN Mobile Server Router provides the log list, connection status and user’s account.

  • Page 100: User Account List

    3.8.2 User Account List This section shows all users’ information. Check the user name, status and opened directory/file on screen. Version 1.0...

  • Page 101: Event Log

    3.8.3 Event Log 3.5G plus WLAN Mobile Server Router provides system logs for review. The system status log shows logging time, type and detail information as below. Click Refresh to update. Logout Click Logout on the bottom menu to exit and go back to GUI login home page as illustrated on next page.
  • Page 102 Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not. If you don’t know how to do this, please refer to 1.5 Get your IP Automatically & Manually. Homepage Click Personal Panel and log in with your own user account. (If you can’t access your personal account, please check with administrator for validation.) Personal Panel Screen below shows every login user’s access rights, including Anonymous, My...

  • Page 103: Anonymous

    3.5G plus WLAN Mobile Server Router provides personal control panel for every login user’s entrance to each application screen, please click on each icon for various applications. The icons appearing in gray color can’t be clicked if the user doesn’t have the right to use that function;...

  • Page 104: My Document

    Notice: If you can’t access Anonymous folder, please check with administrator to enable your FTP server rights. Files under this directory are only for downloading, but not for uploading, deleting, or edting. 3.10.2 My Document “My Document” shows all the files in USB HDD under each user’s account.

  • Page 105: My Webcam

    3.10.3 My Webcam “My Webcam” application allows you to view the real time image when the web camera is on. Click My Webcam, and the system pops up a new window to display real time image as the example below shows. Notice: If you can’t view the real-time image, the cause may be the setting of Internet Security and needs to be adjusted, or to install the Java program 3.10.4...

  • Page 106: 3.11 Site Map

    Notice: All above usage information is based on administrator’s setup. 3.11 Site Map 3.5G plus WLAN Mobile Server Router provides site map clicking for each icon to carry out the easy setup from the home page. Version 1.0...

  • Page 107: Chapter 4 Ap Mode

    Chapter 4 AP Mode Administrator Quick Setup Instruction Manually switch into AP Mode via Operation Mode configuration, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.254 (Default Gateway) into browser’s blank field. Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not.

  • Page 108: Operation Mode

    User Name and Password The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter. Notice: Only the password can be changed, please read setup 4.3.4 Password Setup or 4.6.2 Change Password. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.

  • Page 109: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.
  • Page 110 Click Basic, you see 4 major items set in Quick Setup Selection. Please click Next button after confirmed. Initiated as default Click Application, you see 6 major items set here, including USB Disk Management Setup, User Account Management Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup and Samba Server Setup.

  • Page 111: Lan Setup

    using personal services of your 3.5G plus WLAN Mobile Server Router for each user. FTP Server Setup: To enable FTP server and set controlling rules. Printer Server Setup: To enable /disable server. Web Camera Setup: To enable Web camera function. Samba Server Setup: To enable Samba server for shared documents and printer.

  • Page 112: Wireless Setup

    4.3.2 Wireless Setup There are 2 ways of hardware connection via Wired upper link and Wireless upper link. First step is to name your ESSID, and the default value is Wireless_Mobile_Router. Please follow the illustrations below to proceed. Select AP/Bridge from the drop-down list. You can use the default ESSID unless more than one AP/Router is deployed in the same area.
  • Page 113 Select WDS from drop-down list. 6 is the default channel. Both 2 APs must share the same channel. (The wireless adapters will automatically scan and match the wireless setting.) Optional. The MAC address should be associated with another wireless device setting. Moreover, WDS (Wireless Distribution System) is a Wireless Access Point mode that enables wireless bridging in which WDS APs communicate with each other only (without allowing for wireless clients or stations to access them), and/or wireless repeating in which...

  • Page 114: Time Server Setup

    4.3.3 Time Server Setup 3.5G plus WLAN Mobile Server Router shows local date and time; however, the time still can be changed manually by selecting from the drop-down list, which won’t effect the original time setting on your PC. After completed, click Next to proceed. 4.3.4 Password Setup Here suggests changing the password for logging into the configuration manager in terms...

  • Page 115: User Account Management Setup

    Easy to check all the USB storage devices connected to your 3.5G plus WLAN Mobile Server Router, view the entire data folder inside each storage device, and you can manage the disk formatting/partitioning via click on the button of this page. Select the USB Disk and click OK for refreshing all disks before you do disk partition, and the Unplug button will appear.

  • Page 116: Ftp Server Setup

    Input the User’s name and password, and then click on “Add”, and you will see the user information appear on the “User Account List” Set each user’s right and space arrangement, and then click on Add button for saving user’s account. Click on Next button after finished. 4.3.7 FTP Server Setup 3.5G plus WLAN Mobile Server Router can be the FTP Server providing users to transmit...

  • Page 117: Printer Server Setup

    4.3.8 Printer Server Setup 3.5G plus WLAN Mobile Server Router supports LPR-protocol, as well as NetBIOS, and is convenient for sharing printer. In other words, it is an Internet access solution for your LAN/WAN, which provides you the shared web surfing, and supports USB interface printer. Any users in the same subnet of 3.5G plus WLAN Mobile Server Router can print their document via the network printers.

  • Page 118: Quick Setup Finish

    Click on Next button to next setup. 4.3.11 Quick Setup Finish The Quick Setup has been completed successfully when you see this screen. To apply your new settings, please click on Finish button to reboot system automatically and go to the product’s diagram homepage. You may connect to Internet via wired or wireless at this moment according to above settings.
  • Page 119 Use this page to set up the local IP address and subnet mask for your router. Please select LAN under IP Config directory and follow the instructions below to enter the LAN setting page to configure the settings you want. 1.

  • Page 120: Wireless

    This field specifies the last address in the pool to be assigned by the DHCP server in your local network. The default setting is 253. 7. Advanced Enable the advance setting and then set up the Router, DNS and WINS value. 8.
  • Page 121 1. Wireless Select AP/Bridge or WDS to allow or disallow the wireless operation. 2. Wireless Mode This field indicates the 802.11g interface mode. “802.11G” prevents the 802.11b clients from accessing the router. “802.11B/G” allows both 802.11b and 802.11g clients to access the router.
  • Page 122 direct sequence device is called Channel. The 802.11g and 802.11b specification supports up to 14 overlapping Channels for radio communication. But only 11 Channels are supported in the United States and therefore built-in on 3.5G plus WLAN Mobile Server Router. To minimize interference, configure each of 3.5G plus WLAN Mobile Server Router to use Non-overlapping channels.
  • Page 123 leading by 0x can be entered. For 128bits WEP key, either 13 ASCII characters or 26 hexadecimal digits leading by 0x can be entered. Note: 128 bits WEP is most secure, but has more encryption/decryption overhead. Note that all wireless devices must support the same WEP encryption bit size and have the same key.

  • Page 124: Server

    Radius with 802.x: Check this circle to enable Radius client function. WPA Rekey Timer: Allows for the session keys to be refreshed over time, minimizing the amount of data that is encrypted with the same session key. RADIUS Server IP: The IP address of RADIUS server. RADIUS Server Port: The UDP port number that the RADIUS server is listed.

  • Page 125: Samba Server

    4.5.1 Samba Server By supporting NetBIOS Protocol, 3.5G plus WLAN Mobile Server Router provides LAN users to share files or printer via My Network Places. Click Samba Server to proceed. 1. Enable Samba Server Check to Enable/Disable while connecting. 2. Workgroup Name Fill in the name, and the default is WORKGROUP.
  • Page 126 Please follow the steps below. 【Step 1】 Go to Start and click My Computer. 【Step 2】 Fill in blank address field with \\192.168.1.254. 【Step 3】 A window pops up asking for user name and password. If log in as an administrator, please enter admin for both fields;...

  • Page 127: Ftp Server

    【Step 4】 As the window below appears, login user has entered file sharing directory, and the folders underneath are all available for sharing locally. Note: Only 2 icons show up at most. If a USB flash drive/hard disk is connected and enabled, the samba folder shows up. If a USB printer is connected and enabled, the printer icon shows up.

  • Page 128: Web Camera Server

    Only when USB storage device is plugged, FTP Server can be checked as enabled. 1. Enable FTP Server: The Enable for FTP Server only can be selected when USB storage device plugged. 2. Enable Anonymous to Login: Allow anonymous to login after check on enable. 3.
  • Page 129 4.5.3.1 Web Camera Server Basic Setup 1. Enable Webcam Server: Allow using this function by checking on enable. 2. Access from WAN: Allow webcam can access from WAN side by checking on enable for this item. 3. Image format: The default is 320 x 240 pixels. 4.
  • Page 130 HDD or remote FTP; if select save to remote FTP, please continue following remote FTP setting. 4. USB HDD Directory: The section provides option of which folder should be used for saving webcam image. 5. Remote FTP URL: Input the FTP URL for saving webcam image. 6.
  • Page 131 reviewing. Often marketed as surveillance tools for home or office security; network Webcams are now being employed by early adopters for more personal matters, such as watching kids and monitoring pets. The Webcam can be remotely accessed and controlled via a browser. In addition, record and monitor live actions with USB webcam; then view the image through Internet browsers or WiFi mobile phones, such as 3G mobiles.
  • Page 132 【Step 2】 Enter the default value, admin, for both administrator’s name and password and log in the product’s main menu page. 【Step 3】 Click LAN under IP Config folder on the left side menu. Then set IP Address in the same subnet with upper-layer device, for example, 192.168.2.49;...
  • Page 133 【Step 4】 Click Remote Management under System Management directory and change HTTP Connection Port into 800. Click Apply to save the settings. 【Step 5】 Plug another internet wire into the WAN port and apply IP Release & Renew commands via command prompt window in order to obtain new IP address.
  • Page 134 4.5.3.3.2 Web Camera Recording 4.5.3.3.2.1 Administrator Setup 3.5G plus WLAN Mobile Server Router also can record the pictures from Webcam; only Administrator can activate the settings. Select Web Camera Server from main Menu and enable this function, click on Record Setting button for further setting. To set up the Webcam Advanced Configuration for each text box, the image from webcam will be recorded into your USB HDD or Remote FTP.
  • Page 135 After click on Disk Explorer, you will see the folder screen appear including all the folders inside 3.5G plus WLAN Mobile Server Router. (Below is the example.) For getting the images from web camera or any files inside router, you may copy the files into your HDDs...
  • Page 136 All the users under administrator’s setting can view webcam real-time images from My Webcam. Please log in with your own personal account. For viewing your own folder, please click “My Document”. After click on My Document, you will see folder screen appear as the example below. You can store files here, too.

  • Page 137: Printer Server

    4.5.4 Printer Server Follow the illustrations below to set up your 3.5G plus WLAN Mobile Server Router and USB-connected printer. 1. Enable Printer Server: Check enable for applying printer server. 2. Enable Printer Access From WAN: Allow printer can access from WAN side by checking enable for this item.
  • Page 138 After setting USB printer on 3.5G plus WLAN Mobile Server Router’s setup page, please go to Start > Printers and Faxes to add a printer. 【 【 【 【 Step 2】 】 】 】 Click on Add a printer item. 【...
  • Page 139 【 【 【 【 Step 5】 】 】 】 Select Create a new port and choose Standard TCP/IP Port from drop-down list, then click Next. 【Step 6】 Click Next. 【Step 7】 Version 1.0...
  • Page 140 Put in 3.5G plus WLAN Mobile Server Router’s address: 192.168.1.254 and click Next. 【Step 8】 Select Custom and click on Settings… button to set the detail setting. 【Step 9】 Select LPR and give it the same Queue Name as USB Printer Name has shown, and mark LPR Byte Counting Enabled.
  • Page 141 It has to be the same with the Printer Name as shown in section 4.5.4 Printer Server Configuration. 【Step 10】 Click Finish on the next screen after the aforesaid settings, you have to install the printer driver as well. Version 1.0...
  • Page 142 【Step 11】 Select the Manufacturer and Printers. If your printer is not listed in the table, please insert its driver CD and then click on Have Disk… button for installation. Or click on Next button to finish the setting. You can name your printer, set it as default printer and share your printer as the next screen shown, the Printer Server setting is getting completed.

  • Page 143: System Management

    System Management 3.5G plus WLAN Mobile Server Router provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each. 4.6.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your 3.5G plus WLAN Mobile Server Router by this setting.

  • Page 144: Firmware Upgrade

    1. Old Password: Enter the original password you set. 2. New Password: Enter the new password you want to change. 3. New Password (Confirm): Enter the new password again for confirming. 4. Apply & Cancel Click Apply to continue or Cancel to clear the settings on this page. 4.6.3 Firmware Upgrade There is certain risk while upgrading firmware.

  • Page 145: Profile Save

    1. Update Firmware: Click Browse to search your local hard drive and locate the firmware used for update. 2. OK & Cancel Click OK to confirm or Cancel to clear the setting on this page. Notice: Before using a whole new disk, please format it on your PC first, so that it can be formatted on 3.5G plus WLAN Mobile Server Router.

  • Page 146: Remote Management

    4.6.5 Remote Management Remote Management allows 3.5G plus WLAN Mobile Server Router to be configured from the Internet by a web browser. In general, only a member of your network can browse the built-in web pages to perform “Administrator” tasks. This feature enables you to perform the tasks from the remote (Internet) host.

  • Page 147: Time

    4.6.6 Time The system automatically shows the local time and time on PC. You can set the date and time manually so that it can be adjusted on router accordingly. 1. Local Time: The default time within. 2. Set the Time: Select this item to set up time by manual, select the date and time from each drop-down list.

  • Page 148: User Account Management

    1. Enable/Disable UPnP: Select to enable or disable this service. 2. Apply, Cancel Click Apply to activate this function or Cancel to clear the setting. 4.6.8 User Account Management Personal users can use each individual application such as My Status, My Webcam and My Document.

  • Page 149: Folder Management

    1. Max Login User: Set up the maximum users to log in at the same time, select the number from drop-down list. If you want to change the maximum login users only without changing user’s information, please click on OK button after select login user’s number.

  • Page 150: Email Alert

    1. Select the USB Disk and click OK for refreshing all disks before you perform disk partition, and the Unplug button appears afterwards. 2. To partition/format the disk, please select the disk and click on Format button. 3. Moreover, if you want to view the data inside the disk, please go to 4.3.7 FTP Sever Setup to enable FTP server and then click on Disk Explorer to view all the folders inside the device.
  • Page 151 Internet. And 3.5G plus WLAN Mobile Server Router provides the email alert facility so that the log messages can be packed as an e-mail for someone who wants to receive these messages by scheduled time. In the following, here explains how to set up the email alert function.

  • Page 152: Log & Status

    4. SMTP Auth: If the email alert needs to be sent via SMTP authentication, please check this item, and then enter the required account and password. 5. Account: Enter the email account from which you want to send the alert. 6.

  • Page 153: User Account List

    4.7.2 User Account List This section shows all users’ information. Check the user name, status and opened directory/file on screen. Version 1.0...

  • Page 154: Event Log

    4.7.3 Event Log 3.5G plus WLAN Mobile Server Router provides system logs for review. The system status log shows logging time, type and detail information as below. Click Refresh to update. Logout Click Logout on the bottom menu to exit and go back to GUI login home page. Personal Configuration Open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.254...
  • Page 155 Homepage Click Personal Panel and log in with your own user account. (If you can’t access your personal account, please check with administrator for validation.) Personal Panel Screen below shows every login user’s access rights, including Anonymous, My Document, My Webcam and My Status. Version 1.0...

  • Page 156: Anonymous

    3.5G plus WLAN Mobile Server Router provides personal control panel for every login user’s entrance to each application screen, please click on each icon for application. The icons appear in gray color can’t be clicked if the user doesn’t have the right to use that function;...

  • Page 157: My Document

    Notice: If you can’t access Anonymous folder, please check with administrator to enable your FTP server rights. Files under this directory are only for downloading, but not for uploading, deleting, or edting. 4.9.2 My Document “My Document” shows all the files in USB HDD under each user’s account.

  • Page 158: My Webcam

    4.9.3 My Webcam “My Webcam” application allows you to view the real time image when the web camera is on. Click My Webcam, and the system pops up a new window to display real time image as the example below shows. Notice: If you can’t view the real-time image, the cause may be the setting of Internet Security and needs to be adjusted, or to install the Java program 4.9.4...

  • Page 159: 4.10 Site Map

    Notice: All above usage information is based on administrator’s setup. 4.10 Site Map 3.5G plus WLAN Mobile Server Router provides site map clicking for each icon to carry out the easy setup from the home page. Version 1.0...

  • Page 160: Chapter 5 Client Mode

    Chapter 5 Client Mode Administrator Quick Setup Manually switch into Client Mode via Operation Mode configuration, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://10.64.64.64 (Default Gateway) into browser’s blank field. Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not.

  • Page 161: Operation Mode

    User Name and Password The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter. Notice: Only the password can be changed, please read setup 5.3.4 Password Setup or 5.6.2 Change Password. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.

  • Page 162: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.

  • Page 163: Site Survey Setup

    Initiated as default Click Application, you see 6 major items set here, including USB Disk Management Setup, User Account Management Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup and Samba Server Setup. For the checked ones are recommended, all can be selected upon your demands.

  • Page 164: Wireless Setup

    5.3.2 Wireless Setup Display connected wireless AP information. After setup completed, click Next. 5.3.3 Time Server Setup 3.5G plus WLAN Mobile Server Router shows local date and time; however, the time still can be changed manually by selecting from the drop-down list, which won’t effect the original time setting on your PC.

  • Page 165: Password Setup

    5.3.4 Password Setup Here suggests changing the password for logging into the configuration manager in terms of security reason. The password may consist of A-Z, a-z, 0-9, underscores, and a single dot (.) For changing password, please fills the password information into above blanks, and then click Next.

  • Page 166: User Account Management Setup

    Select the USB Disk and click OK for refreshing all disks before you do disk partition, and the Unplug button will appear. To partition/format the disk, please select the disk and click Format. Moreover, if you want to view the data inside the disk, please go to 5.3.7 FTP Sever Setup to enable FTP server and then click Disk Explorer to view all folders inside the device.

  • Page 167: Web Camera Server Setup

    If the USB device isn’t enabled first, you can’t enable FTP Server. (Not even click on “Enable”) Set the FTP Server and related setting. Disable the function as demand, and click Next to continue. 5.3.8 Web Camera Server Setup If you plan to use 3.5G plus WLAN Mobile Server Router as a Web Camera site, connect a supported USB Web Camera to the USB port of 3.5G plus WLAN Mobile Server Router.

  • Page 168: Samba Server Setup

    If the printer isn’t connected, you can’t choose “Enable”. Enable the printer and click Next to continue. Notice: After above Printer Server in Quick Setup finished, the related printing settings on 3.5G plus WLAN Mobile Server Router and PC have to be set up, too. Please refer to 5.5.4 Printer Server to set the details.

  • Page 169: Ip Configuration

    To apply your new settings, please click on Finish button to reboot system automatically and go to the product’s diagram homepage. You may connect to Internet wirelessly at this moment according to above settings. IP Configuration This function allows you to add routing rules into 3.5G plus WLAN Mobile Server Router, including LAN and Site Survey.

  • Page 170: Site Survey

    4. End IP This field specifies the last address in the pool to be assigned by the DHCP server in your local network. The default setting is 75. 5. DHCP Clients List The list shows all clients’ IP and MAC addresses. 5.4.2 Site Survey Click Site Survey under IP Config directory.
  • Page 171 To identify the maximum length of packet, the overflow packet length wil be fragmentized. The allowed range is from 256 to 2346, and default length is 2346 bytes. Only minor modifications of the value range are recommended here. SSID Name your wireless network, and the default is previously selected wireless AP. bg Mode This field indicates the 802.11g interface mode.

  • Page 172: Server

    TKIP & AES PSK Key The applied algorithm is like WPA. However, WPA-PSK is using a simple code to generate the key, and the key length is 64 characters of Hex (0~9, a~f and A~F). Apply & Cancel Click Apply to save or Cancel to clear the settings on this page. Server 3.5G plus WLAN Mobile Server Router provides 4 server setups, including Samba Server, FTP Server, Web Camera Server and Printer Server.
  • Page 173 1. Enable Samba Server Check to Enable/Disable while connecting. 2. Workgroup Name Fill in the name, and the default is WORKGROUP. 3. Server Name Name your server. 4. Server Description Describe your server by demand, and the default is Wireless Mobile Router. 5.
  • Page 174 【Step 2】 Fill in blank address field with \\10.64.64.64. 【Step 3】 A window pops up asking for user name and password. If log in as an administrator, please enter admin for both fields; otherwise, fill in with personal account and password. Click OK after finished.

  • Page 175: Ftp Server

    Note: Only 2 icons show up at most. If a USB flash drive/hard disk is connected and enabled, the samba folder shows up. If a USB printer is connected and enabled, the printer icon shows up. 5.5.2 FTP Server FTP Server utility allows both local and remote users to upload or download files, pictures or MP3 music from the same storage device in most easy and timely fashion.

  • Page 176: Web Camera Server

    3. Enable FTP Access from WAN: Allow FTP access from WAN side by checking on Enable for this item. 4. FTP Server Port: Define the FTP command transfer service port. If you want to change this port number, also remember to change the service port setting of your FTP client.
  • Page 177 5.5.3.2 Web Camera Server Advanced Configuration Click Record Setting, and the screen below appears. 1. Enable save image: If you want to save the image from webcam, please check on enable. 2. Save image interval: For saving image, you can set the save interval time, the default value is 5 seconds.
  • Page 178 5.5.3.3 Application for Web Camera 5.5.3.3.1 Web Camera Monitoring Application Monitor your home or take pictures with a Webcam via 3.5G plus WLAN Mobile Server Router; one can set up the monitoring or recording of all images into the USB HDD for reviewing.
  • Page 179 Follow instructions below to set up WAN IP address. 【 【 【 【 Step 1】 】 】 】 Click Network Configuration under the directory of Log & Status to check the selected wireless IP address, for example, 192.168.1.2 as below. 【Step 2】...
  • Page 180 【 【 【 【 Step 3】 】 】 】 Click Virtual Server under the directory of NAT in Advance setup. Then check Enable and put 192.168.1.2 in Private IP field. Fill in 80 for both Private Port and Public Port, and then click Add.
  • Page 181 Plug internet wire into the WAN port and connect to your PC. Then open your web browser and fill in http://192.168.1.2/webcam.html into address field, so the login webpage shows up as below. 【 【 【 【 Step 5】 】 】 】 After entering user name and password, the following monitor image shows up.
  • Page 182 To set up the Webcam Advanced Configuration for each text box, the image from webcam will be recorded into your USB HDD or Remote FTP. Click on Apply after setup finished. For administrator, you may view all the images from webcam recording, please select Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files.
  • Page 183 For getting the images from web camera or any files inside router, you may copy the files into your HDDs directly. addition, image files stored webcam_recorded_files folder, click to examine the content inside. 5.5.3.3.2.2 Personal Application All the users under administrator’s setting can view entire webcam real-time images from My Webcam.

  • Page 184: Printer Server

    After click on My Document, you will see folder screen appear as the example below. You can store files here, too. Notice: If you can’t open the folder, please check with administrator to set up your FTP access right. 5.5.4 Printer Server Follow the illustrations below to set up your 3.5G plus WLAN Mobile Server Router and USB-connected printer.
  • Page 185 1. Enable Printer Server: Check enable for applying printer server. 2. Enable Printer Access From WAN: Allow printer can access from WAN side by checking enable for this item. 3. Printer Model: The printer model shows up while plugging a USB printer. 4.
  • Page 186 【 【 【 【 Step 2】 】 】 】 Click on Add a printer item. 【 【 【 【 Step 3】 】 】 】 Click on Next button. 【 【 【 【 Step 4】 】 】 】 Select Local printer attached to this computer, and click Next. Version 1.0...
  • Page 187 【 【 【 【 Step 5】 】 】 】 Select Create a new port and choose Standard TCP/IP Port from drop-down list, then click Next. 【Step 6】 Click Next. Version 1.0...
  • Page 188 【Step 7】 Put in 3.5G plus WLAN Mobile Server Router’s address: 10.64.64.64 (as in Client Mode) and click Next. 【Step 8】 Select Custom and click on Settings… button to set the detail setting. 【Step 9】 Select LPR and give it the same Queue Name as USB Printer Name has shown, and mark LPR Byte Counting Enabled.
  • Page 189 It has to be the same with the Printer Name as shown in section 5.5.4 Printer Server Configuration. 【Step 10】 Click Finish on the next screen after the aforesaid settings, you have to install the printer driver as well. 【Step 11】 Select the Manufacturer and Printers.
  • Page 190 You can name your printer, set it as default printer and share your printer as the next screen shown, the Printer Server setting is getting completed. 【Step 12】 It shows you the printer settings that you have specified, and then click Finish. Version 1.0...

  • Page 191: System Management

    System Management 3.5G plus WLAN Mobile Server Router provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each. 5.6.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your 3.5G plus WLAN Mobile Server Router by this setting.

  • Page 192: Firmware Upgrade

    1. Old Password: Enter the original password you set. 2. New Password: Enter the new password you want to change. 3. New Password (Confirm): Enter the new password again for confirming. 4. Apply & Cancel Click Apply to continue or Cancel to clear the settings on this page. 5.6.3 Firmware Upgrade There is certain risk while upgrading firmware.

  • Page 193: Profile Save

    1. Update Firmware: Click Browse to browse the local hard drive and locate the firmware used for update. 2. OK & Cancel Click OK to confirm or Cancel to clear the setting on this page. Notice: Before using a whole new disk, please format it on your PC first, so that it can be formatted on 3.5G plus WLAN Mobile Server Router.

  • Page 194: Remote Management

    2. Load Settings From PC: Click on “Browse…” button for searching the saving configuration from hard drive, and then click on Load button to load all the settings into the router. 3. Restore To Factory Default Settings: After you have tried other methods for troubleshooting your network, you may choose to restore 3.5G plus WLAN Mobile Server Router to the factory default settings.

  • Page 195: Time

    1. HTTP Connection Port: The port number used to access the router. 2. Remote Management: You can allow any Internet IP address to access the router, or set up deny rule according to IP setting. 3. IP Address: Internet IP address of the computer that has access to the router. 4.

  • Page 196: Upnp Setting

    1. Local Time: The default time within. 2. Set the Time: Select this item to set up time by manual, select the date and time from each drop-down list. 3. Set Time: Click Set Time to set local PC time on router. 4.
  • Page 197 1. Max Login User: Set up the maximum users to log in at the same time, select the number from drop-down list. If you want to change the maximum login users only without changing user’s information, please click on OK button after select login user’s number.

  • Page 198: Folder Management

    7. User Account List The list shows all users’ names, passwords, status and rights. 5.6.9 Folder Management Easy to check all the USB storage devices connected to 3.5G plus WLAN Mobile Server Router, view the entire data folder inside each storage devices, and you can manage the disk formatting / partition via clicking the button on this page.

  • Page 199: Email Alert

    5.6.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet. And 3.5G plus WLAN Mobile Server Router provides the email alert facility so that the log messages can be packed as an e-mail for someone who wants to receive these messages by scheduled time.

  • Page 200: Log & Status

    1. Email Alert: Check the enable box to activate the email alert service. 2. SMTP Server: Specify an IP address of the SMTP server which can send mails from your 3.5G plus WLAN Mobile Server Router to the recipients’ mailboxes directly. 3.

  • Page 201: User Account List

    5.7.2 User Account List This section shows all users’ information. Check the user name, status and opened directory/file on screen. 5.7.3 Event Log 3.5G plus WLAN Mobile Server Router provides system logs for review. Version 1.0...

  • Page 202: Logout

    The system status log shows logging time, type and detail information as below. Click Refresh to update. Logout Click Logout on the bottom menu to exit and go back to login home page. Personal Configuration Open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://10.64.64.64 (Default Gateway) into browser’s blank field.
  • Page 203 Homepage Click Personal Panel and log in with your own user account. (If you can’t access your personal account, please check with administrator for validation.) Personal Panel Screen below shows every login user’s access rights, including Anonymous, My Document, My Webcam and My Status. Version 1.0...

  • Page 204: Anonymous

    3.5G plus WLAN Mobile Server Router provides personal control panel for every login user’s entrance to each application screen, please click on each icon for application. The icons appear in gray color can’t be clicked if the user doesn’t have the right to use that function;...

  • Page 205: My Document

    Notice: If you can’t access Anonymous folder, please check with administrator to enable your FTP server rights. Files under this directory are only for downloading, but not for uploading, deleting, or edting. 5.9.2 My Document “My Document” shows all the files in USB HDD under each user’s account.

  • Page 206: My Webcam

    5.9.3 My Webcam “My Webcam” application allows you to view the real time image when the web camera is on. Click My Webcam, and the system pops up a new window to display real time image as the example below shows. Notice: If you can’t view the real-time image, the cause may be the setting of Internet Security and needs to be adjusted, or to install the Java program 5.9.4...

  • Page 207: 5.10 Site Map

    Notice: All above usage information is based on administrator’s setup. 5.10 Site Map 3.5G plus WLAN Mobile Server Router provides site map clicking for each icon to carry out the easy setup from the home page. Version 1.0...

  • Page 208: Chapter 6 Ddns Service Application

    Chapter 6 DDNS Service Application DDNS is a service changes the dynamic IP to the static IP. The settings of DDNS can solve the problem of being given the different IP by router every time. After setting the Router, your host name would correspond to your dynamic IP. Moreover, via the host name application, it could be easier for you to use FTP, Webcam and Printer remotely.
  • Page 209 Version 1.0...
  • Page 210 【 【 【 【 Step 3】 】 】 】 When you got this account created message, close it, and check your mailbox. You would get a mail from DynDNS website. 【 【 【 【 Step 4】 】 】 】 Click on the indicated address within your mail to confirm. 【...
  • Page 211 【 【 【 【 Step 7】 】 】 】 Click Add New Hostname. 【 【 【 【 Step 8】 】 】 】 Put in your favorite hostname and service type, and then click Create Host after finished. Version 1.0...
  • Page 212 【 【 【 【 Step 9】 】 】 】 Your hostname has been created when you see the following page. Version 1.0...

  • Page 213: Chapter 7 Q & A

    Chapter 7 Q & A 7.1 Installation 1. Q: Where is the XDSL Router installed on the network? A: In a typical environment, the Router is installed between the XDSL line and the LAN. Plug the XDSL Router into the XDSL line on the wall and Ethernet port on the Hub (switch or computer).

  • Page 214: 7.3 Ip Address

    A: Re-plug your power adapter. Then, check the STATUS indicator; if it is off, the internal flash memory is damaged. For more help, please contact with your provider. 7.3 IP Address 1. Q: What is the default IP address of the router for LAN port? A: The default IP address is 192.168.1.1 with subnet mask 255.255.255.0 2.
  • Page 215 Verify network configuration by ensuring that there are no duplicate IP addresses. Power down the device in question and ping the assigned IP address of the device. Ensure no other device responds to that address. Check that the cables and connectors or use another LAN cable. 2.

  • Page 216: 7.5 3.5G Plus Wlan Mobile Server Router Setup

    6. Click on OK button. Netscape Navigator Users: 1. Click on Edit > Preferences > double-click Advanced in the Category window. 2. Click on Proxies > select Direct connection to the Internet > click on OK button. 3. Click on Edit again and then click on Preferences. 4.
  • Page 217 computers a lot of trouble. Notice: Make sure that you always click on the Apply button after configuring each setting. And in order to let other LAN ports work properly, please reboot your PC. 3. Q: I don’t know how to configure DHCP. A: DHCP is commonly used in the large local network.

  • Page 218: 7.6 Wireless Lan

    address setting. As the router assign the DNS settings to the DHCP-client-enabled 7. Q: 3.5G plus WLAN Mobile Server Router couldn’t save the setting after click on Apply button? A: 3.5G plus WLAN Mobile Server Router will start to run after the setting finished applying, but the setting isn’t written into memory.
  • Page 219 Next make sure the router and the NIC are configured to use the same communications channel. There are normally 11 of them, and the default channel can also vary from vendor to vendor. You might also want to confirm that the router has DHCP services enabled and an address pool configured.
  • Page 220 A: The wireless system will connect at highest possible speed, depending on the distance and the environment. To obtain the highest possible connection speed, you can experiment with following: Access Point location: Try adjusting the location and orientation of the Access Point.

  • Page 221: 7.7 Samba Server

    6. Q: The WinXP wireless interface couldn’t communicate the WEP with 3.5G plus WLAN Mobile Server Router’s wireless interface. A: The default WEP of WinXP is Authentication Open System - WEP, but the WEP of 3.5G plus WLAN Mobile Server Router is only for Shared Key - WEP, it caused both sides couldn’t communicate.

  • Page 222: 7.9 Webcam Server

    new users, please click on Add button to add the name into User Account List, and then the user can start to use the function of 3.5G plus WLAN Mobile Server Router. 4. Q: How to remove or revise the files on FTP server? A: If there is any file needing to be revised, here suggests downloading the file to the HDD of PC and modifying it locally.

  • Page 223: 7.10 Printer Server

    6. Q: Why couldn’t the image of USB Webcam be seen from WAN? A: Besides making sure to enable the USB Webcam Access from WAN, the Remote Management should be enabled as well, so that the image of USB Webcam could be seen from WAN.

  • Page 224: 7.12 Others

    5. Q: Is the Router cross-platform compatible? A: Any platform that supports Ethernet and TCP/IP is compatible with the Router. 7.12 Others 1. Q: Why can’t I receive corrupted FTP downloads? A: If you are experiencing corrupted files when you download a file with your FTP client, try using another FTP program.

  • Page 225: Chapter 8 Appendices

    Chapter 8 Appendices 3.5G plus WLAN Mobile Server Router supports the listed USB devices as follows. Printer 3.5G plus WLAN Mobile Server Router supports LPR protocol, while the printer drivers can be installed on Windows 98/2000/XP platforms, the connected printer works for the unit as well.
  • Page 226 D-Link DSB-C310 OV518 + D-Link DU-C300 OV511 Elecom UCAM-C1C30 OV511+ Elta WEBCam 8211 PCC OV511/OV511+ Ezonics EZPhone Cam OV518+ Ezonics EZ USB Cam II OV511+ Genius VideoCam Express OV511+ Hawking Tech. PD-300 OV511 Hawking Tech. UC-110 OV511+ Hawking Tech. UC-300 OV511 Hawking Tech.
  • Page 227 Philips PCVC740K "ToUCam Pro" SAA8116HL Philips PCVC750K "ToUCam Scan" SAA8116HL Sotec Sotec Afine Eye SAA8115HL Suma OV511+ Samsung MPC-C10 SAA8115HL Samsung MPC-C30 SAA8115HL Samsung Anycam MPC-M10 OV511+ TRENDNet TV-PC100 OV511+ TRENDNet TV-PC300 OV511+ TRENDNet TV-PC301 OV511+ Trust Sp@ceC@m USB OV511 Trust Sp@ceC@m 150 OV511+...
  • Page 228 Concord Concord 3045 spca536a Creative Creative Instant Zc0301 Creative Creative Instant Zc0301 Creative Creative Live! Zc0301P Creative Creative Live!Cam VideoIM Vc301p Creative Creative notebook pd1171 Creative Creative NX Zc0301 Creative Creative NX Pro Zc0301P Creative Creative NX Pro2 Zc0301P Creative Creative WebCam Live! Vc301p Creative...
  • Page 229 Genius VideoCAM Look Genius VideoCAM Messenger Genius VideoCAM Trek Genius VideoCamV2 Zc0301P Genius VideoCamV3 Zc0301P jenoptik JDC 21 LCD spca533 GC-A50 spca504b Kowa Bs-888e spca536 Labtec NoteBooks Zc0302 Labtec Webcam Pro Zc0302 Lic-300 sn9c105 Logitech Clicksmart 420 spca504b Logitech Clicksmart 820 spca533a Logitech Communicate STX...

  • Page 230: Usb Devices

    Mustek Mustek Wcam 300A 2 Mustek Mustek WCam300AN Mustek WCam300A Zc0301P Polaroid Ion 80 spca504b Polaroid PDC2030 spca504b Polaroid PDC3070 spca533a Terratec TeraCam2 move1.3 spca504b USB Devices 3.5G plus WLAN Mobile Server Router supports FAT16, FAT32 and EXT3 file systems. 1.

  • Page 231: Operating Systems

    √ Ali m5637 al √ Hi-Speed HD-D14-U2 Ali m5642 a1 FUJI 60G (5400rpm) √ GL811E √ GL811USB √ MySon Century CS88186_107 √ Cypress CY7C68300-56PVC Operating Systems 1. MicroSoft: Windows 2000, XP (Chinese/English), Vista 2. Apple: Mac OS X 10.4.7 Browsers 1.

This manual is also suitable for:

3gwifimrw

Table of Contents
