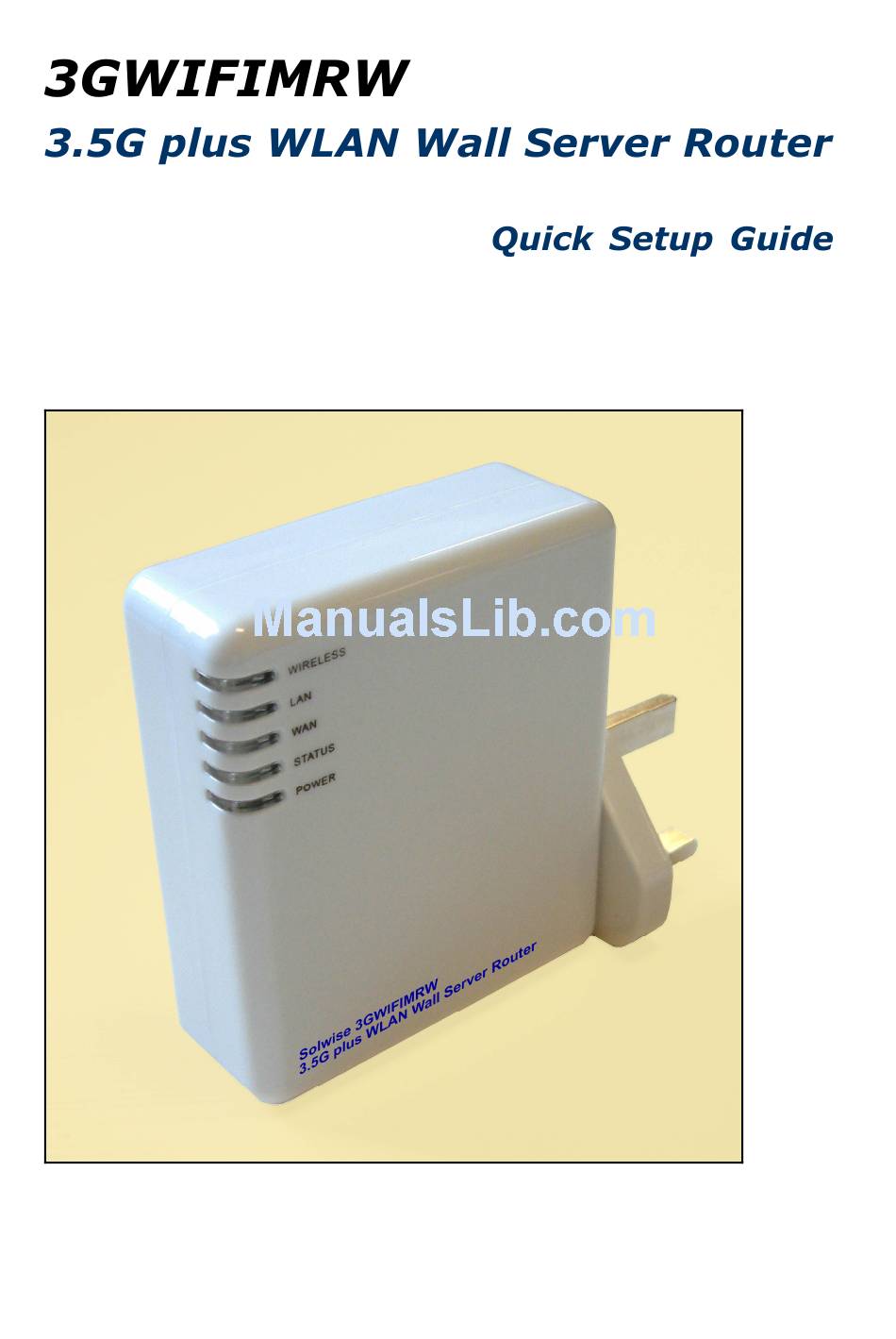

  • Page 1 Version 1.0...

  • Page 2: Declaration Of Conformity

    Declaration of Conformity Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: EN300 328, EN301 489-17, EN60950 Countries of Operation and Conditions of Use in the European Community This device is intends to be operated in all countries of the European Community.

  • Page 3: Table Of Contents

    Contents Chapter 1. About Mobile Server Router 1.1 Hardware Overview 1.2 LED Indicators Status Description Chapter 2. Easy Setup 2.1 What is Easy Setup 2.2 Install Easy Setup Chapter 3. Administrator Complete Setup 3.1 Wireless Router Mode Setup 3.2 Wireless Access Point Mode Setup 3.3 Wireless Client Mode Setup Chapter 4.

  • Page 4: Chapter 1 About Mobile Server Router

    Chapter 1 About Mobile Server Router 1.1 Hardware Overview Power Plug 100V ~ 240V Input Operation Mode Router, AP, and Client. 3 operation modes Switch Press “Reset” button over 7 seconds. When status indicator turns Reset Button from flashing to solid, the process is completed. All settings are back to default.

  • Page 5: Chapter 2. Easy Setup

    Chapter 2. Easy Setup 2.1 What is Easy Setup Easy Setup is a quick and easy install genie which offers you a super easy way to set up the internet connection and USB devices. 2.2 Install Easy Setup Step 1. After inserting the Install CD, please click Install Utility on the auto-run menu to start the installation.

  • Page 6: Chapter 3. Administrator Complete Setup

    Chapter 3. Administrator Complete Setup 3.1 Wireless Router Mode Setup Build up WAN and wireless LAN with 3.5G plus WLAN Mobile Server Router Step 1. Please switch to Router mode and plug in power. Version 1.0...
  • Page 7 Step 2. Please click on Easy Setup icon on your desktop to start the utility. When the following window pops up, please select your Ethernet adapter for the internet connection. If the operation mode is not switched properly, the warning message will pop up. Please power off the unit and check the switch.
  • Page 8 Step 4. To change password, please enter your new password and click Next. Or just click on Next to continue. Step 5. Please select your Internet connection type and be reminded that you cannot connect Internet via wired and wireless at the same time. Then click Next when finished.
  • Page 9 details. And click Next to continue. Type 2 Static IP Setup Click Static IP and insert the required information as diagram shown below. If you’re not sure, please contact your Internet Service Provider (ISP). Here provides Backup of Connection function to indicate that when Static IP is disconnected and detected, the system automatically provides HSDPA/UMTS connection as backup.
  • Page 10 Type 3 PPPoE Setup Click PPPoE, and then enter your user name and password. If you’re not sure, please contact your Internet Service Provider (ISP). Here provides Backup of Connection function to indicate that when PPPoE is disconnected and detected, the system automatically provides HSDPA/UMTS connection as backup.
  • Page 11 Type 4 PPTP Setup Click PPTP and fill in the required information. If you’re not sure, please contact your Internet Service Provider (ISP). Here provides Backup of Connection function to indicate that when PPTP is disconnected and detected, the system automatically provides HSDPA/UMTS connection as backup.
  • Page 12 Type 5 HSDPA/UMTS Setup Click HSDPA/UMTS and fill in the required information. If you’re not sure, please contact your Internet Service Provider (ISP). At this moment, Backup of Connection is not available. When 3.5G signal cannot be reached, the system starts to search downward for 3/2.75/2.5G signals until none existed.
  • Page 13 Step 6. Name your wireless network, please follow the instruction and click on Next to continue. (The default Wireless_Mobile_Router is recommended.) Step 7. Please select to encrypt your wireless network or not. If you wish not to encrypt, click Next to continue. Version 1.0...
  • Page 14 To encrypt, please follow the instructions below for each option. Option 1 As the illustration shown below, select your encryption and key type from the drop-down list. Then enter the key and click Next when finished. Or you can click Help for given examples.
  • Page 15 Option 2 Please refer to the following graphic in explain. Or you can click Help for given examples. After completing the required information, click Next to continue. Please read User Manual if you need more details. Step 8. The system automatically detects the connected USB devices and lists them as the diagram shown below, including document server, webcam server and printer server etc.
  • Page 16 Step 9. The found USB devices are also shown as below. Please refer to Chapter 5 Administrator Optional Setup for further step. Just click Next to continue. Step 10. If a USB flash/drive is connected, the window pops up to enquire as follows. Click Yes or No by demand.
  • Page 17 Step 12. Select to enable or disable your webcam server. Step 13. Create user names, passwords, and authorize their access rights for each server at the same time, then click Add. Please click Next to finish when all accounts are completed. Version 1.0...
  • Page 18 Step 14. When the following screenshot appears, click Finish to end the quick setup. Version 1.0...

  • Page 19: Wireless Access Point Mode Setup

    3.2 Wireless Access Point Mode Setup While WAN is connected, expand the network coverage with the unit. 3.5G plus WLAN Mobile Server Router in AP mode doesn’t support WAN and DDNS. Step 1. Please switch to AP mode and plug in power. Version 1.0...
  • Page 20 Step 2. Please click on Easy Setup icon on your desktop to start the utility. When the following window pops up, please select your Ethernet adapter for the internet connection. If the operation mode is not switched properly, the warning message will pop up. Please power off the unit and check the switch.
  • Page 21 Step 4. To change password, please enter your new password and click Next. Or just click on Next to continue. Step 5. Enter both AP and Gateway IP addresses as shown below or modify if necessary. For more details, please refer to User Manual. Click Next to continue. Version 1.0...
  • Page 22 Step 6. The default SSID shows up automatically, or modify it if necessary; otherwise, click Next to continue. For more details, please refer to User Manual. Use the default of Wireless_Mobile_Router as recommended. Step 7. Please select to encrypt your wireless network or not. If you wish not to encrypt, click Next to continue.
  • Page 23 Option 1 As the illustration shown below, select your encryption and key type from the drop-down list. Then enter the key and click Next when finished. Or you can click Help for given examples. For details, please refer to the User Manual. Option 2 Please refer to the following graphic in explain.
  • Page 24 Step 8. The system automatically detects the connected USB devices and lists them as the diagram shown below, including document server, webcam server and printer server etc. The table indicates their operation status and other information. Please click on Next to continue or Rescan to find any new devices. Step 9.
  • Page 25 Step 10. If a USB flash/drive is connected, the window pops up to enquire as follows. Click Yes or No by demand. <!> Disk format will erase all data within. Step 11. Please select to enable the server you need, and click on Next to continue. Step 12.
  • Page 26 Step 13. Create user names, passwords, and authorize their access rights for each server at the same time, then click Add. Please click Next to finish when all accounts are completed. Step 14. When the following screenshot appears, click Finish to end the quick setup. Version 1.0...

  • Page 27: Wireless Client Mode Setup

    Wireless Client Mode Setup When WAN & wireless LAN are ready, equip PC or NB with wireless function. 3.5G plus WLAN Mobile Server Router in Client mode doesn’t support WAN. Step 1. Please switch to Client mode and plug in power. Step 2.
  • Page 28 If the operation mode is not switched properly, the warning message will pop up. Please power off the unit and check the switch. Step 3. Please select Administrator Complete Setup to start the configuration. Please enter the default password admin, and click Yes. Step 4.
  • Page 29 Step 5. Site Survey window will show all available APs, please select one to connect then click Next. If no AP is found, please click Rescan. Version 1.0...
  • Page 30 Step 6. This unit supports five encryption types: None (no encryption), Open-System, Shared-Key, TKIP and AES, please select the encryption type from drop-down list. For more details, refer to User Manual. Click Next to continue. Step 7. In few seconds, a connect status window will pop up. Please click OK. Step 8.
  • Page 31 Step 9. The system can only detect at most 2 devices at a time and shows the relative server icons as the example below. Please refer to Chapter 5 Administrator Optional Setup for further step. Just click Next to continue. Step 10.
  • Page 32 Step 12. Select to enable or disable your webcam server. Step 13. Create user names, passwords, and authorize their access rights for each server at the same time, then click Add. Please click Next to finish when all accounts are completed. Version 1.0...
  • Page 33 Step 14. Please click Finish to complete the client mode quick setup. Version 1.0...

  • Page 34: Chapter 4 Server Login

    Chapter 4 Server Login 4.1 Server Login Setup Before logging in, please enable each server first. Under this function, users can manage their folders on different servers, and create their own files. Step 1. Please click on Easy Setup icon on your desktop to start the utility. When the following window pops up, just select your Ethernet adapter for the internet connection.

  • Page 35: Administrator Login

    4.2 Administrator Login Step 1. Please enter the default password admin, and click Login to next step. Step 2. The server list window shows the icons of previously enabled USB devices. Please click each to find out more. 4.2.1 My FTP Click My FTP to enter the FTP server for the shared folders/files management, e.g.

  • Page 36: User Login

    4.2.2 My Webcam Record Click My Webcam Record to set up your webcam recorder, advanced settings and to view recorded images in “Webcam Record Files” folder. 4.2.3 Exit Close the server function utility window if you wish to go back to the main window. And click Exit to log out the utility.
  • Page 37 Step 2. The server list window shows the icons of previously enabled USB devices. Please click each to find out more. 4.3.1 My FTP Click My FTP to enter user’s personal folder on FTP server. Every authorized user can manage and store their files underneath. 4.3.2 My Webcam Click My Webcam to view the image in real time.
  • Page 38 4.3.3 Network Disk Click Network Disk to view the folders on Samba Server and click on the folder needed for editing and management. Version 1.0...
  • Page 39 4.3.4 Anonymous This folder is used for administrator to upload data and share with other users. Click Anonymous to access those files and download them freely. 4.3.4 Exit Close the server function utility window if you wish to go back to the main window.

  • Page 40: Chapter 5 Administrator Optional Setup

    Chapter 5 Administrator Optional Setup 5.1 Quick Setup This optional setup allows administrator to manage user accounts and set up the servers respectively, e.g. Document Server, Webcam Server and Printer Server etc. Step 1. Please click Easy Setup icon on your desktop to start the utility. When the following window pops up, please select your Ethernet adapter for the internet connection.
  • Page 41 Step 3. The window shows the connected devices if there’s any. Click on the icons to select the server you need. Look for the illustrations below for each. Step 3-1. Click My FTP to enable or disable FTP Server and then click Finish to exit. Version 1.0...
  • Page 42 Step 3-2. Click My Webcam to enable or disable Webcam Server and then click Finish to exit. Version 1.0...
  • Page 43 Step 3-3. Click Account Create to add users and then click Finish to exit. Step 3-4. Click DDNS to fill in the required information and enable this function. Then click Finish to exit after completed. Version 1.0...

  • Page 44: Advanced Setup

    Step 3-5. Click Network Disk to enable or disable Samba Server and then click Finish to exit. 5.2 Advanced Setup This optional setup allows administrator to manage via Web. Please also refer to User Manual for thorough details. Step 1. Please click on Easy Setup icon on your desktop to start the utility. When the following window pops up, please select your Ethernet adapter for the internet connection.
  • Page 45 Step 2. Please click on Administrator Optional Setup to enter. Then enter the default password admin, and click Yes. Step 3. Please click on Advanced Setup to start the process. Version 1.0...
  • Page 46 Step 4. A new web browser window pops up for the detailed setup, please click on Administrator for further settings. Also read User Manual for your reference. Version 1.0...
  • Page 47 5.2.1 Multi-functioned Application for Webcam 3.5G plus WLAN Mobile Server Router provides the functions of viewing, recording and monitoring from WAN or LAN, it also supports the dial-up mobile communication devices, e.g. PDA, mobile phone and allows monitoring from WAN at any time. Please see illustrations below and read User Manual for more details.
  • Page 48 5.2.1.3 Monitoring via Mobile Communication Devices As long as the PDA/mobile phone can access the Internet and the operation system supports Windows CE, just fill the IP address of 3.5G plus WLAN Mobile Server Router into Web browser’s blank field, e.g. http://210.68.117.196/webcam.html. Meanwhile, put the user name and password in the login screen to enter and view the real time image.
  • Page 49 5.2.3 Intelligent Firewall Three levels of firewall security to avoid hacker attacks. Please refer to User Manual for more details. 5.2.3.1 IP Address Filter, MAC Address Filter, URL Filter and filter schedule management. It allows administrator to manage the Internet usage, e.g. Restriction on Internet access or inappropriate website for kids or employees.
  • Page 50 5.2.4 System Management 5.2.4.1 Reboot This function only restarts the unit, not to bring it back to default settings. 5.2.4.2 Firmware Upgrade There is certain risk while upgrading firmware. It is not recommended unless the significant fault is found. The manufacturer will not be responsible for any operational misuses. Please download the upgraded firmware to your hard drive first then update.
