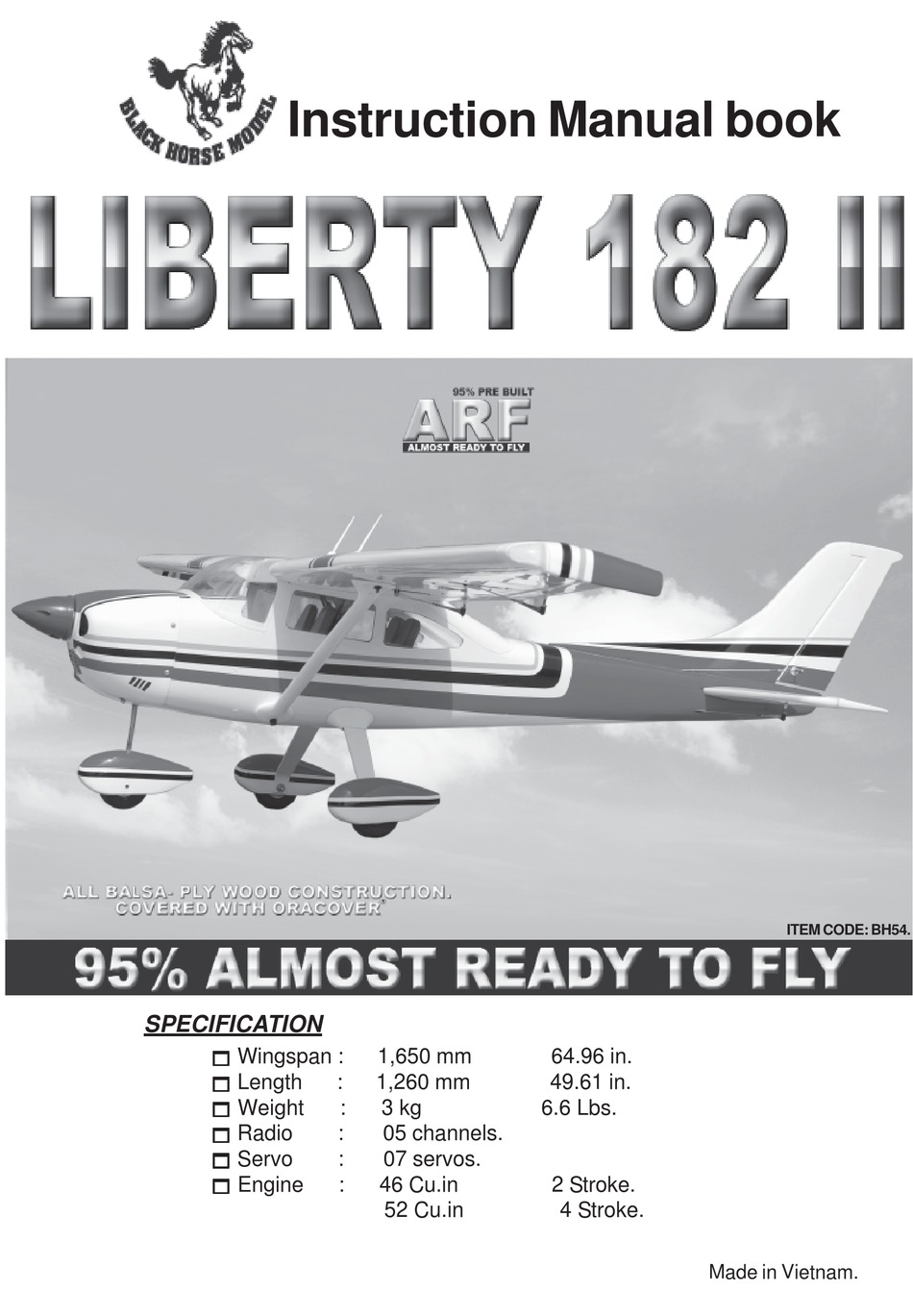

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
1,650 mm
:
1,260 mm
:
3 kg
:
05 channels.
:
07 servos.
:
46 Cu.in
52 Cu.in
64.96 in.
49.61 in.
6.6 Lbs.
2 Stroke.
4 Stroke.
Made in Vietnam.
ITEM CODE: BH54.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liberty 182II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model Liberty 182II

Summary of Contents for Black Horse Model Liberty 182II

  • Page 1 Instruction Manual book ITEM CODE: BH54. SPECIFICATION      Wingspan : 1,650 mm 64.96 in.      Length 1,260 mm 49.61 in.      Weight 3 kg 6.6 Lbs.      Radio 05 channels.
  • Page 2 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your LIBERTY 182 II. Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Caution: this model is not a toy! SAFETY PRECAUTION. If you are a beginner to this type of powered model, please ask an experienced model flyer + This is not a toy for help and support.

  • Page 4: Installing The Aileron Servos

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos. C/A glue Flap Aileron Flap Bottom side C/A glue C/A glue Aileron Aileron Flap Bottom side C/A glue C/A glue...
  • Page 5 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54.   5. Instal servo tray with aileron servo into the wing as same as picture below. Remove Electric wire. covering. Thread. Aileron servo tray   3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out.
  • Page 6 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. INSTALLING THE AILERON CONTROL HORN. 3 x 50mm Nilon control clasp M3 lock nut. aileron control horn...

  • Page 7: Installing The Aileron Linkages

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. M2 clevis. M2 lock nut. Snap keeper.  6. Insert the 90 degree bend down through the hole in the servo arm. Install one nylon snap keeper over the wire to secure it to the arm.
  • Page 8 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. INSTALLING THE FLAP CONTROL HORN. INSTALLING THE FLAP LINKAGES. 3 X 50mm Nilon control clasp M3 lock nut. aileron control horn Remove covering...

  • Page 9: Joining The Wing Halves

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Repeat the procedure for the other wing half. PLASTIC WING TIP INSTALLATION. See pictures below. Epoxy glue (2)Plactic wing tip C/A glue Repeat the procedure for the other wing half. JOINING THE WING HALVES. C/A glue ...
  • Page 10 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Apply masking tape. Remove covering Bottom side left wing Epoxy glue Bottom side Top side left wing C/A glue Bottom side left wing Epoxy glue Masking tape.

  • Page 11: Engine Mount

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. ENGINE MOUNT. See picture below. Epoxy glue 4 m m 3 x 2 0 m m Bottom side FUEL TANK. INSTALLING THE STOPPER ASSEMBLY   1) The stopper has been pre-assembled at the factory.
  • Page 12 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54.   4) Carefully bend the third nylon tube down at a 45 degree angle (using a cigarette lighter). This tube will be vent tube to the fueling valve.   5) Test fit the stopper assembly into the tank.

  • Page 13: Installing The Engine

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Do not secure the tank into place perma- nently until after balancing the airplane. You may need to remove the tank to mount the battery in the fuel tank compartment INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod.
  • Page 14 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Right side Drill a hole 1.5mm Left side Pushrod wire. Right side Pushrod wire Left side...

  • Page 15: Installing The Nose Gear

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. INSTALLING THE NOSE GEAR. Plastic plate C/A glue Epoxy glue...
  • Page 16 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. COWLING.  1) Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage. Nose gear pushrod Steering arm. Steering arm.

  • Page 17: Installing The Spinner

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. INSTALLING THE SPINNER. Left side Install the spinner backplate, propeller and spinner cone. The spinner cone is held in  2) While keeping the back edge of the place using two 3mm x 12mm wood screws. cowl flush with the marks, align the front of the cowl with the crankshaft of the engine.

  • Page 18: Main Gear Installation

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Mark point MAIN GEAR INSTALLATION. PARTS REQUIRED       1) Using a modeling knife, remove the covering from over the two main gear mount- 3) Using the hardware provided, mount the ing slots located in the bottom of the fuselage.
  • Page 19 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. ** A drop of C/A glue on the wheel collar screws will help keep them from coming lose during operation. Repeat the process for the other wheel. Remove covering Secure C/A glue...
  • Page 20 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Elevator servo HORIZONTAL STABILIZER INSTALLATION. Horizontal stabilizer installation. See picture below. ELEVATOR INSTALLATION. SERVO INSTALLATION. 1. Install the rubber grommets and brass  C/A glue collets into the elevator servo. Test fit the servo into the servo tray.
  • Page 21 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. C/A glue Top elevator 2) Mark the shape of the vertical on the left and right sides onto the horizontal stabilizer using a left-tip pen. C/A glue Mark line Bottom side. 3) Remove the stabilizer. Using the lines you just drew as a guide, carefully remove the covering from between them using a modeling knife.

  • Page 22: Elevator Control Horn Installation

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. 5) When you are sure that everything is aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the top and bottom of the stabilizer mounting area and to the stabilizer mounting platform sides in the fuselage.

  • Page 23: Elevator Pushrod Installation

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. C/A glue Remove covering Top side E l e v a t o r cotrol horn Bottom elevator E l e v a t o r...
  • Page 24 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Elevator Elevator pushrod pushrod Secure Secure Elevator servo Elevator pushrod...

  • Page 25: Vertical Stabilizer

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. VERTICAL STABILIZER. C/A glue Rudder servo C/A glue C/A glue 1) Using a modeling knife, cut away the covering from the end of fuselage for the rud- der hinge. Remove covering C/A glue...
  • Page 26 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54.  4. Now, remove the rudder and using a  modeling knife, carefully cut just inside the marked lines and remove the film of the rud- der. Just as you did with the horizontal stabi- lizer, make sure you only press hard enough to cut the film, not the balsa rudder.
  • Page 27 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Remove covering C/A glue 6) When you are sure that everything is a  aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the Epoxy glue slot in the mounting platform and to the verti- cal stabilizer mounting area.

  • Page 28: Rudder Pushrod Installation

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. C/A glue Remove covering Rudder control horn RUDDER PUSHROD INSTALLATION.  Rudder pushrod install as same as the way of aileron pushrod.

  • Page 29: Installing The Throttle Pushrod

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Rudder pushrod Elevator servo Rudder servo Nose gear servo INSTALLING THE THROTTLE PUSHROD. 1. Install one adjustable metal connector  through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.

  • Page 30: Installing The Receiver And Battery

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Secure INSTALLING THE RECEIVER AND BATTERY. Throttle pushrod       1. Plug the servo leads and the switch lead into the receiver. You may want to plug Throttle servo. an aileron extension into the receiver to make plugging in the aileron servo lead easier when you are installing the wing .
  • Page 31 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. C/A glue Secure Epoxy glue C/A glue C/A glue...

  • Page 32: Wing Attachment

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. WING ATTACHMENT. See pictures below: Mark point Wing bolt. Wing attach to fuselage. Remove covering Remove covering...
  • Page 33 LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. Drill a hole 3mm diameter. Secure C/A glue 3 x 15mm...

  • Page 34: Control Throws

    LIBERTY 182 II INSTRUCTION MANUAL -ITEM CODE: BH54. 65 MM CONTROL THROWS.       1. We highly recommend setting up a plane BALANCING. using the control throws listed.       1) It is critical that your airplane be bal- ...
