User manual

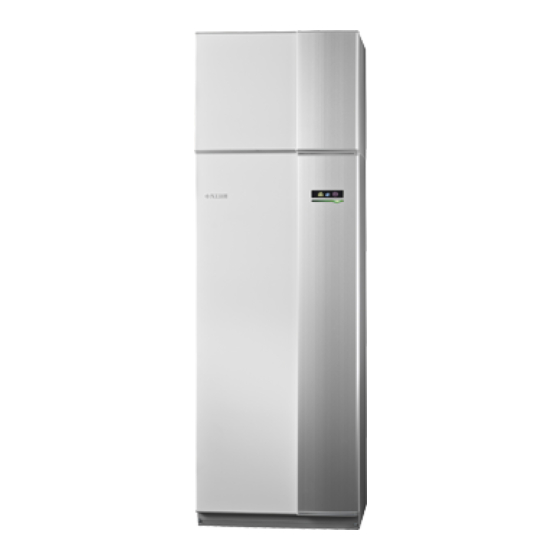

NIBE™ F370
Exhaust air heat pump
AHB GB 1035-2
031547

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F370 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nibe F370

Summary of Contents for Nibe F370

  • Page 1: User Manual

    User manual NIBE™ F370 Exhaust air heat pump AHB GB 1035-2 031547...
  • Page 2 A detailed explanation of the button functions can be found on page 10. How to scroll through menus and make different settings is described on page 14. The mode for setting the indoor temperature is reached, when in the start mode in the main menu, by pressing the OK button twice.

  • Page 3: Table Of Contents

    2 The heat pump – the heart of the house Heat pump function Contact with F370 Maintenance of F370 3 F370 – at your service Set the indoor climate Set the hot water capacity Get information Adjust the heat pump...

  • Page 4: Important Information

    District heating mod- ule FJVM 220 (fan speed, normal mode) Serial number must always be given Certification that the installation is carried out according to instructions in NIBE's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information NIBE™...

  • Page 5: Safety Information

    Marking F370 is CE marked and fulfils IP21. The CE marking means that NIBE ensures that the product meets all regula- tions that are placed on it based on relevant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made.

  • Page 6: Serial Number

    Authority of intention to install. Use only manufacturer’s recommended replacement parts. Nibe is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.
  • Page 7 33 months from the date of manufacture, whichever is the shorter. The NIBE guarantee is based on the unit being installed and commissioned by a NIBE accredited installer, serviced every year and the Benchmark docu- ments completed. Where this condition is not met, any chargeable spare parts or components issued within the applicable guarantee period still benefit from a 12 month warranty from the date of issue by the manufacturer.

  • Page 8: F370 - An Excellent Choice

    F370 – An excellent choice F370 is part of a new generation of heat pumps, which have been introduced to supply your home with inexpensive and environmentally friendly heating. Heat production is safe and economical with integrated hot water heater, immersion heater, circulation pump and control system.

  • Page 9: The Heat Pump - The Heart Of The House

    Expansionsventil Kompressor Förångare 0 °C 5 °C 0 °C 22 °C The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 10: Heat Pump Function

    The heat pump's integrated hot water heater is in the boiler section. The hot boiler water heats the hot water. The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 11: Contact With F370

    Contact with F370 External information When the heat pump door is closed, information can be received via an in- formation window and a status lamp. Information window The information window shows part of the display that is on the display unit (located behind the door to the heat pump).

  • Page 12: Status Lamp

    Display unit There is a display unit behind the heat pump door, which is used to commu- nicate with F370. Here you: switch on, switch off or set the heat pump in emergency mode. sets the indoor climate and hot water as well as adjusts the heat pump to your needs.

  • Page 13: Ok Button

    In this mode, the compressor switches off and the immersion heater engages. The heat pump display is not illuminated and the status lamp illuminates yellow. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 14: Menu System

    Display of temperature and other operating information and access to the alarm log. See page 52. HEAT PUMP Menu 4 Setting time, date, language, display, operating mode etc. See page 57. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 15: Symbols In The Display

    3.1 that you should note. These two symbols indicate whether the compressor or addition is blocked in F370. These can, for example, be blocked depending on which oper- ating mode is selected in menu 4.2, if blocking is scheduled in menu 4.9.5 or if an alarm has occurred that blocks one of them.

  • Page 16: Selecting Menu

    OK button. A new window then opens with sub menus. Select one of the sub menus by marking it and then pressing the OK button. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 17: Selecting Options

    Mark the applicable option. One of the options is pre-selected (white). Press the OK button to confirm the selected option. The selected option has a green tick. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 18: Setting A Value

    Press the OK button to confirm the value you have set. To change and return to the original value, press the Back button. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 19: Scroll Through The Windows

    Use the control knob to select the help symbol. Press the OK button. The help text often consists of several windows that you can scroll between using the control knob. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 20: Regular Checks

    Maintenance of F370 Regular checks All servicing must be carried out by a person competent for the job. Your heat pump requires minimal maintenance after commissioning. However, it is recommended that your installation is checked and serviced annually by qualified personnel. This is to ensure the continued efficient operation of your heat pump, and that the warranty remains valid during the warranty period.

  • Page 21: Cleaning The Air Filter

    Cleaning the air filter Clean F370's air filter regularly, how often depends on the amount of dust in the ventilation air. When it is time to clean, an alarm indication occurs is displayed. Factory setting for alarm indication is every three months.

  • Page 22: Safety Valves

    If the pressure drops to 0 or rises to 2.5 frequently, contact your installer for troubleshooting. Safety valves F370 has two safety valves, one for the hot water heater and one for the cli- mate system. The water heater's safety valve sometimes releases a little water after hot water usage.
  • Page 23 If this pressurised water heater develops a fault, e.g. a flow of hot water from the overflow pipe, turn the heat pump off and contact your installer. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...
  • Page 24 The vent pipe from the container must be drained of water before air can be released. This means that the system is not necessarily bled despite the flow of water when the bleed valve is opened. Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 25: Saving Tips

    Even the house ventilation affects the energy consumption. It is therefore important to perform a ventilation adjustment shortly after installing the heat pump. At ventilation adjustment, a ventilation technician sets the house ventilation device and the fan in F370 according to the projected values of the house. Also remember: During the adjustment period (winter time) all thermostat valves should be fully open.

  • Page 26: Power Consumption

    DVD (Operation: 2 h/week) TV games console (Operation: 6 h/week) Radio/stereo (Operation: 3 h/day) Computer incl. screen (Operation: 3 h/day, standby 21 h/day) Bulb (Operation 8 h/day) Chapter 2 | The heat pump – the heart of the house NIBE™ F370...
  • Page 27 Newly built houses undergo a drying out process for a year. The house can then consume significantly more energy than it would thereafter. After 1-2 years the heating curve should be adjusted again, as well as the heating curve Chapter 2 | The heat pump – the heart of the house NIBE™ F370...
  • Page 28 Chapter 2 | The heat pump – the heart of the house NIBE™ F370...

  • Page 29: F370 - At Your Service

    3 F370 – at your service Set the indoor climate Overview Sub-menus For the menu INDOOR CLIMATE there are several sub-menus. Status inform- ation for the relevant menu can be found on the display to the right of the menus.
  • Page 30 Use the control knob to set a new value. Confirm the new setting by pressing the OK button. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 31 If it is warm outdoors and the room temperature is too low, increase the value in menu 1.1 by one increment. If it is warm outdoors and the room temperature is too high, reduce the value in menu 1.1 by one increment. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 32 If necessary, the different return times can be changed in menu 1.9.6. The fan speed is shown in brackets (in percent) after each speed alternative. If longer time changes are required use the holiday function or scheduling. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 33: Heating Menu

    If two settings conflict with each other a red exclamation mark is displayed at the end of the line. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 34 °C. If you wish to set similar scheduling for every day of the week start by filling in “all” and then changing the desired days. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 35 Day: Select which day or days of the week the schedule is to apply to here. To remove the scheduling for a particular day, the time for that day must be Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 36: Advanced Menu

    Setting the heating curve slope. external adjustment Setting the heat curve offset when the external contact is connected. min. flow line temp. Setting minimum permitted flow line temperature. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 37: Heating Curve

    It is from this heating curve that the heat pump’s control computer determines the temperature of the water to the heating system, flow line temperature, and therefore the indoor temperature. You can select heating Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 38 +2 steps increases the supply temperat- ure by 5 °C at all outdoor temperat- ures. - 10 - 20 - 30 - 40°C UTETEMPERATUR Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 39 Select a new heating curve. The heat curves are numbered from 0 to 15, the greater the number, the steeper the slope and the greater the supply temperature. Heating curve 0 means that own curve (menu 1.9.7) is used. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 40 If it is warm outdoors and the room temperature is too low, increase the curve offset by one increment. If it is warm outdoors and the room temperature is too high, lower the curve offset by one increment. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 41: External Adjustment

    If a room sensor is installed and activated the desired room temperature (°C) is set. If there is more than one climate system the setting can be made separately for each system. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 42: Min. Flow Line Temp

    Default values: 20°C Set the minimum temperature on the supply temperature to the climate sys- tem. This means that F370 never calculates a temperature lower than that set here. If there is more than one climate system the setting can be made separately for each system.

  • Page 43: Room Sensor Settings

    A higher value gives a greater change of the heating curve's set offset. If several climate systems are installed the above settings can be made for the relevant systems. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 44: Fan Return Time

    Here you select the return time for temporary speed change (speed 1-4) on the ventilation in menu 1.2. Return time is the time it takes before ventilation speed returns to normal. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 45 You can create your own heating curve here, if there are special requirements, by setting the desired supply temperatures for different outdoor temperatures. Caution Curve 0 in menu 1.9.1 must be selected for this curve to apply. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 46: Point Offset

    If it is cold in the house, at, for example -2 °C, "outdoor temp. point" is set to "-2" and "change in curve" is increased until the desired room temperat- ure is maintained. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 47 Caution Wait 24 hours before making a new setting, so that the room temperature has time to stabilise. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 48: Set The Hot Water Capacity

    "holiday setting" displays if vacation setting is in progress (menu 4.7), otherwise it displays "off". advanced Setting periodic increase in the hot water temperature. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 49 OK button. The time to the right displays the remaining time at the selected setting. When the time has run out F370 returns to the mode set in menu 2.2. Select “off" to switch off temporary lux Chapter 3 | F370 –...

  • Page 50: Comfort Mode

    Scheduling is activated/deactivated by ticking/unticking"activated". Set times are not affected at deactivation. If two settings conflict with each other a red exclamation mark is displayed. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 51 If the stop time is before the start time it means that the period extends past midnight. Scheduling always starts on the date that the start time is set for. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 52: Periodic Increases

    Setting range: 00:00 - 23:00 Default value: 00:00 To prevent bacterial growth in the water heater, the compressor and the immersion heater can increase hot water temperature at regular intervals. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 53: Hot Water Recirc

    "operating time" decide how long the hot water circulation pump must run per operating instance. "downtime" decide how long the hot water circulation pump must be sta- tionary between operating instances. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 54: Get Information

    Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 55 No changes can be made. The information is on several pages. Turn the control knob to scroll between the pages. Symbols in this menu: Compressor Heating Addition Hot water Ventilation compressor info Menu Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 56 Information about the additional heat settings, operating status and statistics can be obtained here. No changes can be made. The information is on several pages. Turn the control knob to scroll between the pages. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 57 You can see information for the 10 most recent alarms. To view the run status in the event of an alarm, mark the alarm and press the OK button. Information about an alarm. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 58: Indoor Temp. Log

    You can now select to take read outs for different weeks by turning the control knob to the right or left and read off the average temperature. Press the OK or Back button to exit read off mode. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 59: Adjust The Heat Pump

    "set" is displayed if you set a Vacation schedule but it is not active now, "active" displays if any part of the Vacation schedule is active, otherwise it displays "off". advanced Setting heat pump work mode. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 60: Op. Mode Menu

    Operating mode manual In this operating mode you can select what functions are permitted. You cannot deselect "compressor" in manual mode. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 61: My Icons Menu

    Caution If you deselect "addition" it may mean that insufficient hot water and/or heating in the accommodation is achieved. my icons Menu Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 62: Time & Date

    You can select what icon should be visible when the door to F370 is closed. You can select up to 3 icons. If you select more, the ones you selected first will disappear. The icons are displayed in the order you selected them.

  • Page 63: Holiday Setting

    Complete holiday setting about a day before your return so that room tem- perature and hot water have time to regain usual levels. Set the vacation setting in advance and activate just before departure in order to maintain the comfort. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 64 When the compressor is blocked heat is not recovered from the exhaust air. advanced Menu Menu advanced has orange text and is intended for the advanced user. This menu has several sub-menus. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 65: Auto Mode Setting

    You can also set the time over which (filtering time) the average temperature is calculated. If you select 0, the present outdoor temperature is used. Caution It cannot be set "stop additional heat" higher than "stop heating". Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 66: Factory Setting User

    All settings that are available to the user (including advanced menus) can be reset to default values here. Caution After factory setting, personal settings such as heating curves, ventilation etc must be reset. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 67: Schedule Blocking

    Time period: The start and stop time for the selected day for scheduling are selected here. Blocking: The desired blocking is selected here. Blocking the compressor. Blocking additional heat. Chapter 3 | F370 – at your service NIBE™ F370...
  • Page 68 If the stop time is before the start time it means that the period extends past midnight. Scheduling always starts on the date that the start time is set for. Caution Long term blocking can cause reduced comfort and operating economy. Chapter 3 | F370 – at your service NIBE™ F370...

  • Page 69: Disturbances In Comfort

    You can also choose to set the heat pump to aid mode. info / action Here you can read what the alarm means and receive tips on what you can do to correct the problem that caused the alarm. Chapter 4 | Disturbances in comfort NIBE™ F370...
  • Page 70 The status lamp will therefore continue to be red. If the alarm does not reset, contact your installer for suitable remedial action. NOTE Always gives the heat pump's serial number when contacting your installer. Chapter 4 | Disturbances in comfort NIBE™ F370...

  • Page 71: Troubleshooting

    Too low set value on the automatic heating control. Enter menu 1.1 (temperature) and adjust the heat curve offset of the heat curve. If the room temperature is only low in cold weather the Chapter 4 | Disturbances in comfort NIBE™ F370...

  • Page 72: High Room Temperature

    Check and clean the exhaust air devices (see page 19). Fan speed in reduced mode. Enter menu 1.2 and select “normal". External switch for changing the fan speed activated. Check any external switches. Chapter 4 | Disturbances in comfort NIBE™ F370...

  • Page 73: High Or Distracting Ventilation

    The heat pump does not call on heating nor hot water. The heat pump defrosts. Minimum time between compressor starts has not been reached. Wait 30 minutes and check if the compressor has started. Alarm tripped. Follow the display instructions. Chapter 4 | Disturbances in comfort NIBE™ F370...

  • Page 74: Technical Data

    5 Technical data Detailed technical specifications for this product can be found in the installa- tion manual (www.nibe.eu). Chapter 5 | Technical data NIBE™ F370...

  • Page 75: Glossary

    A malfunction in the heat pump can sometimes be noticed in the form of a disturbance in comfort. In most cases, the heat pump notes operational interference and indicates this with alarms and shows instructions in the display. Chapter 6 | Glossary NIBE™ F370...

  • Page 76: Domestic Hot Water

    F370. Exhaust air devices Vents, usually in the ceiling, in the kitchen/bathroom/clothes closet where the air is drawn in to be forwarded to F370. Expansion valve Valve that reduces the pressure of the refrigerant, whereupon the temperature of the refrigerant drops.

  • Page 77: Heating Medium Side

    Pressure switch that triggers an alarm and/or stops the compressor if non- permitted pressures occur in the system. A high pressure pressostat trips if the condensing pressure is too great. A low pressure pressostat trips if the evaporation pressure is too low. Chapter 6 | Glossary NIBE™ F370...

  • Page 78: Safety Valve

    Radiator Another word for heating element. They must be filled with water in order to be used with F370. Refrigerant Substance that circulates around a closed circuit in the heat pump and that, through pressure changes, evaporates and condenses. During evaporation, the refrigerant absorbs heating energy and during condensing, gives off heating energy.

  • Page 79: Item Register

    Regular checks, 18 Information window, 9 Status lamp, 9 Saving tips, 23 Power consumption , 24 F370 – An excellent choice, 6 Scroll through the windows, 17 F370 – at your service, 27 Selecting menu, 14 Adjust the heat pump, 57...
  • Page 80 Chapter 7 | NIBE™ F370...
  • Page 81 Chapter 7 | NIBE™ F370...
  • Page 82 Chapter 7 | NIBE™ F370...
  • Page 84 NIBE Energy Systems Ltd 3C Broom Business Park Bridge Way Chesterfield S41 9QG Phone 0845 095 1200 Fax 0845 095 1201 info@nibe.co.uk www.nibe.co.uk 0 3 1 5 4 7...
