Nibe F370 User Manual

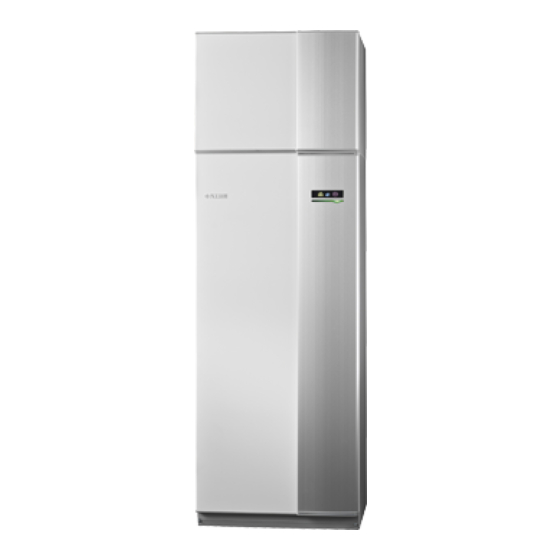

Exhaust air heat pump
Hide thumbs Also See for F370:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Exhaust air heat pump
NIBE F370
UHB EN 2340-1
831044

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F370 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nibe F370

Summary of Contents for Nibe F370

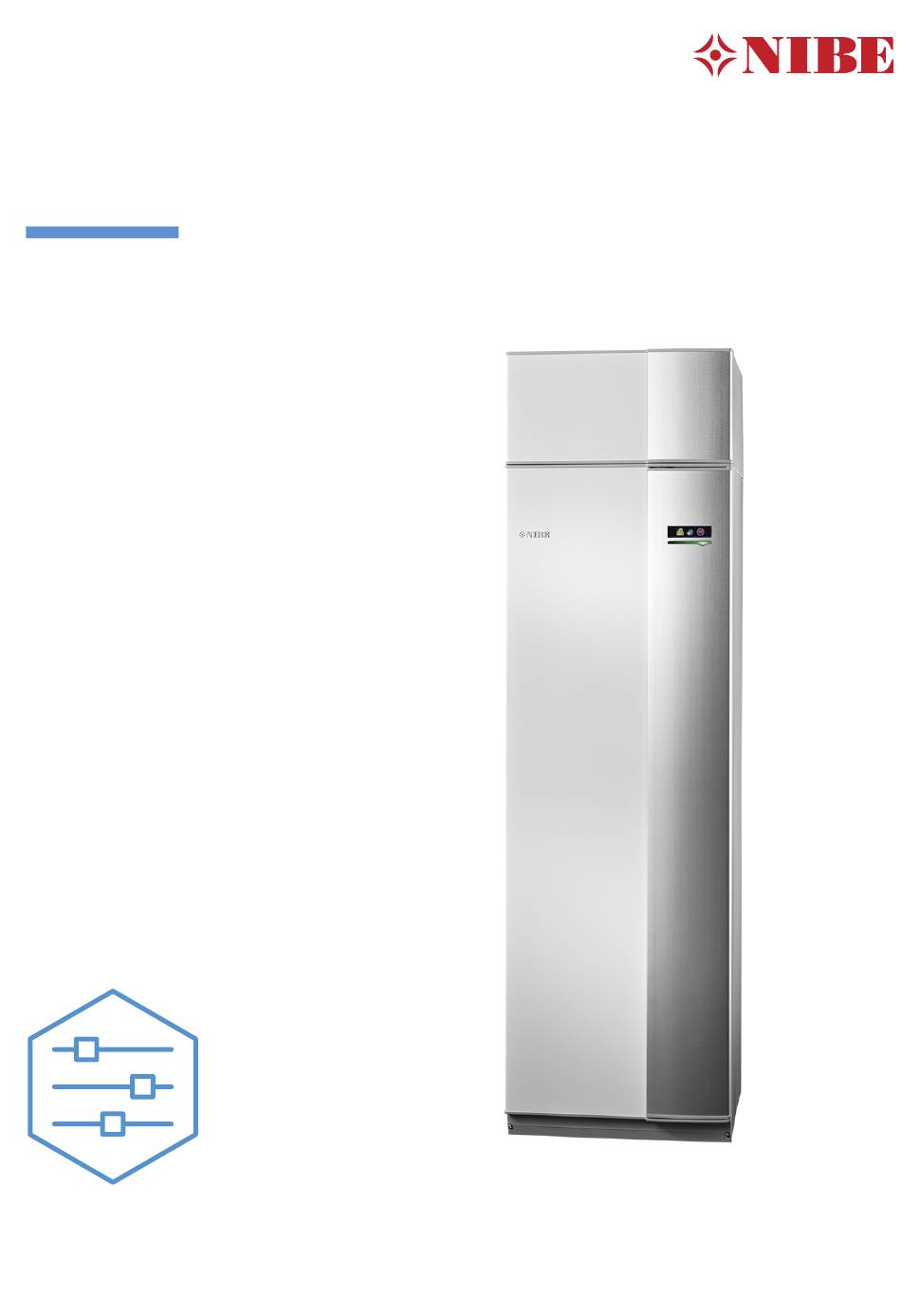

  • Page 1 User manual Exhaust air heat pump NIBE F370 UHB EN 2340-1 831044...
  • Page 2 Quick guide Navigation Ok button (confirm/select) Back button (back/undo/exit) Control knob (move/increase/reduce) A detailed explanation of the button functions can be found on page 8. How to scroll through menus and make different settings is described on page 10. Set the indoor climate INDOOR CLIMATE HOT WATER HEAT PUMP...

  • Page 3: Table Of Contents

    2 The heat pump – the heart of the house Heat pump function Contact with F370 Maintenance of F370 3 F370 – at your service Set the indoor climate Set the hot water capacity Get information Adjust the heat pump...

  • Page 4: Important Information

    Docking kit DEH 40/DEH 41 Room unit RMU 40 1.9.3 min. flow line temp. Solar panels NIBE PV 5.1.5 fan sp. exhaust air (normal) Serial number must always be given. Certification that the installation is carried out according to instructions in the accompanying installer manual and applicable regulations.

  • Page 5: Safety Information

    (menu 3.1) and on the type modifications are reserved. plate. ©NIBE 2023. Do not start F370 if there is a risk that the water in the system has frozen. Water may drip from the safety valve. A Serial number factory-fitted overflow pipe runs from the safety valve to an overflow cup.

  • Page 6: F370 - An Excellent Choice

    F370 – An excellent choice F370 is a heat pump that has been developed to supply your house with ventilation, heating and hot water in a cost-ef- fective and environmentally friendly manner. Heat production is reliable and economical, thanks to an in- tegrated hot water heater, immersion heater, circulation pump and control system.

  • Page 7: The Heat Pump - The Heart Of The House

    The heat pump’s integrated water heater is in the heating section. The heating medium heats the hot water. The temperatures are only examples and may vary between different installations and time of year. NIBE F370 Chapter 2 | The heat pump – the heart of the house...

  • Page 8: Contact With F370

    Control knob Switch F370 USB port There is a display unit behind the heat pump door, which is used to communicate with F370. Here you: • switch on, switch off or set the heat pump in emergency mode. • sets the indoor climate and hot water as well as adjusts the heat pump to your needs.
  • Page 9 Hot water temp. INDOOR CLIMATE HOT WATER pressor or addition is blocked in F370. These can, for example, be blocked depending on which operating mode is selected in menu 4.2, if blocking is scheduled in menu 4.9.5 or if an alarm has occurred that blocks one of them.
  • Page 10 Mark the applicable option. One of the options is pre-selected (white). Press the OK button to confirm the selected option. The selected option has a green tick. Chapter 2 | The heat pump – the heart of the house NIBE F370...
  • Page 11 Press the OK button to skip between the steps in the start guide. If the start guide is left on this page it closes automatically in 60 min NIBE F370 Chapter 2 | The heat pump – the heart of the house...

  • Page 12: Maintenance Of F370

    Maintenance of F370 Cleaning the air filter The air filter in F370 has to be cleaned regularly; how often REGULAR CHECKS depends, for example, on the quantity of particles in the Your heat pump requires minimal maintenance after com- ventilation air. Test, to find out what is most appropriate for missioning.
  • Page 13 Pressure gauge Clean, if necessary. Safety valves F370 has two safety valves, one for the hot water and one for the climate system. The safety valve for the hot water sometimes releases a Overflow cup small quantity of water after hot water usage.
  • Page 14 At ventilation adjust- ment, a ventilation technician sets the house ventilation device and the fan in F370 according to the projected values of the house. EB10 Chapter 2 | The heat pump – the heart of the house...

  • Page 15: F370 - At Your Service

    If the exhaust air temperature falls below 16 °C, the compressor is blocked and electric additional heat is permitted. No energy is recovered from the exhaust air, when the compressor is blocked. NIBE F370 Chapter 3 | F370 – at your service...
  • Page 16 Time period Adjusting Conflict Schedule: The schedule to be changed is selected here. Activated: Scheduling for the selected period is activated here. Set times are not affected at deactivation. Chapter 3 | F370 – at your service NIBE F370...
  • Page 17 Caution A significant change over a longer period of time may cause poor indoor environment and worse operating economy. NIBE F370 Chapter 3 | F370 – at your service...
  • Page 18 When the contact is on, the heating curve offset is changed by Chapter 3 | F370 – at your service NIBE F370...
  • Page 19 MENU 1.9.6 - FAN RETURN TIME Set the minimum temperature on the supply temperature to the climate system. This means that F370 never calculates speed 1-4 a temperature lower than that set here.
  • Page 20 This is done in menu It is important that the correct heating curve is selected so 4.2. that the room temperature is experienced as even. Chapter 3 | F370 – at your service NIBE F370...

  • Page 21: Set The Hot Water Capacity

    OK button. The remain- ing time for the selected setting is shown to the right. temporary lux When the time has run out F370 returns to the mode set in menu 2.2. comfort mode economy Select “off"...
  • Page 22 Scheduling always starts on the date that the start Setting range: 0 - 60 min time is set for. Default value: 0 min Chapter 3 | F370 – at your service NIBE F370...

  • Page 23: Get Information

    Information about the actual operating status of the installation (e.g. current temperatures etc.) can be obtained here. No changes can be made. The information is on several pages. Turn the control knob to scroll between the pages. NIBE F370 Chapter 3 | F370 – at your service...
  • Page 24 Press the OK button. 3. Follow the grey line up to the graph and out to the left to read off the average indoor temperature at the selec- ted week. Chapter 3 | F370 – at your service NIBE F370...

  • Page 25: Adjust The Heat Pump

    Setting heat pump work mode. MENU 4.1 - PLUS FUNCTIONS plus functions 4.1 internet Settings for any additional functions installed in F370 can be made in the sub menus. NIBE F370 Chapter 3 | F370 – at your service...
  • Page 26 5. Repeat 1 - 3 for "net mask", "gateway" and "dns". A connected user has a user account in NIBE Uplink , which has been given permission to control and/or monitor your 6. Mark “confirm" and press the OK button.
  • Page 27 "SG Ready"-standard . has and the possible savings are larger, but at the same time Make settings for the function "SG Ready" here. there is an increased risk of affecting comfort. NIBE F370 Chapter 3 | F370 – at your service...
  • Page 28 EME. For EME 20, you can select whether you want domestic When you have a smart home system that can speak to NIBE electricity to be prioritised ahead of room temperature and Uplink, by activating the smart home function in this menu hot water, provided that an external energy meter is connec- you can control the F370 via an app.
  • Page 29 You can select what icons should be visible when the door To select selectable functions that are permitted or not, to F370 is closed. You can select up to 3 icons. If you select mark the function using the control knob and press the OK more, the ones you selected first will disappear.
  • Page 30 It cannot be set "stop additional heat" higher than "stop heating". filtering time: You can also set the time (filtering time) over which the average temperature is calculated. If you select 0, the current outdoor temperature is used. Chapter 3 | F370 – at your service NIBE F370...
  • Page 31 Time period: The start and stop time for the selected day for scheduling are selected here. Blocking: The desired blocking is selected here. NIBE F370 Chapter 3 | F370 – at your service...

  • Page 32: Disturbances In Comfort

    • F370 in incorrect operating mode. reset alarm In many cases, it is sufficient to select “reset – Enter menu 4.2. If mode "auto" is selected, select a alarm”...
  • Page 33 • There is no heating or hot water demand. • "Holiday mode" activated in menu 4.7. – F370 does not call on heating or hot water. – Enter menu 4.7 and select "Off". • The heat pump defrosts. •...

  • Page 34: Technical Data

    Technical data Detailed technical specifications for this product can be found in the installation manual (nibe.eu). Chapter 5 | Technical data NIBE F370...

  • Page 35: Glossary

    Vents, usually in the ceiling, in the kitchen/bathroom/clothes CALCULATED FLOW LINE TEMPERATURE closet where the air is drawn in to be forwarded to F370. The temperature that the heat pump calculates that the EXPANSION VALVE...
  • Page 36 RADIATOR Another word for heating element. They must be filled with water in order to be used with F370. REFRIGERANT Substance that circulates around a closed circuit in the heat pump and that, through pressure changes, evaporates and condenses.

  • Page 37: Item Register

    Troubleshooting, 32 External information, 8 Information window, 8 Use the virtual keyboard, 11 Status lamp, 8 F370 – at your service, 15 Adjust the heat pump, 25 Get information, 23 Set the hot water capacity, 21 Set the indoor climate, 15...

  • Page 39: Contact Information

    Tel: +48 (0)85 66 28 490 Hannabadsvägen 5, 285 21 Markaryd Tel. +41 (0)58 252 21 00 biawar.com.pl Tel: +46 (0)433-27 30 00 info@nibe.ch info@nibe.se nibe.ch nibe.se For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information.
  • Page 40 WS release date: 2023-10-06 11:57 Publish date: 2023-11-06 10:41 This is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this publication.
