INSTALLATION

Before installing the keypad, the unit must be partially
disassembled to access the mounting plate. The keypad's bezel
can be exchanged for a different color when the keypad is apart.

Opening the Keypad

The keypad assembly is secured with two tamper-resistant screws
that are hidden behind the keypad's faceplate. Refer to Figure 3 for
disassembly details.
❑ Use a small fl at blade screwdriver to pry off the keypad's
faceplate.
❑ Use the special allen wrench (supplied) to remove the two
tamper-resistant screws.
❑ Separate the mounting plate from the keypad assembly.
PRY UP ON THE
1
FACEPLATE HERE
3
REMOVE THE
TWO SCREWS

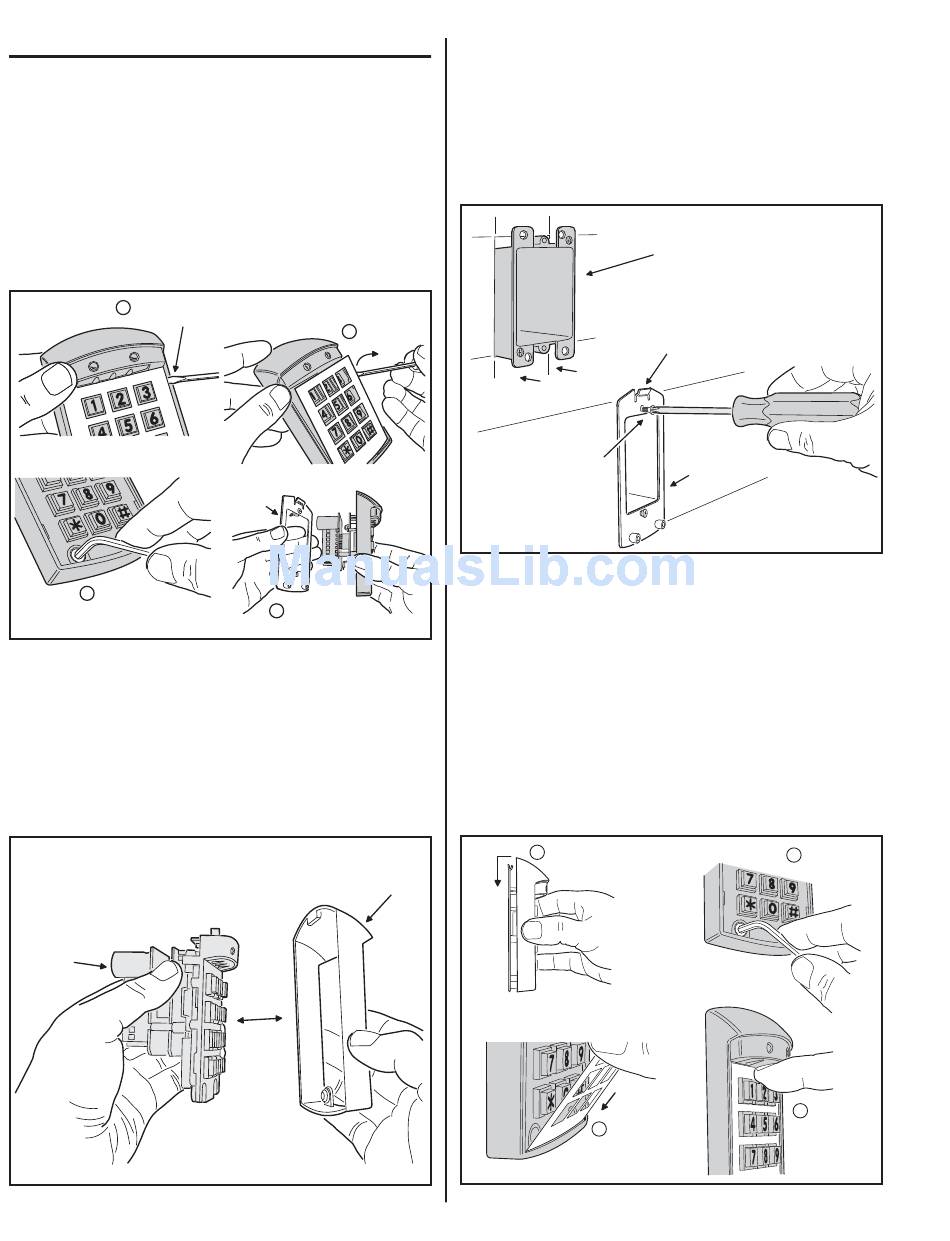

Figure 3. Opening the Keypad

Changing the Keypad's Bezel

The colored keypad bezels snap onto the keypad assembly. Refer
to Figure 4 for details on changing the bezel.
❑ Gently pull on the edge of the bezel to release the tabs that
hold the bezel to the keypad assembly.
❑ Remove the bezel from the keypad assembly.
❑ Choose the proper color bezel for the installation and snap
it onto the keypad assembly.
KEYPAD BEZEL COLORS:
· SATIN-CHROME (FACTORY INSTALLED)
· WHITE
· IVORY
· BRONZE
KEYPAD
ASSEMBLY
Figure 4. Changing the Outer Bezel
2
REMOVE THE
2
FACEPLATE
MOUNTING
PLATE
SEPARATE THE
4
MOUNTING PLATE
FROM THE KEYPAD
KEYPAD
BEZEL
THE BEZEL SNAPS
ONTO THE KEYPAD
ASSEMBLY

Install the Electrical Box and Mounting Plate

The keypad is designed to fi t into a standard single-gang electrical
box. Select a location near the controlled door and choose a
convenient height for the keypad. Be sure there is good wiring
accessibility for the unit's power and the output to the door strike
or access device.
❑ Install the electrical box in the wall.
❑ Screw the mounting plate onto the electrical box (see
Figure 5).
ATTACH THE MOUNTING
PLATE TO THE
ELECTRICAL BOX
Figure 5. Installing the Mounting Plate

Final Keypad Installation

After wiring the keypad (see next page), complete the installation
by securing the keypad to the mounting plate.
❑ If a lower beeper sound level is required, before installing
the keypad, remove Jumper JP1 (place the jumper block on
one pin to save the jumper).
❑ Hook the keypad assembly onto the mounting plate tab (see
Figure 6).
❑ Use the special allen wrench (supplied) to install the two
tamper-resistant screws.
❑ Fit the bottom tab on the faceplate into the slot on the
keypad then snap the top of the faceplate in.
1
HOOK THE KEYPAD ASSEMBLY
ONTO THE MOUNTING PLATE
3
FIT THE BOTTOM TAB OF
THE FACEPLATE INTO THE
SLOT ON THE KEYPAD
Figure 6. Connecting the Keypad to the Mounting Plate
INSTALL A SINGLE-GANG
ELECTRICAL BOX AT THE
PROPER LOCATION
FOR THE KEYPAD
MAKE SURE THE
TAB IS UP
MOUNTING
PLATE
2
INSTALL THE
TWO SCREWS
4
SNAP THE TOP
OF THE KEYPAD
INTO PLACE
