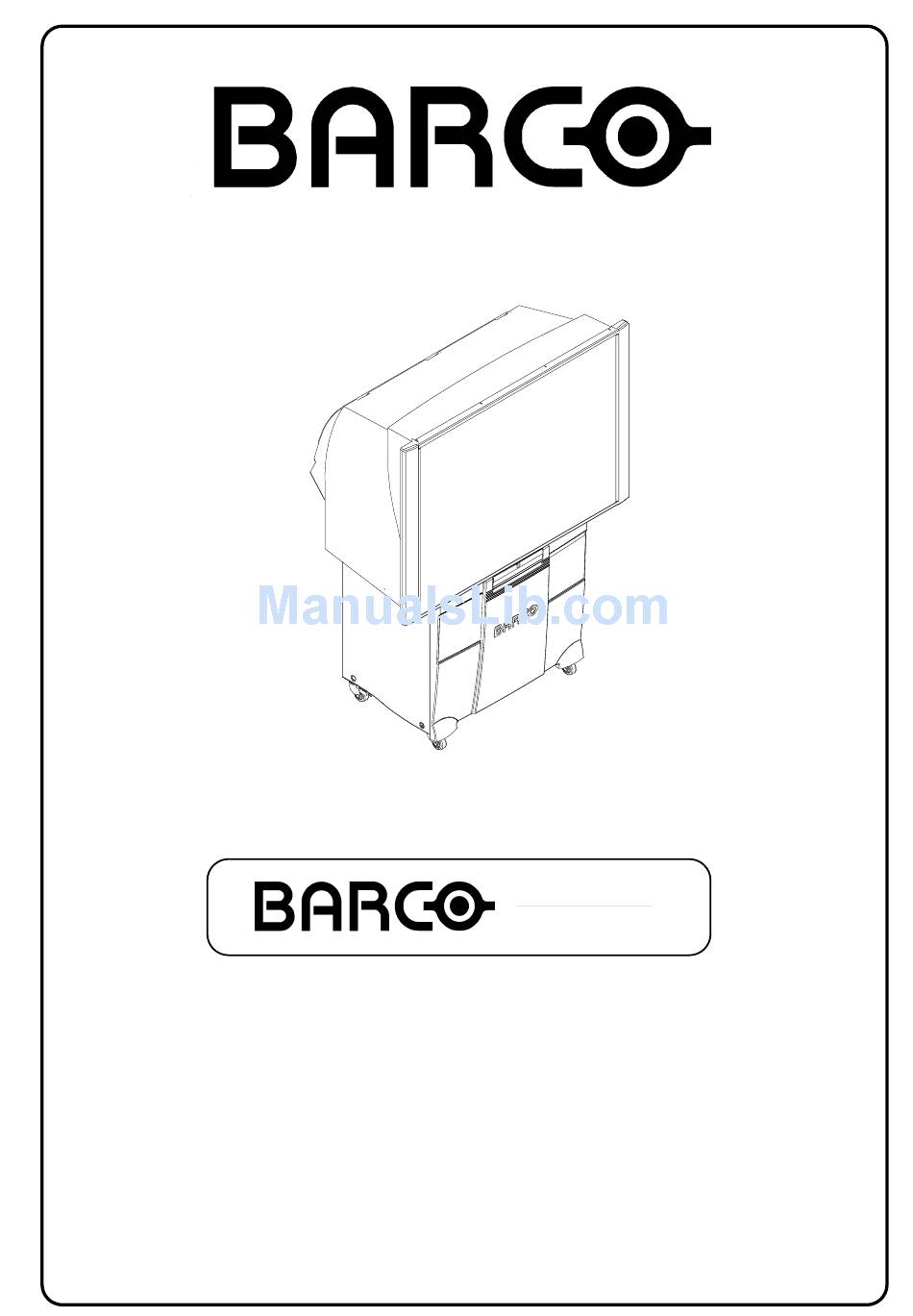

- Page 1 BARCO PROJECTION SYSTEMS RETRODATA 808s R9002110 R9002119 INSTALLATION MANUAL Date : Art. No. : 210397 R5975198...
- Page 2 Due to constant research, the information in this manual is subject to change without notice. Produced by BARCO NV, March 1997. All rights reserved. Trademarks are the rights of their respective owners. Printed in Belgium BARCO nv/Projection Systems Noordlaan 5...
-
Page 3: Table Of Contents
Table of Contents Table of contents .................................... i-1 Safety Instructions ..................................1-1 Unpacking and Projector Dimensions ............................2-1 Unpacking ....................................2-1 Projector dimensions ................................. 2-2 Installation Set-up ..................................3-1 Cabinet assembly ..................................3-1 Mounting the side profiles ................................3-2 Projector Set-up ..................................... 4-1 To gain access to the DIP switches ............................ -
Page 4: Safety Instructions
* All instructions for operating and use of this equipment must be projector. Record these numbers in the spaces provided below. followed precisely. Refer to them whenever you call upon your BARCO dealer regarding this product. On safety PART NUMBER : 1. - Page 5 Replacement parts - When replacement parts are required, be sure the service technician has used original BARCO replacement parts or authorized replacement parts which have the same characteristics as To disconnect the cord, pull it out by the plug. Never pull the cord the BARCO original part.
-
Page 6: Unpacking And Projector Dimensions
Unpacking and dimensions UNP ACKING AND PROJECTOR DIMENSIONS Unpacking To open the banding around the carton, pull out the clip as shown below : Take the projector cabinet and the mirror cabinet out of its shipping carton and place them on floor. Save the original shipping cartons and packing material, they will come in handy if you ever have to ship your retroprojector. -
Page 7: Projector Dimensions
Unpacking and dimensions Projector dimensions (in mm) 5975198 RETRODATA 808s 210397... -
Page 8: Installation Set-Up
Installation set-up INSTALLATION SET-UP Cabinet Assembly Attention : Avoid touching the screen surface while handling the screen cabinet in order to avoid any damage of the screen surface. Lift up the mirror cabinet and place it on the projector cabinet. Both centering pins on the the mirror cabinet must match the centering holes in the projector cabinet. -
Page 9: Mounting The Side Profiles
Installation set-up Mounting the side profiles The side profiles are packed during transportation inside the mirror cabinet (back side). Turn in the screws a little and slide the profile over the screws. Fixate the 3 screws. 5975198 RETRODATA 808s 210397... -
Page 10: Projector Set-Up
Projector set-up PROJECTOR SET-UP The DIP switches on the controller unit allow the SET-UP of the projector : 8 DIP switches for setting the projector address 1 DIP switch for setting the power up mode 3 DIP switches for setting the baud rate for communication 1 DIP switch for setting the password mode To gain access to the DIP switches : Acces to the DIP switches is possible via the backside of the... -
Page 11: Setting The Projector Address
Projector set-up Setting the projector address The projector's address may be set to any value between 0 and 255. When the address is set, the projector can be controlled now by : RCU for addresses between 0 and 9; IBM PC (or compatible) or Apple MAC for addresses between 0 and 255. -
Page 12: Power-Up Mode
Projector set-up Setting the address is a hardware SET-UP of your projector which must be done during installation. Use the 8 DIP switches provided on the controller unit. Switch No Value Each DIP switch has its own decimal value. The sum of the values associated to those DIP switches gives the address. -
Page 13: Baud Rate For Communication With A Computer
Projector set-up Baud Rate for communication with a computer The communication speed between the projector and the computer has 8 possible settings. With DIP Switch No. 6, No.7 and No.8 of the 8 DIP switches on the controller unit, labelled as ‘Baud rate code (sum)’, it is possible to select the baud rate (communication speed). -
Page 14: Ac Power Connection
AC power connection AC POWER CONNECTION AC Power (mains) cord connection Use the supplied power cord to connect the projector to the wall outlet. Plug the female power connector into the male connector at the back of the projector. This projector may be connected to an IT-power system. 120/230 V POWER / MAINS Preparing your power cord... -
Page 15: Ac Power Check
AC power connection AC Power check The power voltage is indicated by the Art. No (Article number) on the identification label sticked on the backside of the retroprojector. Retroprojector with the Art. No. R9002040 has to operate on 230 Vac. Retroprojectors with the Art. - Page 16 AC power connection * Loosen both fixation screws (indicated on next image) on the front side of the retroprojector. * Pull on the fixation on the back side of the retro and turn the projector frame until service position 2 is reached. The fixation points will automatically jump into the correct position when turning the frame to this position.
-
Page 17: Switching On The Projector
AC power connection * Pull out the 'power selector plug' and re-insert it as illustrated in the drawing, depending on the wall outlet in the room. Power selector plug Fuses AC Power input board 120V 230V Power selector on 120V Power selector on 230V * Pull out the fuses and place the correct fuses in their sockets. - Page 18 AC power connection Starting up with a full white image PROJECTOR WARM UP When the projector is set to start up with a full white image, the A FULL WHITE PATTERN WILL BE GENERATED FOR "projector warm up" menu will be displayed for 30 seconds. 20 MINUTES.
-
Page 19: Source Connection
Source Connections SOURCE CONNECTIONS Signal Input Connection to the Projector : - Composite Video RS232 IN RS232 OUT IR REMOTE - S-Video - RGBS or RGsB - RGB3S or RG3sB (option) PORT 4/5 Port No Projector input Press Digit Button Comp. -
Page 20: Connecting A S-Video Or Video Source To Port 2
Source Connections Connecting a S-Video or Video source to port 2. Separate Y-luma/C-chroma signals for higher quality playback of Super VHS signals. Pin configuration input plug : RS232 IN RS232 OUT IR REMOTE For S-Video : pin 1 : earth (ground) luminance pin 2 : earth (ground) chrominance pin 3 : luminance (Y) signal 1Vpp ±3 dB pin 4 : chrominance (C) signal 300 mVpp ±... -
Page 21: Connecting A Rgb Analog Source To Port 3
Connect your RGB source via an interface to Port 3. Always use an interface when a computer and local monitor have to be connected to the projector. Barco interfaces which can be applied : Universal analog interface R9826100 RS232 IN RS232 OUT IR REMOTE... -
Page 22: Connecting A Rgb Analog Source To Port 4/5
Always use an interface when a computer and local monitor have to be connected to the projector. See 'Connecting a RGB Analog source to port 3' for a list of BARCO interfaces which can be applied. RS232 IN RS232 OUT IR REMOTE... -
Page 23: Connecting A Component Video Source To Port 4/5
Source Connections Connecting a Component Video source to port 4/5. A component video (R-Y, Y, B-Y) with sync signals can be connected to the projector via the Port 4/5. The projector detects automatically where the sync signal is located. RS232 IN RS232 OUT IR REMOTE PORT 4/5 To select the component video input :... -
Page 24: Connecting External Loudspeakers To The Retroprojector
Source Connections Connecting external loudspeakers to the retroprojector. Connecting speakers wires. Peel back the vinyl covering and twist the wire core. Push with your finger on the black lever of the R(right) speaker input 10 mm and connect the speaker's minus (-) wire to the terminal. Remove your finger from the lever and gently pull the wire to confirm that it is securely connected. - Page 25 Orbiting (option) Static pictures are very often shown on large screen projectors, To avoid this problem, BARCO has designed special Orbiting circuitry espectially in process control and presentation applications. Due to which moves the picture very slow around a predefined screen area.
-
Page 26: Appendix A : Orbiting
Orbiting Orbiting Speed Toggle (only in MASTER Orbiting) MASTER ORBITING Highlight 'SPEED : SLOW' with the control disk and press ENTER to CHANGE TO SLAVE MODE : ON set the ORBITING SPEED to Fast. SPEED : FAST ADJUST DEVIATION Highlight 'SPEED : FAST' with the control disk and press ENTER to SELECT WITH set the ORBITING SPEED to Slow THEN <ENTERN>... - Page 27 Orbiting Adjustment procedure multiple projector installations : Inportant : to allow corrections in the deviation alignments of the slave projectors, never adjust the deviations of the master projector to its maximum. Default setting of the Master projectorn see 'Stand-Alone projector'. Highlight 'ADJUST DEVIATION' by pushing the control disk up or down and press ENTER .
-
Page 28: Appendix B : G2 Adjustment
Appendix B: G2 adjustment G2 ADJUSTMENT Once the on-screen menu "G2 ADJUSTMENT" is displayed, proceed as follows : G2 ADJUSTMENT Use the potentiometers on the G2-ADJ. module to set the screen grid voltage for Red, Green and Blue. Adjust until the LED on the corresponding output amplifier is turned off. -
Page 29: Appendix C : Gamma Corrections
Gamma corrections GAMMA CORRECTIONS When entering the gamma corrections, a warning will be displayed : WARNING RISK OF INCORRECT "RISK OF INCORRECT ADJUSTMENT OF THE PROJECTOR. ADJUSTMENT OF THE THE GAMMA CORRECTIONS ARE FACTORY ADJUSTED USING PROJECTOR. AN ACTAS COLOUR ANALYSER ! THEREFORE, ONLY QUALI- FIED INSTALLATION OR SERVICE PERSONNEL SHOULD PER- THE GAMMA CORRECTIONS ARE FORM THESE ADJUSTMENTS ! "... - Page 30 Gamma Corrections To carry out the Red and Blue Midlights Correction : - Push the control stick forward or backward to highlight the item R & B MIDLIGHTS in the menu and then press ENTER. If EXIT is pressed, the projector will return to the Service menu. GAMMA CORRECTIONS - After ENTER is pressed, a text box with message "Adjust with arrow é...
- Page 31 Form Approved MATERIAL SAFETY DATA SHEET Bureau Budget No. 45-R0338 MANUFACTURER'S NAME AND FSCM (Federal Supply Code for Manufacturer's) EMERGENCY PHONE NO. BARCO N.V. 32-56-368211 ADDRESS (Number, Street, City, State, and ZIP Code) Noordlaan 5 B-8520 KUURNE CHEMICAL NAME AND SYNONYMS TRADE NAME AND SYNONYMS Ethylenglycol &...
- Page 32 TRESHOLD LIMIT VALUE 100ppm EFFECTS OF OVEREXPOSURE EMERGENCY AND FIRST AID PROCEDURES STABILITY CONDITIONS TO AVOID UNSTABLE STABLE INCOMPATABILITY (Materials to avoid) HAZARDOUS DECOMPOSITION PRODUCTS CONDITIONS TO AVOID OCCUR HAZARDOUS POLYMERIZATION WILL NOT OCCUR STEPS TO BE TAKEN IN CASE MATERIAL IS RELEASED OR SPILLED Rinse with water WASTE DISPOSAL METHOD RESPIRATORY PROTECTION (Specific type)
- Page 33 Insert Card INSERT CARD INPUT SOURCES INPUT SOURCES PROJECTOR PROJECTOR INPUT SOURCES INPUT SOURCES RCVDS RCVDS 5975198 RERODATA 808s 210397...
