Summary of Contents for Power Fist 8058869

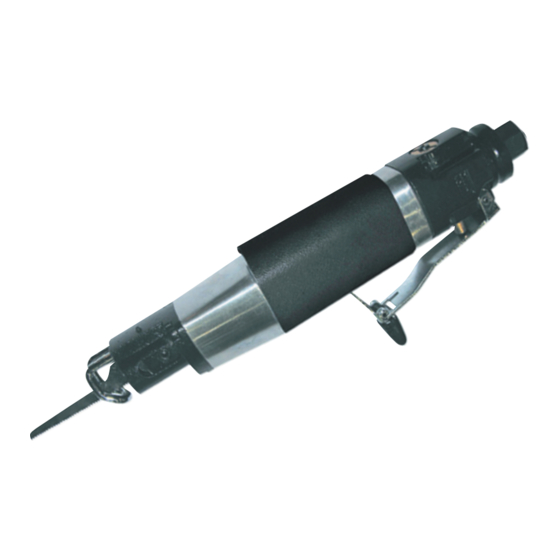

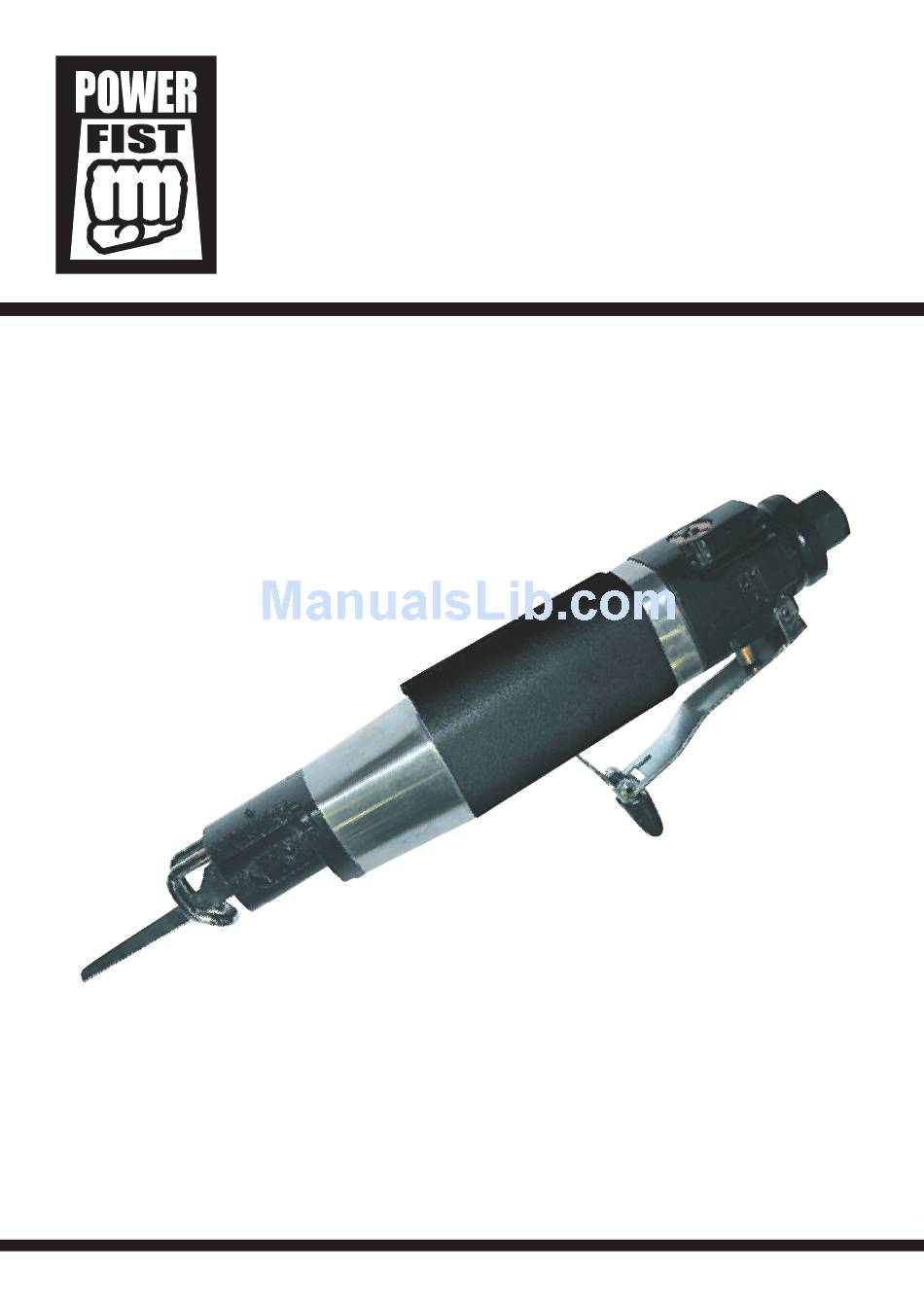

- Page 1 8058869 Air Body Saw OWNER'S MANUAL Please read and understand all instructions before use. Retain this manual for future reference.
-
Page 2: Specifications
8058869 Air Body Saw SPECIFICATIONS Free speed: 10,000 SPM Stroke length: 5/16" Air consumption: 1.0 CFM avg.; 4.0 CFM cont. Operating pressure: 90 PSI Weight: 2.6 Lbs Air inlet size: 1/4" NPT Air hose: 3/8" I.D. Weighted sound pressure level: 96.9 dB Sound power level: 107.9 dB... -
Page 3: Air Supply
OPERATION DESCRIPTION This lightweight, slim designed tool cuts cured surfaces and tight circles in all types of aluminum, plastic, fibreglass, and metal. Features a comfortable rubber grip, a safety trigger to prevent accidental starts, and includes extra blade and stop. AIR SUPPLY 1. -
Page 4: Loading And Operation
LOADING AND OPERATION WARNING: Ensure you read, understand and apply safety instructions before use. 1. Connect the air body to the air hose. 2. Press trigger to operate the tool. 3. Ensure the air supply is clean and does not exceed 90psi while operating the wrench. Too high an air pressure and unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury. - Page 5 Problem Possible Causes Remedies • Lubricate clutch housing • Check for excess clutch oil. Clutch cases need only be half full. Overfilling can cause drag on high speed clutch parts, ie. A typical • Motor parts worn. Runs at normal speed but loses oiled/lubricated wrench requires •...
-
Page 6: Parts List
PARTS LIST No. Part No. Part Blade 20. Pin Bearing 21. Trigger pin 3. Bolt 22. Spring 4. Blade chuck 23. Trigger 5. Spring 24. Bolt 6. Cylinder cap 25. Bolt 7. O-ring 26. Valve stem seat 8. Piston 27. O-ring 9.
