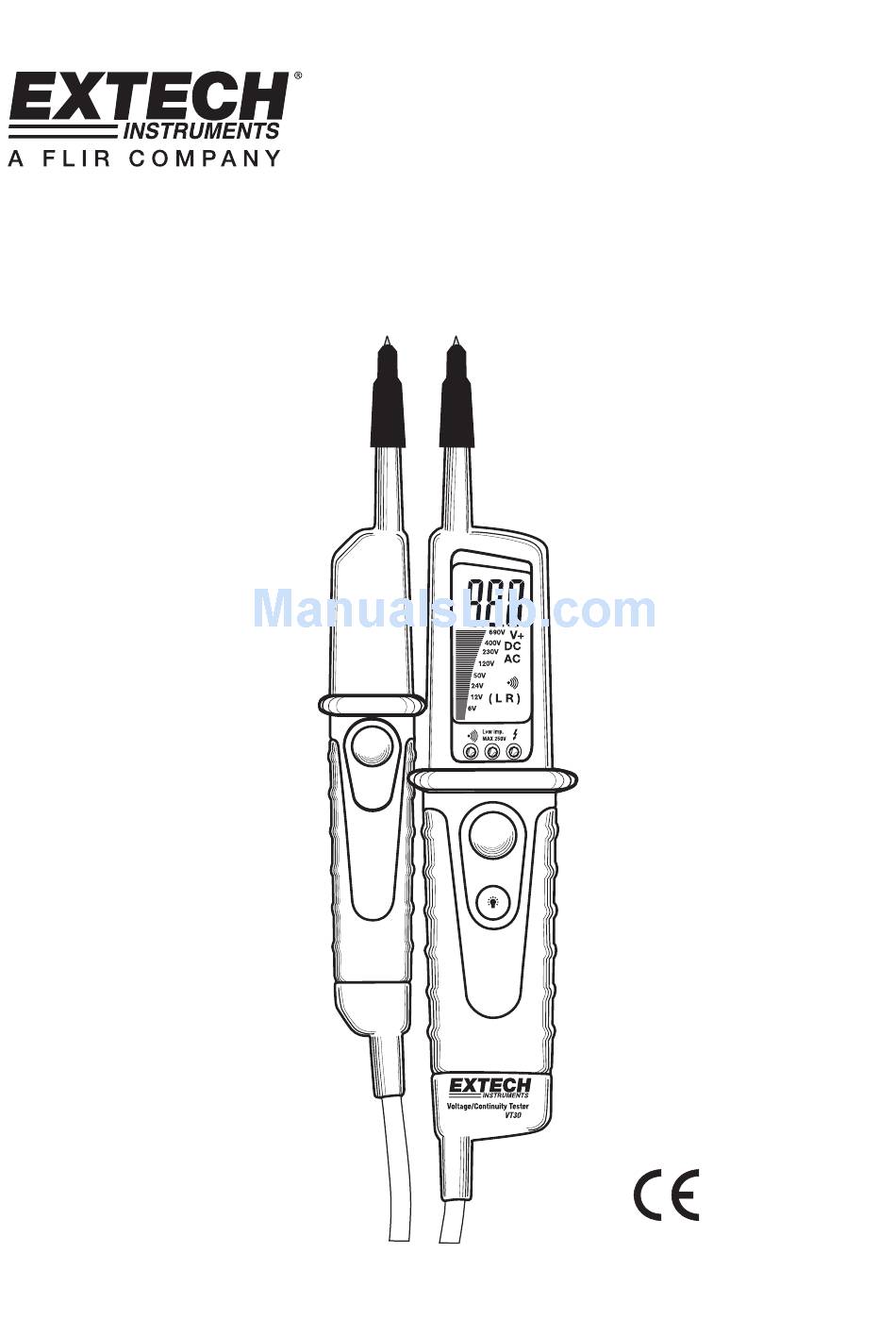

  • Page 1 User's Guide LCD Multifunction Voltage Tester Model VT30-E...

  • Page 2: International Safety Symbols

    Introduction Congratulations on your purchase of the Extech VT30-E Multifunction Voltage Tester. The VT30-E measures AC voltage to 480V and DC Voltage to 690V with LCD readout, stepped voltage bargraph indicator, and LEDs for positive and negative polarity. Additional features include audible continuity beeper, low impedance test for eliminating phantom voltages, and a built-in flashlight to illuminate test connections during measurements.
  • Page 3 LED (AC voltage indicator [between 100 to 480V]) LED (low impedance test) LED (continuity) Low impedance test button (L2) Flashlight button 10. Battery cover 11. Low impedance test button (L1) Probe Tip Category CAT IV 600V CAT II 600V CAT III 600V VT30-E-EU-EN-V5.0-3/12...

  • Page 4: Operation

    Note: The maximum duty cycle in this mode is 5 seconds for voltages up to 250V and 3 seconds for voltages up to 690V. Allow 10 minutes between each reading. Note: Measuring from hot to ground may trip any GFCI equipped circuits. VT30-E-EU-EN-V5.0-3/12...
  • Page 5 “000”, and the continuity LED will light. Flashlight Press and hold the button to turn the flashlight on. Release the button to turn the flashlight off. After the button is released, the light will turn off after 12 seconds (approx). VT30-E-EU-EN-V5.0-3/12...

  • Page 6: Maintenance

    Before cleaning the tester, ensure that the test leads are not connected to any circuit or device. Wipe the meter only with a damp cloth as needed. Do not apply abrasives, solvents, or other cleaners to the surface of the meter. Store with the battery removed and avoid extreme temperature and humidity. VT30-E-EU-EN-V5.0-3/12...

  • Page 7: Specifications

    240 x 78 x 40mm (9.4 x 3 x 1.6”) Weight 260G (9.2oz) Copyright © 2012 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com VT30-E-EU-EN-V5.0-3/12...
