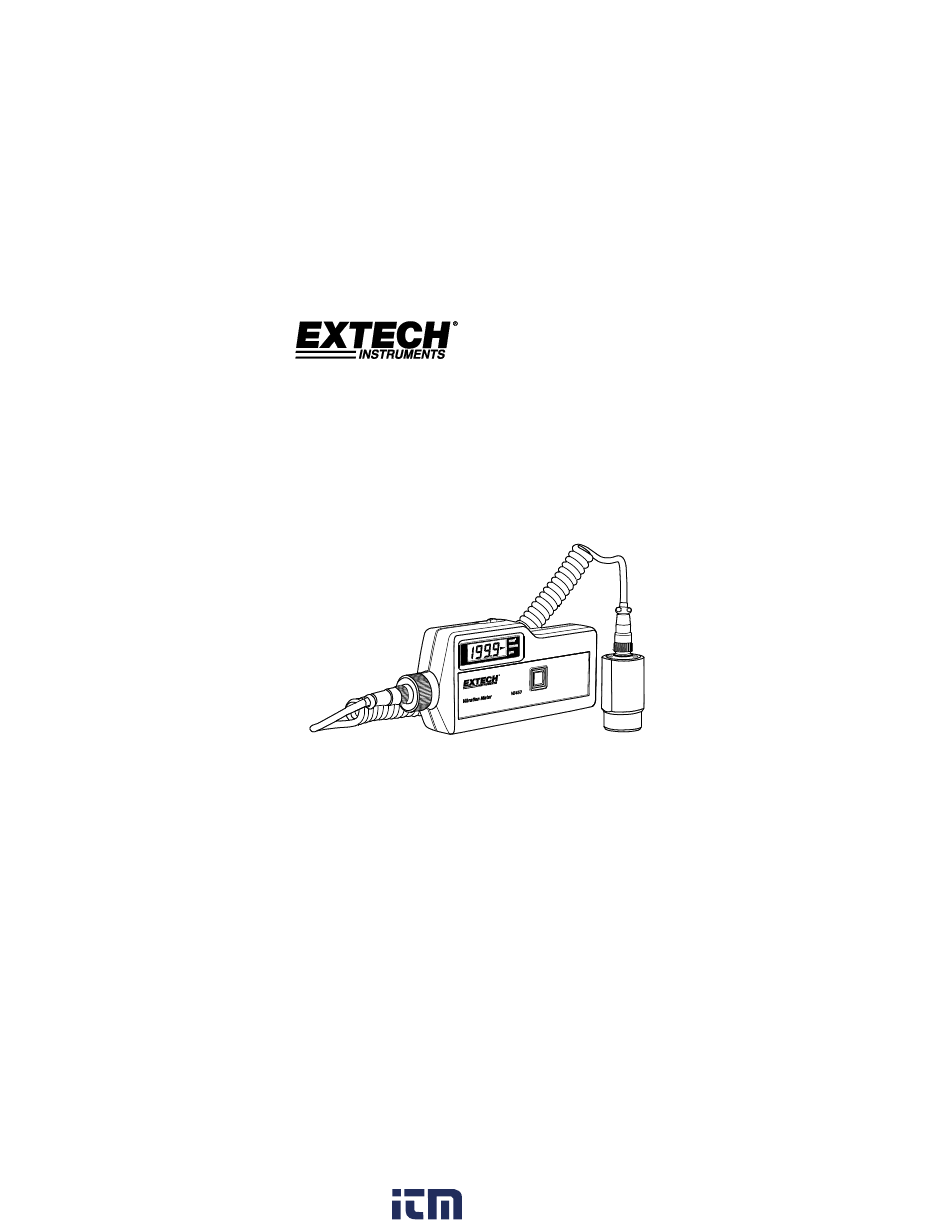

- Page 1 USER GUIDE Vibration Meter Model VB450 1.800.561.8187 information@itm.com www. .com...

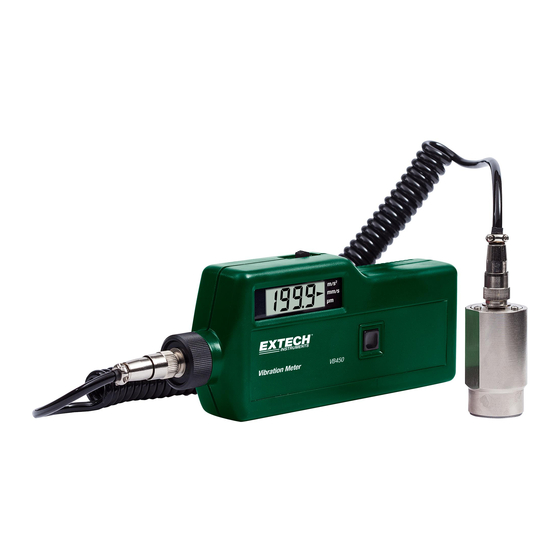

- Page 2 EXTECH INSTRUMENTS Introduction Thank you for selecting the Extech Instruments Model VB450. The VB450 is a portable vibration meter consisting of an acceleration sensor and a digital measurement display circuit. It can be used to measure vibration displacement, speed (or intensity) and acceleration of mechanical equipment.
- Page 3 Do not open the meter housing; there are no user- serviceable parts. Contact Extech Instruments directly or contact point-of-sale personnel for service inquiries. Protect the meter’s LCD from shock or vibration; allow only the magnet and sensor to touch the devices under test.
- Page 4 3. Sensor and magnet 4. Lanyard 5. Power and Data Hold button 6. Service access nut (do not loosen; for service use only) 7. Sensor secure nut (turn counter-clockwise to loosen) Battery Compartment on rear of meter VB450-en-GB_V1.0 6/15 1.800.561.8187 information@itm.com www. .com...
- Page 5 Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment. VB450-en-GB_V1.0 6/15 1.800.561.8187 information@itm.com www. .com...
- Page 6 Press and hold the power button to display the results. Release the power button to freeze the results in the display. After 60 seconds the meter will automatically shut off. VB450-en-GB_V1.0 6/15 1.800.561.8187 information@itm.com www.
- Page 7 10 to 500Hz Response 0 to 2.0m/s 0 to 2.0m/s 0 to 2.0μm ±(10%+ 1 digit) ±(10%+ 1d) ±(10%+ 1 digit) Accuracy >2.0m/s >2.0m/s >2μm ±(5%+ 1 digit) ±(5%+ 1d) ±(5%+ 1 digit) ISO-9001 Certified VB450-en-GB_V1.0 6/15 1.800.561.8187 information@itm.com www. .com...
