LW Scientific Mi5 Instruction Manual

Maintenance
1 Always cover your microscope with the dust cover when not in use. When cleaning the lenses, use lens paper or a
cotton swab dipped in lens cleaning solution.
2
Excess oil should be cleaned off your 100x objective and stage at once. An alcohol pad is best for removing oil from
the stage and on the other metal parts, but is not recommended for use on the lenses. Use lens cleaning solution and
lens paper to clean off your objectives.
3
Dust in the nosepiece or ocular tubes should be blown out using filtered air. Canned air dusters work well for this job.
4
Whenever you remove an objective, we recommend that you place it back into the original plastic shipping vial until
ready to be placed back on the microscope. SCREW THE OBJECTIVE SECURELY INTO THE CAP OF THE HOLDER - DO NOT
DROP OBJECTIVE LOOSELY INTO CONTAINER.
5
To keep your microscope in top condition for years, LW Scientific recommends that you have the microscope
professionally serviced once a year.
Warning: The 40x and 60x objective are not sealed for oil immersion. Damage to the 40x and 60x objective due to oil
immersion is not covered under warranty.
Specifications
Nosepiece
Reverse quintuple multiple ball bearing
Head
Binocular (Seidentopf), Trinoc available
Inclined 30°
Diopter adjustment +/-5
10X/20 High-Point super-wide eyepieces
Illumination
Simple Koehler Illumination
Moveable Abbe condenser, NA 1.25
Iris Diaphram
LED illumination
Variable light adjustment, 90-240V / 50-60Hz
automatic-switching power cord
Construction
Rugged alloy
Stage
Mechanical stage (135mm X 184mm)
Coaxial drive controls, metal rack & pinion
Range of traverse: 73mm x 43mm
Slow-close hydraulic slide finger
Acid and reagent resistant finish
P. 770.270.1394 F. 770.270.2389
Objectives
Infinity Plan objectives
4X, 10X, 20X, 40XR, 100XR (oil)
50X (oil) and 60x (dry) objectives are also available
Anti-fungal, parfocal, parcentric, color-coded
Adjustment Controls
Eyepiece: Interpupillary distance adjustment 50-75 mm
Stage Controls: Knobs allow movement of slide on X-Y axis
Etched vernier scales
Coarse Adjustment: Range of 22 mm
Fine Adjustment: Graduation of 2µm
Variable Light Adjustment
Dimensions and Weight
Height: 15.6" (396 mm)
Length: 16.5" (420 mm)
Width: 8.1" (206 mm)
Weight: Trinoc: 20.5 lbs.
Binoc: 20.0 lbs.
Objectives: The following numbers are
based on use with 10x/20 eyepieces.
Size N.A. Mag. Field of View Working Distance
4X 0.10 40X 5.0mm 6.73mm
10X 0.25 100X 2.0mm 4.19mm
20X 0.40 200X 1.0mm 2.14mm
40XR 0.65 400X 0.5mm .45mm
50XR 0.95 500X 0.4mm .29mm
60XR 0.85 600X 0.33mm .21mm
100XR 1.25 1000X 0.2mm .12mm
MKT-7.5.3-L-070 | Rev 0
865 Marathon Parkway Lawrenceville GA 30046
S
A
B
R
C
D
Q
P
O
N
F
M
L
H
I
J
K
Introduction
LW Scientific is proud to present our most advanced modular microscope to date! The Mi5 microscope features
exceptional optical quality with an infinity optical system. The ergonomic narrow design allows users to rest their arms flat
on the table and easily operate all controls. LED lighting produces "daylight" color, with a cool temperature and long
life. Comfort, durability, dependability, superior imaging, and a multitude of additions and upgrades make the Mi5 a
top-of-the line value for not only basic research and lab inspections, but also for the most discriminating lab technicians
and specialists. The Mi5 microscope is intended for use as a biological microscope in a professional environment in
accordance with the guidelines set forth in this operations manual.
Lumin
50x oil and 60x dry
Phase and Dark Field
Epi-Module
P. 770.270.1394 F. 770.270.2389
I-4 infinity
Mi5

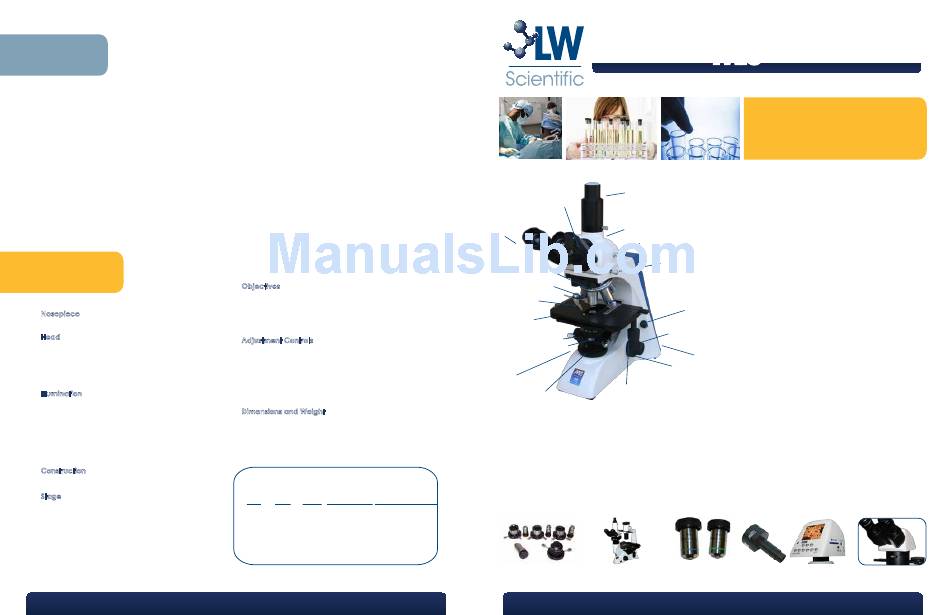

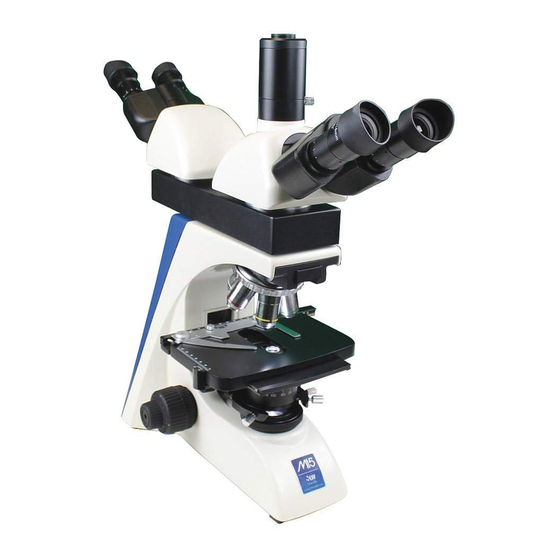

Instruction Manual
Model pictured:
Not all features available on all models -
see back page for model specifications.
A Diopter Adjustment E Brightness Control
B Trinocular Head F Fine Focus
C Light Port Slide G On/Off Switch
(trinoc only) (located on rear)
D Head Retention Screw H Coarse Focus
I Focus Friction Control
J X/Y Axis Stage Controls
K Base Condenser
L Substage Abbe Condenser
M Substage Iris Diaphragm
N Stage
O Slide Holder
E
P Objectives
Q Nosepiece
R Eyepieces
S Eyepiece tube and
G
C-mount tube
(trinoc only)
Camera Attachments Polarizing Modules
objectives
865 Marathon Parkway Lawrenceville GA 30046
Mi5
