Nilfi sk E 130.2, E 140.2
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Nilfisk-ALTO E 130.2

Summary of Contents for Nilfisk-ALTO E 130.2

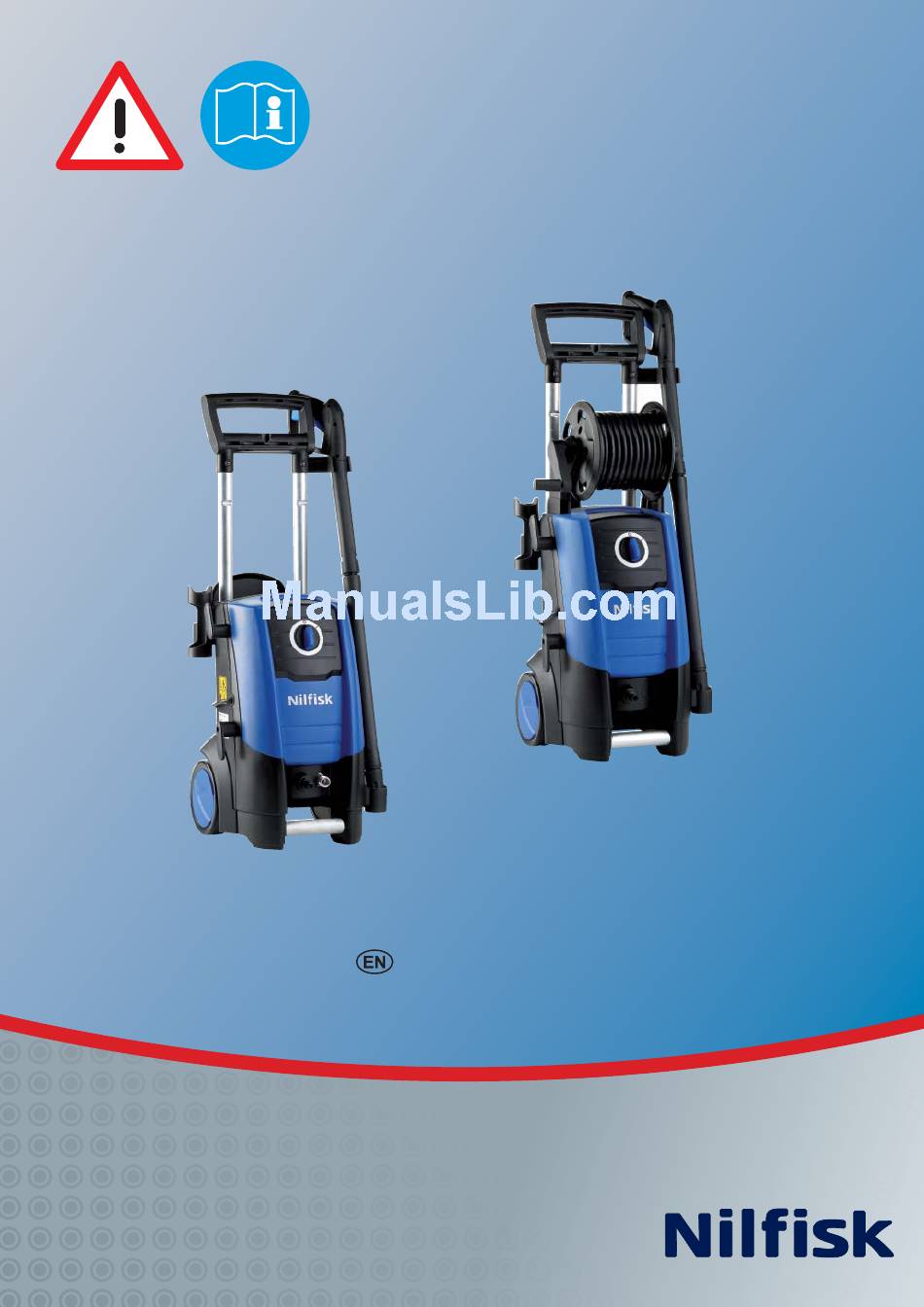

  • Page 1 Nilfi sk E 130.2, E 140.2 User Manual...

  • Page 2: Table Of Contents

    Index 1 Safety precautions and warnings ..........3 2 Description ................4 3 Before you start using your pressure washer ......5 4 Operating your pressure washer ..........6 5 Fields of Application and Working Methods .............10 6 After using your pressure washer ...........12 7 Maintenance ................13 8 Trouble Shooting ..............14 9 Further information ..............15...

  • Page 3: Description

    Extension cables should be of Water connection IMPORTANT! Only use wa- a watertight construction and Connection to ter without any impurities. If comply with the below-men- the public mains there is a risk of running sands tioned requirements for length according to regu- in the inlet water (i.e.

  • Page 4: Before You Start Using Your Pressure Washer

    2.2 Operation elements See illustration at the end of 12 Trolley handle (telescopic and model survey this manual. handle) 13 Hose reel (not standard) 1 Start/stop switch 14 Hose hook 2 Water inlet (with fi lter) 15 Model tag 3 High pressure connection 16 Quick coupling (only models without hose 17 Button for telescopic handle...

  • Page 5: Operating Your Pressure Washer

    3.3 Mounting of quick 1. Screw the quick coupling (16) coupling tight on to the water inlet (2). Note: The inlet fi lter must al- ways be fi tted in the water inlet pipe to fi lter out sand, lime stone and other impurities as these will damage the pump valves.
  • Page 6 4.2 Mounting of spray 1. Push the spray lance (6) into 2. Attach the nozzle. lance and Click & Clean the spray gun (7) and screw nozzles it on. Warning: When attaching the Click & Clean nozzles, the pawl on the side of the spray lance should come out again.
  • Page 7 4.4 Telescopic handle The machine features a tele- scopic handle. To raise or lower the handle, press the knob and move the handle upwards or downwards. When a click is heard, the handle is in right position. 4.5 Start and stop of the ma- The spray lance is affected Do not cover the machine chine (when connected...
  • Page 8 4.7 Pressure regulation on The pressure can be regulated ® ® the TORNADO on the TORNADO PR nozzle. nozzle High pressure Low pressure 4.8 Stationary use If mounting a special wall hook (not standard), the pressure washer can be used as a sta- tionary solution meaning that it can be operated while hanging on the wall.

  • Page 9: Fields Of Application And Working Methods

    5 Fields of application and working methods 5.1 General Effi cient high presure cleaning is achieved by following a few guide- lines, combined with your own personal experience of specifi c cleaning tasks. Accessories and detergents, when correctly cho- sen, can increase the effi ciency of your pressure washer. Here is some basic information about cleaning.
  • Page 10 5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents. Task Accessories ‘Click Cleaning method &...

  • Page 11: After Using Your Pressure Washer

    6 After using your pressure washer 6.1 Storing the washer The machine should be sto- 3. Stop the machine, unplug red in a frost-free room! and wind up hose and cable. 4. Place spray handle, nozzles Pump, hose and accessories and other accessories in the should always be emptied of holders of the machine.

  • Page 12: Maintenance

    7 Maintenance WARNING! Always disconnect Clean the connectors of dust the electrical plug from the and sand. Make sure that no socket prior to maintenance or sand or dirt is blocking the cleaning. movement of the pawl on the To ensure a long and problem Click &...

  • Page 13: Trouble Shooting

    8 Trouble-shooting To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse.

  • Page 14: Further Information

    9 Further information 9.1 Recycling the washer Make the old cleaner unusable As specifi ed in European Direc- immediately. tive 2002/96/EC on old electri- cal and electronic appliances, 1. Unplug the cleaner and cut used electrical goods must the electric cable. be collected separately and recycled ecologically.
  • Page 15 9.3 Accessories Only use original accessories. Click & Clean Special nozzle for enameled surfaces. Optimal distance: 30 Car nozzle - 50 cm. Click & Clean 90° angled special nozzle for undercarriage and wheel arches. Undershassis Integrated guide shoes. nozzle Click & Clean Adjusted in angles from 0°...

  • Page 16: Ec Declaration Of Conformity

    For cleaning of wooden surfaces incl. of wooden garden furniture. 10 EU Declaration of Conformity EU Declaration of Conformity Product: High Pressure Washer Type: Nilfi sk E 130.2, E 140.2 Description: 230 V 1~, 50 Hz - IP X5 The design of the unit corre- EC Machine Directive 98/37/EC...
  • Page 18 Nilfi sk, Division of Nilfi sk-Advance A/S, Industrivej 1, DK - 9560 Hadsund, tel.: (+45) 7218 2100...

This manual is also suitable for:

E 140.2
