IR Receiver
Alarm
indication
light

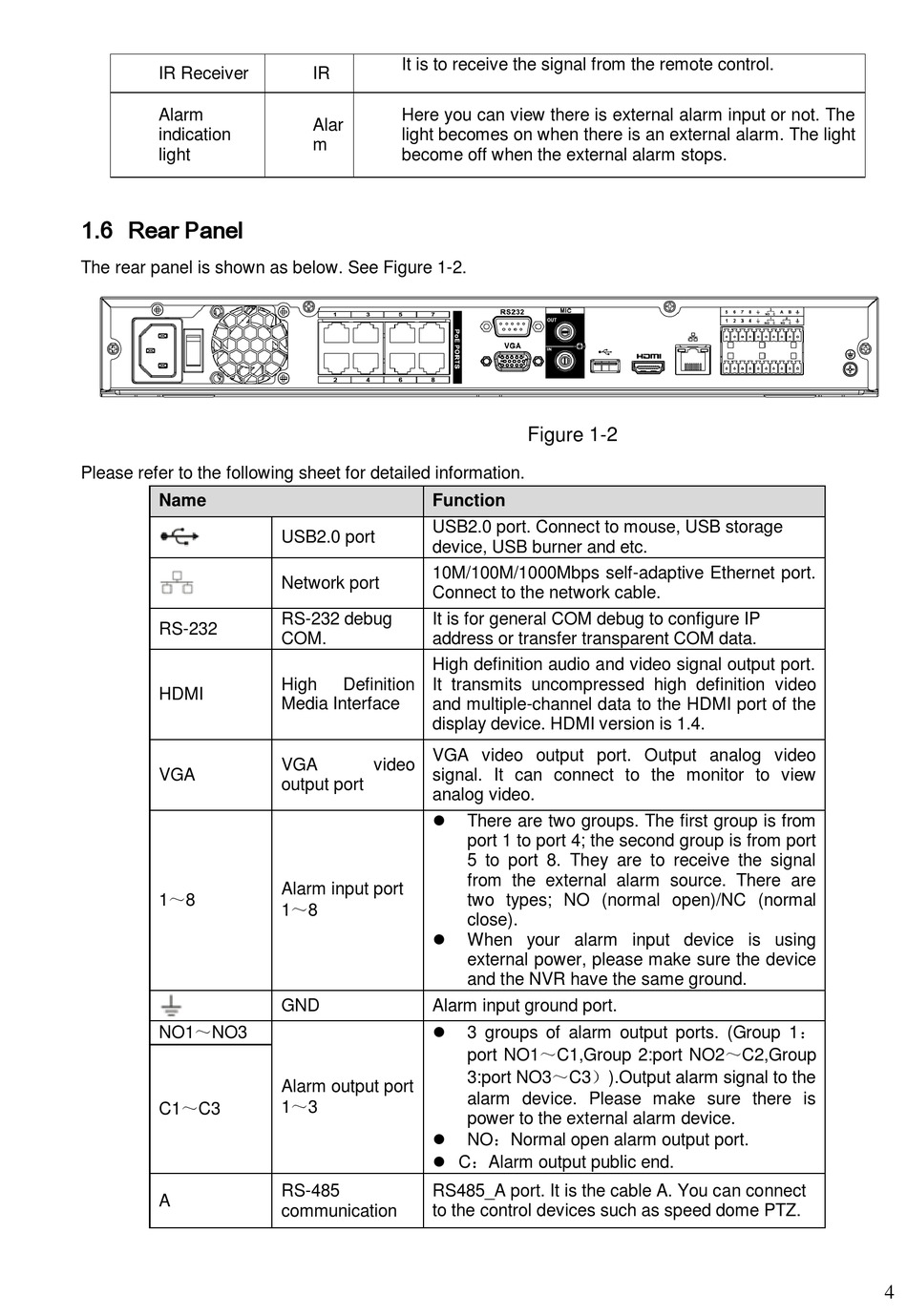

1.6 Rear Panel

The rear panel is shown as below. See Figure 1-2.
Please refer to the following sheet for detailed information.
Name
RS-232
HDMI
VGA
1~8
NO1~NO3
C1~C3
A
It is to receive the signal from the remote control.
IR
Here you can view there is external alarm input or not. The
Alar
light becomes on when there is an external alarm. The light
m
become off when the external alarm stops.
Function
USB2.0 port. Connect to mouse, USB storage
USB2.0 port
device, USB burner and etc.
10M/100M/1000Mbps self-adaptive Ethernet port.
Network port
Connect to the network cable.
RS-232 debug
It is for general COM debug to configure IP
COM.
address or transfer transparent COM data.
High definition audio and video signal output port.
High
Definition
It transmits uncompressed high definition video
Media Interface
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
VGA video output port. Output analog video
VGA
video
signal. It can connect to the monitor to view
output port
analog video.
Alarm input port
1~8
GND
Alarm input ground port.
Alarm output port
1~3
 C:Alarm output public end.
RS-485
RS485_A port. It is the cable A. You can connect
communication
to the control devices such as speed dome PTZ.
Figure 1-2
There are two groups. The first group is from
port 1 to port 4; the second group is from port
5 to port 8. They are to receive the signal
from the external alarm source. There are
two types; NO (normal open)/NC (normal
close).
When your alarm input device is using
external power, please make sure the device
and the NVR have the same ground.
3 groups of alarm output ports. (Group 1:
port NO1~C1,Group 2:port NO2~C2,Group
3:port NO3~C3)).Output alarm signal to the
alarm device. Please make sure there is
power to the external alarm device.
NO:Normal open alarm output port.
4
