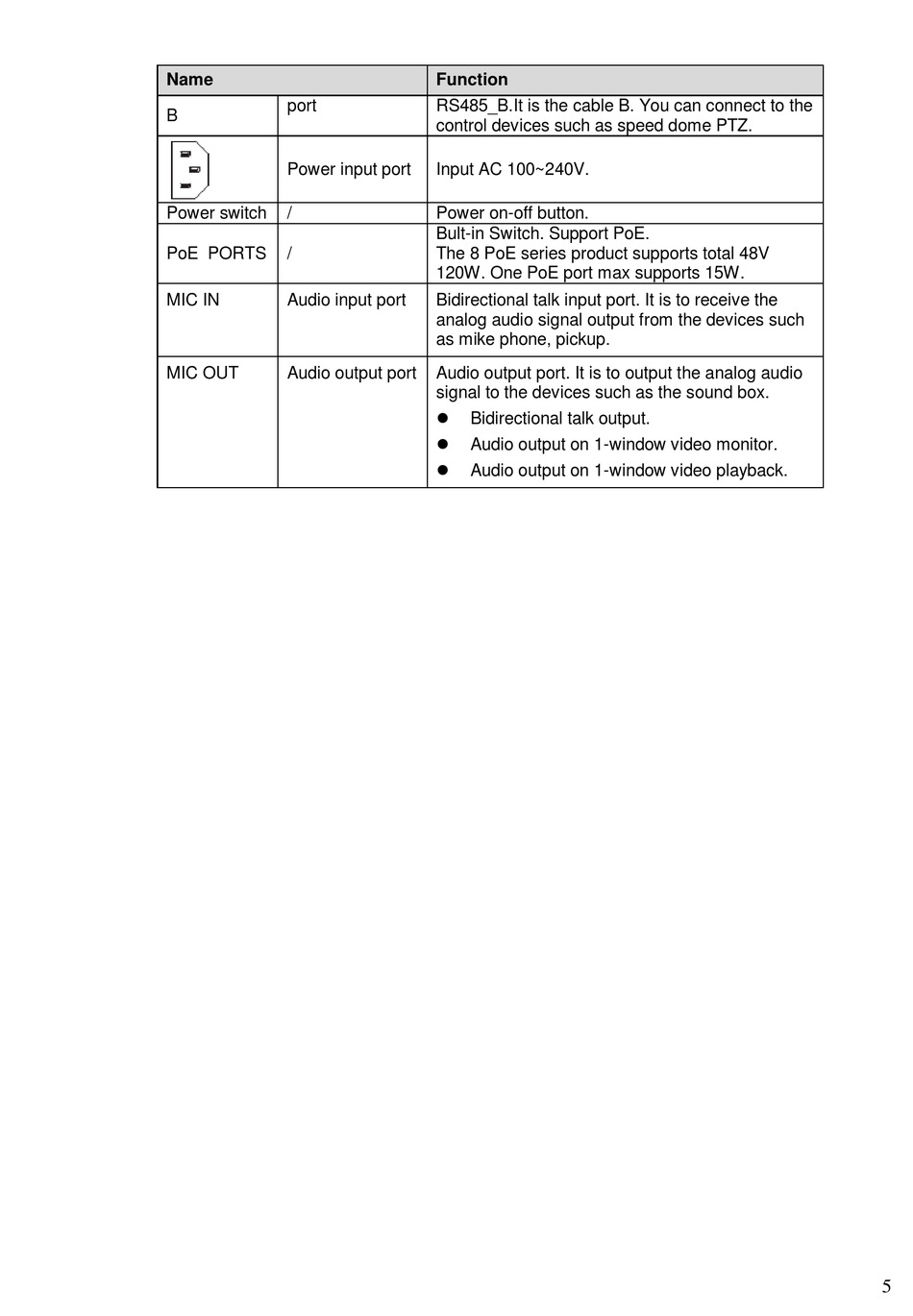

Name
port
B
Power input port
Power switch /
PoE PORTS /
MIC IN Audio input port
MIC OUT Audio output port
Function
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
Input AC 100~240V.
Power on-off button.
Bult-in Switch. Support PoE.
The 8 PoE series product supports total 48V
120W. One PoE port max supports 15W.
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as mike phone, pickup.
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.

Bidirectional talk output.

Audio output on 1-window video monitor.

Audio output on 1-window video playback.
5
