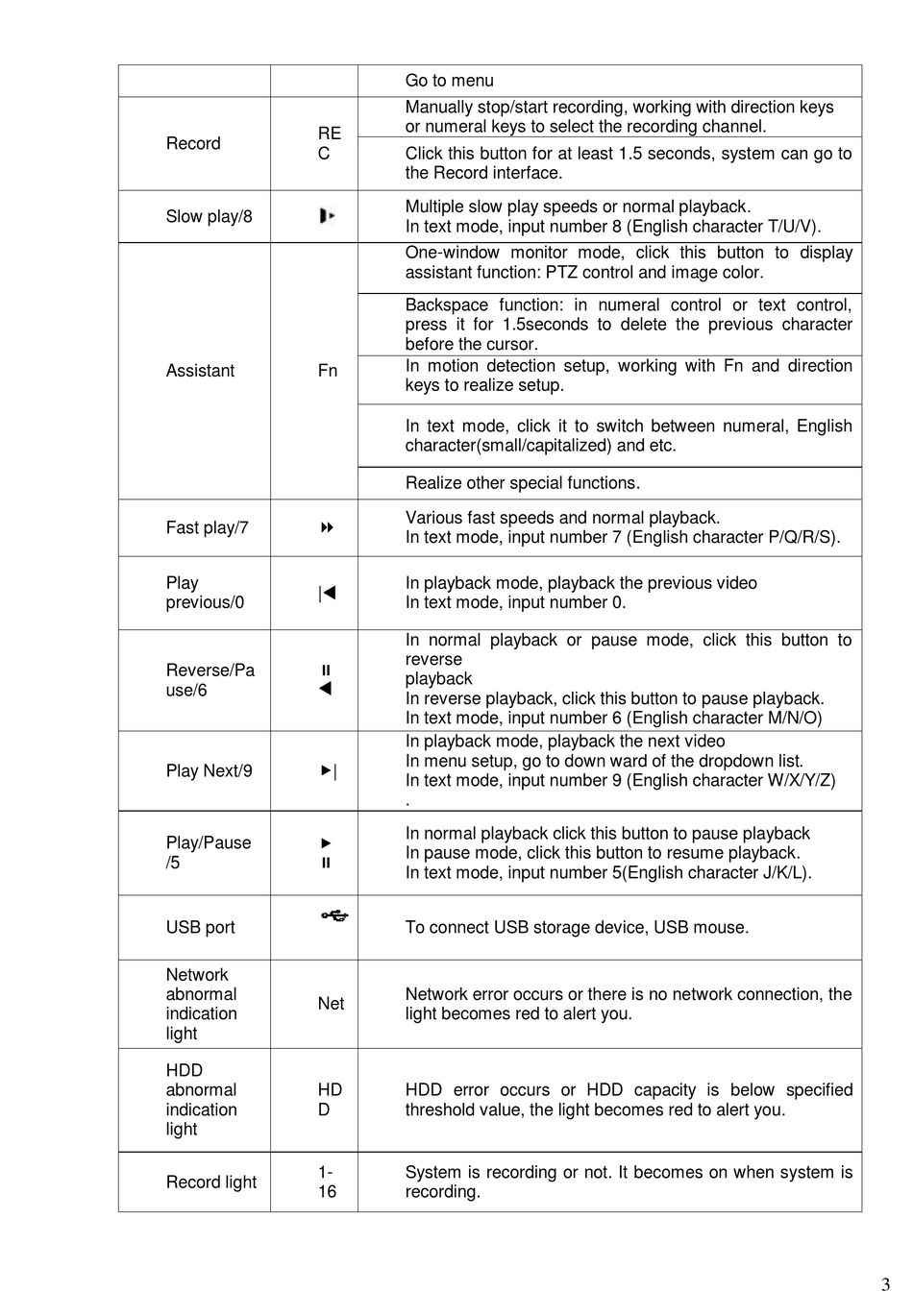

ClearView PhoenixHP Quick Start Guid page 8

RE
Record
C
Slow play/8
Assistant Fn

Fast play/7
Play
|
previous/0

Reverse/Pa

use/6
|
Play Next/9

Play/Pause

/5
USB port
Network
abnormal
Net
indication
light
HDD
abnormal HD
indication D
light
1-
Record light
16
Go to menu
Manually stop/start recording, working with direction keys
or numeral keys to select the recording channel.
Click this button for at least 1.5 seconds, system can go to
the Record interface.
Multiple slow play speeds or normal playback.
In text mode, input number 8 (English character T/U/V).
One-window monitor mode, click this button to display
assistant function: PTZ control and image color.
Backspace function: in numeral control or text control,
press it for 1.5seconds to delete the previous character
before the cursor.
In motion detection setup, working with Fn and direction
keys to realize setup.
In text mode, click it to switch between numeral, English
character(small/capitalized) and etc.
Realize other special functions.
Various fast speeds and normal playback.
In text mode, input number 7 (English character P/Q/R/S).
In playback mode, playback the previous video
In text mode, input number 0.
In normal playback or pause mode, click this button to
reverse
playback
In reverse playback, click this button to pause playback.
In text mode, input number 6 (English character M/N/O)
.
In playback mode, playback the next video
In menu setup, go to down ward of the dropdown list.
In text mode, input number 9 (English character W/X/Y/Z)
.
In normal playback click this button to pause playback
In pause mode, click this button to resume playback.
In text mode, input number 5(English character J/K/L).
To connect USB storage device, USB mouse.
Network error occurs or there is no network connection, the
light becomes red to alert you.
HDD error occurs or HDD capacity is below specified
threshold value, the light becomes red to alert you.
System is recording or not. It becomes on when system is
recording.
3
