Rack Mounting

The AXP 50 C AT is delivered with rack mounting brackets attached. For rack mounting,
do not install the rubber feet. Use the rack ears to mount the AXP 50 C AT in a standard
equipment rack. The AXP 50 C AT can be mounted on a 19 inch Universal 1U or Basic rack
shelf.
To rack mount the AXP50 C AT on a rack shelf:
1. If rubber feet are installed on the bottom of the AXP50 C AT, remove them.
2. Mount the AXP50 C AT on the rack shelf, using two 4-40 x 3/16 inch screws in
Half Rack 9.5 inch Box Standard Shelf
opposite (diagonal) corners to secure the unit to the shelf. In a standard equipment
rack, mount the device using the installed rack mounting brackets.
1U Universal Rack Shelf
Front false
faceplate
uses 2
screws.

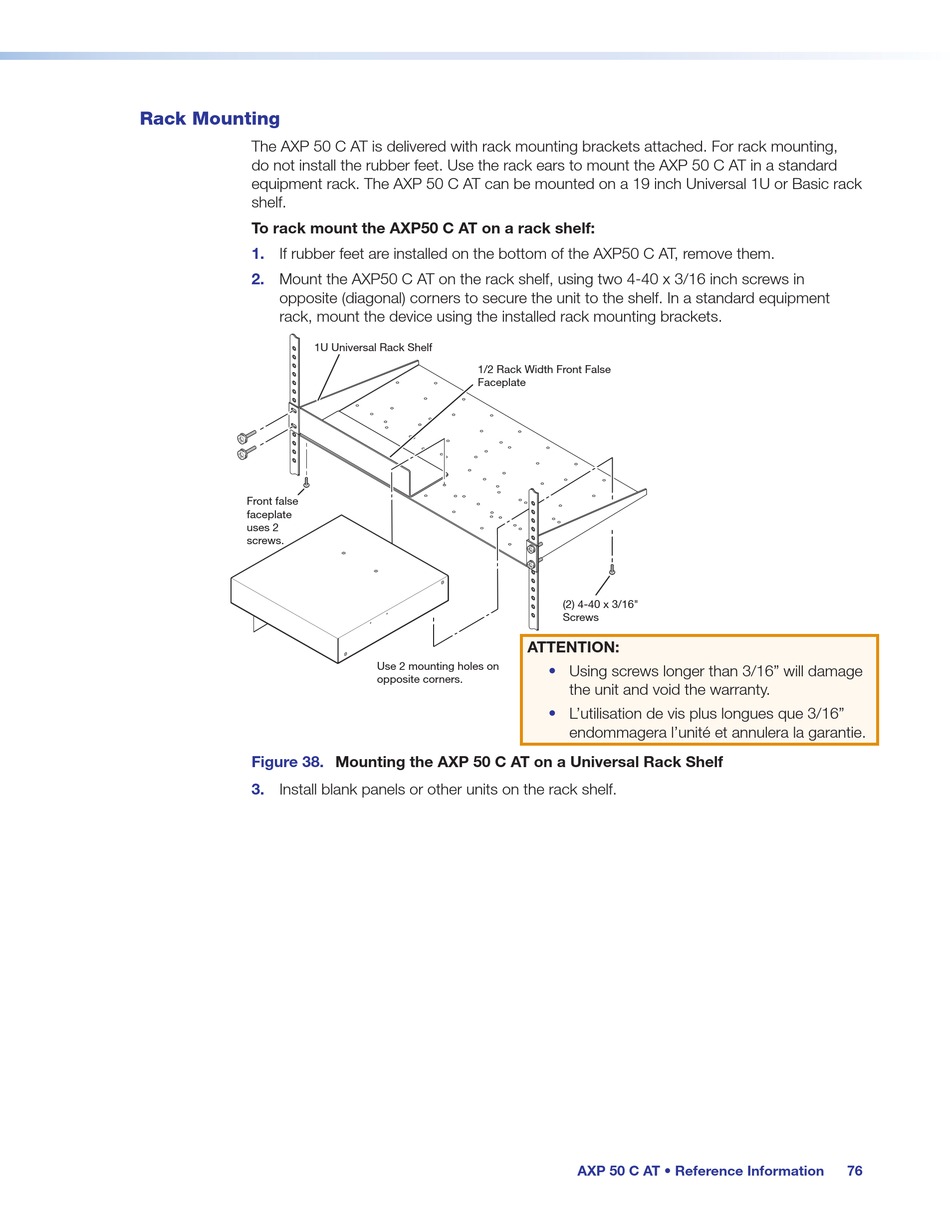

Figure 38.
3. Install blank panels or other units on the rack shelf.
1/2 Rack Width Front False
Faceplate
Use 2 mounting holes on
opposite corners.
Mounting the AXP 50 C AT on a Universal Rack Shelf
(2) 4-40 x 3/16"
Screws
ATTENTION:
• Using screws longer than 3/16" will damage
the unit and void the warranty.
• L'utilisation de vis plus longues que 3/16"
endommagera l'unité et annulera la garantie.
