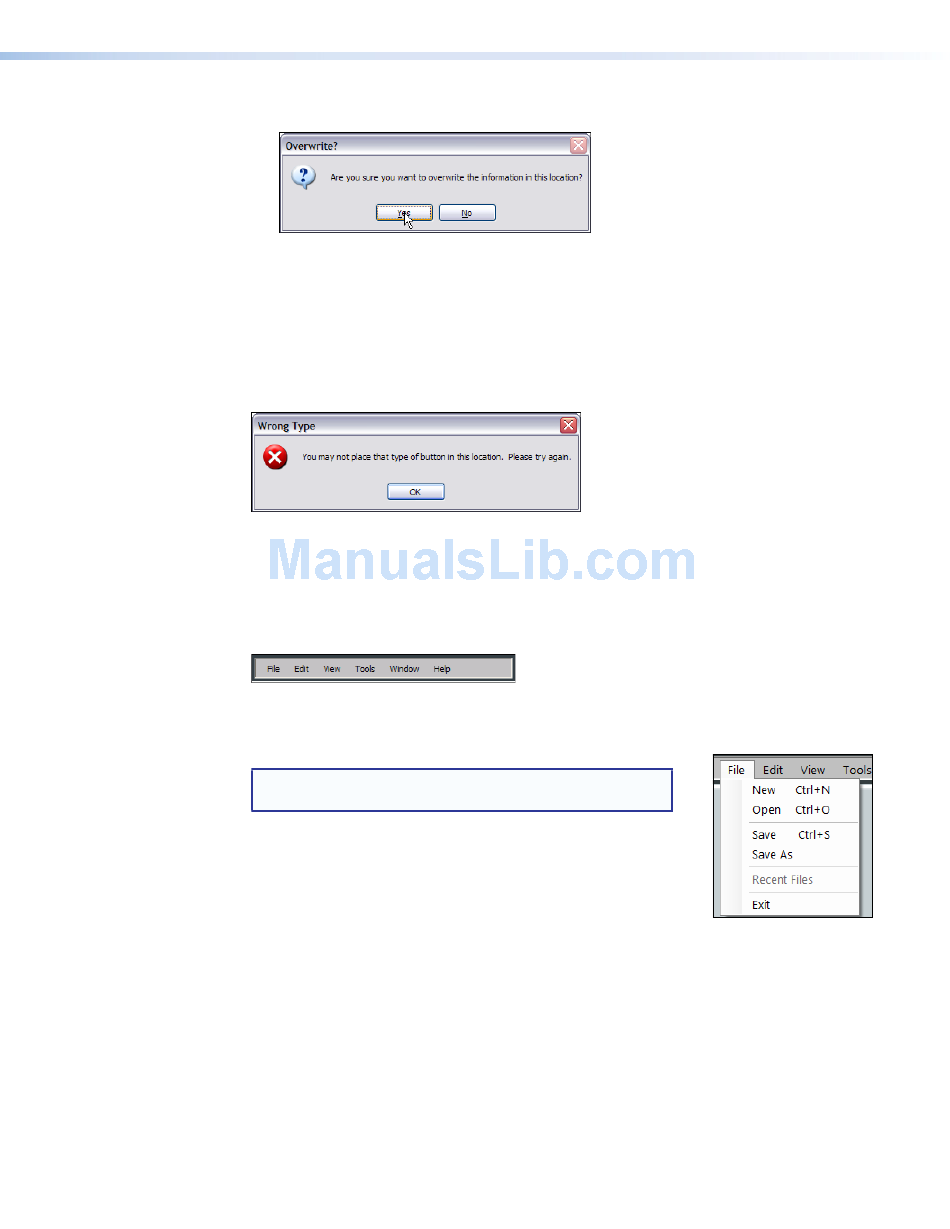

5. The program warns that all settings in the section are about to be overwritten:
Click
Yes
The input 5 processing path is now identical to the input 1 path including signal levels,
parameters settings, and mute/bypass selections.
Any single processor block is copied, then pasted to a similar processor block in the same
or different signal path. Input gain can only be copied to another input gain, and output gain
can only be copied to another output gain block. The user must always confirm that existing
information will be overwritten. If an attempt is made to copy a processor block setting to an
incompatible block, a warning dialog opens saying the action cannot be completed.

Toolbar Menus

DSP Configurator contains a menu bar, arranged horizontally below the title bar
(see figure 10
to access various functions of DSP Configurator not readily accessible from the main
workspace and include:
•
File
File menu
NOTE:
Live mode.
• — Discards the current DSP configuration (after prompting
New
to save changes) and opens a blank configuration file.
• — Loads and activates a previously saved DSP
Open
configuration file.
• — Saves all changes to the current DSP configuration file
Save
under the current file name. If the file has not previously been saved, prompts for a file
name.
•
Save As
name.
•
Recent Files
• — Closes the DSP Configurator Program.
Exit
.
on page 22). The menu bar provides a selection of drop-down menus
• •
Edit View
, , and
New Open Recent Files
— Saves all changes to the current DSP configuration file under a new file
— Opens a list of recently opened or saved DSP configuration files.
AXP 50 C AT • DSP Configurator – Configuration and Operation
• • •
Tools Window Help
are unavailable in
25
