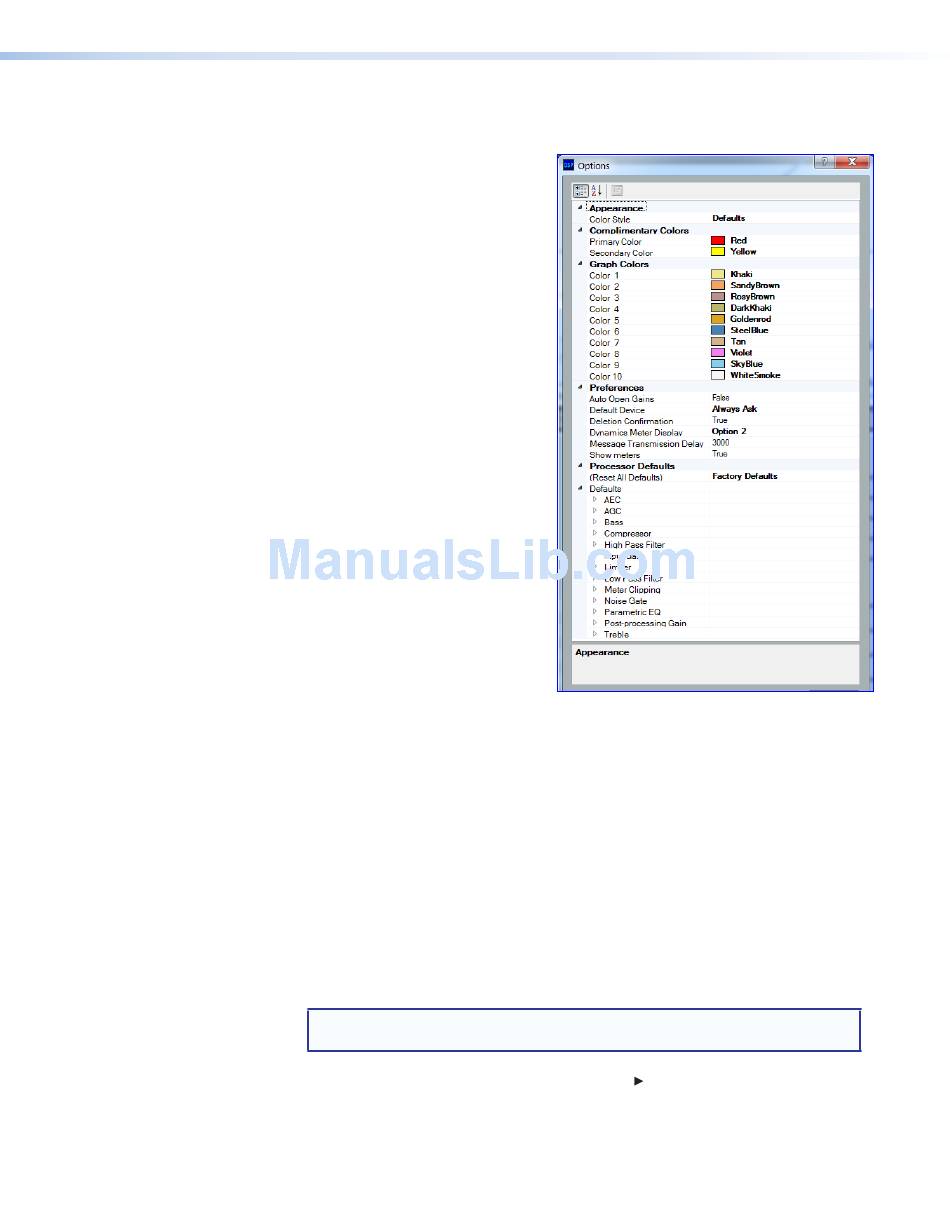

• Options — Opens a tabbed dialog box to customize the DSP Configurator
appearance and default operation.
Appearance — Select a color
•
scheme.
Complimentary Colors — Tailor
•
the appearance of the various
graphs and dialog boxes. Primary
and secondary colors allows
custom selection of colors used
with the various graphs and dialog
boxes.
Graph colors — Change the row
•
colors containing the information
and descriptions of signal graphs in
the processor blocks.
Preferences — Customize the
•
default operation for the following
options:
Auto Open Gains —
•
opens the gain dialogs when a
mouse hovers over the block.
Default Device — The startup
•
splash screen contains options
for selection of the devices
to connect to, or to
on startup. The selection
ask
is changed using
.
Device
Deletion Confirmation —
•
Opens a confirmation dialog
when deleting processors.
Dynamics Meter Display — If Show Meters (below) is set to
•
appearance of the dynamics meters can be tailored in order to use the full
meter to show input and gain reduction, or to show the level based on the
output and gain reduction.
Message Transmission Delay — Time in seconds to wait for a response
•
before timing out. Setting the value too low can cause communication errors.
Processor Defaults, (Reset All Defaults) — Returns the AXP 50 C AT processor
•
and level control blocks to factory default conditions. Each processor and gain
block also has an individual default reset (see Defaults, below).
Defaults — Individually selects the default parameters for the selected processor,
•
trim, or gain blocks. Each row item contains default settings customized for the
processor, filter, or gain block it represents. Gain blocks can be initially muted, while
filter and dynamics processor blocks can be initially bypassed.
NOTE: The bypass function is labeled
open the selected processor bliock in active (not bypassed) mode.
To view the individual processor defaults, press [
•
trim, gain, or meter device.
•
Network Audio Control
AXP 50 C AT • DSP Configurator – Configuration and Operation
True
Always
Default
Enable
— Launches Dante Controller.
, the
True
. Select to always
Disabled
] to the left of the processor,
