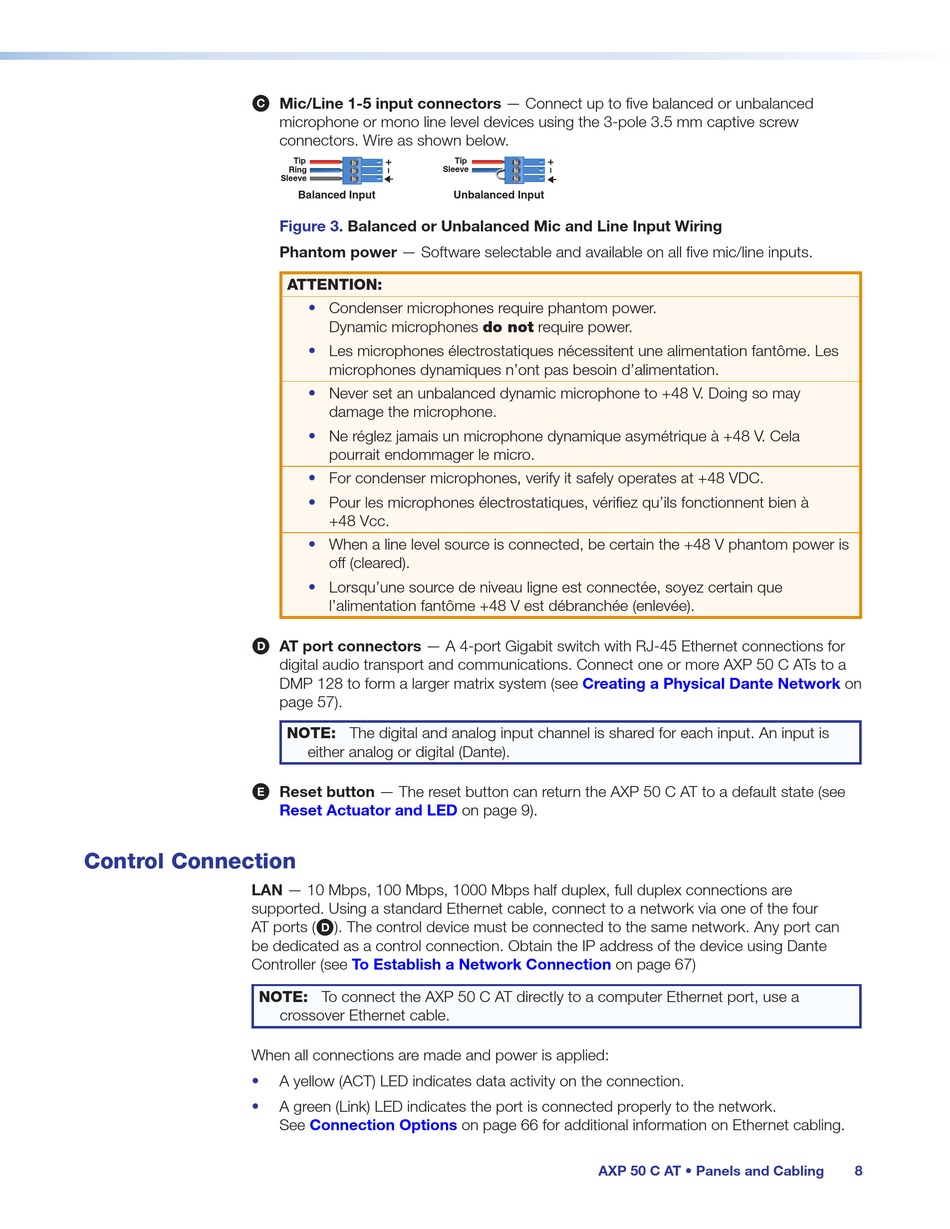

Control Connection

LAN — 10 Mbps, 100 Mbps, 1000 Mbps half duplex, full duplex connections are
supported. Using a standard Ethernet cable, connect to a network via one of the four
AT ports (
be dedicated as a control connection. Obtain the IP address of the device using Dante
Controller (see
NOTE: To connect the AXP 50 C AT directly to a computer Ethernet port, use a
When all connections are made and power is applied:
•
•
Mic/Line 1-5 input connectors — Connect up to five balanced or unbalanced
microphone or mono line level devices using the 3-pole 3.5 mm captive screw
connectors. Wire as shown below.
Audio Input Wiring
Tip Tip
Ring Sleeve
Sleeve
Balanced Input Unbalanced Input
Figure 3. Balanced or Unbalanced Mic and Line Input Wiring
Phantom power — Software selectable and available on all five mic/line inputs.
ATTENTION:
• Condenser microphones require phantom power.
Dynamic microphones do not require power.
Audio Output Wiring
• Les microphones électrostatiques nécessitent une alimentation fantôme. Les
Tip Tip
NO Ground Here
Ring
Sleeve Sleeve
microphones dynamiques n'ont pas besoin d'alimentation.
Balanced Output Unbalanced Output
• Never set an unbalanced dynamic microphone to +48 V. Doing so may
ATTENTION:
damage the microphone.
connect the sleeves to the ground contact.
DO NOT connect the sleeves to the
• Ne réglez jamais un microphone dynamique asymétrique à +48 V. Cela
negative (–) contacts.
pourrait endommager le micro.
• For condenser microphones, verify it safely operates at +48 VDC.
• Pour les microphones électrostatiques, vérifiez qu'ils fonctionnent bien à
+48 Vcc.
•
When a line level source is connected, be certain the +48 V phantom power is
off (cleared).
• Lorsqu'une source de niveau ligne est connectée, soyez certain que
l'alimentation fantôme +48 V est débranchée (enlevée).
AT port connectors — A 4-port Gigabit switch with RJ-45 Ethernet connections for
digital audio transport and communications. Connect one or more AXP 50 C ATs to a
DMP 128 to form a larger matrix system (see
page 57).
NOTE: The digital and analog input channel is shared for each input. An input is
either analog or digital (Dante).
Reset button — The reset button can return the AXP 50 C AT to a default state (see
Reset Actuator and LED
). The control device must be connected to the same network. Any port can
D
To Establish a Network Connection
crossover Ethernet cable.
A yellow (ACT) LED indicates data activity on the connection.
A green (Link) LED indicates the port is connected properly to the network.
Connection Options
See
For unbalanced audio outputs,
Creating a Physical Dante Network
on page 9).
on page 67)
on page 66 for additional information on Ethernet cabling.
AXP 50 C AT • Panels and Cabling
on
8
