Summary of Contents for elektraLite eyeBall IP65

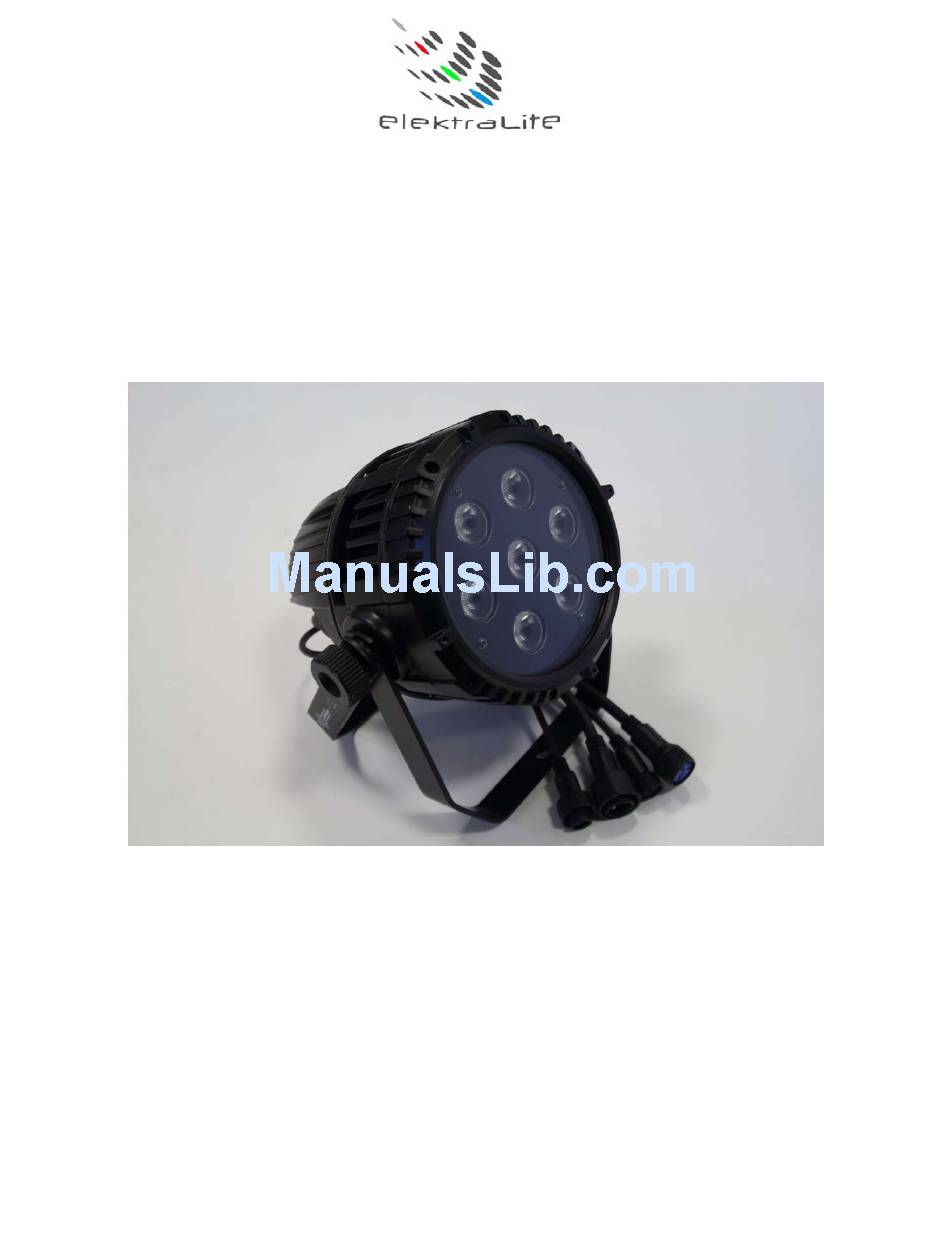

- Page 1 IP65 USER MANUAL Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM...
-
Page 2: Safety Instructions
Always disconnect the eyeBall IP65 from the power source, when the device is not in use or before cleaning it. Only unplug eyeBall IP65 from the power cord. Never pull out the plug out by pulling on the power cord. -
Page 3: General Guidelines
As a result the fins and the surrounding area should be "open" all around the fixture. Do not block the fixture into a tight location. For example,Do not try to mount the eyeBall IP65 like a "high hat" in a soffit surrounded by insulation; the fixture would fail to operate due to overheating. - Page 4 **The Password for Key Lock is the same as reset. If key lock is ON then everytime you power up the eyeBall IP65 the Password is requested. The password must be put in the eyeBall IP65 display otherwise no changes can be made to the operation of the eyeBall IP65.
-
Page 5: Run Mode
7. Static Look. The EyeBall IP65 can be set to a single static look quickly. Use the Menu button to get to STAT. Press Enter. The next screen will read U.000. This is addressing the UV leds. Use the ↑ or ↓ to increase or decrease the output of the leds. - Page 6 11. ID Address. A fixture can be addressed (controlled) through the dmx or instead it can have its own unique ID address. There are a total of 255 different ID addresses from 1 to 255.To set up the address for a fixture, use the Menu button in the root menu go to ID Press Enter and then using the ↑...
- Page 7 Menus and to change functions. The password is ↑ ↓ ↑ ↓ (Up + Down + Up + Down) 14. The Personalities of the eyeBall IP65. Personality tables. (for the personality STAG please refer to the DMX channel assignments on page 9.
- Page 8 ARC2.D 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE 0-50 Linear dimmer speed（DIM=OFF） 51-100 Nonlinear speed 1（DIM1） 101-150 Nonlinear speed 2（DIM2） 151-200 Nonlinear speed 3（DIM3） 201-255 Nonlinear speed 4 (DIM4) ARC2.S 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE...
-
Page 9: Dmx Channel Assignments
DMX Channel Assignments. Grand Master for RGBW 0-255 Leds 0-255 Leds 0-255 GREEN Leds 0-255 Blue White Leds 0-255 No effect 0-010 Snap to Red 255 012-050 Crossfade Red 255→000 Green 000→255 Crossfade Green 255→000 Blue 000→255 051-090 Crossfade Red 000→255 Blue 255→000 091-130 Crossfade... -
Page 10: Cleaning And Maintenance
The clear front glass cover for the lenses should be cleaned so the light output is maintained. With the elektraLite eyeBall IP65 turned off, use only a moist lint-free cloth, and clean the glass cover. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any place on the fixture. - Page 11 Other Products. Elektralite has other great products that are manufactured under the Elektralite product line. Go check out the website at www.myelektralite.com A preview of the products include:- Elektralite Audience Blinder Elektralite LightStream The Unique LightStream. Utilizing 6 x 12 watt quad leds. All individually controllable. Split heads for...
- Page 12 The Elektralite 1018 Using 18 high powered 12 watt leds, the Elektralite 1018 is available using 4-in-1 or 6-in-1 leds. Each led can produce any combination of colors as each led is either an RGBW or RGBWAI device Elektralite ML602 The ML602 utilizes a 90 watt Led and is a bright as a 250 discharge light source.
