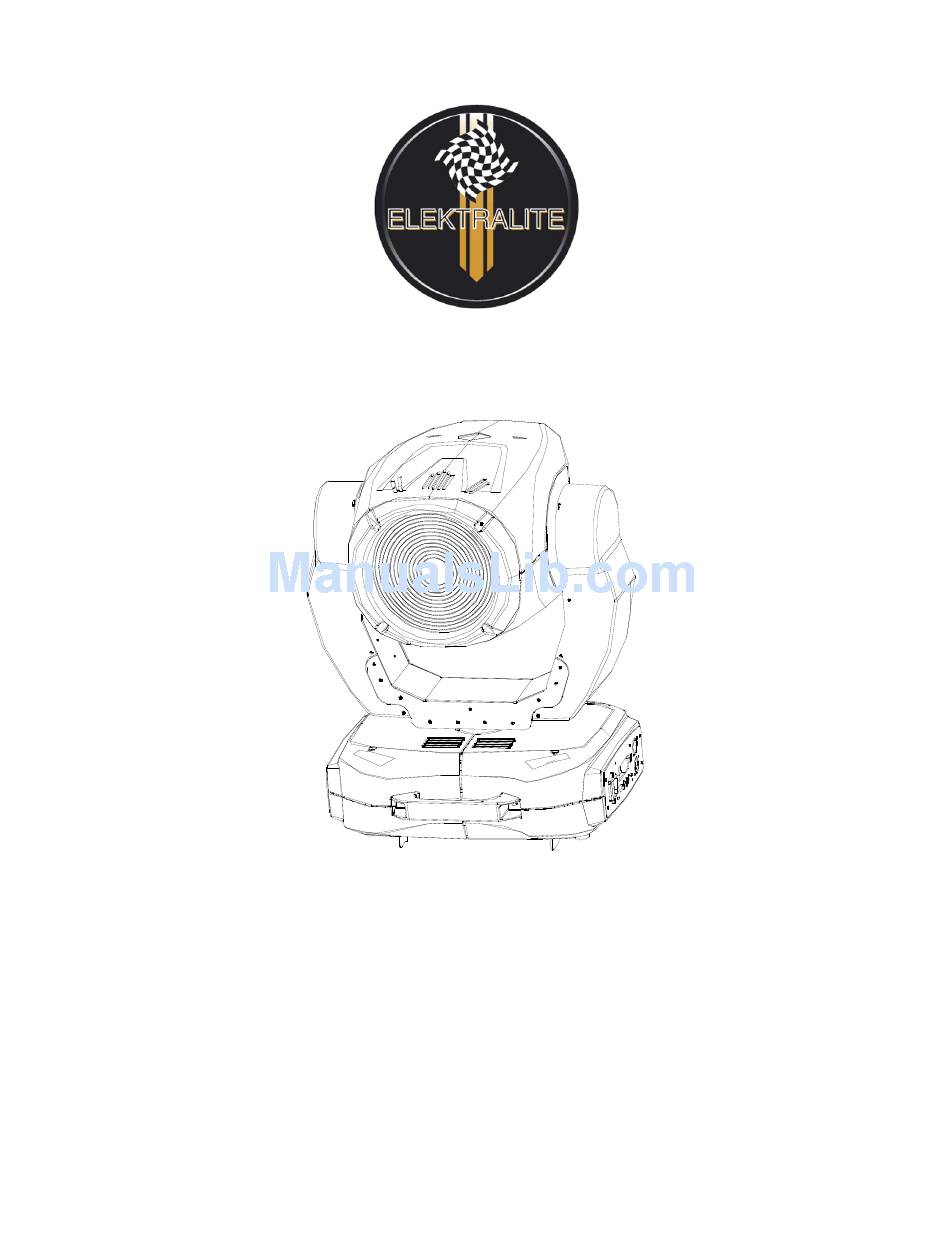

- Page 1 LXE 700 WASH USER MANUAL (V2.10) Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (516)-249-3662. F. +1 (516)-249-8870 WWW.MYELEKTRALITE.COM...
- Page 2 Thank you for choosing LXE 700 Wash. When you unpack LXE 700 Wash, there should be in the box the fixture, a DMX 5 pin XLR cable, and a safety cable. Please check carefully that there is no damage caused in shipping. If you notice any damage then immediately let your shipper know and the dealer from whom you purchased LXE 700 Wash.
-
Page 3: Safety Instructions
Always disconnect LXE 700 Wash from the power source, when the device is not in use or before cleaning it. Only unplug LXE 700 Wash from the power cord. Never pull out the plug out by pulling on the power cord. -
Page 4: Installation Instructions
Mounting LXE 700 Wash The installation of LXE 700 Wash has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any deformation. - Page 5 Do not clamp the cable to the U bracket or clamp. That is not a secondary safety point. A secondary safety point is any point that will adequately hold LXE 700 Wash if the U brackets, clamps or the fixtures base breaks or fails.
- Page 6 Locks for Pan and Tilt. The LXE 700 Wash has two levers for locking the pan and the tilt function. These locks are engaged for shipping. The locks must be disengaged before turning on the fixture. The Pan lock is located in the middle of the yoke at the base.
-
Page 7: Dmx-512 Control Connection
The other end should be connected to the male 5-pin XLR input of LXE 700 Wash. Then daisy-chain out of the first LXE 700 Wash and into the next LXE 700 Wash or other dmx device. Never “Y” split the DMX connection. - Page 8 Note: After switching on, LXE 700 wash will automatically detect whether DMX 512 data is received or not. If the data is received, the display will show "A.001" or whatever the address is set to, like “A.025” If there is no data received at the DMX-input, the display flashes "A001" with the actually set address.
-
Page 9: The Display Panel
The Display Panel: Default settings shaded. VALU A001~AXXX (AXXX) DMX address setting SLAV SLA1/ SLA2/ SLA3 Slave setting ADDR Change address EBOC ON/OFF external controller ALON (AU-A) Automatic Run in Stand Alone AUTO MAST (AU-M) Automatic Run as Master Sound-controlled Run in Stand MODE ALON (SO-A) - Page 10 - ９ - LXE700 wash...
- Page 11 - １０ - LXE700 wash...
-
Page 12: Channel Functions
Channel Functions: CHANNEL 1 : color wheel 8 colors plus white, color cycle or rainbow effect CHANNEL 2 : cyan color mixing CHANNEL 3 : magenta color mixing CHANNEL 4 : yellow color mixing CHANNEL 5 : pan movement (max. 630°) CHANNEL 6 : tilt movement (max. - Page 13 DMX Channel Function & Values: Channel 1 - Color Wheel : 0-13 Open / white 14-27 Color 1 28-41 Color 2 42-55 Color 3 56-69 Color 4 70-83 Color 5 84-97 Color 6 98-111 Color 7 112-127 Color 8 128-189 Forwards rainbow effect fast to slow 190-193 No rotation...
- Page 14 Channel 8 - Effect wheel (Beam Shaper). 0-70 Full Beam 71-230 Beam Shaper 231-255 Frost filter Channel 9 - Zoom 0-255 Zoom 30 – Zoom 7 Channel 10 - Shutter, strobe: 0-31 Shutter closed 32-63 No function (shutter open) 64-95 Strobe effect slow to fast 96-127 No function (shutter open)
- Page 15 Channel 13- Color Macros – CMY and Color wheel 8-15 Macro 1 16-23 Macro 2 24-31 Macro 3 32-39 Macro 4 40-47 Macro 5 48-55 Macro 6 56-63 Macro 7 64-71 Macro 8 72-79 Macro 9 80-87 Macro 10 88-95 Macro 11 96-103 Macro 12...
- Page 16 Channel 14– Lamp on/off, reset, Int. Prog. 0-19 color & gobo change normal 20-29 color change to any position 30-39 color & gobo change to any position 40-59 Lamp on 60-79 Lamp switch off 80-99 Motor reset 100-119 Internal program 1 120-139 Internal program 2 140-159...
-
Page 17: Error Message
The following points have to be considered during the inspection: 1) All screws, clamps etc. used to install LXE 700 Wash have to be tight and must not be corroded. Check them regularly because, remember, LXE 700 Wash moves and so it will have an effect on whatever you are using to hang the fixture. -
Page 18: Technical Specifications
Packing dimensions :30” x 22” x 18” (76.5mm x 55.5mm x 46.5mm) Net weight : 75 pounds (34Kgs) Please note, Elektralite is constantly improving their product range and we reserve the right to make changes without prior notice. Other Elektralite Products include : [Also check out our website at www.myelektralite.com]... - Page 19 TurboFog + Fog Machine. Turbohazer Haze Machine. - １８ - LXE700 wash...
