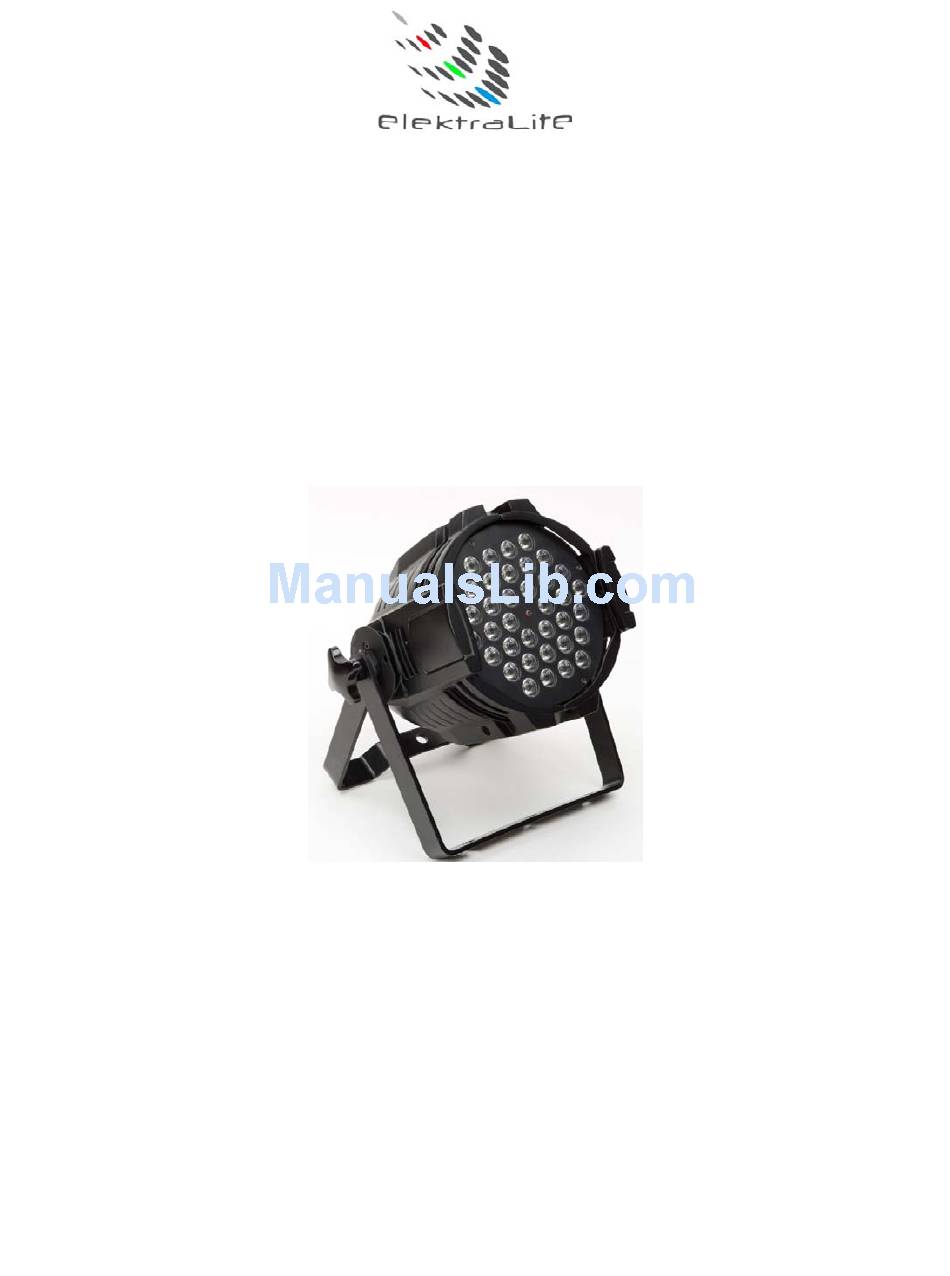

- Page 1 Elektralite RGBA Dazer (Version 2). USER MANUAL Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM...
-
Page 2: Safety Instructions
Elektralite RGBA Dazer is a high voltage fixture. Be careful when dealing with high voltages. Please read this manual. If you do not read this manual and damages occur to the Elektralite RGBA Dazer, then it could void the warranty. -
Page 3: Installation
Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point. A secondary safety point is any point that will adequately hold the Elektralite RGBA Dazer if the "C" clamp or half cheesboro fails. - Page 4 7. Menus in the fixture. Root Menu Sub Menu 1 Sub Menu 2 STAT (STATIC LOOK) R(ED) 0-255 G(REEN) 0-255 B(LUE) 0-255 A(MBER) 0-255 S(STROBE) 0-255 AUTO (AUTOMATIC) AT 01 THROUGH TO AT10 PR 01 THROUGH TO PR10 SLAV(E) ASSIGN DMX CHANNEL 1-512 PERS (PERSONALITY) STAG(E)
-
Page 5: Auto Programs
8. Static Look. The Elektralite RGBA Dazer can be set to a single static look quickly. Use the Menu button to get to STAT. Press Enter. The next screen will read R000. This is addressing the RED leds. If Red is to be in the static look, then use the ↑ or ↓ to increase the value of the red. - Page 6 DMX Channel Assignments shown on pages 12 and 13. The full dmx number of channels is 11. 13. ID Address. An Elektralite RGBA Dazer can be addressed (controlled) through the dmx or instead it can have its own unique ID address. There are a total of 255 different ID addresses from 1 to 255.
- Page 7 14. Edit The Edit function allows the 10 of the inbuilt programs to be edited and customized. The programs that can be edited are PR01 through PR10. Each of the programs can have up to 99 scenes (SC01-SC99). Each scene has 5 components that can be edited on the fixture. They are the Red leds, the Green leds, the Blue leds, the time the scene is "played"...
- Page 8 15. SET. (Set has several Sub Menus which allow functions to be used). 1). UPLD. Custom programs can be uploaded from a master fixture into a slave fixture. First:- connect the fixtures to power and have a dmx cable going from the Master (dmx out) to the Slave (dmx in). Second:- using the Master fixture.
- Page 9 5).RGBA The RGBA setting allows the ability to calibrate the white achieved when mixing RGBA. When RGBA is set to OFF, the output when Red, Green, Blue and Amber is at maximum is 255 for all four colors. By definition this combination produces a white with a blue tinge which affects all other colors if cameras and other video equipment are "keyed"...
- Page 10 18. The Personalities of the RGBA Dazer. (for the personality STAG please refer to the DMX channel assignments on pages 12 & 13. STAG uses all 11 channels as shown in the dmx channel assignment table). ARC1 0-255 0-255 GREEN...
- Page 11 ARC2 0-255 0-255 GREEN 0-255 BLUE 0-255 AMBER 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed 1（DIM=1） 101-150 nonlinear speed 2（DIM=2） 151-200 nonlinear speed 3（DIM=3） 201-255 Nonlinear speed 4（DIM=4） ARC2+D 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE 0-255 AMBER 0-50 Linear dimmer speed（DIM=OFF）...
-
Page 12: Dmx Channel Assignments
0-255 H hue 0-255 S saturation level 0-255 V brightness 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed 1（DIM1） 101-150 nonlinear speed 2（DIM2） 151-200 nonlinear speed 3（DIM3） 201-255 nonlinear speed 4（DIM4） 19. DMX Channel Assignments. Grand Master for RGBA 0-255 Leds (or chase speed when anyone of PR01 thru PR10 in Ch08 is operational) 0-255 Leds... -
Page 13: Cleaning And Maintenance
Frequency 50 – 60 Hertz 36 x 5 watt leds 200 VI Elektralite is a division of Group One. Group One and its divisions are constantly improving their product range and we reserve the right to make changes without prior notice. -
Page 14: Other Products
Other Products. ElektraLED has other great products that are manufactured under the Elektralite product line. Go check out the website at www.myelektralite.com A preview of the products include:- ElektraLite ML602 ElektraLite LightStream... - Page 15 ElektraLite DazerIP65 in white...
