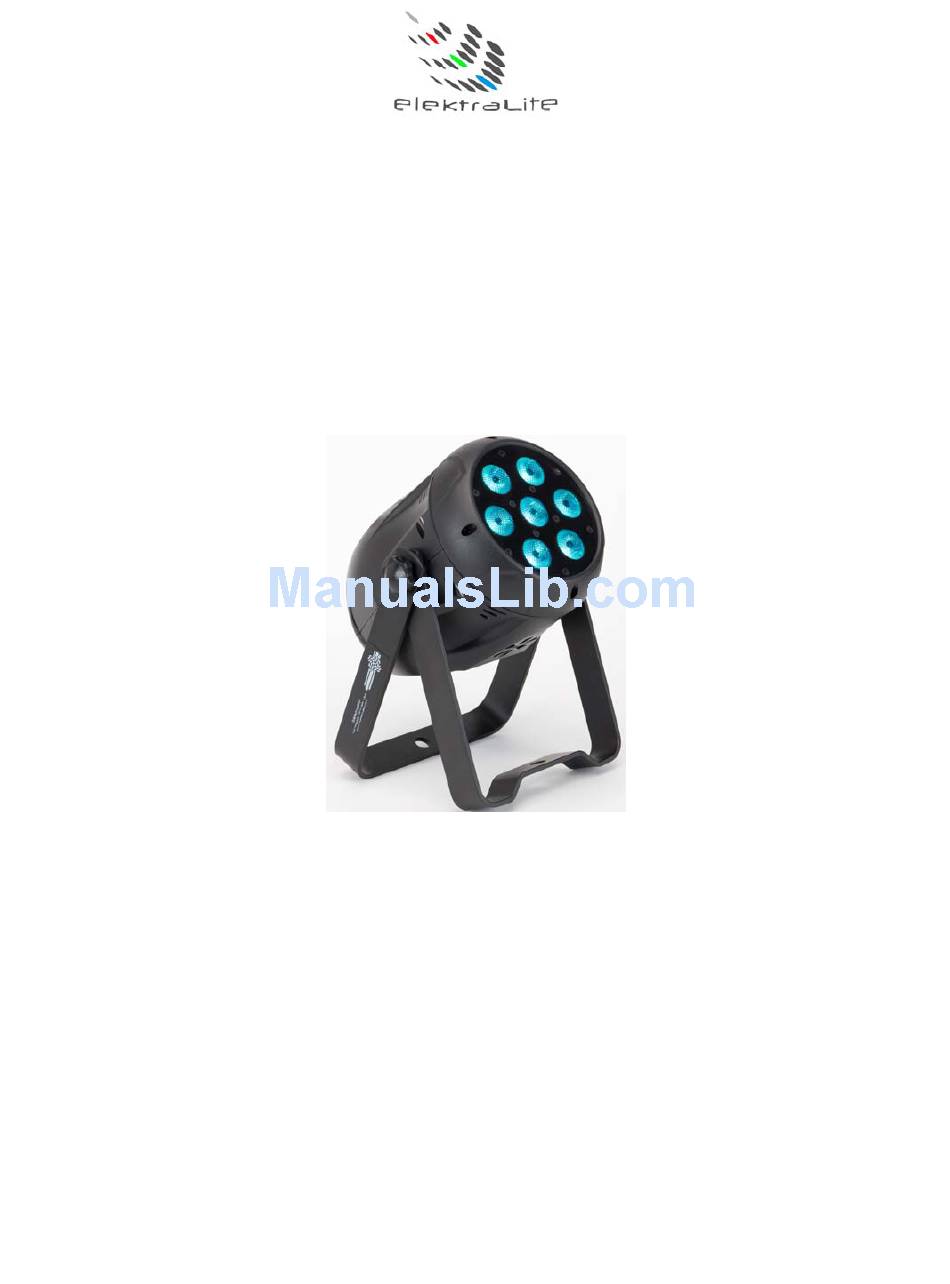

Elektralite eyeBall Quad led

USER MANUAL

Elektralite (a division of Group One),
70, Sea Lane, Farmingdale, NY11735, U.S.A.
T. +1 (516)-249-3662.
F. +1 (516)-249-8870
WWW.MYELEKTRALITE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eyeBall Quad led and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for elektraLite eyeBall Quad led

Summary of Contents for elektraLite eyeBall Quad led

  • Page 1: User Manual

    Elektralite eyeBall Quad led USER MANUAL Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (516)-249-3662. F. +1 (516)-249-8870 WWW.MYELEKTRALITE.COM...

  • Page 2: Safety Instructions

    Elektralite eyeBall be grounded. So under no circumstances break off the ground pin on the Edison plug or use the fixture where a ground is not present. A ground pin, like the fuse for the Elektralite eyeBall is there for safety.

  • Page 3: General Guidelines

    Never hang the fixture without a safety chain or cable. If you are not qualified or have any doubts about hanging the Elektralite eyeBall then do NOT hang it. Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point.

  • Page 4: Dmx-512 Control Connection

    The DMX terminator is simply a 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last Elektralite eyeBall or other dmx device in the chain. Please see illustration below.
  • Page 5 6. Menus in the fixture. Root Menu Sub Menu 1 Sub Menu 2 STAT (STATIC LOOK) 0-255 GREEN 0-255 BLUE 0-255 WHITE 0-255 STROBE 0-255 AUTO (AUTOMATIC) Green Blue Yellow Cyan Purple White Effect #1 Effect #2 Effect #3 DMX 512 SLAVE ADDRESS ASSIGN DMX CHANNEL...

  • Page 6: Run Mode

    Do not press MENU as this will get you out to the Root directory and out of the static look. 8. Auto Colors & Programs. The Elektralite eyeBall can be set to run some inbuilt colors and programs (called effects). To run either of these use the Menu button to get to AUTO.
  • Page 7 11. ID Address. An Elektralite eyeBall can be addressed (controlled) through the dmx or instead it can have its own unique ID address. There are a total of 255 different ID addresses from 1 to 255. To set up the address for a fixture, use the Menu button in the root menu go to ID Press Enter and then using the ↑...
  • Page 8 Please note the DIM function under the Set menu in the fixture does not work when in the STAG mode. When is STAG mode you can operate/access the DIM function directly through channel 10 on your lighting controller. 4). REST This resets all values to their default.
  • Page 9 Personality tables. (for the personality STAG please refer to the DMX channel assignments on pages 11 & 12. STAG uses all 11 channels as shown in the dmx channel assignment table). ARC.1 0-255 0-255 GREEN 0-255 BLUE 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed1（DIM1）...
  • Page 10 ARC2.D 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE 0-50 Linear dimmer speed（DIM=OFF） 51-100 Nonlinear speed 1（DIM1） 101-150 Nonlinear speed 2（DIM2） 151-200 Nonlinear speed 3（DIM3） 201-255 Nonlinear speed 4 (DIM4) ARC2.S 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE...

  • Page 11: Dmx Channel Assignments

    DMX Channel Assignments. Grand Master for RGBW 0-255 Leds 0-255 Leds 0-255 GREEN Leds 0-255 Blue White Leds 0-255 No effect 0-010 Snap to Red 255 Crossfade Red 255→000 Green 000→255 012-050 Crossfade Green 255→000 Blue 000→255 051-090 Crossfade Red 000→255 Blue 255→000 091-130 Crossfade...

  • Page 12: Cleaning And Maintenance

    The clear front plastic cover for the lenses should be cleaned so the light output is maintained. With the Elektralite eyeBall turned off, use only a moist lint-free cloth, and clean the plastic cover. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any place on the fixture.

  • Page 13: Other Products

    Other Products. For other great products that are manufactured under the Elektralite product line, please go to the website at www.myelektralite.com A preview of the products include:- Elektralite LED Pro Line eye Kandy The Elektralite TurboFog (check out the ElektraFog too!)
  • Page 14 The Elektralite TurboHazer (check out the ElektraHazer too!)
