elektraLite eyeBall UV User Manual

Led
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

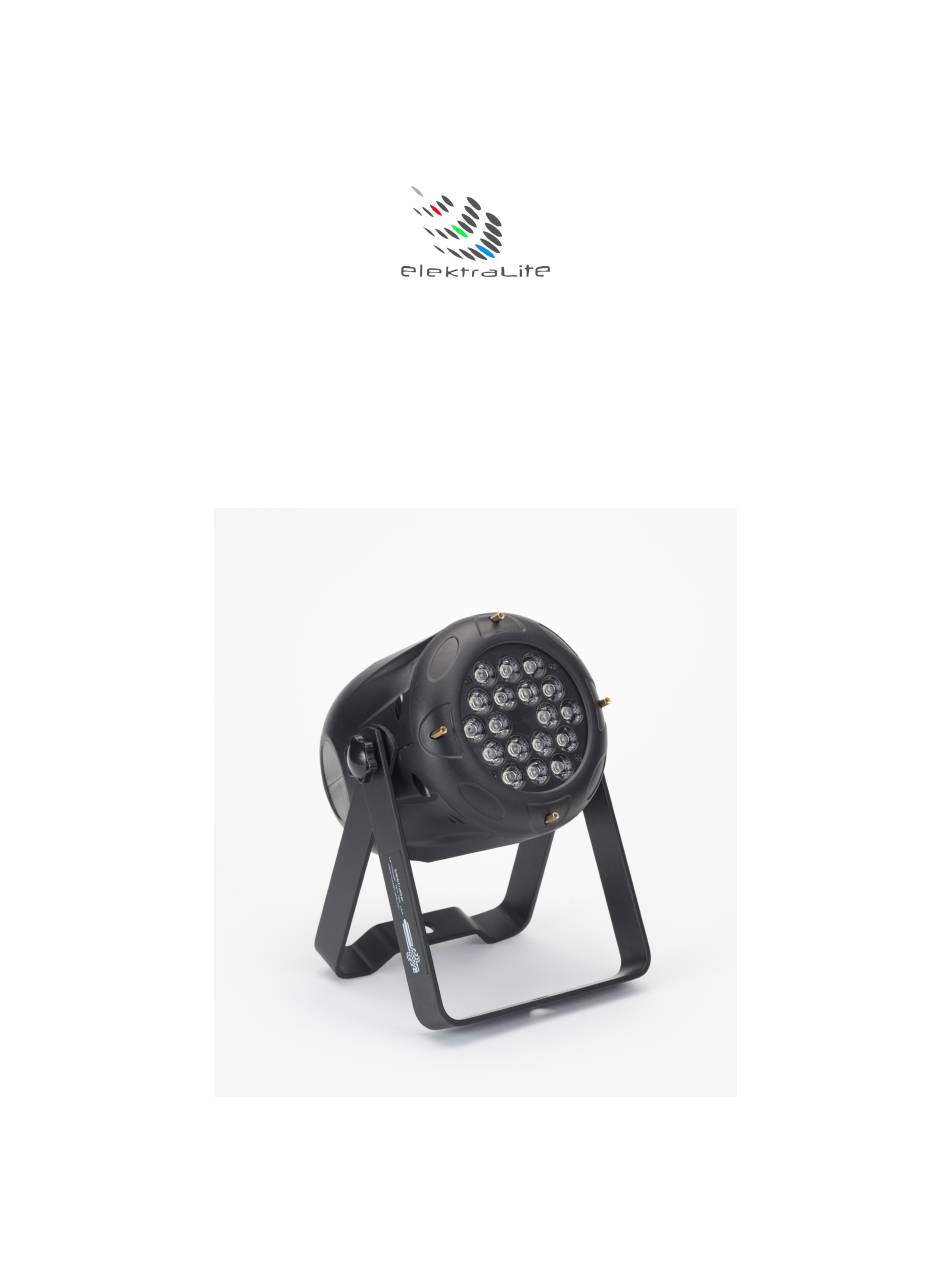

elektraLite LED
eyeBall UV
USER MANUAL
elektraLite (a division of Group One),
70, Sea Lane, Farmingdale, NY11735, U.S.A.
T. +1 (631)-396-0184. F. +1 (631)-396-0190
WWW.MYELEKTRALITE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eyeBall UV and is the answer not in the manual?

Questions and answers

Related Manuals for elektraLite eyeBall UV

Summary of Contents for elektraLite eyeBall UV

  • Page 1 LED eyeBall UV USER MANUAL elektraLite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM...

  • Page 2: Safety Instructions

    UV be grounded. So under no circumstances break off the ground pin on the Edison plug or use the fixture where a ground is not present. A ground pin, like the fuse for the elektraLite UV is there for safety.

  • Page 3: General Guidelines

    Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point. A secondary safety point is any point that will adequately hold the elektraLite UV if the "C" clamp or half cheesboro fails. Then the safety cable would be the backup and stop the fixture from falling to the ground.

  • Page 4: Dmx-512 Control Connection

    The DMX terminator is simply a 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last elektraLite UV or other dmx device in the chain. Please see illustration below.
  • Page 5 6. Menus in the fixture. Root Menu Sub Menu 1 Sub Menu 2 STAT (STATIC LOOK) 000-255 STROBE 000-255 AUTO (AUTOMATIC PROGRAMS) EFFECT 1 (inbuilt program 1) EFFECT 2 (inbuilt program 2) EFFECT 3 (inbuilt program 3) DMX 512 SLAVE ADDRESS ASSIGN DMX CHANNEL 001-512...

  • Page 6: Auto Programs

    Do not press MENU as this will get you out to the Root directory and out of the static look. 8. Auto Programs. In Auto Program there are three programs (or shows) in the elektraLite UV are Effect 1, Effect 2 and Effect 3. Chose the one best suit for the venue.
  • Page 7 Enter to exit out and back to the Root Menu again. ID Address An elektraLite UV can be addressed (controlled) through the dmx or instead it can have its own unique ID address. There are a total of 255 different ID addresses from 001 to 255.
  • Page 8 2). Reset This resets all values to their default. Go through the Root Menu until Settings is displayed. Press Enter and then use the ↑ or ↓ buttons to get to RESET. Press Enter. The display will have the cursor flashing across the bottom. The password needs to be entered.
  • Page 9 15. DMX Channel Assignments for Personalities. STAG1： 0-255 UV output…dimming 0-50 Linear dimmer speed（DIM=0） 51-100 Non-linear dimmer speed 1（DIM=1） 101-150 Non-linear dimmer speed 2（DIM=2） 151-200 Non-linear dimmer speed 3（DIM=3） 201-255 Non-linear dimmer speed 4（DIM=4） STAG2: DMX data Function 0-255 UV output…..dimming STROBE NO FUNCTION 10-49...

  • Page 10: Cleaning And Maintenance

    The clear front plastic cover for the lenses should be cleaned so the light output is maintained. With the elektraLite UV turned off, use only a moist lint-free cloth, and clean the plastic cover. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any place on the fixture.

  • Page 11: Other Products

    18. Other Products. For other great products that are manufactured under the elektraLite product line, please go to the website at www.myelektraLite.com A preview of the products include:- elektraLite ML602...
  • Page 12 LightStream elektraLite DazerIP65 in white...
