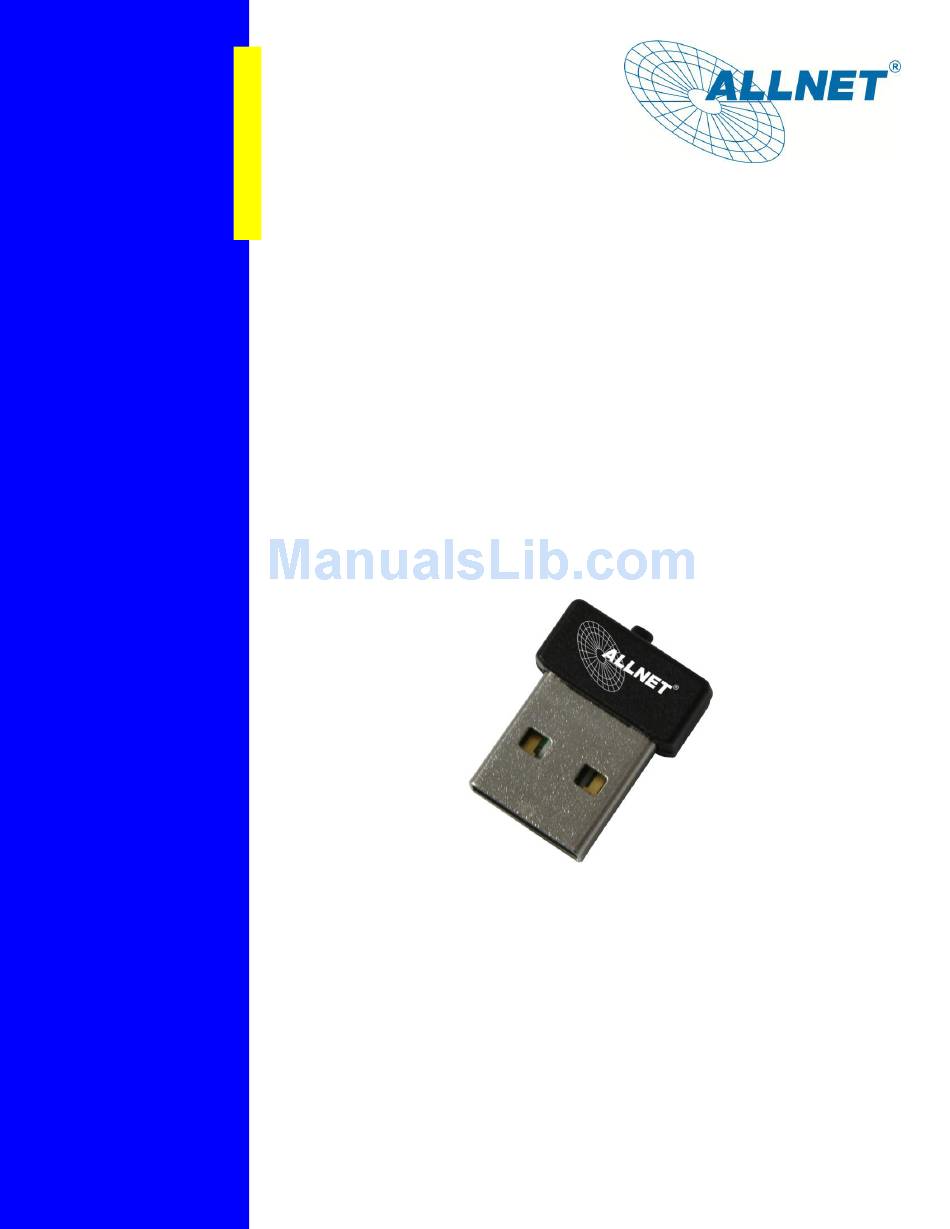

Page 1
ALL0234Nano USB Wireless N 150Mbit Adapter User´s Manual...
Page 2
Please follow the following steps to install your new wireless network card: 1. Insert the ALL0234Nano into an empty USB2.0 port of your computer when computer has power on. Never use force to insert the stick, if you feel it’s stuck, flip the stick over and try again.
Page 3
ALLNET GmbH 2011 ALL0234Nano 5. Please wait while the installation procedure is running. Finally, click ‘Finish’ and restart your computer to finish the driver installation.
Page 4
ALLNET GmbH 2011 ALL0234Nano Connect to Wireless Access Point 1. After installation has finished, wireless configuration utility will be shown on the desktop of your computer, and it will try to connect to any unencrypted wireless access point automatically. If you...
Page 5
ALLNET GmbH 2011 ALL0234Nano 4. If it’s an open wireless network system, you will be warned by this pop up dialogue . 5. Click ‘OK’, and fill your information in the ‘Wireless network properties’, or just click ‘OK’. If the wireless access point has enabled encryption, you will have to input the WEP key or WPA preshared key in the form.
Page 6
ALLNET GmbH 2011 ALL0234Nano Then, you can find your wireless access point in the ‘Profile’, it will automatically connect to the access point every time you use your usb network card. 7. After you have connected to the wireless access point successfully, click the ‘General’ menu, you...
Page 7
ALLNET GmbH 2011 ALL0234Nano 8. Click the ‘Wi-Fi Protect Setup’ menu, by a simple setting allows you to secure connection to your wireless AP. 9. This wireless network card with a WPS button, you can easily connect to a wireless router and achieve encryption;...
Page 8
ALLNET GmbH 2011 ALL0234Nano 10. At this point just press the WPS button wireless router; wait a while to realize the connection and encryption. 11. Click on the available network we can see that encryption is WPA-WPA2-PSK/TKIP-AES. You have established a good secure wireless network.
Page 10
The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The Allnet ALL0234Nano conforms to the Council Directives of 1999/5/EC. This equipment meets the following conformance standards: EN60950-1:2006/A11:2009 EN62311:2008 EN301489-1 V1.8.1:2008-04...
