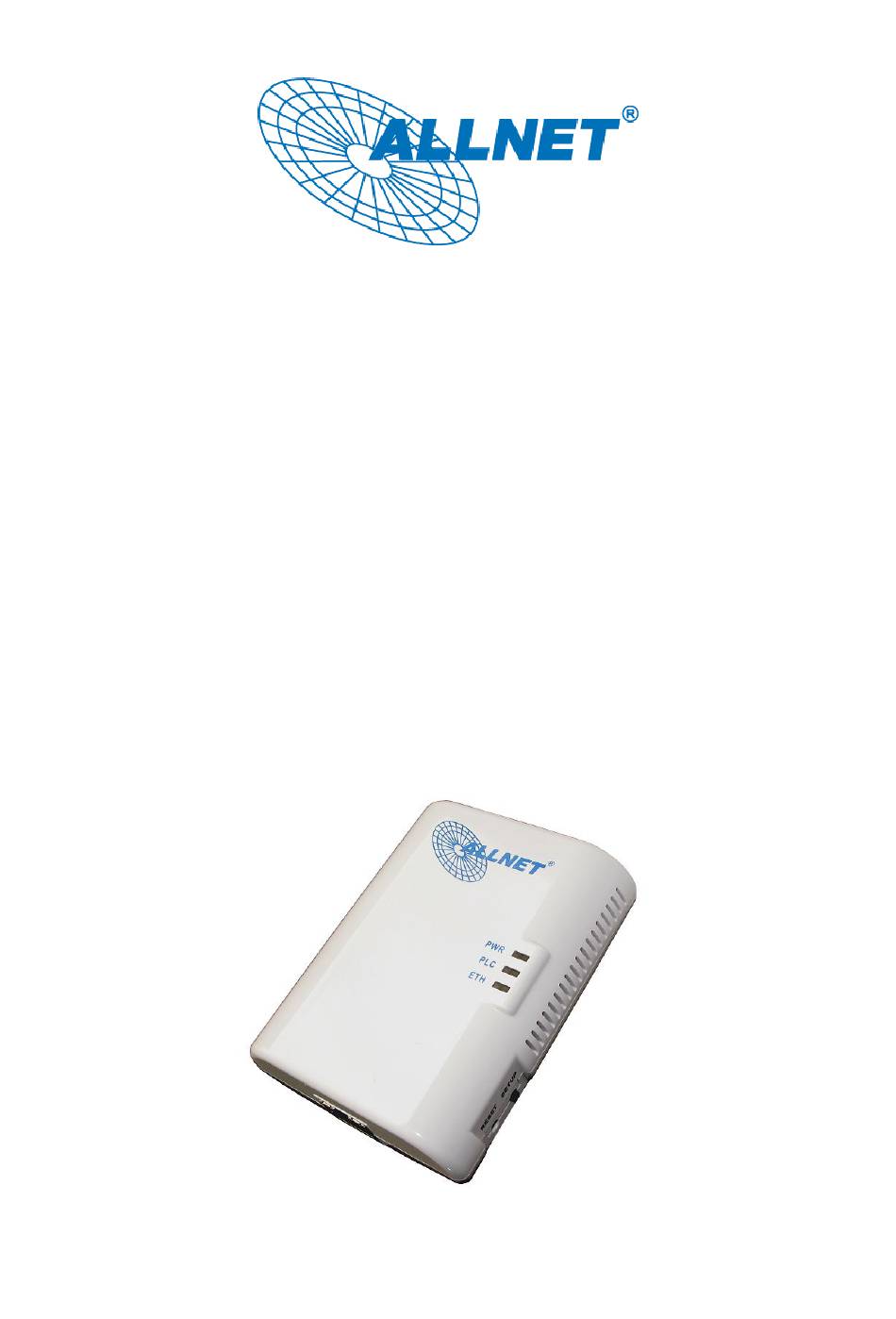

- Page 1 ALLNET POWERLINE ETHERNET ADAPTER ALL 168205 Express-Setup © 2009 ALLNET GmbH All rights reserved Page 1...
- Page 2 O THE NSTALLER This publication contains the following sections: Important safety instructions The first thing you need to know before you begin to install Product installation guide Specification ALL 168205 Express-Setup © 2009 ALLNET GmbH All rights reserved Page 2...
-
Page 3: Important Safety Instructions
If the product has been exposed to rain or water. If the product does not operate normally when the operating instructions are followed. If the product exhibits a distinct change in performance. ALL 168205 Express-Setup © 2009 ALLNET GmbH All rights reserved Page 3... - Page 4 4. Check that you have the following parts for each PC on the network: Product installation guide for 200Mbps PLC-Ethernet Bridge 200Mbps PLC-Ethernet Bridge Ethernet Cable (CAT 5) ALL 168205 Express-Setup © 2009 ALLNET GmbH All rights reserved Page 4...
- Page 5 The devices are meant to be operated on the same electrical phase (same physical cable). If this is not the case in your installation, you may need to install a PLC phase-coupler or take other corrective measures. More information may be downloaded in the download-section from www.allnet.de. ALL 168205 Express-Setup ©...
- Page 6 Plug the provided Ethernet cable into the RJ45 connector of the Bridge and plug the other end of the cable into the Ethernet port on the wireless AP. ALL 168205 Express-Setup © 2009 ALLNET GmbH All rights reserved Page 6...
-
Page 7: Specification
Operating System Microsoft Windows® 2000, XP, Vista (for utility-program only) Operating System The ALL168205 transmits Ethernet frames and thus is independent of the (for usage of device) client operating system. All Ethernet devices can be connected. Nodes max. 15 recommended (because of performance) -
Page 8: Push Buttons
Step 2. Press the new device’s “SETUP” button for 1 to 3 seconds. The “Power” LED starts blinking. Step 3. Select a random device from the existing private network. Press its “SETUP” button for 1 to 3 seconds. The device’s “Power” LED starts blinking. ALL 168205 Express-Setup © 2009 ALLNET GmbH All rights reserved Page 8... - Page 9 Push the device’s “RESET” button for 1 to 3 seconds. You will see the device’s all LEDs are off and restart. The device’s setting resets to the “factory defaults”. ALL 168205 Express-Setup © 2009 ALLNET GmbH All rights reserved Page 9...
- Page 10 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL168205 (200 Mbps PLC Ethernet Bridge) conforms to the Council Directives of 2004/108/EC and Low Voltage Directive of 2006/95/EC.
