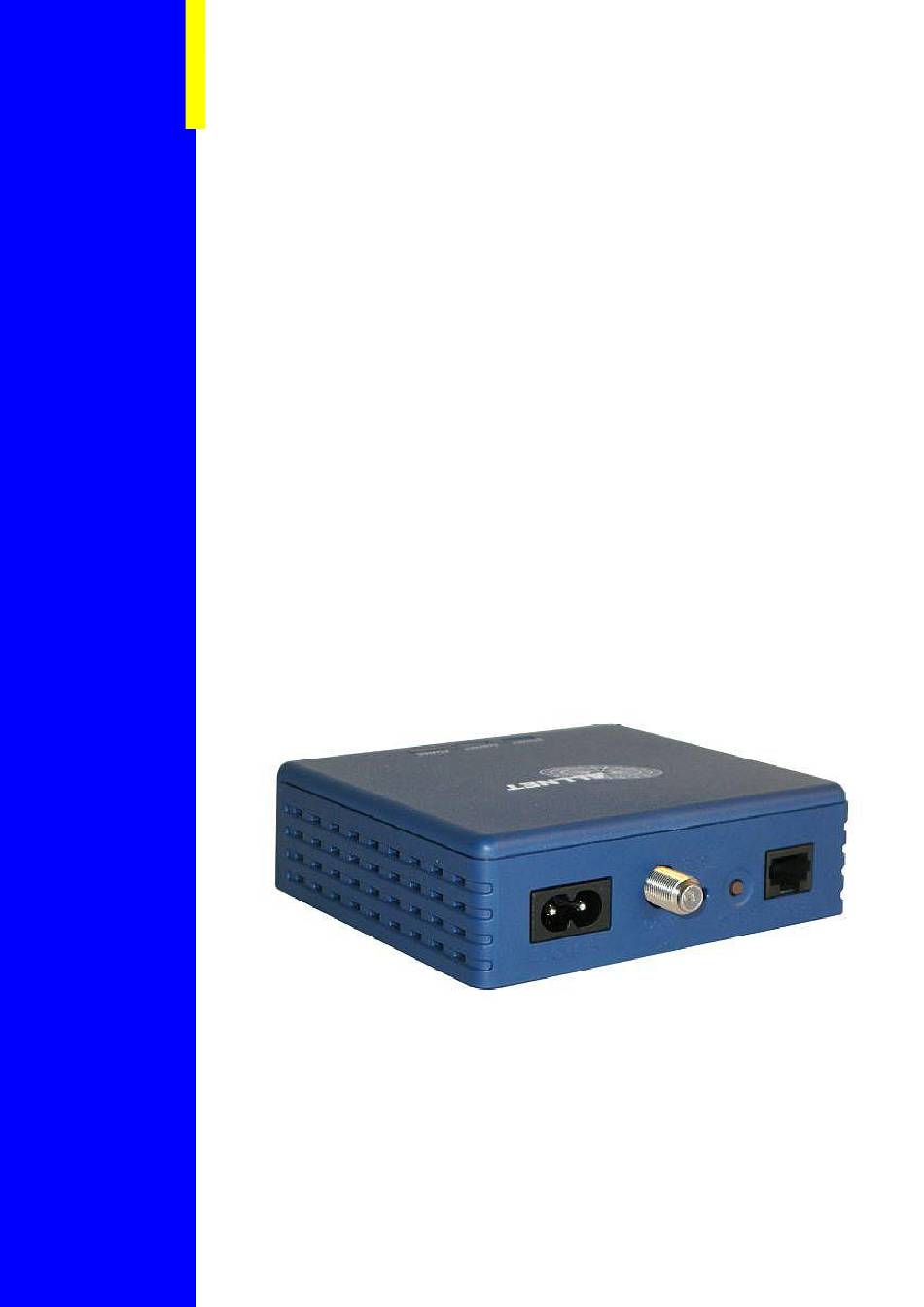

- Page 1 ALL168207 Coaxial Network Adapter Coaxial Network Instant Networks for Multimedia Access…and More! Solution for Video distribution, VoIP and Media Server QUICK SETUP GUIDE 200Mbps Coaxial Ethernet Bridge © 2008. All rights reserved. Page 1...
- Page 2 ALL168207 Coaxial Network Adapter REFACE This document describes the installation of 200Mbps Coaxial Ethernet Bridge Network products. Please read this document before installing the product. O THE NSTALLER This publication contains the following sections: Important safety instructions The first thing you need to know before you begin to install ...
-
Page 3: Important Safety Instructions
MPORTANT AFETY NSTRUCTIONS ALL168207 Coaxial Network Adapter MPORTANT AFETY NSTRUCTIONS This product is intended for connection over Coaxial cable. For installation instructions, refer to the Installation section. For removing the device, refer to the Unplug section. The following precautions should be taken when using this product. - Page 4 HE FIRST THING YOU NEED TO KNOW ALL168207 Coaxial Network Adapter … HE FIRST THING YOU NEED TO KNOW BEFORE YOU BEGIN TO INSTALL Before installing, make sure your PC meets these requirements for hardware installation: Microsoft Windows® 98SE, ME, 2000, XP, Vista, Mac OS or linux OS ...
- Page 5 ALL168207 Coaxial Network Adapter RODUCT NSTALLATION UIDE Product installation guide To install PC local network and transmit data via coaxial cable: Use the supplied Cat 5 Ethernet cable to connect the Coaxial Ethernet Bridge’s RJ45 connector and your PC’s Ethernet port.
- Page 6 ALL168207 Coaxial Network Adapter As wireless AP (Access Point) Extender via coaxial cable Connect the Coaxial Ethernet Bridge to the AP: Plug the provided Ethernet cable into the RJ45 connector of the Coaxial Ethernet Bridge and plug the other end of the cable into the Ethernet port on the wireless AP.
- Page 7 ALL168207 Coaxial Network Adapter If you have a Router for the Internet Access. Please find a Coax Combiner to combine the data signal from Router and CATV signal to the same coaxial cable. It is better to select the Coax Combiner frequency range below 5MHz.
- Page 8 ALL168207 Coaxial Network Adapter You will be able to set up your coax network to Internet and CATV using the same coaxial cable as below. Antenna Coax HPF Internet Coax Combiner Ethernet cable DSL/Cable Modem Ethernet cable Coax Splitter Ethernet...
-
Page 9: Specification
ALL168207 Coaxial Network Adapter PECIFICATION Specification Items Description PHY Rate 200Mbps TCP: Up to 65 Mbps effective throughput Effect Data Rate UDP: Up to 85 Mbps effective throughput Frequency Band 2~28 MHz (With Mask) Access Methods CSMA/CA channel-access schemes ... - Page 10 ALL168207 Coaxial Network Adapter LEDs On: Power on Power Blinking: Standby mode (*1) Off: Power off On: Coaxial Link detected and no traffic COAX/ACT Blinking: Coaxial traffic detected Green: The Coaxial connection quality is good Orange: The Coaxial connection quality is fair ...
- Page 11 ALL168207 Coaxial Network Adapter Push Buttons Push button functions are disabled under Standby mode. Setup Button Usage: 1. First time to setup your private network: Step 1. Press and hold the device’s “SETUP” button for more than 10 seconds. You can release the button when you see all the device’s LEDs are off and restart.
- Page 12 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL168207 (200 Mbps Coax Bridge) conforms to the Council Directives of 73/23/EEC and Amendment Directive of 93/68/EEC.
