Allnet ALL 1685 Quick Setup Manual

Powerline ethernet adapter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Q
S
G
Q
S
G
U
I
C
K
E
T
U
P
U
I
D
E
U
I
C
K
E
T
U
P
U
I
D
E
FOR
ALLNET POWERLINE ETHERNET ADAPTER
A
L
L
1
6
8
5
A
L
L
1
6
8
5
ALL1685
© 2005 . All rights reserved.
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALL 1685 and is the answer not in the manual?

Questions and answers

Related Manuals for Allnet ALL 1685

Summary of Contents for Allnet ALL 1685

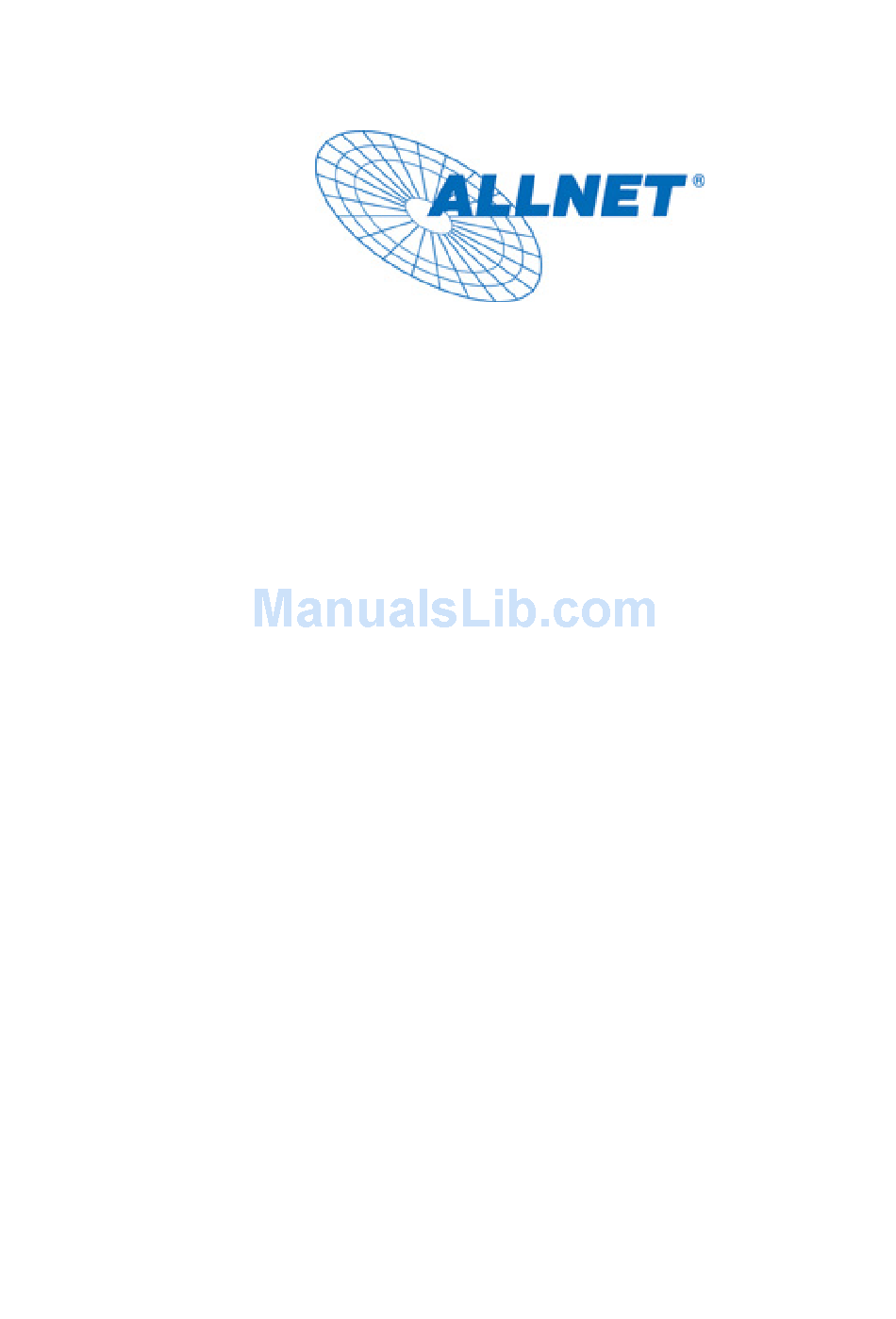

  • Page 1 ALLNET POWERLINE ETHERNET ADAPTER ALL1685 © 2005 . All rights reserved. Page 1...

  • Page 2: Important Safety Instructions

    REFACE This document describes the installation of the ALLNET ALL1685 Powerline adapter O THE NSTALLER This publication contains the following sections: Important safety instructions The first thing you need to know before you begin to install Product installation guide Specification...
  • Page 3 its own power filter for protection against surges. Only a qualified technician should service this product. Opening or removing covers may result in exposure to dangerous voltage points or other risks. Unplug the Adapter from the wall outlet and refer the product to qualified personnel for the following conditions: When the interconnect cords are damaged or frayed.
  • Page 4 Pentium® 166 MHz processor, equivalent or higher Resource on your PC At least one free Ethernet port for the ALLNET ALL1685 Ethernet Powerline Adapter. 2. Your PC must not be configured for another network. This means that: No network clients except for Microsoft Network*, Client for Netware* Networks, or Microsoft Family...
  • Page 5 5. Familiarize yourself with the ALLNET ALL1685 connections: 6. Limitation of the PLC device: To meet the safety regulation, the longest distance between powerline carrier devices will be limited at 100 meter and for in-house use only. More than 100 meter will cause the signal reduction or data loss.
  • Page 6 Product installation guide Important: Do not plug the device into a power strip or surge protector because these devices may consist of filter and impair signal. Also avoid plugging the device right next to noisy sources such as cell phone charger, halogen light, noisy desktop computer, vacuum cleaner, etc. Both cases result in poor transmission speed.

  • Page 7: Specification

    Specification Items Description Line Rate 85Mbps Effect Data Rate Up to 25Mbps effective throughput Frequency Band 4.3~20.9 MHz CSMA/CA Access Methods 4 Levels Modulation OFDM (QAM 256/64/16, DBPSK, DQPSK) Port One Ethernet port Standards IEEE 802.3, IEEE 802.3U, HomePlug 1.0.1 Operating System Window 98 SE, Me, NT, 2000,XP, MAC, Linux Nodes...
