Chain Brake - Dolmar 109 Service Manual

DOLMAR GmbH

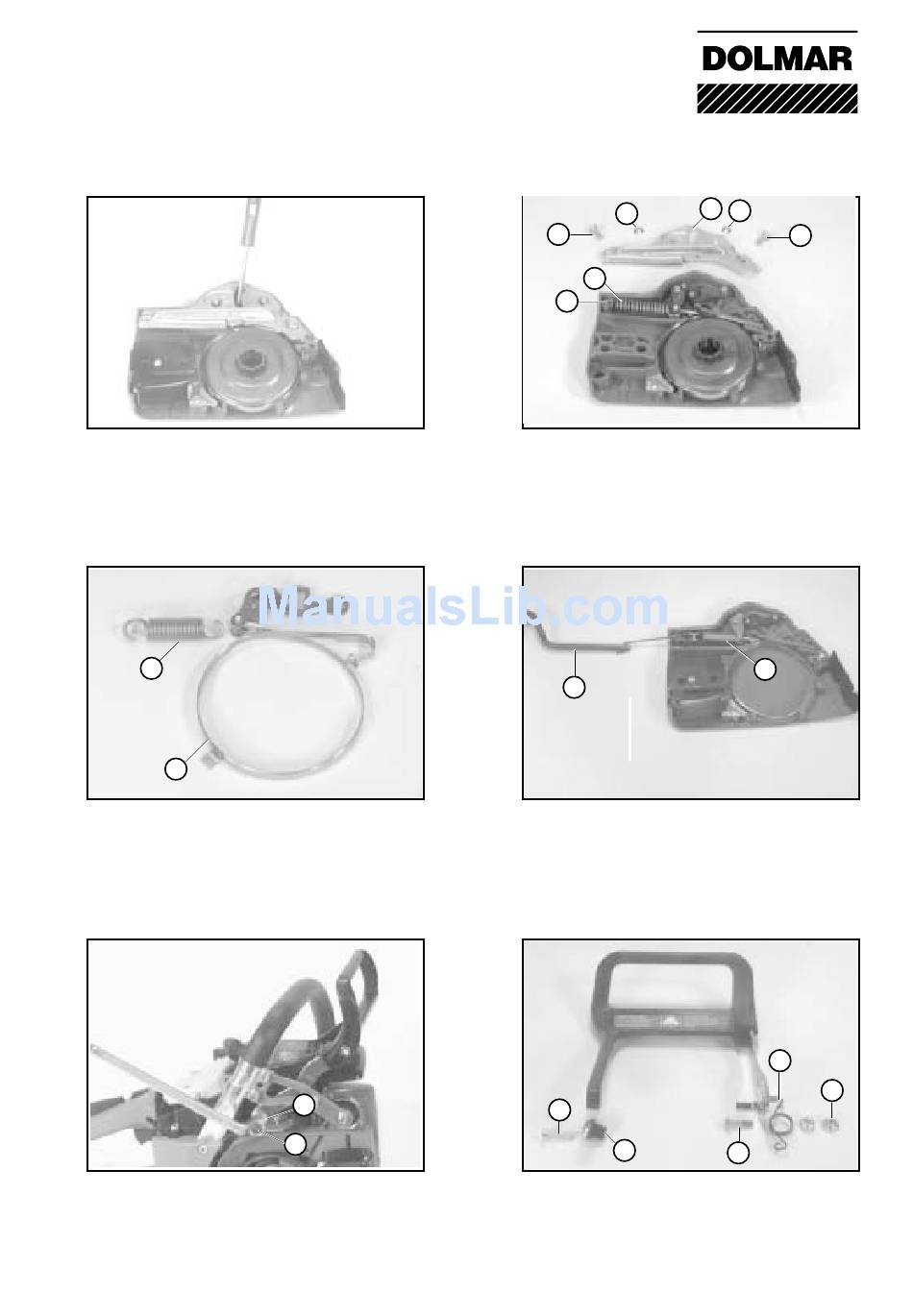

01 Chain brake

01-02 Releasing the chain brake
Insert the clutch drum (1) and by levering
down the brake gate, using a screwdriver (2),
release the chain brake.
6
8
01-02 Replacing the brake band
A damaged or defective brake band (8) and a
damaged or defective tension spring must be
replaced without delay (6).
Caution: Safety components
01-04 Removing the hand guard
Remove the nut (11) and push the screw (12)
in direction of the cylinder. Unscrew screw
(13) on the starter side and remove the insert
(14).
2
1
12
11
5
4
6
7
01-02 Relieving the tension spring
To remove the brake band it is necessary to
remove the cover plate (3). For this purpose
unscrew screws (4) and remove retaining
rings (5). Relieve the tension spring (6) by
levering it off the housing peg (7).
10
01-02 Pretensioning the tension spring and
the brake gate
Following the installation of the brake band,
engage the tension spring in the brake gate
(9) and using the pulling hook (10) no.
950.237.000 pass the spring over the peg (7).
13
14
01-04 Fitting the hand guard
When fitting the hand guard, ensure that the
compression spring (16) is installed correctly.
3
5
4
9
16
11
12
5
