Fuel Tank - Dolmar 109 Service Manual

DOLMAR GmbH

09 Fuel tank

2
7
1

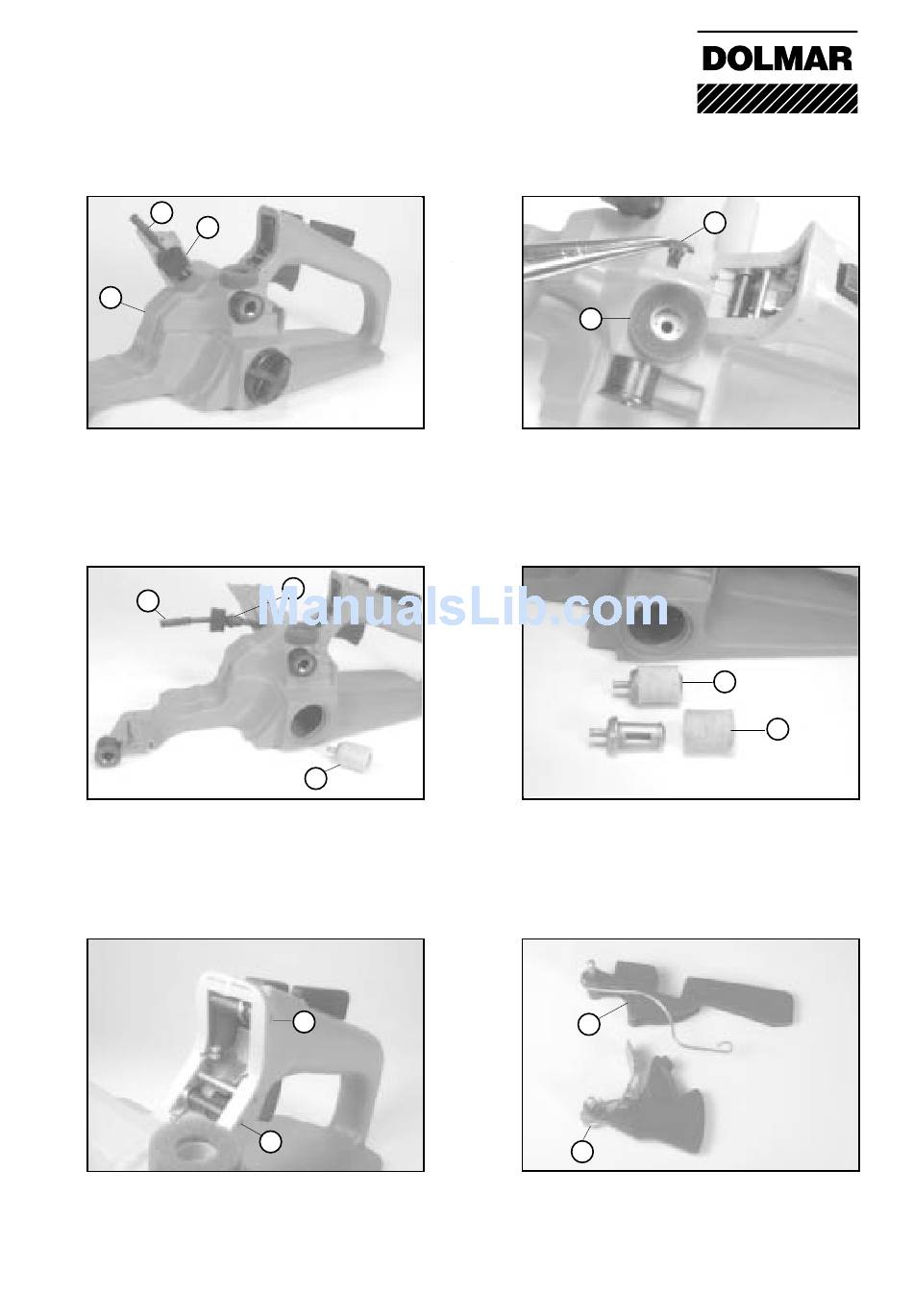

09-01 Removing and installing the fuel tank
For the removal of the fuel tank (1) it is
necessary to remove the vibration damper
(08-02). Separate the fuel pipe (2) from the
carburettor (06-02). Install seal (7) between
tank and bottom part.
2
09-03 Replacing the fuel pipe
For the removal of the fuel pipe (2) withdraw
the intake head (5) and withdraw the fuel pipe
from the tank. When installing the fuel pipe,
ensure that the sealing face (6) rests close
against the tank.
09-05 Removing the throttle lever and the
starting throttle locking system
For this purpose push out the cylindrical pins
(9) + (10). Remove the throttle lever and
torsion spring (11).
6
5
9
10
4
09-02 Replacing the ventilation valve
Remove carburettor (06-02) and bottom (07-
06). Using a pair of pointed pliers, remove the
ventilation valve (3) from the tank. Seal (4) will
prevent contamination of the ventilation valve.
09-04 Replacing the intake head
Separate the intake head (5) from the fuel
pipe.
Note: The felt (8) can be replaced as an
individual part.
12
11
09-05 Removing the throttle lever and the
starting throttle locking system
Remove the half-throttle and compression
spring (12) from the housing.
3
5
8
15
