DOLMAR GmbH
05 Starter assembly
3
1
4
2

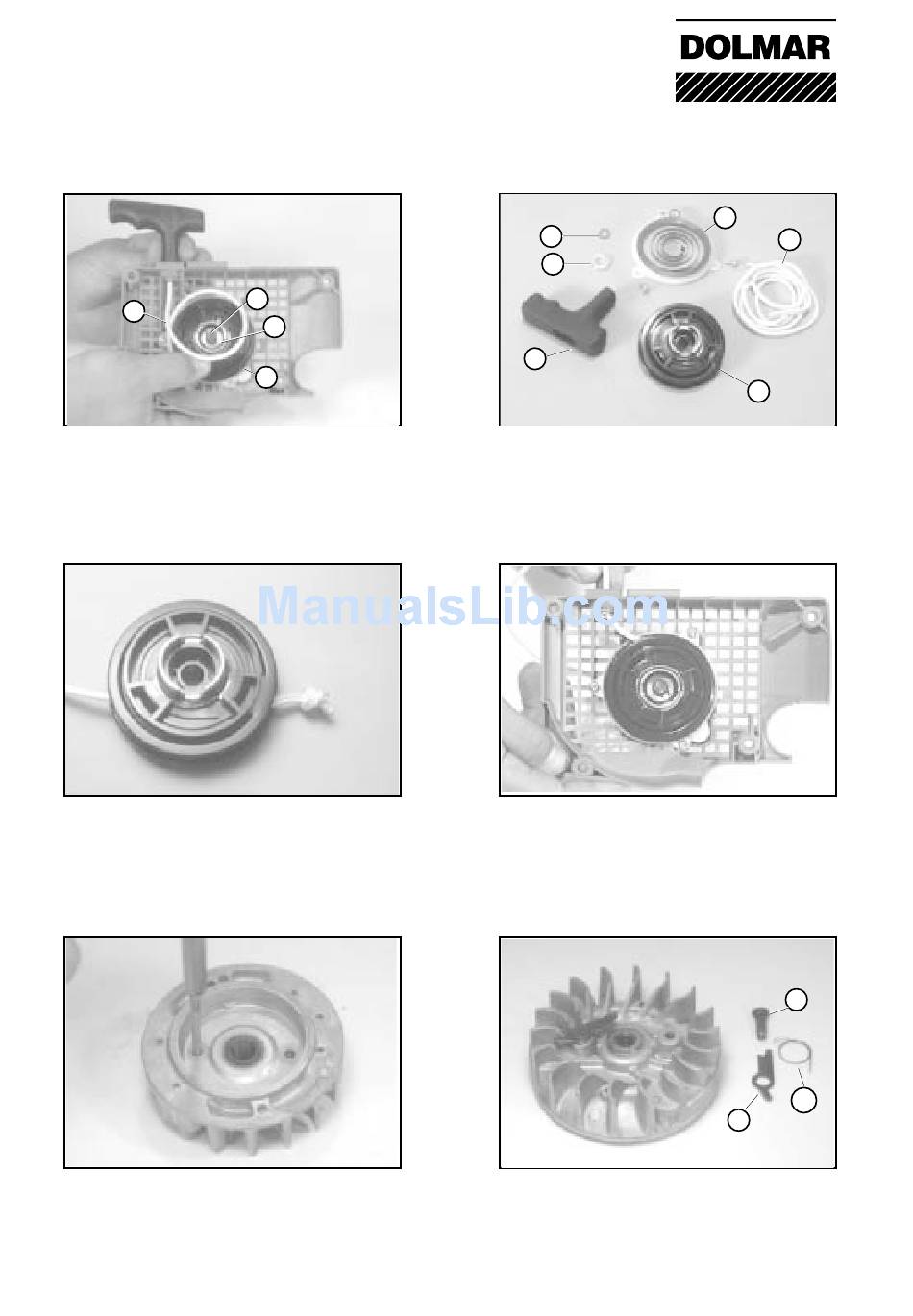

05-02 Removing the starter assembly
Relieve the return spring before removing the
starter assembly. For this purpose slightly
withdraw the starter rope (1), while holding the
rope drum (2). Remove the rope from the
drum and allow the drum to rewind slowly.
05-02 Attachment of the starter rope in the
rope drum
In case of this rope drum a knot prevents the
starter rope from being withdrawn.
05-03 Replacing the starter ratchets
Using a punch, remove the locating pin of the
starter ratchet from the flywheel.
8
3
7
4
5
6
05-02 Removing the return spring
Remove retaining ring (3) and washer (4).
Separate handle (5) from rope (7), lift the rope
drum from housing (6). Return spring and cas-
sette (8) are secured to the ventilator housing
by means of three screws.
05-02 Pretensioning the return spring
After fitting the starting assembly, completely
withdraw the starter rope and hold it in this
position. It must now be possible to turn the
rope drum by another 1/2 turn. Reduce the
pretensioning force, when this is not possible.
11
10
9
05-03 Replacing the starter ratchets
Starter ratchet (9) with spring (10) and pin (11)
must be replaced as a complete assembly
only. Push the pin into the flywheel until it is
flush with the inner edge. Before installing the
pin, apply locking agent 980 009 000.
Page 10
