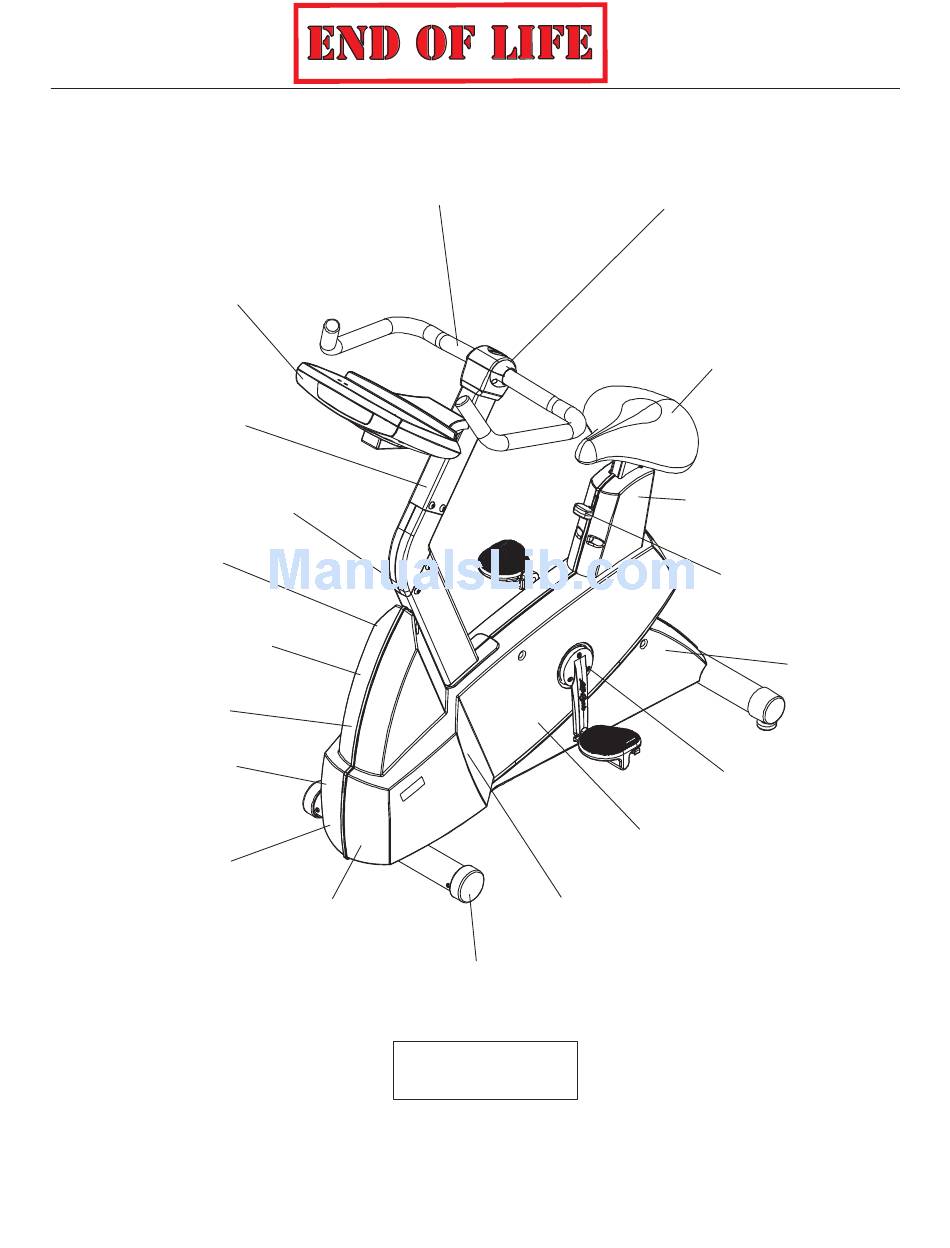

LifeCycle LC8500
General Assembly
Console
Overlay
Console Support
Assembly
Final Frame
Assembly
Idler Bracket
Assembly
Right Side Shroud
and Crankarm
Alternator
w/Pulley
Belts
Cables
Handlebar
Assembly
PCB Mounting
Bracket Assembly
Front Wheels
Operator Manual
M051-001163-B008
LC85-0100-35
S/N CBH100000
Polar Cover Top
0K63-01145-0000
Polar Cover Bottom
0K63-01146-0000
Seat Post
Assembly
Seat Post
Shrouds
Seat Latch
Assembly
Crank Shaft
Assembly
Left Side Shroud
and Crankarm
Intermediate
Pulley/Shaft
Assembly
Resistor
Assembly
revised 29 Feb 2008
Advertisement
Related Manuals for Lifecycle LC8500
Summary of Contents for Lifecycle LC8500
- Page 1 LifeCycle LC8500 LC85-0100-35 General Assembly S/N CBH100000 Polar Cover Top 0K63-01145-0000 Handlebar Polar Cover Bottom Assembly 0K63-01146-0000 Console Overlay Seat Post Assembly Console Support Assembly Final Frame Seat Post Assembly Shrouds Idler Bracket Seat Latch Assembly Assembly Right Side Shroud...
- Page 2 LifeCycle LC8500 LC85-0100-35 Console Overlay Bezel Assembly Upper Overlay Console Board - Upper A084-92220-A002 (includes 9VDC connection) Console Case Assembly Lower Overlay AK63-00121-0000 Phillips Pan Screws(13) 0017-00101-1650 9V Alkaline Battery Battery Door 0017-00003-0757 0K63-01029-0000 Console Assembly Overlay Bezel AK63-00072-0001 Eng Met...
- Page 3 LifeCycle LC8500 LC85-0100-35 Final Frame Assembly Seat Latch Assembly AK63-00043-0000 Frame Gasket 0K63-01007-0002 Crank Pulley Assembly AK63-00051-0000 Crank Disc 0K63-01095-0001 Grommet 0017-00042-1134 PCB Bracket AK63-00094-0000 End Cap 0K63-01219-0000 Leg Leveler AK61-00035-0000 Idler Pulley Assembly AK63-00021-0000 Alternator w/Pulley Resistor Assembly AK63-00093-0000...
- Page 4 LifeCycle LC8500 LC85-0100-35 Alternator w/Pulley - AK63-00093-0000 Alternator Alternator Pulley 0017-00009-0841 0K61-02500-0001 Bolt 0017-00101-0956 Locking Nut 0017-00103-0117 Washer 0017-00104-0044...
- Page 5 LifeCycle LC8500 LC85-0100-35 Crank Shaft and Crank Bearing Assembly – GK63-00002-0006 Small Thrust Washer(2) 0K63-01129-0000 Small Retaining Ring(2) 0017-00100-0241 Large Thrust Washer (2) 0K63-01129-0001 Needle Bearing(2) 0K63-01128-0000 Bowed Retainer Ring(2) 0017-00100-0243...
- Page 6 LifeCycle LC8500 LC85-0100-35 Intermediate Shaft and Bearing Assembly – GK63-00002-0007 Clutch Assembly AK63-00026-0000 Retaining Ring 0017-00100-0242 DELRIN Washers Spacer 0017-00104-0455...
- Page 7 LifeCycle LC8500 LC85-0100-35 Seat Latch Assembl y - AK63-00043-0000 Latch Spring 0K63-01117-0000 Latch Bracket 0K63-01064-0000 NYLINER 0017-00042-1129 E-Ring Set Screws (2) 0017-00100-0050 0017-00101-0333 Link Shaft AK63-00113-0000 Latch Rack 0K63-01061-0000 NYLINER 0017-00042-1129...
- Page 8 LifeCycle LC8500 LC85-0100-35 Seat Post Assembly - AK63-00232-0001 Seat-Standard AK63-00229-0002 Screw Lock Washer(4) 0017-00101-1623 0017-00104-0064 Hex Bolt(4) 0017-00101-1121 Seat Post Decal Extrusion 0K63-01151-0000 Guide Cap 0K63-01044-0000 Seat Post Assembly Seat Adjustment Rack AK63-00099-0001 0K63-01049-0000 Spring Support Bracket 0K63-01210-0000 Guide Base...
- Page 9 LifeCycle LC8500 LC85-0100-35 Seat Post Shrouds Left Seat Post Shroud 0K63-01092-0001 Screw 0017-00101-0991 Right Seat Post Shroud 0K63-01092-0002...
- Page 10 LifeCycle LC8500 LC85-0100-35 Idler Bracket Assembly - AK63-00021-0000 Idler Bracket 0K63-01050-0000 Lock Nut 0017-00103-0218 Idler Bearing AK63-00008-0000...
- Page 11 LifeCycle LC8500 LC85-0100-35 Console Support Assembly – AK63-001 11 -0000 Cable Assy: Jack/Hr Polar Bracket 0K63-01113-0000 Console Support Weldment Assy AK63-00089-0000 End Cap Nut(2) 0017-00042-1132 0017-00103-0318 Support Screws(4) 0017-00101-1704 Pan Screw(2) 0017-00101-1710 TORX Screws(4) 0017-00101-1721 Handlebar Cover-RT 0K63-01191-0001 I-Beam Joint...
- Page 12 LifeCycle LC8500 LC85-0100-35 Left Side Shroud and Crankarm Shroud Screws(3) Decal 0017-00101-0991 0K63-01157-0000 Left Side Shroud AK63-00060-0002 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, LT 0K39-01042-0004 Washer(2) 0017-00104-0280 Left Pedal Shroud Plug AK63-00123-0002 0K63-01084-0000 Left Pedal Strap 0K63-01237-0002...
- Page 13 LifeCycle LC8500 LC85-0100-35 Right Side Shroud and Crankarm Right Pedal AK63-00123-0001 Right Side Shroud Right Pedal Strap AK63-00060-0001 Decal 0K63-01238-0001 0K63-01157-0000 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, RT 0K63-01209-0001 Right Side Shroud Screws(8) 0017-00101-0991...
- Page 14 LifeCycle LC8500 LC85-0100-12 PCB Mounting Bracket Assembly – AK63-00094-0000 Mounting Bracket 0K63-01211-0001 Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92064-A000 Phillips Screw(4) 0017-00101-0823...
- Page 15 LifeCycle LC8500 LC85-0100-35 Front Wheels – AK63-00017-0000 Pan Screw(2) 0017-00101-1611 Wheel Screw 0017-00101-1611 Wheel Insert 0K63-01039-0000 Flat Washer 0K63-01041-0000 Wheel/Bearing Assembly AK63-00016-0000...
- Page 16 LifeCycle LC8500 LC85-0100-35 Resistor Assembly - AK63-00114-0000 Nut(3) Resistor Resistor Mounting Rod 0017-00103-0081 .5 OHM 240 Watt 0K63-01166-0000 100E-00002-0084 Retainer 0K63-01215-0000 Pan Screws (20) 0017-00101-1057 Power Control Cable Assembly Resistor Bracket(2) 0K63-01165-0000...
- Page 17 LifeCycle LC8500 LC85-0100-35 Handlebar Assembly – AK63-00101-0000 Handlebar AK63-00084-0000 Dipped Grip 0K63-01177-0001...
- Page 18 LifeCycle LC8500 LC85-0100-35 Belts Alternator Belt 0K63-01065-0000 Intermediate Belt 0K63-01066-0001...
- Page 19 LifeCycle LC8500 LC85-0100-35 Cables...
