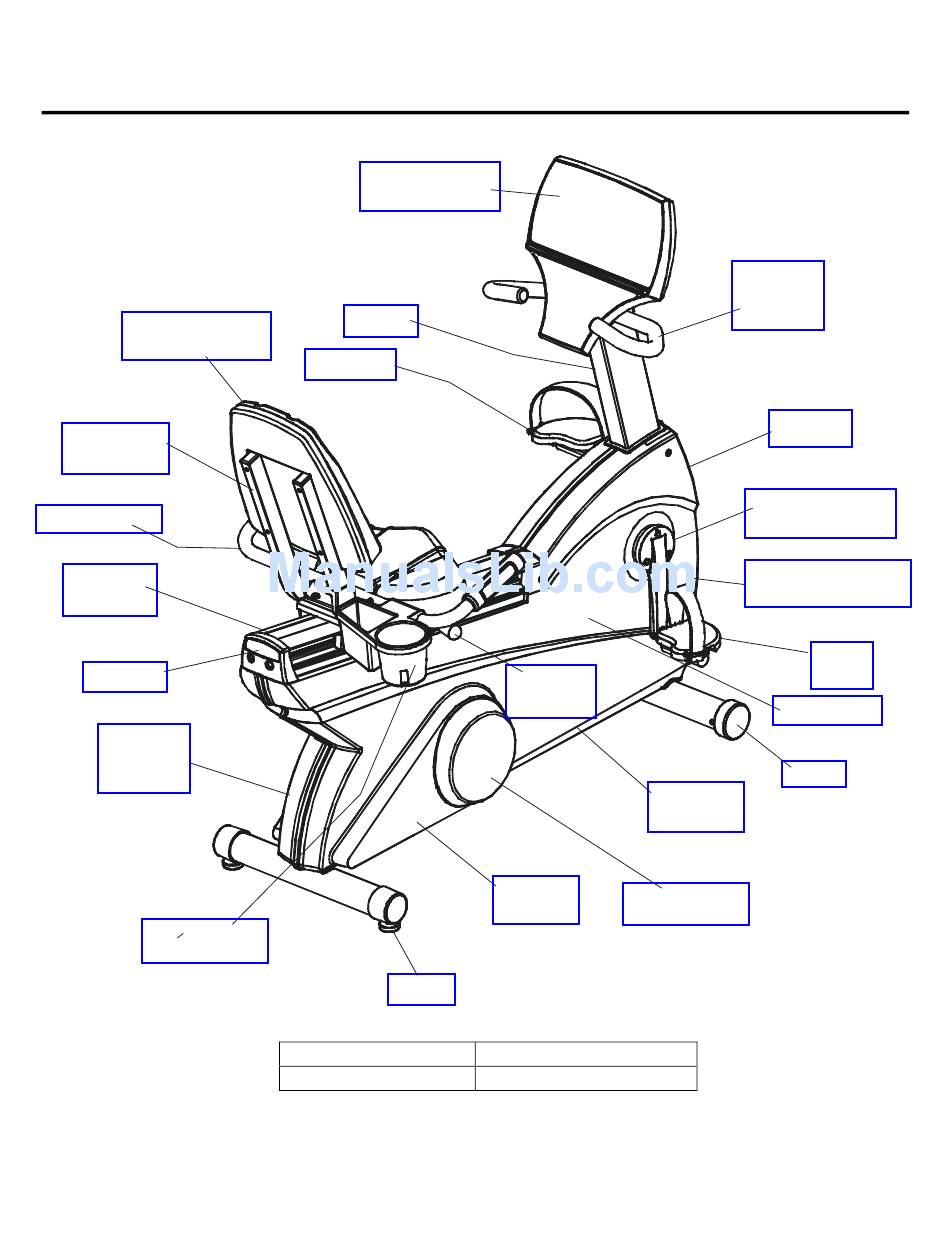

LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001
Unit Assembly
Seat Assembly
Bottom
Seat Frame
Assembly
Seat Assembly
Extrusion
Assembly
End Cap
Power
Control
Board
Accessory Tray
& Seat Pads
NOTE: Optional Polar Accessory Kit, GK39-00002-0001.
Console Overlay
Bezel Assembly
Cable
Left Pedal
Leveler
Operation Manual
Service Manual
Lock
Assembly
Resistor
Belts/6VBatery
Assembly
M051-00K20-A347
M051-00K39-A012
1
Console
Support
Assembly
Shrouds
Crank Shaft&
Bearing Assembly
Intermediate Shaft&
Bearing Assembly
Right
Pedal
Idler Bracket
Wheel
Alternator
Assembly
Advertisement
Related Manuals for Lifecycle LC85R-0100-28
Summary of Contents for Lifecycle LC85R-0100-28
- Page 1 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Unit Assembly Console Overlay Bezel Assembly Console Support Assembly Cable Seat Assembly Bottom Left Pedal Shrouds Seat Frame Assembly Crank Shaft& Seat Assembly Bearing Assembly Intermediate Shaft& Extrusion Bearing Assembly Assembly Right...
- Page 2 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Console Overlay Bezel Assembly Bezel/Switch Assembly AK63-00075-0000 Console Board -Upper A084-92220-A002 Upper Overlay Decal 0K63-11118-0000 Lower Overlay Console Case Assembly AK63-00121-0000 Phillips Pan Screws(13) 9917-00101-1650 9V Battery 0017-00003-0757 Battery Door 0K63-01029-0000 LC8500 Recumbent...
- Page 3 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Console Support Assembly 4-Pin Heart Rate Cable 10-Pin Connector Main Wiring Cable Grip(2) 0K39-01005-0000 Console Support AK39-00003-0000 Console Mounting Screw(4) Frame Post Bolt(4) 0017-00101-1253 0017-00101-1737 Frame Post...
- Page 4 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Shrouds, End Cap, and Pedals Right Shroud AK39-00033-0001 Shroud Screws(7) Decal 0017-00101-0991 0K51-01020-0000 End Cap Screws(2) Crank Arm, RT 0017-00101-1614 0K63-01209-0003 Screws(3) End Cap 0017-00101-1702 AK39-00050-0001 Shroud Screws(4) 0017-00101-0991 Right Pedal AK63-00123-0001...
- Page 5 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Wheel and Leveler Rear Stabilizer AK39-00004-0000 Decal 0K63-01147-0000 Lock Nut 0017-00103-0273 Leveler 0017-00009-0795 Leveler Assembly AK61-00035-0000 Flat Washer 0K63-01041-0000 Wheel Insert 0K63-01039-0000 Pan Screw(2) 0017-00101-1611 Wheel/Bearing Assembly AK63-00017-0000 Wheel Screw 0017-00101-1611...
- Page 6 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Belts and 6V Battery Intermediate Screw Pulley Belt 0017-00101-1193 0K63-01066-0001 Alternator Belt 0K63-01065-0000...
- Page 7 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Resistor Assembly Washer(2) 0017-00104-0309 Resistor 110E-00002-0084 Retainer 0K39-01043-0000 Pan Screw(2) 0017-00101-1282 Hex Nut(3) 0017-00103-0081 Mounting Rod 0K63-01166-0000 See Ccble Page Bracket 0K39-01036-0000...
- Page 8 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Power Control Board - AK39-00022-0002 Plastic Gromment(4) 0017-00042-0821 Bracket 0K39-01027-0000 Philip Screw(4) 0017-00101-0832 Power Control Board B084-92064-A000...
- Page 9 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Alternator w/Pulley - AK63-00093-0000 Alternator Alternator Pulley 0017-00009-0841 0K61-02500-0001 Bolt 0017-00101-0956 Locking Nut 0017-00103-0117 Washer 0017-00104-0044...
- Page 10 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Crank Shaft and Bearing Assembly – GK63-00002-0006 Kit Crank Arm Hub Pulley Assemlby AK63-00051-0000 Pully 0K63-01018-0000 Flywheel Screws(3) 0017-00101-01715 Washers(3) 0017-00104-00458 *Crank Shaft & Bearing Kit GK63-0002-0006 *Crank Shaft *Small Thrust Washer(2)
- Page 11 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Intermediate Shaft and Bearing Assembly – GK63-00002-0007 Kit Clutch Assembly Retaining Ring AK63-00026-0000 0017-00100-0242 Intermediate Bearing (part of kit) Intermediate Spacer Bearing (part of kit) DELRIN Washers (part of kit) 0017-00104-0455 Intermediate Pulley...
- Page 12 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Idler Bracket Assembly – AK63-00021-0000 Idler Bracket 0K63-01050-0000 Lock Nut 0017-00103-0218 Idler Bearing AK63-00008-0000...
- Page 13 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Seat Assembly End Cap 0K19-01208-0000 Foam Grip 0K-14-01926-0000 Seat Assembly AK51-00034-0001...
- Page 14 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Seat Assembly - Bottom Washer Roller Shield(4) 0017-00104-0252 0K51-01059-0000 Spacer(4) 0K51-01044-0000 Locking Nut(4) 0017-00103-0282 Washer(4) Washer(4) 0017-00104-0253 0017-00104-0409 Screw(2) 0017-00101-1612 Bolt(4) 0017-00101-1131 Lock Assembly Roller Assembly Locking Nut(8) AK51-00056-0000 0017-00103-0281 Roller (2), LT...
- Page 15 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Seat Frame Assembly Seat Assembly AK51-00027-0001 Screw(4) 0017-00101-1455 Washer(4) 0017-00104-0253 Front Stop Bracket 0K51-01062-0000 Extrusion AK39-00027-0002 Plastic Shield 0K19-01185-0000...
- Page 16 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Seat Pads and Accessory Tray Accessory Tray AK39-00052-0002 Seat Back 0K51-01056-0000 Seat Bottom 0k51-01054-0000 Washer(4) 0017-00104-0253 Mounting Screw(4) 0017-00101-1131...
- Page 17 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Extrusion Assembly Stop Bracket Screws 0K51-010161-0000 0017-00101-0624 Locking Rack Decal 0K51-01013-0000-D 0K51-01039-0000 Bumper 0017-00041-0654 Screw 0017-00101-1007 Plastic Grommet 0017-00042-1055 Bolts 0017-00101-1183 Extrusion Seat Assy AK39-00029-0004...
- Page 18 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Lock Assembly AK51-00053-00000 Knob TORX Screw AK51-00029-0000 0017-00101-0991 Anti-Rattle Washer 0K51-01060-0000 Retainer Bearing Handle Shaft 0K51-01011-0000 0K51-01007-0000 Groove Pin E-Ring 0017-00007-0245 0017-00100-0018 Compression Spring 0K51-01012-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0000 Locking-Block Assembly...
- Page 19 LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001 Cable – Block Assembly Alternator to Control Cable AK39-00009-0000 Console Cable AK39-00008-0000...
