Life Cycle 95Ci
General Assembly
Console
Assembly
Console
Mounting Screws(4)
0017-00101-1744
Accessory Tray
GK63-00002-0062
Accessory Tray Screws(4)
0017-00101-1253
Console Support
Assembly
Bolts
0017-00101-1755
Idler Bracket
Assembly
Right Side Shroud
and Crankarm
Alternator
w/Pulley
Belts
Cables
Power Option Kit
GK63-00002-0005 120V
GK63-00002-0039 220/50 UK
GK63-00002-0040 240V+AUS
GK63-00002-0041 220/50
Handlebar
Assembly
Front Wheels
PCB Mounting
Bracket Assembly
Description
Service Manual
Operator Manual
Hardware Bag
Page 1 of 18
Upper Cover
0K63-01145-0001
Lower Cover
0K63-01146-0001
Cover Screws(4)
0017-00101-1253
Polar Receiver
AK40-00045-0001
Left Side Shroud
and Crankarm
Intermediate
Pulley/Shaft
Assembly
Part Number
M051-00K63-A009
M051-00K63-A064
GK63-00002-0044
95C-0XXX-01
S/N LCI100001
Seat Post
Assembly
Seat Post
Shrouds
Seat Latch
Assembly
Resistor
Assembly
Leg Levelers(2)
AK61-00035-0000
Crank Shaft
Assembly
Advertisement
Related Manuals for Lifecycle 95Ci 95C-0XXX-01
Summary of Contents for Lifecycle 95Ci 95C-0XXX-01

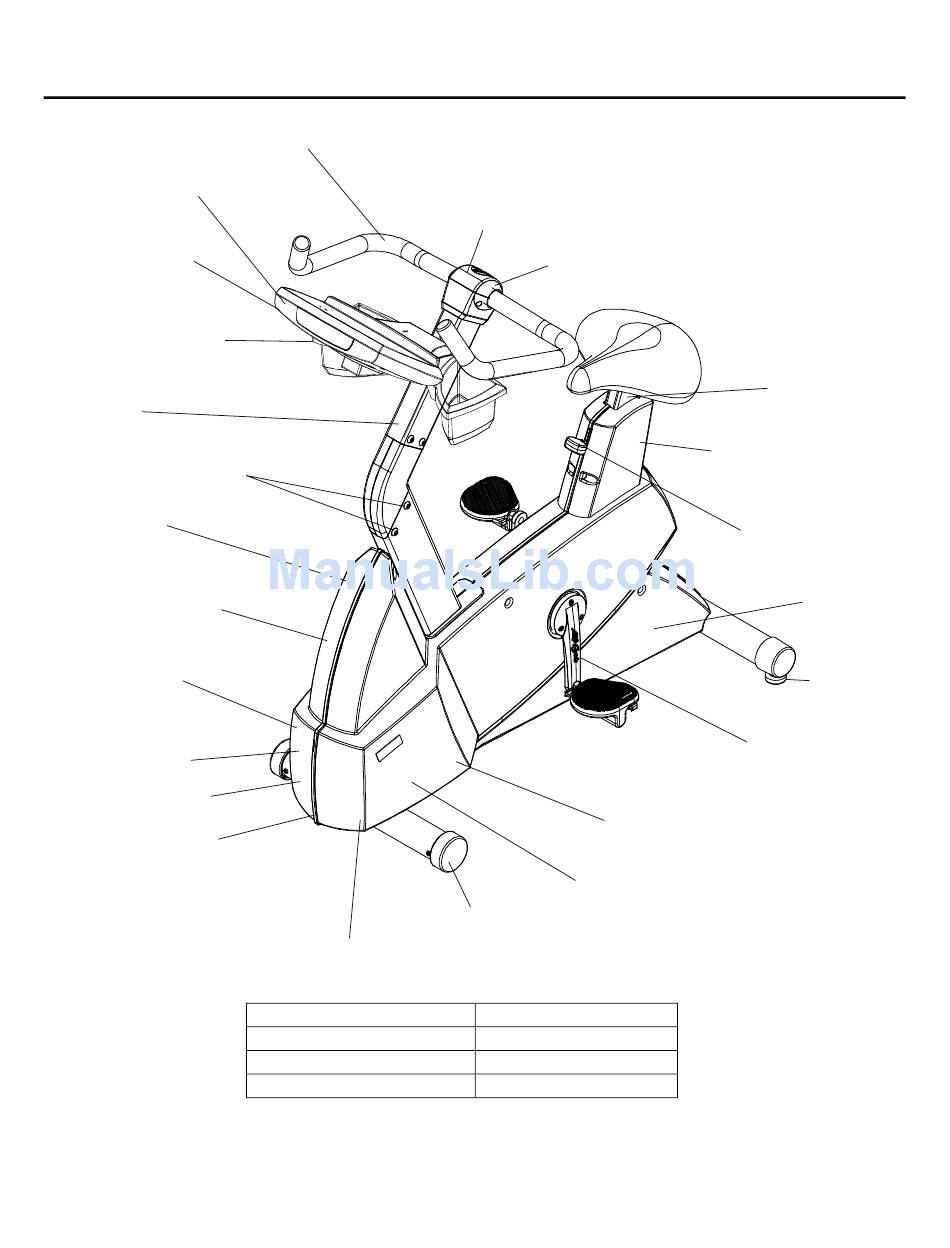

- Page 1 Life Cycle 95Ci 95C-0XXX-01 General Assembly S/N LCI100001 Handlebar Upper Cover Assembly 0K63-01145-0001 Lower Cover Console 0K63-01146-0001 Assembly Cover Screws(4) Console 0017-00101-1253 Mounting Screws(4) 0017-00101-1744 Polar Receiver AK40-00045-0001 Accessory Tray GK63-00002-0062 Accessory Tray Screws(4) 0017-00101-1253 Seat Post Console Support Assembly Assembly Seat Post Bolts...
-
