LifeCycle L
LifeCycle LC9500XXL
General Assembly
Handlebar
Assembly
Console
Overlay
Console Support
Assembly
Final Frame
Assembly
Idler Bracket
Assembly
Right Side Shroud
and Crankarm
Alternator
w/Pulley
Belts
Cables
Bottom Sensor
Cover
0K63-01146-0000
PCB Mounting
Bracket Assembly
Front Wheels
Operation Manual
Service Manual
Polar Transmitter XS
Polar Transmitter MED
Polar Transmitter XL
Optional Power Plug-In Unit (Not a batter charger)
Kit SERV Power 120/30
Kit SERV Power 220/50UK
Kit SERV Power 240UK
Kit SERV Power 220/50CON
LC95-0000-13, LC95-0601-13
Upper Sensor
Cover
0K63-01145-0000
Polar Receiver
AK40-00045-0001
Left Side Shroud
Intermediate
and Crankarm
Pulley/Shaft
Assembly
M051-00K20-A347
M051-00K39-A012
AK40-00045-0003
AK40-00045-0002
AK40-00045-0004
GK63-00002-0005
GK63-00002-0039
GK63-00002-0040
GK63-00002-0041
CBK100000 and up
Seat Post
Assembly
Seat Post
Shrouds
Seat Latch
Assembly
Resistor
Assembly
Crank Shaft
Assembly
rev 11 Apr 2008
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lifecycle LC9500XXL
Summary of Contents for Lifecycle LC9500XXL

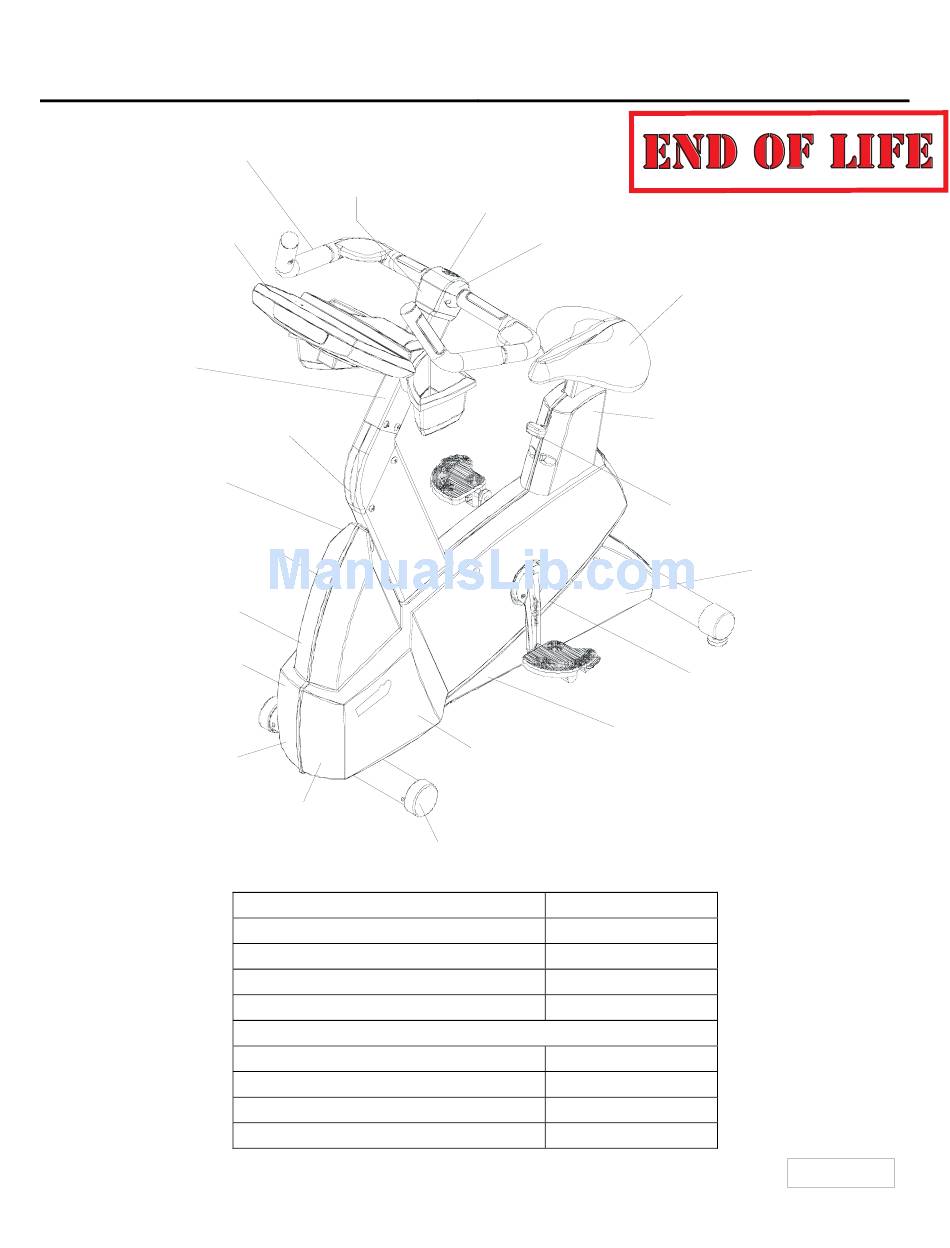

- Page 1 LifeCycle LC9500XXL LifeCycle L LC95-0000-13, LC95-0601-13 General Assembly CBK100000 and up Handlebar Bottom Sensor Assembly Upper Sensor Cover Cover 0K63-01146-0000 0K63-01145-0000 Console Overlay Polar Receiver AK40-00045-0001 Seat Post Assembly Console Support Assembly Final Frame Seat Post Assembly Shrouds Idler Bracket...
