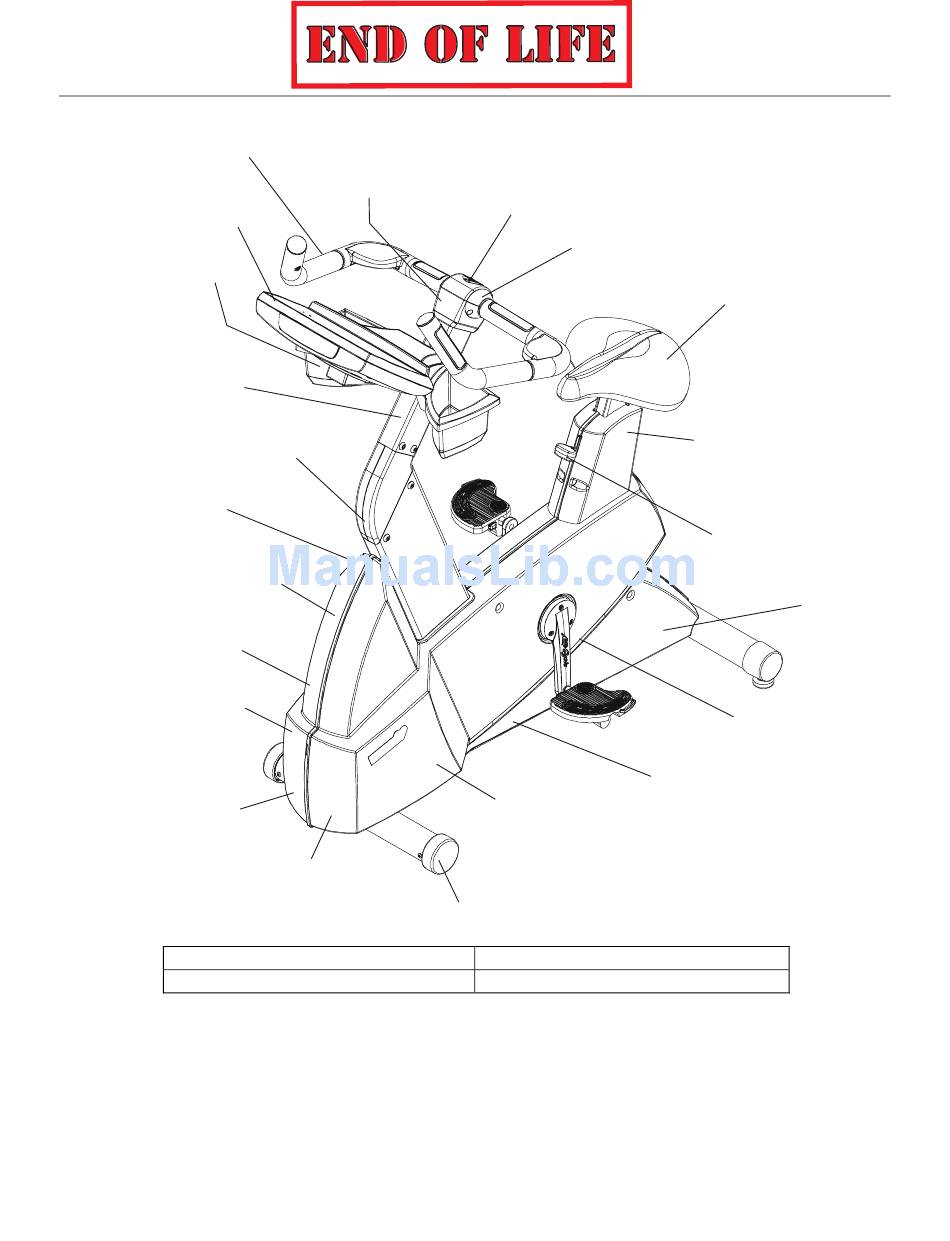

LifeCycle LC9500
General Assembly
Handlebar
Assembly
Console
Overlay
Accessory Tray
0K63-01030-0000
Screws(4)
0017-00101-1253
Console Support
Assembly
Final Frame
Assembly
Idler Bracket
Assembly
Right Side Shroud
and Crankarm
Alternator
w/Pulley
Belts
Cables
PCB Mounting
Bracket Assembly
Operation Manual
Manual: Serv; LC95/91/85
Bottom Sensor
Cover
0K63-01146-0000
Front Wheels
M051-00K63-B043
M051-00K63-A009
LC95-0000-12
S/N CBJ100000
Upper Sensor
Cover
0K63-01145-0000
Polar Receiver
SK40-00045-0001
Left Side Shroud
Intermediate
and Crankarm
Pulley/Shaft
Assembly
Seat Post
Assembly
Seat Post
Shrouds
Seat Latch
Assembly
Resistor
Assembly
Crank Shaft
Assembly
rev 30 Oct 2008
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lifecycle LC9500
Summary of Contents for Lifecycle LC9500
- Page 1 LifeCycle LC9500 LC95-0000-12 General Assembly S/N CBJ100000 Handlebar Bottom Sensor Assembly Upper Sensor Cover Cover 0K63-01146-0000 Console 0K63-01145-0000 Overlay Polar Receiver Accessory Tray SK40-00045-0001 0K63-01030-0000 Seat Post Screws(4) Assembly 0017-00101-1253 Console Support Assembly Final Frame Seat Post Assembly Shrouds Idler Bracket...
- Page 2 LifeCycle LC9500 LC95-0000-12 Console Overlay Bezel Assembly S/N CBJ100000 Upper Overlay Console Board - Upper A084-92219-A001 Console Case Assembly AK63-00121-0000 Lower Overlay Phillips Pan Screws(13) 9917-00101-1650 Battery Door 0K63-01029-0000 Console Assembly Overlay Bezel AK63-00070-0001 Eng Met AK63-00063-0001 Eng Met AK63-00070-0003 Ger Met...
- Page 3 LifeCycle LC9500 LC95-0000-12 Final Frame Assembly S/N CBJ100000 Seat Latch Assy Frame Gasket AK63-00043-0000 0K63-01007-0001 Power Control Board and Battery Assembly Grommet AK63-00049-0000 0017-00042-1134 Resistor Assy AK63-00047-0001 Alternator w/Pulley AK63-00093-0000 End Cap 0K63-01219-0000 Idler Pulley Assy Leveler AK63-00021-0000 Ak61-00035-0000 5/16 x 18 x 12 HXW Bolt...
- Page 4 LifeCycle LC9500 LC95-0000-12 Alternator w/Pulley - AK63-00093-0000 S/N CBJ100000 Alternator Alternator Pulley 0017-00009-0841 0K61-02500-0001 Bolt 0017-00101-0956 Locking Nut 0017-00103-0117 Washer 0017-00104-0044...
- Page 5 Lif LifeCycle LC9500 LC95-0000-12 Crank Shaft & Bearing Assembly S/N CBJ100000 Crank Arm Hub Pulley Assembly 0K63-01095-0001 AK63-00051-0000 Pulley 0K63-01018-0000 Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft & Bearing Kit GK63-00002-0077 *Crankshaft 0K63-01012-0001 *Small Thrust Washer (2) 0K63-01129-0000 *Large Thrust Washer (2)
- Page 6 LifeCycle LC9500 LC95-0000-12 Intermediate Shaft & Bearing Assembly – GK63-00002-0007 S/N CBJ100000 Clutch Assembly AK63-00026-0000 Retaining Ring 0017-00100-0242 DELRIN Washers Spacer 0017-00104-0455...
- Page 7 LifeCycle LC9500 LC95-0000-12 Seat Latch Assembly - AK63-00043-0000 S/N CBJ100000 Latch Spring 0K63-01117-000 Latch Bracket 0K63-01064-0000 NYLINER 0017-00042-1129 E-Ring Set Screws (2) 0017-00100-0050 0017-00101-0333 Link Shaft AK63-00113-0000 Latch Rack 0K63-01061-0000 NYLINER 0017-00042-1129...
- Page 8 LifeCycle LC9500 LC95-0000-12 Seat Post Assembly - AK63-00232-0000 S/N CBJ100000 Seat-Deluxe AK63-00229-0001 Screw Lock Washer(4) 0017-00101-1623 0017-00104-0064 Hex Bolt(4) 0017-00101-1121 Seat Post Decal Extrusion 0K63-01151-0000 Guide Cap 0K63-01044-0000 Seat Post Assembly Seat Adjustment Rack AK63-00099-0001 0K63-01049-0000 Spring Support Bracket 0K63-01210-0000...
- Page 9 LifeCycle LC9500 LC95-0000-12 Seat Post Shrouds S/N CBJ100000 Left Seat Post Shroud 0K63-01092-0001 Screw 0017-00101-0991 Right Seat Post Shroud 0K63-01092-0002...
- Page 10 LifeCycle LC9500 LC95-0000-12 Idler Bracket Assembly - AK63-00021-0000 S/N CBJ100000 Idler Bracket 0K63-01050-0000 Lock Nut 0017-00103-0218 Idler Bearing AK63-00008-0000...
- Page 11 LifeCycle LC9500 LC95-0000-12 Console Support Assembly - AK63-00065-0000 S/N CBJ100000 Cable Assy: Jack/Hr Polar Bracket 0K63-01113-0000 End Cap Console Support 0017-00042-1132 Weldment Assy AK63-00089-0000 Nut(2) 0017-00103-0318 Screws Support Screws (4) 0017-00101-1710 0017-00101-1736 Pan Screws(4) 0017-00101-1721 HR Electrode Cable Handlebar Cover-RT...
- Page 12 LifeCycle LC9500 LC95-0000-12 Left Side Shroud and Crankarm S/N CBJ100000 Shroud Screws(3) Decal 0017-00101-0991 0K63-01153-0000 Left Side Shroud AK63-00058-0002 Crank Arm Screws(3) 0017-00101-1702 Crank Arm, LT OK39-1042-0006 Washer(2) 0017-00104-0280 Left Pedal Shroud Plug AK63-00263-0002 0K63-01084-0000 Left Strap 0K63-01238-0002...
- Page 13 LifeCycle LC9500 LC95-0000-12 Right Side Shroud and Crankarm S/N CBJ100000 Right Pedal AK63-00263-0001 Right Side Shroud Right Strap Decal AK63-00058-0001 0K63-01238-0001 0K63-01153-0000 Crank Arm Screws(3) 0017-00101-1702 Crank Arm, RT OK39-1042-0005 Right Side Shroud Screws(8) 0017-00101-0991...
- Page 14 LifeCycle LC9500 LC95-0000-12 PCB Mounting Bracket Assembly – AK63-00049-0000 S/N CBJ100000 Cable-Insulated Clamp Battery Screws(2) 0017-00009-0915 0017-00101-0975 Battery - 6V 0017-00003-0685 Positive Terminal Plastic Grommet(4) 0017-00042-0821 Battery Mounting Bracket PCB Circuit Board 0K63-01211-0000 B084-92218-D002 Pan Screws(4) 0017-00101-0823...
- Page 15 LifeCycle LC9500 LC95-0000-12 Front Wheels – AK63-00017-0000 S/N CBJ100000 Pan Screw(2) 0017-00101-1611 Wheel Screw 0017-00101-1611 Wheel Insert 0K63-01039-0000 Flat Washer 0K63-01041-0000 Wheel/Bearing Assembly AK63-00016-0000...
- Page 16 LifeCycle LC9500 LC95-0000-12 Resistor Assembly - AK63-00047-0001 S/N CBJ100000 Nut(3) Resistor Resistor Mounting Rod 0017-00103-0081 .5 OHM 240 Watt 0K63-01166-0000 100E-00002-0084 Retainer 0K63-01215-0000 TORX Screw(20) 0017-00101-1282 Power Control Cable Assembly Resistor Bracket(2) 0K63-01165-0000...
- Page 17 LifeCycle LC9500 LC95-0000-12 Handlebar Assembly - AK63-00091-0000 S/N CBJ100000 Molder Grip Electrode Handlebar Molded Insert(4) AK63-00083-0000 AK63-00014-0002 Electrode Cable Assembly Insulated Plug(4) 0K63-01167-0000 Handlebar End Cap(2) Phillips Screw(4) 0K63-01114-0000 0017-00101-1720...
- Page 18 LifeCycle LC9500 LC95-0000-12 Belts S/N CBJ100000 Alternator Belt 0K63-01065-0000 Intermediate Belt 0K63-01066-0001...
- Page 19 LifeCycle LC9500 LC95-0000-12 Cables S/N CBJ100000...
