Lifecycle R9-0000- Assembly Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
LifeCycle Recumbent Bike
Unit Assembly
Seat Assembly
Bottom
Seat Frame
Assembly
Seat Assembly
Extrusion
Assembly
End Cap
Power
Control
Board
Accessory Tray
& Seat Pads
02
Console Overlay
Bezel Assembly
Cable
Left Pedal
Flat Cable Assy
Leveler
Miscellaneous
Description
Operation Manual
M051-00K20-A347
M051-00K39-A 012
Service Manual
Lock
Assembly
Alternator
Assembly
Resistor
Belts/6VBatery
Assembly
Part No.
R9-0000-
S/N CEI100001
Console
Support
Assembly
Shrouds
Crank Shaft&
Bearing Assembly
Intermediate Shaft&
Bearing Assembly
Right
Pedal
Idler Bracket
Wheel
revised 01 Oct 2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the R9-0000- and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lifecycle R9-0000-

Summary of Contents for Lifecycle R9-0000-

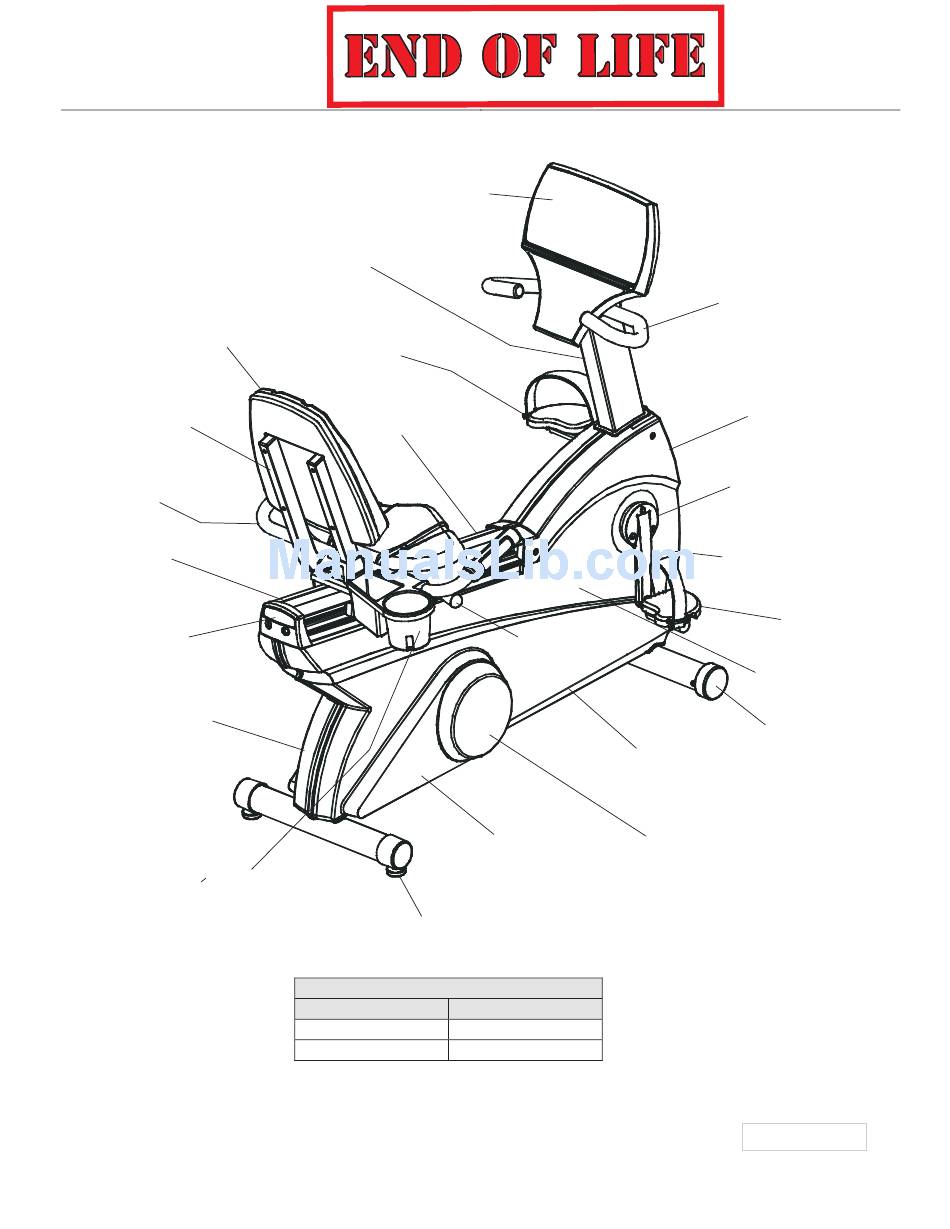

  • Page 1 LifeCycle Recumbent Bike R9-0000- Unit Assembly S/N CEI100001 Console Overlay Bezel Assembly Cable Console Support Assembly Seat Assembly Bottom Left Pedal Shrouds Seat Frame Flat Cable Assy Assembly Crank Shaft& Seat Assembly Bearing Assembly Intermediate Shaft& Extrusion Bearing Assembly Assembly...
