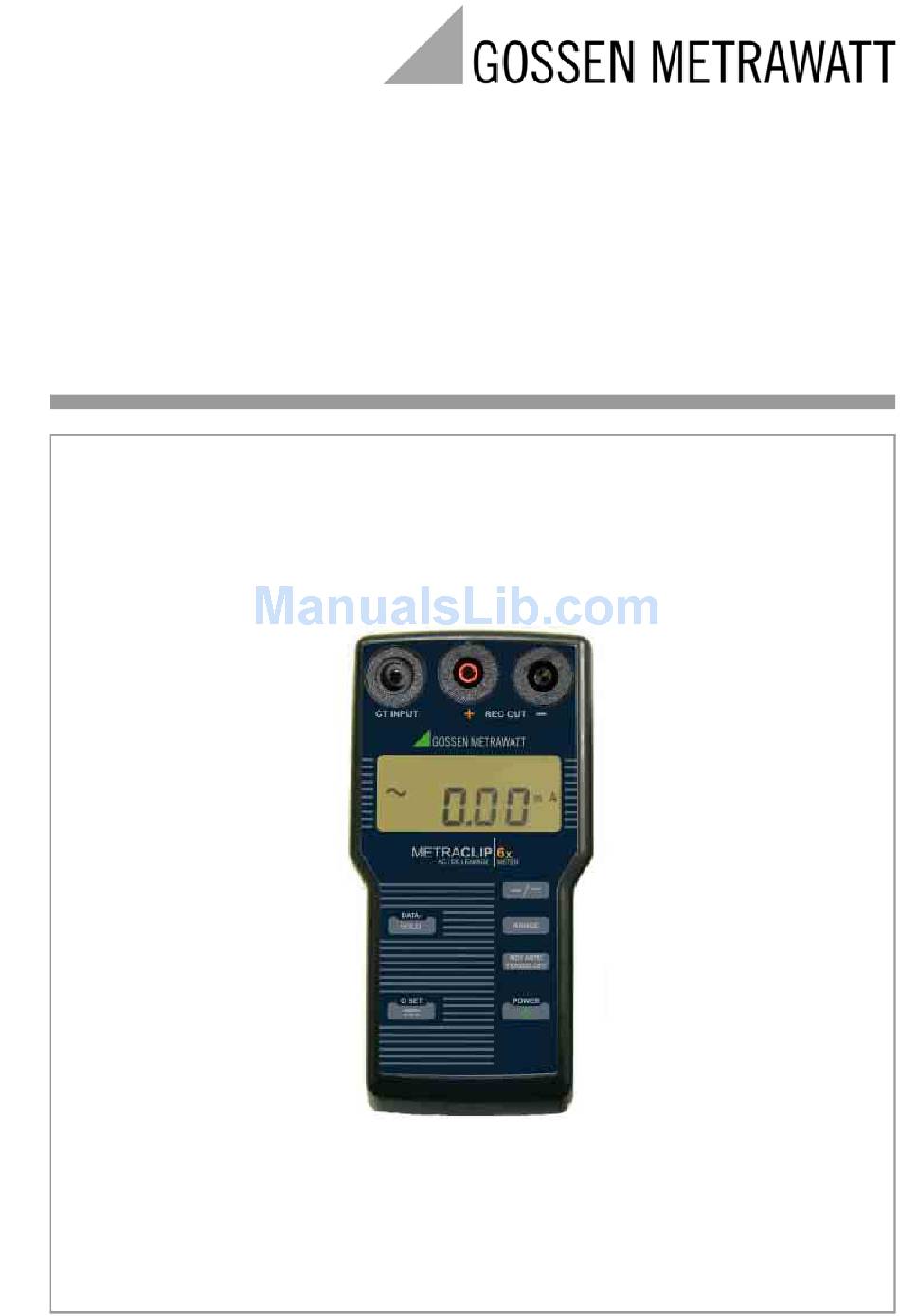

- Page 1 Operating Instructions METRACLIP⏐63 / 64 Milliampere Current Clamp for Measuring Fault, Leakage and Stray Current 3-349-488-03 1/10.08...
- Page 2 Current Clamp Current Clamp Measuring Instrument METRACLIP METRACLIP 1 Arrow must point in 1 Arrow must point in direction of current direction of current flow flow 2 Safety collar 2 Safety collar 3 Locking lever 3 Key for opening the 1 CT INPUT: Current clamp connector socket clamp 4 Slider for opening...
-
Page 3: Table Of Contents
Avoid excessive mechanical stress such as impact and vibration, as well as high Operation ..........5 temperatures and humidity, because this 4.1 Using the METRACLIP 63 Current Clamp ..5 may result in damage to the instrument. 4.2 Direct Current Measurement ......5 •... -
Page 4: Meaning Of Symbols On The Instrument
1.1.1 Meaning of Symbols on the Attention! Instrument The specified maximum input Meaning of Symbols on the Instrument quantities may not be exceeded in order to prevent damage to the Warning concerning a source of instrument and injury to the user: danger (attention: observe voltage range: 600 V AC/DC, documentation) -
Page 5: Operation
Automatic Shutdown Open After switching the device on, “APO” appears at the LCD (automatic power off). The device is switched off automatically after 10 minutes if none of its keys have been Locking activated during this time. Lever Disabling Automatic Shutdown Slider The instrument can be set to continuous operation. -
Page 6: Alternating Current Measurement
➭ Fully close the current clamp. Measuring Leakage and ➭ Read the displayed value. In the event of Stray Current overloading, “OL” appears at the display. Measuring DC Leakage Current ➭ Complete measurement and remove the ➭ Measurement is executed in the same clamp from the conductor. -
Page 7: Using A Data Logger
Using a Data Logger If current measurements will be executed over a period of hours, the output signal can be redirected to a data logger (e.g. a multimeter with memory). ➭ Connect the data logger to the REC OUT sockets. ➭... -
Page 8: Characteristic Values
Characteristic Values Direct Current (after zero balancing with the 0 SET key) METRACLIP Range Measuring Range Resolution Accuracy 100 mA 0.1 ...±50.00 mA 0.01 mA ±1% rdg. ± 5 d ±50.01 ...±99.99 mA ±1% rdg. ±10 d 1000 mA 1 ... ±300 mA 0.1 mA ±1% rdg. - Page 9 Device Data Measuring function: Alternating current / direct current Measuring method: Current clamp Measuring ranges: DC: 100 mA / 1000 mA AC: 100 mA / 1000 mA / 10 A (45 Hz ... 65 Hz) Detection of alternating current: Average sampling A-D converter: Dual integration method Display:...
-
Page 10: Maintenance
Maintenance Repair and Replacement Parts Service, Housing DKD Calibration Laboratory * and No special maintenance is required for the Rental Instrument Service housing. Keep outside surfaces clean. Use a slightly dampened cloth for cleaning. Avoid If required please contact: the use of cleansers, abrasives and solvents. GMC-I Service GmbH Return and Environmentally Sound Disposal Service Center... -
Page 11: Product Support
are capable of completing repairs using original replacement parts. As a full service calibration laboratory, we can calibrate instruments from other manufacturers as well. Product Support If required please contact: GMC-I Messtechnik GmbH Product Support Hotline Phone +49 911 8602-0 Fax: +49 911 8602 709 E-mail: support@gossenmetrawatt.com... - Page 12 Edited in Germany • Subject to change without notice • PDF version available on the Internet Phone: +49 911 8602-111 GMC-I Messtechnik GmbH Fax: +49 911 8602-777 Südwestpark 15 e-mail: info@gossenmetrawatt.com 90449 Nuremberg • Germany www.gossenmetrawatt.com...
