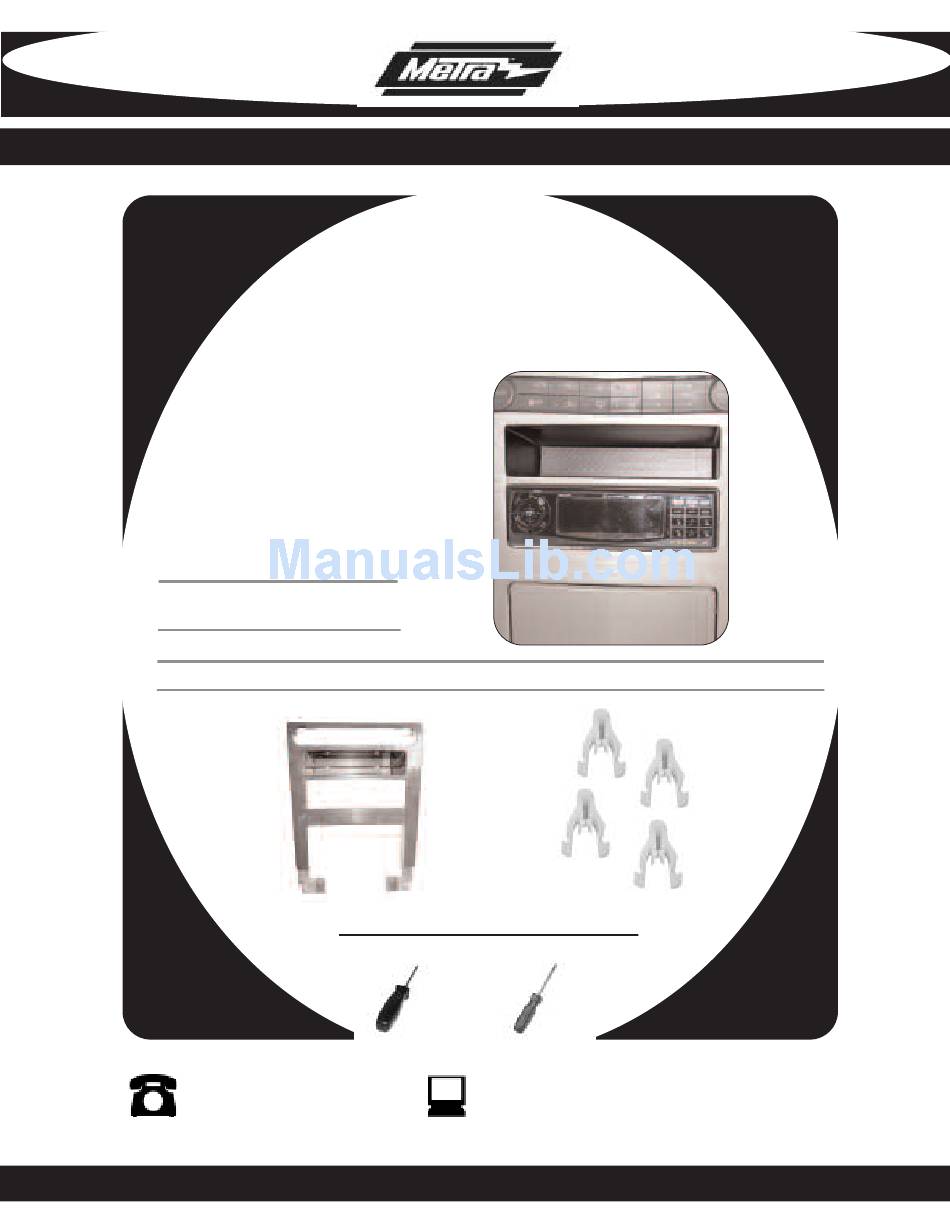

INSTALLATION INSTRUCTIONS FOR PART 99-7404
99-7404
KIT FEATURES
ISO DIN Head unit provision
with pocket
KIT COMPONENTS
A) Radio Housing Panel • B) (4) Panel retaining Clips
1-800-221-0932
SAALSDKFJHJLAzD
APPLICATIONS
NISSAN
Maxima 2004-2006
A
TOOLS REQUIRED:
Phillips Screwdriver • Small Flat Blade Screwdriver
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
B
www.metraonline.com
JFLJKJK9E
Advertisement
Related Manuals for Metra Electronics 99-7404
Summary of Contents for Metra Electronics 99-7404
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7404 99-7404 KIT FEATURES ISO DIN Head unit provision with pocket KIT COMPONENTS A) Radio Housing Panel • B) (4) Panel retaining Clips 1-800-221-0932 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION SAALSDKFJHJLAzD APPLICATIONS NISSAN Maxima 2004-2006 TOOLS REQUIRED: Phillips Screwdriver •...
- Page 2 99-7404 NISSAN MAXIMA Dash Disassembly ...1-2 ISO DIN Head Unit Provision ...3 Final Assembly ...4 Notes ...5...
- Page 3 Remove the retaining clip at base of shift knob and pull up to remove. (Figure B) Unclip and remove panel surrounding shift knob. (Figure C) Remove (2) Phillips screws at the bot- tom of the radio panel and unclip and remove. (Figure E) 99-7404...
- Page 4 99-7404 Remove (2) Phillips screws at the bottom of the display panel and unclip and remove the panel. (Figure F) Remove (4) Phillips screws to remove the audio/climate control/display as one unit. (Figure G) Remove (4) Phillips screws from each...
-
Page 5: Iso Din Head Unit Provisions
(2) Phillips screw positions and the factory hardware. (Figure A) Install the (4) supplied retaining clips onto the 99-7404 in the same locations as the factory radio panel. (Figure B) Using the factory hardware... - Page 6 Re-connect the negative battery terminal and test the unit for proper operation. Reassemble in reverse order of disassembly using the 99-7404 instead of the factory radio panel. Strip wire ends back 1/2" Twist ends together Solder...
- Page 7 99-7404 ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________...
- Page 8 INST997404 1-800-221-0932 www.metraonline.com Rev. 06-15-07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST99-7404...
