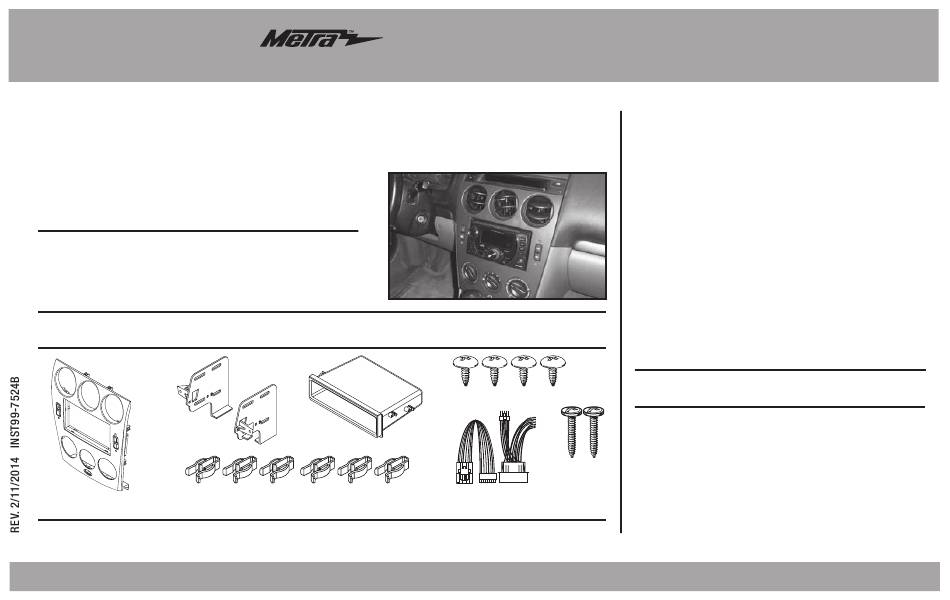

INSTALLATION INSTRUCTIONS FOR PART 99-7524B
Mazda 6 2006-2008
KIT FEATURES
• Double DIN radio provision
• ISO DIN radio provision with pocket
• Painted black
KIT COMPONENTS

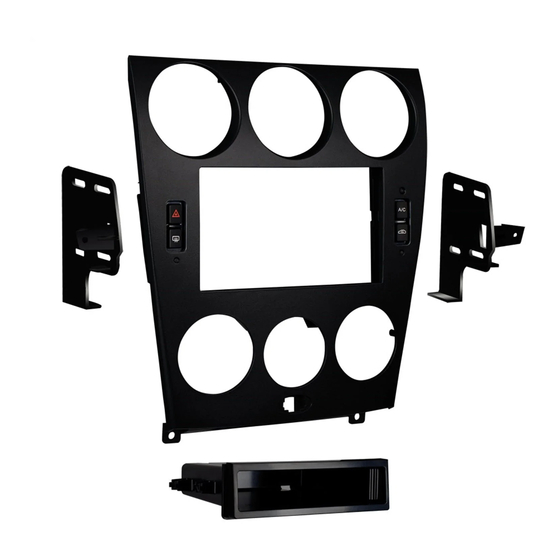

• A) Radio/Climate Control Housing • B) Radio Brackets • C) Pocket • D) (4) #8 x 3/8" Phillips Screws
• E) (6) Plastic Panel Clips • F) Harness • G) (2) #8 x 1" Phillips Screws
A
B
E
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included with kit
Antenna Adapter: • Not Required
METRA. The World's best kits.
APPLICATIONS
99-7524B
C
™
1-800-221-0932
D
F
G
metraonline.com

Table of Contents

Dash Disassembly
- Mazda 6 2006-2008 .........................................2-4
Kit Assembly
- Electronic climate control ..................................... 5
- Manual climate control ......................................... 6
- Felt tape application ............................................. 7
- ISO DIN radio provision with pocket ...................... 8
- Double DIN radio provision ................................... 8
- Display Customization .......................................... 9
TOOLS REQUIRED
• Small Flat Blade Screwdriver • Phillips Screwdriver
• Socket Wrench
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
© COPYRIGHT 2014 METRA ELECTRONICS CORPORATION
