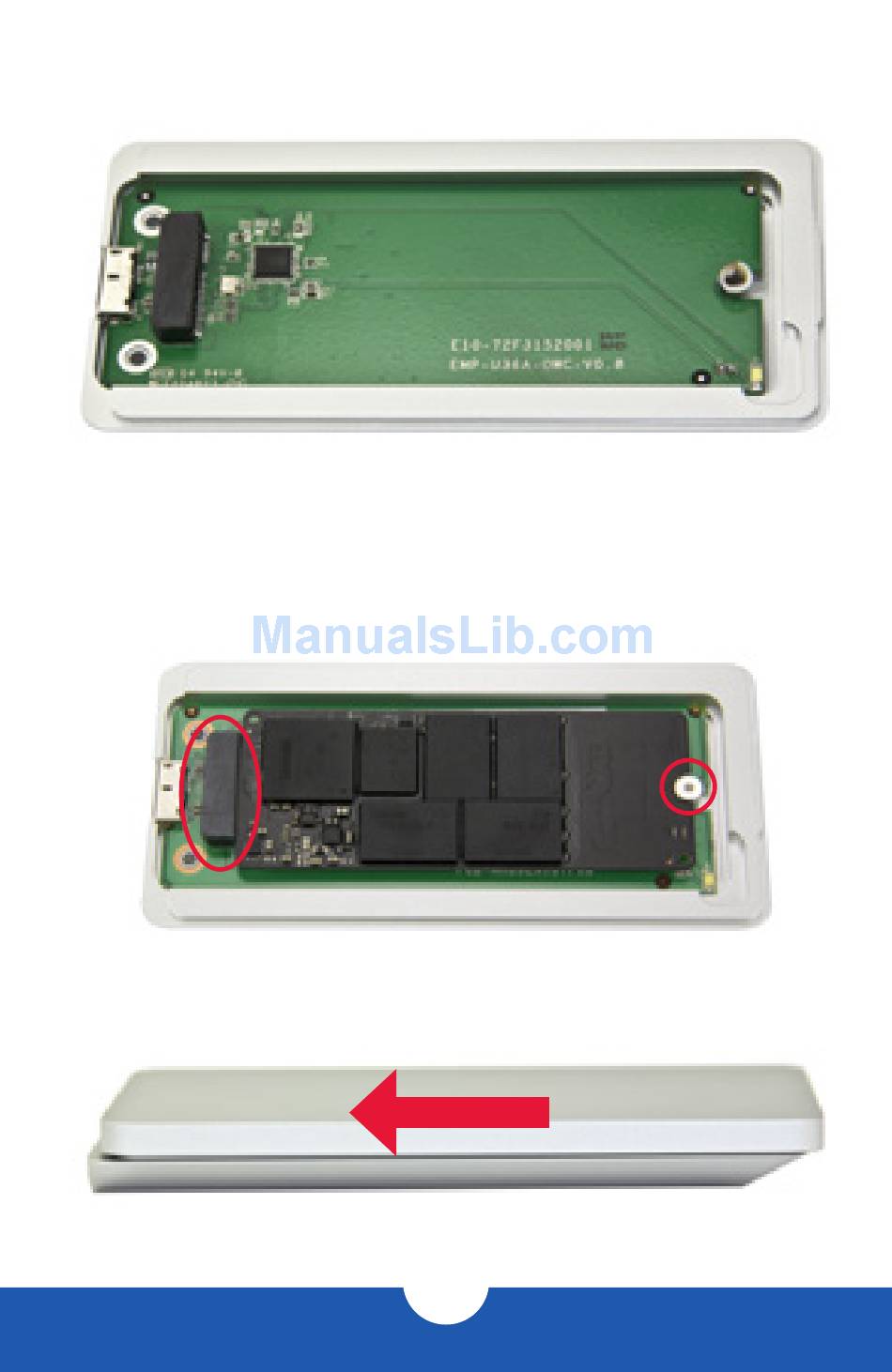

2. Inside the bottom, you can see the green circuit board, as shown in the picture
below. There is a black connector to the left and a screw hole to the right..
3. Insert your SSD into the black connector on the circuit board, as circled in the picture
below. The connector is notched so that the SSD only fits in one orientation. When
the SSD is fully seated in the connector, use the short Torx T5 screw to hold the SSD
in place, as circled on the right in the picture below. Make sure that the SSD is secure,
but do not over-tighten the screw.
4. Replace the top cover and slide it in the direction shown below until it is flush with
the bottom.
OWC ENVOY PRO
3
DEVICE SETUP
