ES4624-SFP/ES4626-SFP
L3 Gigabit Ethernet Switch
i
www.edge-core.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES4624-SFP and is the answer not in the manual?

Questions and answers

Related Manuals for Edge-Core ES4624-SFP

Summary of Contents for Edge-Core ES4624-SFP

  • Page 1 ES4624-SFP/ES4626-SFP L3 Gigabit Ethernet Switch www.edge-core.com...

  • Page 2: Preface

    Preface ES4624-SFP/ES4626-SFP L3 Gigabit Ethernet Switch is a high performance routing switch released by Edge-Core that can be deployed as an aggregation device for campus networks, enterprise networks and IP metropolitan networks; as well as core layer switches for small and medium-sized networks. ES4624/26-SFP can seamlessly support various network interfaces from 10Mb, 100Mb, 1000Mb to 10Gb Ethernets.

  • Page 3: Japan Vcci Class A

    Compliances and Safety Warnings FCC - Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Safety Compliance

    Caution: Do not plug a phone jack connector in the RJ-45 port. This may damage this device. Les raccordeurs ne sont pas utilisés pour le système téléphonique! Safety Compliance...
  • Page 5 Please read the following safety information carefully before installing the switch: WARNING: Installation and removal of the unit must be carried out by qualified personnel only. • The unit must be connected to an earthed (grounded) outlet to comply with international safety standards.
  • Page 6 Veuillez lire à fond l'information de la sécurité suivante avant d'installer le Switch: L’installation et la dépose de ce groupe doivent être confiés à un personnel AVERTISSEMENT: qualifié. • Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de connexion de mise à...
  • Page 7 • Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt. • Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben. • Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.
  • Page 8 viii...

  • Page 9: Table Of Contents

    Contents PREFACE ....................II CONTENTS.................... IX CHAPTER 1 INTRODUCTION............1-1 1.1 P ....................1-1 RODUCT RIEF 1.1.1 Overview ........................1-1 1.1.2 Features and Benefits....................1-2 1.2 P ................1-3 HYSICAL PECIFICATIONS 1.3 D ................1-3 ESCRIPTION OF ARDWARE 1.3.1 Front Panel ......................... 1-3 1.3.2 Back Panel ........................

  • Page 10: Chapter 1 Introduction

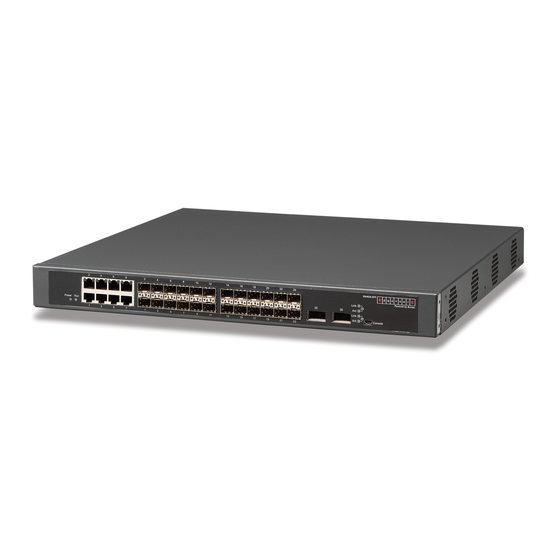

    Figure 1-2 ES4626-SFP Switch 1.1.1 Overview ES4624/26-SFP series switch are 10Gb Ethernet routing switch. ES4624-SFP has 24 fixed 1000Mb ports (16 1000Mb fiber SFP ports and 8 1000Mb COMBO ports). ES4626-SFP has 24 fixed 1000Mb ports (16 1000Mb fiber SFP ports and 8 1000Mb COMBO ports) and 2 fixed 10Gb XFP ports.

  • Page 11: Features And Benefits

    featured in high performance, small size and flexibility, ES4624/26-SFP series switch with advanced intelligent and secure features, can serve ideally as distribution layer switches for campus networks, enterprise networks and IP metropolitan networks; as well as core layer switches for small and medium-sized networks. 1.1.2 Features and Benefits Various Interfaces ES4624/26-SFP series switch provide 16 fixed 1000Mb fiber SFP ports, 8 1000Mb COMBO...

  • Page 12: Physical Specifications

    Min. 80, 000 Hours MTBF 1.3 Description of Hardware 1.3.1 Front Panel ES4624-SFP has 16 1000Mb SFP ports, 8 1000Mb Combo ports (8 RJ-45 and 8 SFP), 1 Console port and 66 LEDs. The front panel of ES4624-SFP is shown below:...

  • Page 13: Back Panel

    Figure 1-3 Front Panel of ES4624-SFP ES4626-SFP has 16 1000Mb SFP ports, 8 1000Mb Combo ports (8 RJ-45 and 8 SFP), 2 10Gb XFP ports, 1 Console port and 70 LEDs. The front panel of ES4626-SFP is shown below: Figure 1-4 Front Panel of ES4626-SFP 1.3.2 Back Panel...

  • Page 14: Status Leds

    1.3.5 Front Panel Port Description ES4624/26-SFP provides 16 1000Mb SFP ports and 8 1000Mb Combo ports (8 RJ-45 and 8 SFP). ES4626-SFP also provides 2 10Gb XFP ports. ES4624-SFP and ES4626-SFP support the following SFP transceivers: ET4201-SX Gigabit SFP MM 850 nm, 500m (SX)
  • Page 15 ET4201-LX Gigabit SFP SM 1310 nm, 10Km (LX) ET4201-LHX Gigabit SFP SM 1310 nm, 40Km (LHX) ET4201-ZX Gigabit SFP SM 1550 nm, 80Km (ZX) ET4201-RJ45 Gigabit SFP to Copper cable RJ45 ES4626-SFP supports the following XFP transceivers: ET5302-LR XFP 10G Transceiver 10KM ET5302-ER XFP 10G Transceiver 40km ET5302-SR...

  • Page 16: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2.1 Installation Notice To ensure the proper operation of ES4624/26-SFP and your physical security, please read carefully the following installation guide. 2.1.1 Environmental Requirements The switch must be installed in a clean area. Otherwise, the switch may be damaged by electrostatic adherence.
  • Page 17 such as SO S, NO , NH and Cl , etc. The table below details the threshold value. Average (mg/m³) Max (mg/m³) 0.006 0.03 0.04 0.15 0.05 0.15 0.01 Table 2.2 Environmental Requirements: Particles 2.1.1.2 Temperature and Humidity Although the switch is designed to use 4 fans, the site should still maintain a desirable temperature and humidity.

  • Page 18: Power Supply

    2.1.1.3 Power Supply Before powering on the power supply, please check the power input to ensure proper grounding of the power supply system. The input source for the switch should be reliable and secure； a voltage adaptor can be used if necessary. The building’s circuit protection system should include in the circuit a fuse or circuit-breaker of no greater than 240 V, 10 A.

  • Page 19: Installation Notice

    the dimensions are 436mm x 44mm x 420mm (W x H x D). Please ensure good ventilation for the rack. Every device in the rack will generate heat during operation, therefore vent and fans must be provided for an enclosed rack, and devices should not be stacked closely. When mounting devices in an open rack, care should be taken to prevent the rack frame from obstructing the switch ventilation openings.

  • Page 20: Installation Preparation

    2.2 Installation Preparation 2.2.1 Verify the Package Contents Please unpack the shipping package and verify carefully the contents inside. ES4624/26-SFP should include the followings: ITEM No. Part name Number ES4624/26-SFP switch AC power cable Manual CD Console cable Chassis bracket Bracket screw Qualification certificate Warranty card...

  • Page 21: Connecting Console

    2. Put the bracket-mounted switch smoothly into a standard 19’’ rack. Fasten the ES4624/26-SFP to the rack with the screws provided. Leave enough space around the switch for good air circulation. Figure 2-1 Rack-mounting ES4624/26-SFP Caution! The brackets are used to fix the switch on the rack. They can’t serve as a bearing. Please place a rack shelf under the switch.

  • Page 22: Sfp Transceiver Installation

    Figure 2-2 Connecting Console to ES4624/26-SFP The connection procedure is listed below: Find the console cable provided in the accessory kit. Attach the Mini-USB end to console port of the switch. Connect the other side of the console cable to a character terminal (PC). Power on the switch and the character terminal.

  • Page 23: Copper Cable/Fiber Cable Connection

    2.3.5 Copper Cable/Fiber Cable Connection Copper cables should be connected as below: Step 1: Insert one end of the Ethernet cable to the RJ-45 Ethernet port in the switch copper cable line card; Step 2: Insert the other end of the Ethernet cable to the RJ-45 Ethernet port of some other device;...
  • Page 24 Figure 2-3 Attaching power cable to ES4624/26-SFP 1. Insert one end of the power cable provided in the accessory kit into the power source socket (with overload and leakage protection), and the other end to the power socket in the back panel of the switch.
