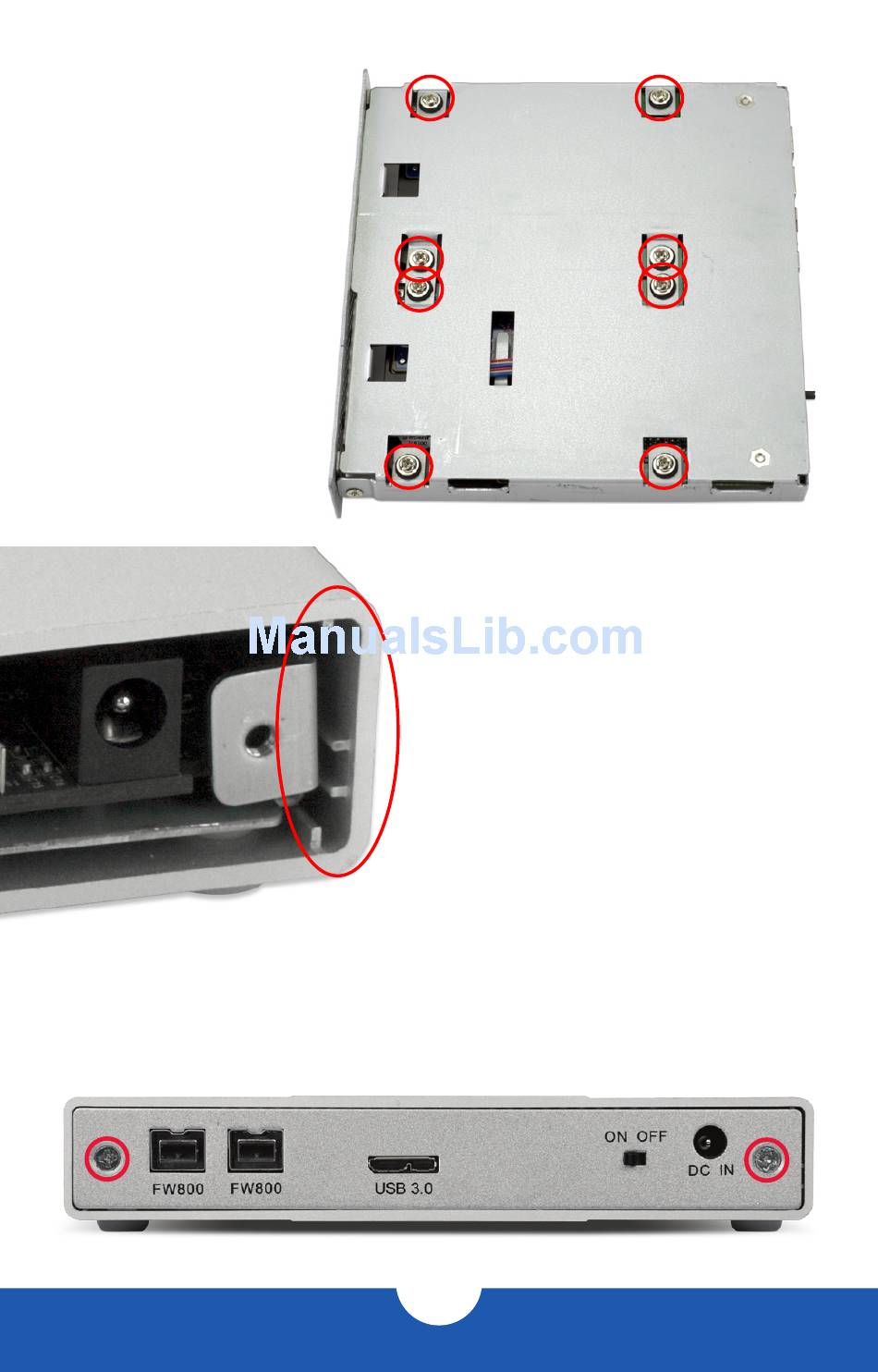

7. Using a Phillips screwdriver,
insert the eight included
screws into the screw holes
to fasten the drives to the
inner chassis, as shown.
When this is done, flip the
inner chassis back over.
9. Using a Phillips screwdriver, attach the back plate as shown. The Mercury Elite Pro Dual
mini is now assembled and ready to be used.
OWC MERCURY ELITE PRO DUAL MINI
8. Slide the inner chassis back into the
outer enclosure. Note that the inner
chassis can slide in either end of the
outer chassis, but the rails on one end
of the outer chassis are notched, as
shown to the left. This allows the back
plate to sit flush when attached.
6
SYSTEM SETUP
