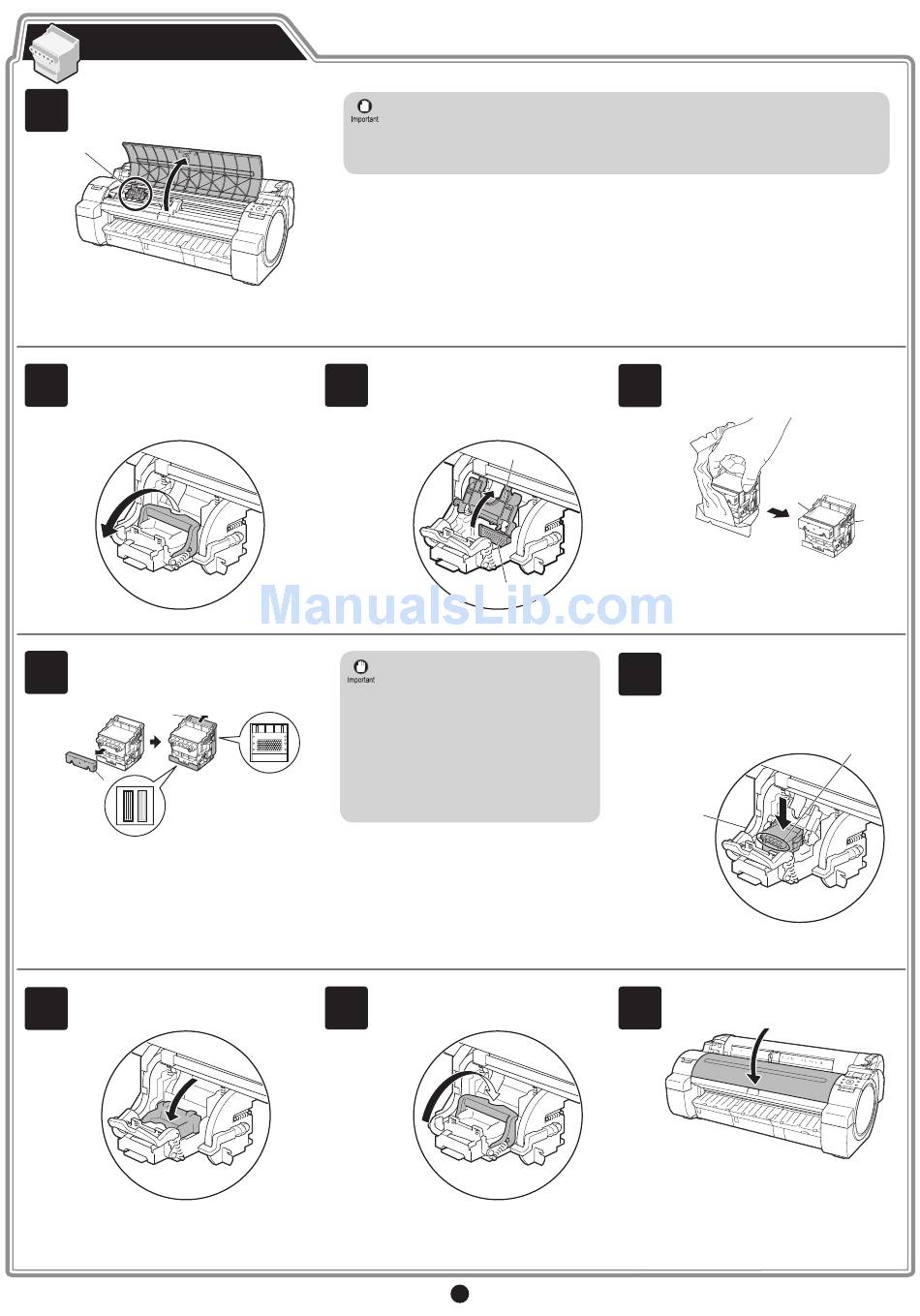

Install the Printhead

1 Open Upper Cover is shown on the
display screen. As instructed, open the top
cover.
a
Instructions on printhead attachment are
shown on the display screen.
2 Pull the printhead fixer lever forward all
the way to open it completely.
5
Remove the orange protective part (a).
To remove orange protective part (b),
push the grip (c) as you remove the
c
b
a
7 Pull the printhead fixer cover down toward
the front to lock the printhead in place.
Next, install the printhead.
• When installing the printhead, do not move the carriage (a) from the position shown in the
figure.
If you move the carriage (a), a warning noise sounds and the printhead cannot be installed.
If you have moved the carriage (a), close the top cover. The carriage (a) moves to the position
shown in the figure.
3 Lift the printhead fixer cover (a) to open it
fully.
At this time, make sure that no debris
becomes adhere to the contacts (b) on the
carriage.
• Never touch the parts covered by the
protective part. This may damage the
.
part
printhead and affect printing quality.
• The printhead contains ink. When
removing the protective material, it is
recommended that you do it over the
bag that the printhead came in to avoid
spilling the ink and soiling your clothes or
the surrounding items.
• Do not reattach the protective part after
removing it. Dispose of these materials
according to local regulations.
8
Push the printhead fixer lever all the way
back.
a
b
4
4 Hold the printhead by the grips (a) as you
remove it from the pouch.
a
Insert the printhead into the carriage (b)
6
with the ink holes (a) facing away from the
printer as shown in the figure. Carefully
push the printhead firmly into the carriage
(b), ensuring that the part covered by
the protective part does not touch the
carriage.
b
9
Close the top cover.
a
a
