F I X T U R E O V E R V I E W
w w w . e l a t i o n l i g h t i n g . c o m
w w w . e l a t i o n l i g h t i n g . c o m

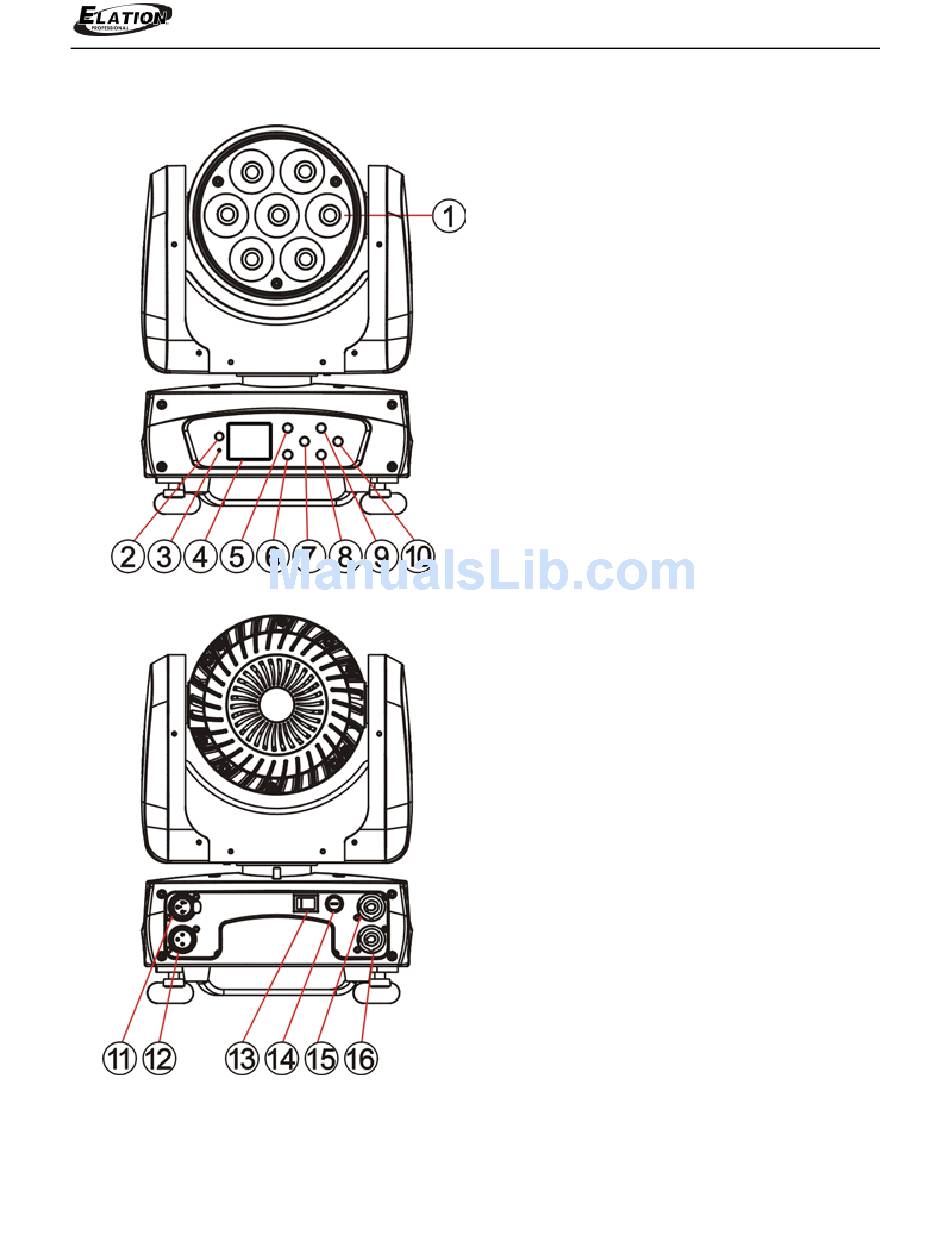

1: LED Lens Assembly
2: DC Switch
3: Microphone
4: LCD Menu Control Display
5: MODE/ESC Button
6: ENTER Button
7: LEFT Button
8: DOWN Button
9: UP Button
10: RIGHT Button
11: 5Pin DMX OUT
12: 5Pin DMX IN
13: Power Switch
14: Fuse
15: Power IN
16: Power OUT
