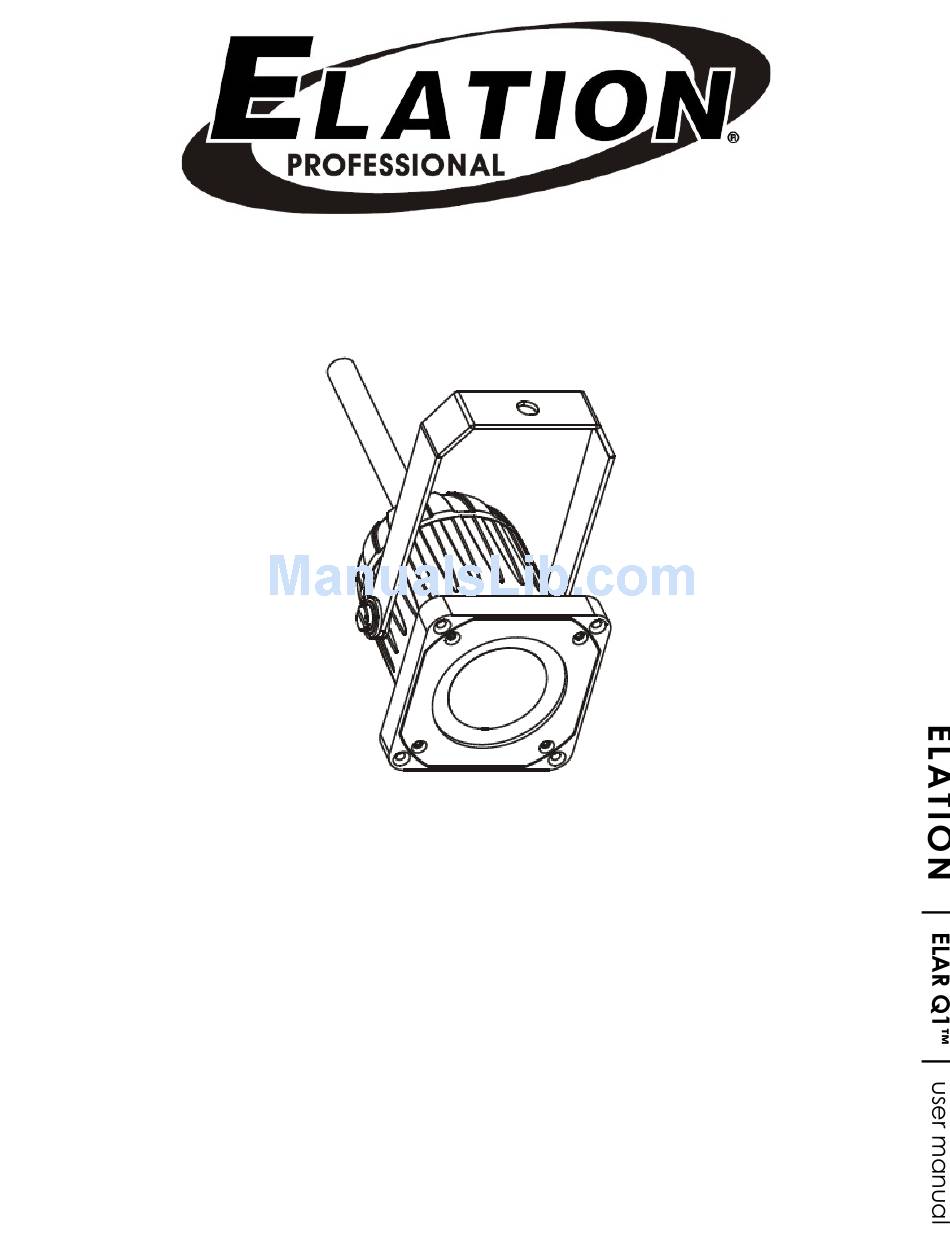

- Page 1 ELAR Q1™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
General Information Warranty Safety Instructions General Guidelines Fixture / Power Supply Overview Cables Overview Fixture Installation System Installation Guide DMX Channel Functions And Values FAQ / Troubleshooting Cleaning and Maintenance Technical Specifications Optional Accessories ELAR Q1™ User Manual ver 1... -
Page 4: General Information
INTRODUCTION Congratulations, you have just purchased one of the most innovative and ™ reliable ArtNet to DMX converter on the market today! The ELAR Q1 has been designed to perform reliably for years when the guidelines in this booklet are followed. - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
- Page 6 Damages resulting from modifications to this fixture and/or the disregard of safety and general user instructions found in this user manual void the manufactures warranty and are not subject to any warranty claims and/or repairs. ELAR Q1™ User Manual ver 1...
-
Page 7: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss of or damage to any such accessories, nor for the safe return thereof. -
Page 8: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If • the power cord is damaged, replace it immediately with a new one of similar power rating. ELAR Q1™ User Manual ver 1... -
Page 9: General Guidelines
• Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. ELAR Q1™ User Manual ver 1... -
Page 10: Fixture / Power Supply Overview
2. Mounting Yoke 3. 8pin Power/Data Y Cable (Male) 4. 8pin Power/Data Y Cable (Female) ™ ELAR Q1 PSU - SKU# EAR925 (NOT INCLUDED) 1. 8pin Power/Data Cable (Female) 2. 8pin Power/Data Cable (Male) 3. Fuse ELAR Q1™ User Manual ver 1... -
Page 11: Cables Overview
™ ™ power supply and a DMX controller. (see image below) ELAR Q1 PSU IP POWER CABLE 3.3 ft. (1m) - SKU# 60413010146 (NOT INCLUDED) IP rated power cable with an 8pin female end and bare wire leads end, used to supply 100-240V to each ELAR Q1 PSU power supply unit. - Page 12 . e l a t i o n l i g h t i n g . c o m C A B L E S O V E R V I E W [ c o n t i n u e d ] ELAR Q1 IP EXTENSION Y-CABLE - SKU# 60413010149 (NOT INCLUDED)
- Page 13 ELAR Q1 IP EXTENSION CABLE 3.3 ft. (1m) - SKU# 60413010145 (NOT INCLUDED) IP rated 3.3 ft. (1M) power/data extension cable with 8pin male and 8pin female ends, used to daisy chain up to (10) ELAR Q1 fixtures. ™ ELAR Q1 IP EXTENSION CABLE 9.8 ft. (3m) - SKU# 60413990038 (NOT INCLUDED) IP rated 9.8 ft.
-
Page 14: Fixture Installation
(4) mounting holes around the square LED lens frame for more permanent installations. SECURING ™ Regardless of the rigging option you choose for your ELAR Q1 always be sure to secure your fixture with a safety cable. ELAR Q1™ User Manual ver 1... - Page 15 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. ELAR Q1™ User Manual ver 1...
-
Page 16: System Installation Guide
It is highly recommended to first confirm all the required hardware is available to support your system design, before beginning the installation process. Since the ELAR Q1™ system can be customized with a varying number of fixtures and distances between them, it is imperative to confirm the correct cable types, lengths, quantities, and power supplies are available to support the total number of fixtures you plan to install. - Page 17 ™ install a system of (30) ELAR Q1 fixtures. See the System Install Diagram Example on the next page for further details. MATERIAL LIST TO INSTALL A SYSTEM OF (30) ELAR Q1™ FIXTURES QTY SKU# DESCRIPTION EAR913 ELAR Q1™ FIXTURE...
- Page 18 . e l a t i o n l i g h t i n g . c o m w w w . e l a t i o n l i g h t i n g . c o m ELAR Q1™ User Manual ver 1...
-
Page 19: Dmx Channel Functions And Values
DMX Channel Values / Functions (4 DMX Channels) Specifications are subject to change without any prior written notice. MODE / CHANNEL VALUE FUNCTION 4 CH 0-255 Red (0-100%) GREEN 0-255 Green (0-100%) BLUE 0-255 Blue (0-100%) WHITE 0-255 White (0-100%) ELAR Q1™ User Manual ver 1... -
Page 20: Faq / Troubleshooting
F A Q / T R O U B L E S H O O T I N G T I P S How many fixtures can be connected to each power supply? ™ ™ A maximum of (15) total ELAR Q1 fixtures per each ELAR Q1 PSU power supply. None of the fixtures turn ON? Confirm the proper DMX address has been assigned to each fixture in the system and confirm each power supply is receiving AC power. -
Page 21: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 22: Technical Specifications
24VAC 18W Max Power Consumption 14°F to 113°F (-10°C to 45°C) APPROVALS / RATINGS IP65** Optional Corrosion-Resistant Coating may be available for this fixture. Please consult an Elation sales representative for details. ELAR Q1 PSU™ FEATURES IP65 Rated 24VAC Output Max (15) Linked ELAR Q1™... -
Page 23: Photometric Data
PHOTOMETRIC DATA ™ ELAR Q1 LED LENS HOUSING DIMENSIONAL DRAWINGS - Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ELAR Q1™ User Manual ver 1... -
Page 24: Not Included
. e l a t i o n l i g h t i n g . c o m ™ ELAR Q1 ATTACHED CABLE LENGTHS DIMENSIONAL DRAWINGS - WEIGHT: 1.1 lbs. (0.5 kg) ™ ELAR Q1 PSU (NOT INCLUDED) DIMENSIONAL DRAWINGS - WEIGHT: 2.2 lbs. (1.0 kg) ELAR Q1™ User Manual ver 1... -
Page 25: Optional Accessories
60413010144 ELAR Q1 IP STARTER Y-CABLE 60413010149 ELAR Q1 IP EXTENSION Y-CABLE 60413010146 ELAR Q1 PSU IP POWER CABLE 3.3 ft. (1m) 60413010145 ELAR Q1 IP EXTENSION CABLE 3.3 ft. (1m) 60413990038 ELAR Q1 EXTENSION CABLE 9.8 ft. (3m) ELAR Q1™ User Manual ver 1...
