Configuring DIP switch setting options

Booster Power Supply Manual
Technical Manuals Online! - http://www.tech-man.com

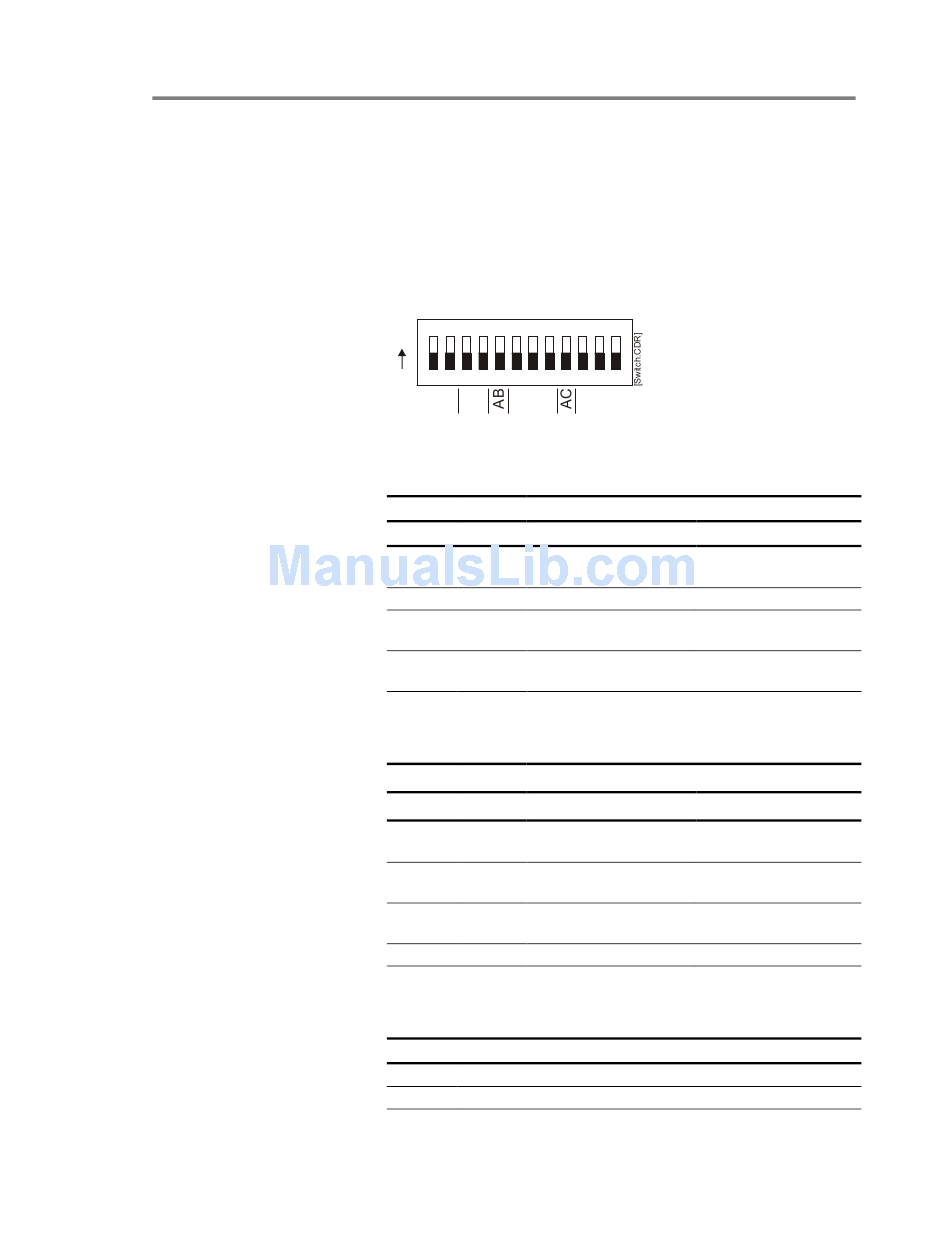

DIP switch configuration

A 12-position DIP switch is used to configure NAC circuit
options, AC power loss, auxiliary outputs, and Class A or B
wiring. The following tables show the positions for each switch
on the DIP switch for the various input, output, and panel
configurations.
SW1
ON
1 2 3 4 5 6 7 8 9 101112
S1 S2
RATE
Sense 1 input
Switch SW1-1/2 (S1)
SW1-1
SW1-2
Class B
OFF
OFF
Activates all NACs
ON
OFF
Activates NAC1 only
OFF
ON
Activates NACs 1 &
2 only
ON
ON
Activates NACs 1, 2
& 3 only
Sense 2 input
Switch SW1-3/4 (S2)
SW1-3
SW1-4
Class B
OFF
OFF
Activates all NACs
ON
OFF
Activates NACs 2, 3,
& 4 only
OFF
ON
Activates NACs 3 &
4 only
ON
ON
Activates NAC4 only
Class A or B configuration
Switch SW1-5 (AB)
SW1-5
Description
ON
NACs Class A (JP1 and JP2 must be set to Class A)
OFF
NACs Class B (JP1 and JP2 must be set to Class B)
AUX
Description
Class A
Activates both NACs
1/2 and 3/4
Activates NAC 1/2
Activates NAC 1/2
Activates both NACs
1/2 and 3/4
Description
Class A
Activates both NACs
1/2 and 3/4
Activates NAC 3/4
Activates NAC 3/4
No NACs activated
5
